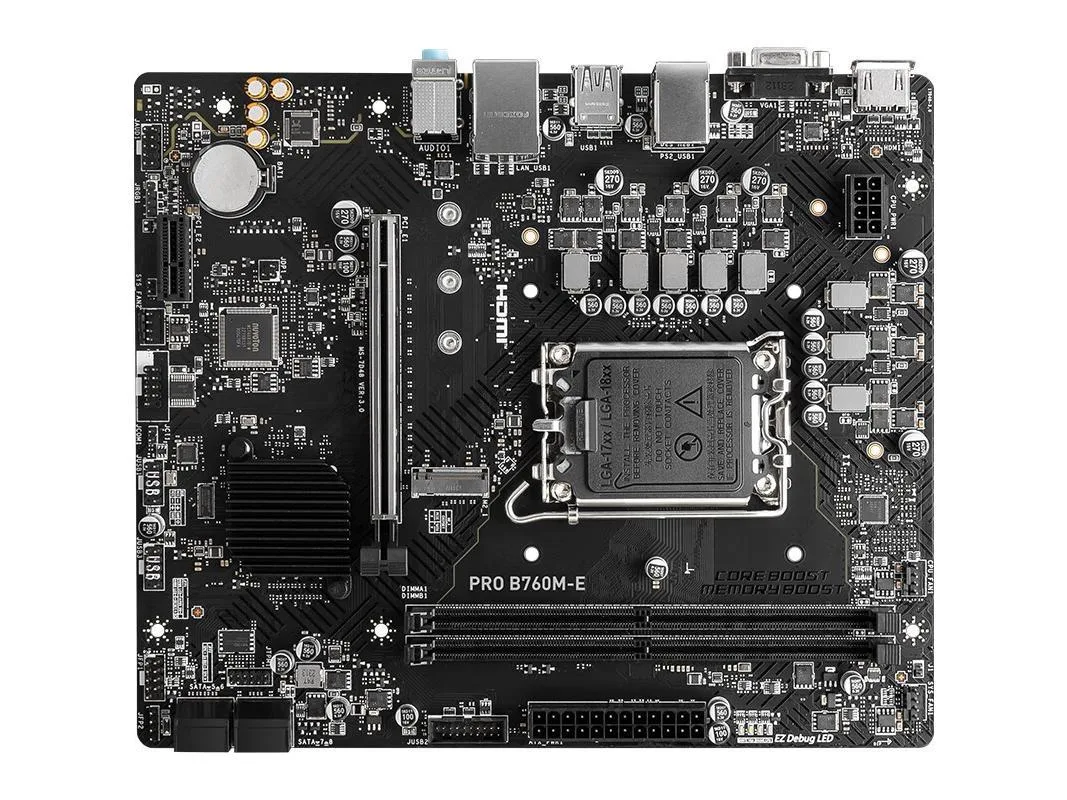

Micro-ATX motherboard in black with silver heatsinks and LGA 1700 socket

MSI

MSI PRO B760M-E Intel motherboard

SKU CH-2Q8H-4AX1Q

Micro ATX board with LGA 1700 socket, DDR5 memory up to 128 GB, PCIe 4.0 x16 slot, 7.1 audio and Gigabit LAN

  • CPU Socket TypeLGA 1700
  • CPU TypeSupport Intel Core™ 14th/ 13th/ 12th Gen Processors, Intel P
  • ChipsetIntel B760
  • Memory StandardSupport 7800 + (OC)/7600 (OC)/7400 (OC)/7200 (OC)/7000 (OC)/
  • Maximum Memory Supported128GB
  • PCI Slots1X PCI-E x16 slots (quantity) 1X PCI-E x1 slot (quantity) PC
  • Supports Intel Core 12, 13 and 14 generation processors with LGA 1700 socket
  • DDR5 memory up to 128GB capacity at speeds from 4800 to 7800 MHz
  • PCIe 4.0 x16 slot for graphics cards and PCIe 3.0 x1 slot for add-in cards
  • Realtek ALC897 7.1 channel audio and Realtek RTL8111H gigabit LAN built in
  • Micro ATX form factor measuring 23.6 by 20.0 cm with four SATA III ports

LGA 1700 micro-ATX board for Intel 12/13/14 Gen CPUs

This micro-ATX motherboard uses the Intel B760 chipset and an LGA 1700 socket to support Intel Core 12th, 13th and 14th generation processors along with Pentium Gold and Celeron chips. It targets builders who need a compact foundation for everyday computing or office workstations. The board provides four DDR5 slots with a maximum capacity of 128 GB. Buyers who need more storage lanes or a second full-size graphics card should look elsewhere.

Sustained load behaviour with B760 chipset

Under continuous load the B760 chipset links the primary PCIe 4.0 x16 slot and a single M.2 interface directly to the CPU while the second PCIe 3.0 x1 slot and four SATA III ports run through the chipset. The Realtek RTL8111H Gigabit LAN and Realtek ALC897 7.1-channel audio controllers maintain steady throughput during long sessions. No additional cooling provisions are described in the data so prolonged heavy workloads rely on case airflow alone.

Installation notes and common pitfalls

The package ships as a refurbished unit without original retail packaging and includes only the board a metal battery and one SATA cable. Mounting holes follow the 23.6 by 20.0 cm micro-ATX pattern. The I/O shield is supplied but front-panel USB 5 Gbps headers and the four USB 2.0 headers must be connected manually. Missing screws or a mismatched chassis cut-out are the most frequent installation issues.

Highlights

  • Supports Intel Core 12, 13 and 14 generation processors with LGA 1700 socket
  • DDR5 memory up to 128GB capacity at speeds from 4800 to 7800 MHz
  • PCIe 4.0 x16 slot for graphics cards and PCIe 3.0 x1 slot for add-in cards
  • Realtek ALC897 7.1 channel audio and Realtek RTL8111H gigabit LAN built in
  • Micro ATX form factor measuring 23.6 by 20.0 cm with four SATA III ports

Specifications

BrandMSI
SeriesMSI PRO B760M-E
ModelMSI PRO B760M-E
CPU Socket TypeLGA 1700
CPU TypeSupport Intel Core™ 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors
LGA 1700
ChipsetIntel B760
Memory StandardSupport 7800 + (OC)/7600 (OC)/7400 (OC)/7200 (OC)/7000 (OC)/6800 (OC)/6600 (OC)/6400 (OC)/6200 (OC)/6000 (OC)/5800 (OC)/5600 (JEDEC)/5400 (JEDEC)/5200 (JEDEC)/5000 (JEDEC)/4800 (JEDEC) MHz
Maximum Memory Supported128GB
PCI Slots1X PCI-E x16 slots (quantity)
1X PCI-E x1 slot (quantity)
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
SATA RAID1XM.2 interface, 4xSATA III interface
Audio ChipsetRealtek ALC897 Codec
7.1-Channel High Definition Audio
LAN ChipsetRealtek RTL8111H Gigabit LAN
Onboard USB4X USB 2.0 (rear)
4X USB 2.0 (front)
2x USB 5Gbps Type A (Rear)
2x USB 5Gbps Type A (Front)

Questions about this item

How much power does the MSI PRO B760M-E draw when the system runs all day?

The board uses an LGA 1700 socket with the Intel B760 chipset; actual power draw depends on the installed 12th, 13th or 14th Gen processor and the DDR5 memory kit running at up to 7800 MHz.

Which DDR5 memory and CPU cooler must I already own for this motherboard to work?

You need DDR5 modules up to 128 GB total and a cooler that fits the LGA 1700 mounting pattern for Intel Core 12th, 13th or 14th Gen processors.

Will my existing SATA SSDs and PCIe 3.0 add-in cards work alongside the B760 chipset?

Yes, the board provides four SATA III ports and a PCIe 3.0 x1 slot from the chipset, so older SATA drives and PCIe 3.0 cards remain usable.
