Compact green Mini-ITX board with silver I/O shield and black slots

MSI

MSI PRO H410I PRO WIFI LGA 1200 Intel Motherboard

SKU CH-PFJZ-GEVQ3

Mini-ITX board for 10th and 11th Gen Intel CPUs with dual-channel DDR4 up to 64 GB, Wi-Fi 802.11 ac, Bluetooth, Intel 1 Gbps LAN, Realtek 7.1 audio, one PCIe 3.0 x16 slot, four SATA ports.

  • CPU Socket TypeLGA 1200
  • CPU TypeCore i9 / i7 / i5 / i3 (11th / 10th Gen, LGA1200)
  • ChipsetIntel H410
  • Number of Memory Slots2x288pin (DDR4)
  • Memory StandardDDR4 2933
  • Maximum Memory Supported64GB
  • Supports 10th and 11th Gen Intel Core processors with LGA 1200 socket
  • Dual-channel DDR4 memory up to 64 GB at 2933 MHz
  • One PCI Express 3.0 x16 slot for graphics expansion
  • Four SATA 6Gb/s ports plus one M.2 slot for storage
  • Intel I219-V 1 Gbps LAN with Wi-Fi 802.11 ac and Bluetooth

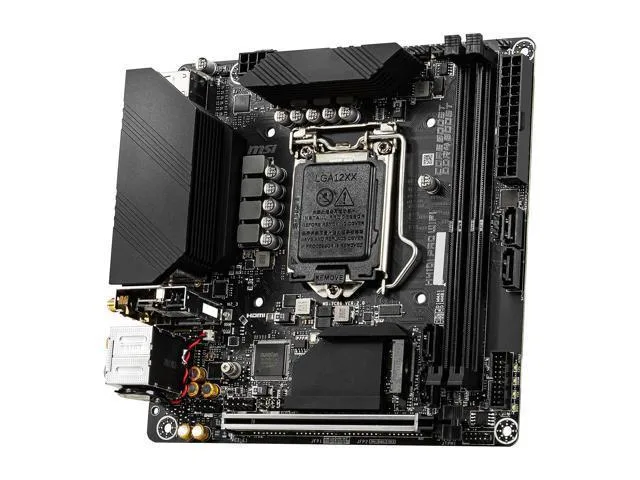

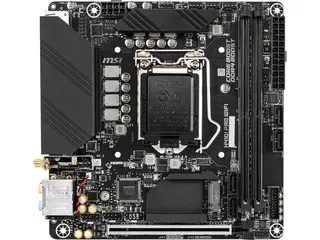

Compact Intel H410 Board for Small-Form Builds

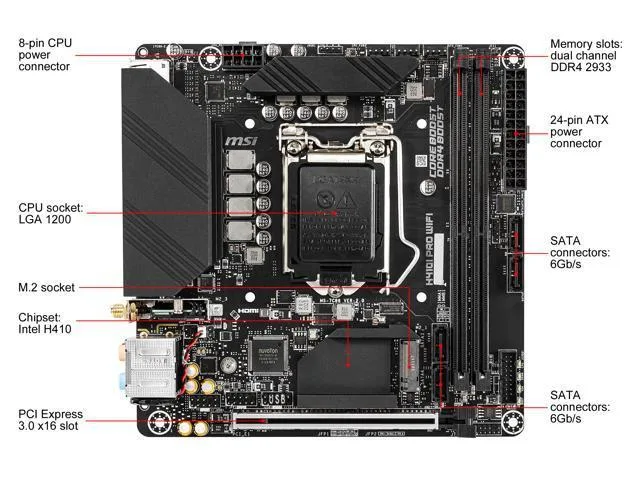

The MSI PRO H410I PRO WIFI fits a Mini-ITX frame with an LGA 1200 socket and Intel H410 chipset. It accepts 10th and 11th Generation Core i9, i7, i5 and i3 processors. Two DDR4 slots support up to 64 GB in dual-channel mode. One PCI Express 3.0 x16 slot, four SATA 6Gb/s ports and a single M.2 socket handle graphics and storage.

Suited to Basic Workstations and Media PCs

The board works well for office desktops, home-theatre rigs or light productivity systems that need integrated Wi-Fi 802.11 ac and Bluetooth. Builders who want multiple graphics cards, overclocking headroom or more than one M.2 drive should look at a larger chipset.

Memory Speed Tied to Processor Tier

Core i7 and i9 CPUs allow DDR4 2933, while Core i5 and lower are limited to DDR4 2666. That distinction decides whether the board matches your planned processor and memory kit.

Highlights

  • Supports 10th and 11th Gen Intel Core processors with LGA 1200 socket
  • Dual-channel DDR4 memory up to 64 GB at 2933 MHz
  • One PCI Express 3.0 x16 slot for graphics expansion
  • Four SATA 6Gb/s ports plus one M.2 slot for storage
  • Intel I219-V 1 Gbps LAN with Wi-Fi 802.11 ac and Bluetooth

Specifications

BrandMSI
SeriesPRO
ModelH410I PRO WIFI
CPU Socket TypeLGA 1200
CPU TypeCore i9 / i7 / i5 / i3 (11th / 10th Gen, LGA1200)
ChipsetIntel H410
Number of Memory Slots2x288pin (DDR4)
Memory StandardDDR4 2933
Maximum Memory Supported64GB
Channel SupportedDual Channel
PCI Express 3.0 x161 x PCI Express 3.0 x16
Serial ATA (SATA)4 x SATA 6Gb/s
M.21 x M.2
Audio ChipsetRealtek ALC1200
Audio Channels7.1 Channels
LAN ChipsetIntel I219-V
Max LAN Speed1Gbps
Wireless LANWi-Fi 802.11 ac
BluetoothYes
Onboard USB2 x USB 3.2 + 2 x USB 2.0
Other Connectors1 x 4-pin CPU fan connector1 x 4-pin water-pump fan connector1 x 4-pin system fan connector1 x Front panel audio connector1 x System panel connector1 x 4-pin RGB LED connector1 x 3-pin RAINBOW LED connector1 x Chassis Intrusion connector
Form FactorMini ITX
LED LightingRGB
Dimensions (W x L)6.7" x 6.7"
Power Pin24 Pin
FeaturesSupports 10th Gen Intel Core / Pentium Celeron processors for LGA 1200 socketSupports DDR4 Memory, up to 2933 (Max) MHzCore Boost: With premium layout and digital power design to support more cores and provide better performanceDDR4 Boost: Advanced technology to deliver pure data signals for the best performance and stabilityIntel Wireless support: delivers AC speeds up to 433Mbps with lower CPU loading and better long-term usageTurbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDsAudio Boost: Reward your ears with studio grade sound qualitySteel Armor: Protec

Questions about this item

What PCIe standard does the H410I PRO WIFI use for its x16 slot, and what bandwidth does that cap a graphics card at?

The single PCIe 3.0 x16 slot provides up to 16 GT/s per lane, limiting a discrete GPU to PCIe 3.0 bandwidth.

What physical layout and mounting pattern does the H410I PRO WIFI use?

The board uses the Mini-ITX form factor with four standard mounting holes for Mini-ITX cases.

How is the M.2 drive installed on the H410I PRO WIFI, and which step is often missed?

Insert the M.2 module at an angle into the single M.2 slot, then secure it with the small retention screw; the screw step is frequently forgotten.
