Green Micro ATX board with LGA 1700 socket, silver heatsinks, black slots and rear I/O shield

MSI

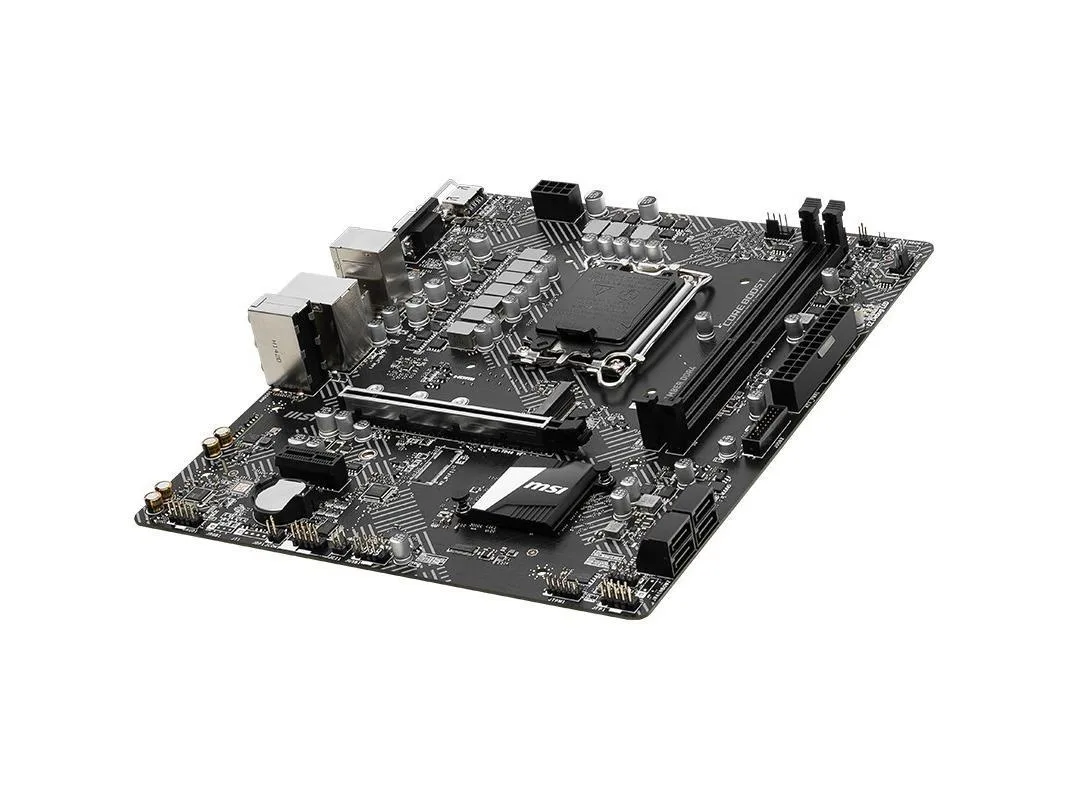

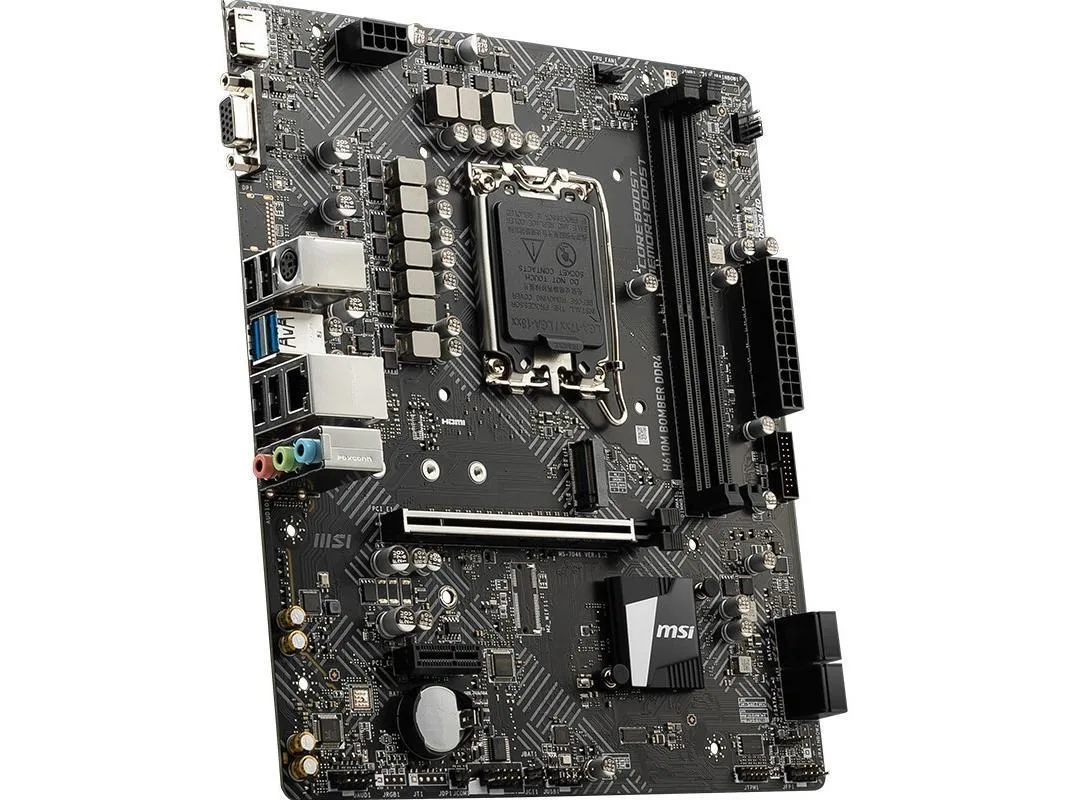

MSI PRO H610M-B DDR4 Intel motherboard

SKU CH-KPMT-HJG57

Supports 12th Gen Intel Core, Pentium Gold and Celeron processors on LGA 1700 with DDR4 memory up to 3200 MHz and 64 GB capacity in a Micro ATX form factor

  • CPU Socket TypeLGA 1700
  • CPU TypeSupports 12th Gen Intel Core Processors, Pentium Gold and Ce
  • ChipsetIntel H610
  • Memory StandardSupport dual-channel DDR4 3200/2933/2666/2133MHz memory
  • Maximum Memory Supported64GB
  • PCI Slots1x PCIe x16 slot (From CPU) Supports up to PCIe 4.0 x16 1x P
  • Supports 12th Gen Intel Core processors via LGA 1700 socket
  • Dual-channel DDR4 memory up to 3200 MHz for responsive multitasking
  • 64 GB maximum capacity handles demanding workloads
  • PCIe 4.0 x16 slot enables modern graphics cards
  • Intel I219V 1 Gbps LAN provides reliable wired connectivity

MSI PRO H610M-B DDR4 Motherboard

The MSI PRO H610M-B DDR4 is a micro-ATX board built around the Intel H610 chipset for LGA 1700 processors. It supports 12th Gen Intel Core, Pentium Gold and Celeron CPUs. Dual-channel DDR4 memory runs at up to 3200 MHz with a 64 GB maximum capacity.

Entry builds and office upgrades

This board suits budget office PCs or home systems that need a simple LGA 1700 platform with four SATA ports and a single PCIe 4.0 x16 slot. Builders who require multiple M.2 drives, more than six USB 2.0 ports or overclocking headroom should look at a different chipset.

Single PCIe 4.0 x16 slot from the CPU

The graphics card installs in one PCIe 4.0 x16 slot wired directly to the processor. A second PCIe 3.0 x1 slot and an E-key M.2 socket for a Wi-Fi module provide limited expansion. Storage connects through four SATA III ports.

Highlights

  • Supports 12th Gen Intel Core processors via LGA 1700 socket
  • Dual-channel DDR4 memory up to 3200 MHz for responsive multitasking
  • 64 GB maximum capacity handles demanding workloads
  • PCIe 4.0 x16 slot enables modern graphics cards
  • Intel I219V 1 Gbps LAN provides reliable wired connectivity

Specifications

BrandMSI
SeriesMSI PRO H610M-B DDR4
ModelMSI PRO H610M-B DDR4
CPU Socket TypeLGA 1700
CPU TypeSupports 12th Gen Intel Core Processors, Pentium Gold and Celeron Processors
Processor socket LGA1700
ChipsetIntel H610
Memory StandardSupport dual-channel DDR4 3200/2933/2666/2133MHz memory
Maximum Memory Supported64GB
PCI Slots1x PCIe x16 slot (From CPU)
Supports up to PCIe 4.0 x16
1x PCIe x1 slot
Supports PCIe 3.0 x1
1x M.2 slot with E-key for PCIe WiFi module only (M2_WIFI1)
SATA RAID1XM.2 interface, 4xSATA III interface
Audio ChipsetRealtek ALC892/ ALC897 Codec
7.1-Channel High Definition Audio
LAN Chipset1x Intel I219V 1Gbps LAN controller
Onboard USB4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector)
6x USB 2.0 ports (4 Type-A ports on the back panel(hub-GL850G), 2 ports available through the internal USB 2.0 connector)

Questions about this item

How is the motherboard installed in a Micro ATX case and what step is often missed?

Align the board with the standoffs using the supplied I/O shield, then secure all mounting screws; the step often missed is connecting the front-panel header pins for power, reset and activity LEDs in the correct polarity.

What maintenance or replacement will the board need over its lifetime?

The CMOS battery holds BIOS settings while the system is unplugged; when the clock drifts or settings reset, swap the cell for a fresh one of the same type.

What limit appears first when the board runs under sustained load?

The single PCIe 4.0 x16 slot and one M.2 E-key slot share bandwidth from the CPU, so heavy GPU and Wi-Fi traffic can saturate the link before thermal limits are reached.
