Green micro-ATX board with silver LGA1700 socket, black DDR4 slots and matte heatsinks

MSI

MSI PRO H610M-E DDR4 Intel motherboard

SKU CH-SPTC-1WNBT

Micro-ATX board for 12th, 13th and 14th Gen Intel CPUs with dual-channel DDR4 up to 64 GB, PCIe 4.0 x16 and 1 Gb LAN

  • CPU Socket TypeLGA 1700
  • CPU TypeSupport Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pe
  • ChipsetIntel H610
  • Memory StandardSupport dual-channel DDR4 3200/2933/2666/2133MHz memory
  • Maximum Memory Supported64GB
  • PCI Slots1x PCIe x16 slot (From CPU) Supports up to PCIe 4.0 x16 1x P
  • Supports 12th, 13th and 14th Gen Intel Core processors via LGA 1700 socket
  • Dual-channel DDR4 memory up to 64 GB at 3200 MHz
  • PCIe 4.0 x16 slot for graphics and PCIe 3.0 x1 for add-in cards
  • Four SATA III ports and one M.2 interface for storage expansion
  • Realtek ALC897 7.1-channel audio with Realtek RTL8111H 1 Gbps LAN

Socket LGA 1700 DDR4 board

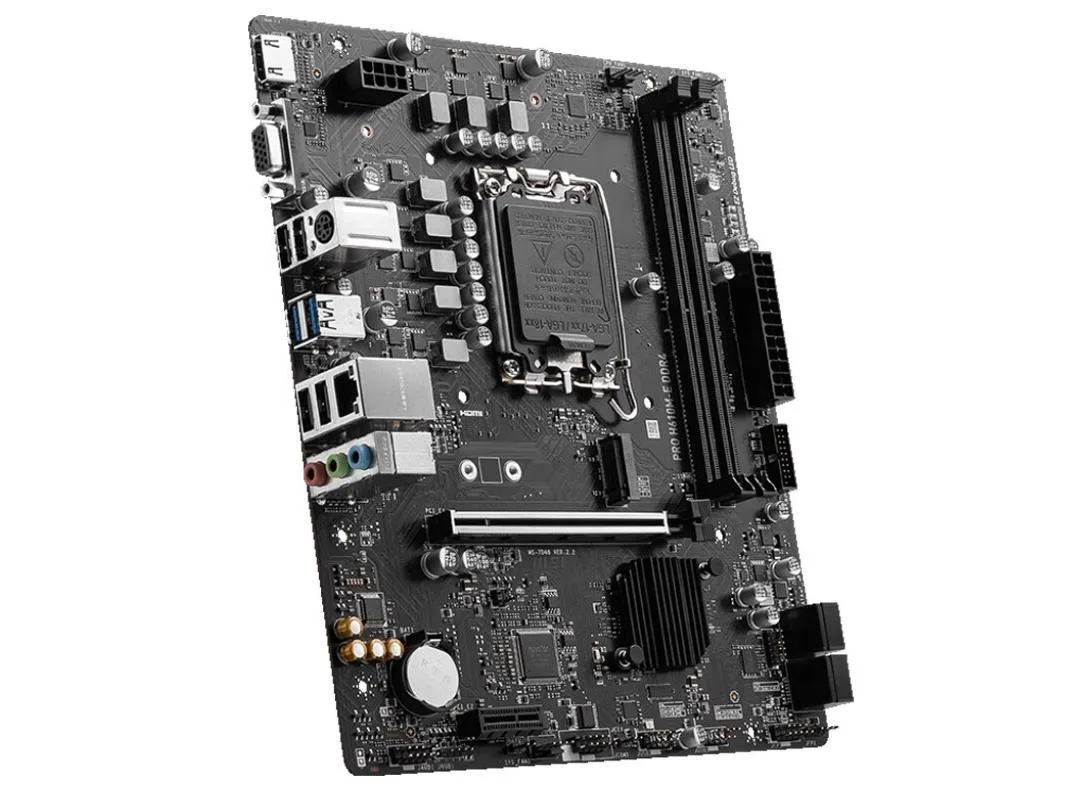

The MSI PRO H610M-E DDR4 is a micro-ATX motherboard built around the Intel H610 chipset. It accepts 12th, 13th and 14th generation Intel Core, Pentium Gold and Celeron processors in the LGA 1700 socket. Dual-channel DDR4 memory runs at speeds up to 3200 MHz with a maximum capacity of 64 GB.

Entry builds and basic upgrades

This board suits builders who need a compact foundation for everyday computing or a direct replacement for an existing H610 system. It is not suited for users who require multiple PCIe x16 slots, extensive M.2 storage arrays or CPU overclocking features.

Chipset H610 limits expansion

The H610 chipset provides one PCIe 4.0 x16 slot from the CPU and a single PCIe 3.0 x1 slot from the chipset. That layout decides whether the board can host the graphics card and add-in cards your build requires.

Highlights

  • Supports 12th, 13th and 14th Gen Intel Core processors via LGA 1700 socket
  • Dual-channel DDR4 memory up to 64 GB at 3200 MHz
  • PCIe 4.0 x16 slot for graphics and PCIe 3.0 x1 for add-in cards
  • Four SATA III ports and one M.2 interface for storage expansion
  • Realtek ALC897 7.1-channel audio with Realtek RTL8111H 1 Gbps LAN

Specifications

BrandMSI
SeriesMSI PRO H610M-E DDR4
ModelMSI PRO H610M-E DDR4
CPU Socket TypeLGA 1700
CPU TypeSupport Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors
Processor socket LGA1700
ChipsetIntel H610
Memory StandardSupport dual-channel DDR4 3200/2933/2666/2133MHz memory
Maximum Memory Supported64GB
PCI Slots1x PCIe x16 slot (From CPU)
Supports up to PCIe 4.0 x16
1x PCIe x1 slot (From H610 chipset)
Supports PCIe 3.0 x1
SATA RAID1XM.2 interface, 4xSATA III interface
Audio ChipsetRealtek ALC897 Codec
7.1-Channel High Definition Audio
LAN Chipset1x Realtek RTL8111H 1Gbps LAN controller
Onboard USB1x USB 3.2 Gen 1 5Gbps connector (From H610 chipset)
Supports additional 2 USB 3.2 Gen 1 5Gbps ports
2x USB 2.0 Type-A connectors (From Hub-GL850G)
Supports additional 4 USB 2.0 ports

Questions about this item

How loud and hot does the MSI PRO H610M-E DDR4 get under all-day load with its 64GB DDR4 limit?

The board has no built-in cooling beyond the chipset heatsink; noise and heat depend entirely on the CPU cooler, case airflow and the specific 12th, 13th or 14th Gen processor installed.

Which parts must I already own for the MSI PRO H610M-E DDR4 to function — CPU, memory, graphics, storage?

You need an LGA 1700 processor from the 12th, 13th or 14th Gen families, at least one DDR4 DIMM up to 3200 MHz, a graphics card or CPU with integrated graphics for the PCIe 4.0 x16 slot, and a SATA or M.2 drive for the boot volume.

Will my older SATA III SSDs and PCIe 3.0 add-in cards work alongside the MSI PRO H610M-E DDR4?

Yes — the board provides four SATA III ports and a PCIe 3.0 x1 slot from the H610 chipset, so existing SATA drives and PCIe 3.0 expansion cards operate at their native speeds.
