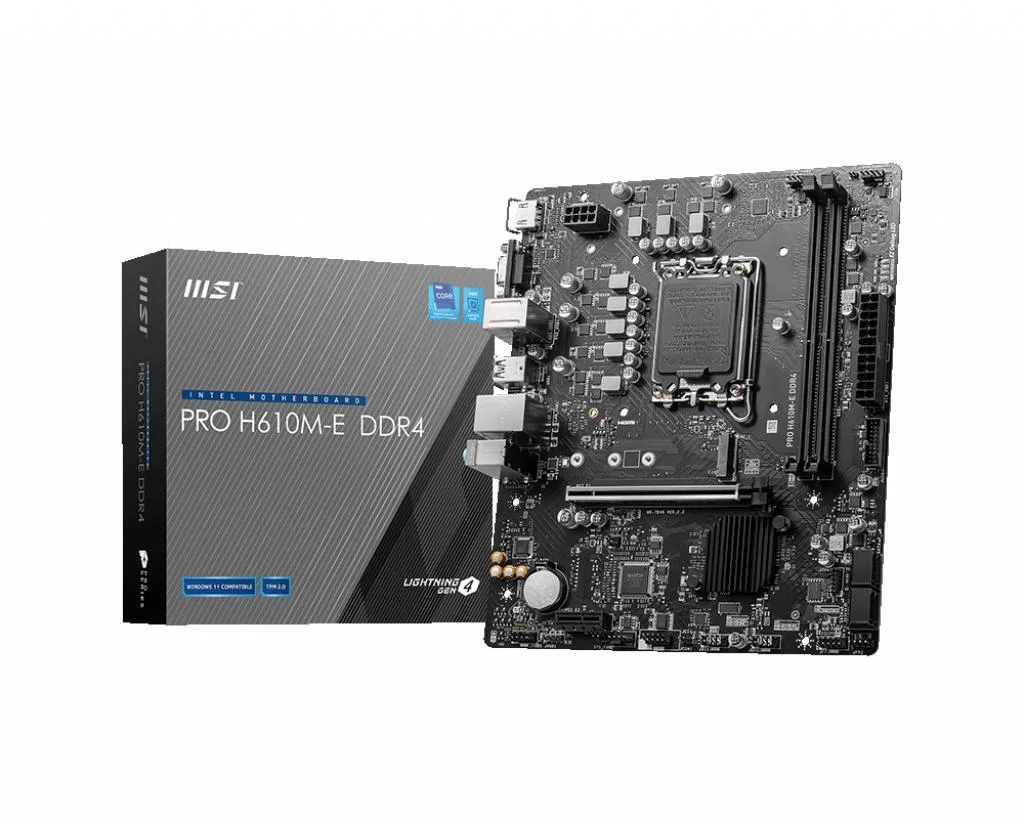

MSI micro-ATX motherboard, matte black PCB with silver heatsinks and reinforced PCIe slot

MSI

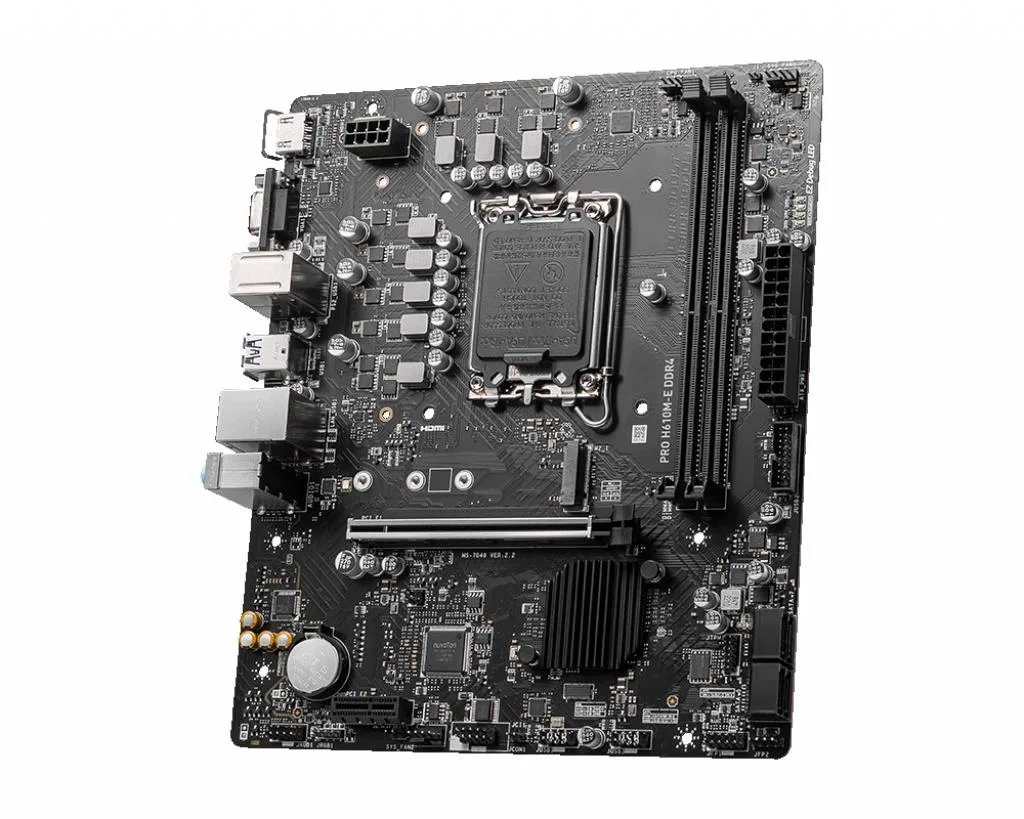

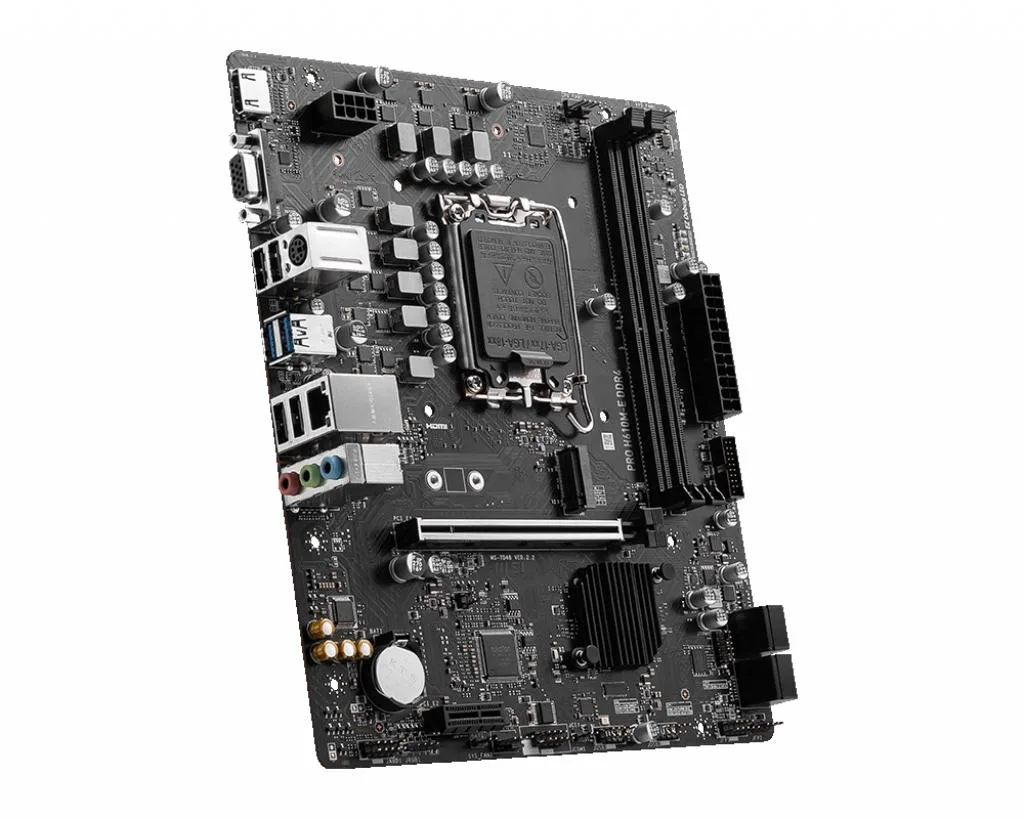

MSI PRO H610M-E DDR4 Intel motherboard 7D48-001R

SKU CH-71A0-EYYTJ

Micro ATX board for LGA 1700 CPUs with DDR4 up to 3200 MHz, PCIe 4.0, M.2 slot, four SATA ports, six USB ports, 7.1-channel audio and steel-armour PCIe slot

  • Supports up to 64GB DDR4 at 3200MHz for smooth multitasking
  • PCIe 4.0 and M.2 slot enable fast storage upgrades
  • Realtek ALC897 with 7.1-channel Audio Boost delivers clear sound
  • Steel Armor shields graphics cards from bending and EMI
  • Micro ATX form factor fits compact and versatile PC builds

Ideal for compact Intel builds

The MSI PRO H610M-E DDR4 motherboard uses the Intel H610 chipset and LGA 1700 socket to support 12th Gen Core, Core i9, Pentium Gold and Celeron processors. Its micro ATX form factor fits smaller chassis while providing dual-channel DDR4 memory up to 64 GB at 3200 MHz. Six onboard USB ports (four USB 2.0 and two USB 3.1) plus four SATA III connectors and an M.2 slot cover everyday connectivity needs. Builders who need more than two memory slots or additional expansion slots should consider a larger board.

Thermals noise and power

Core Boost and Memory Boost circuitry deliver clean power to the CPU and memory for stable operation under normal workloads. Steel Armor shields the primary PCIe slot from electromagnetic interference and physical stress. The Realtek ALC897 codec with Audio Boost provides 7.1-channel output without adding active cooling components. Because the board relies on passive heatsinks and case airflow, systems built in tightly packed enclosures may run warmer than those with generous ventilation.

Bundled features that change the experience

Integrated Ethernet and TPM support enable network boot and hardware-based security features out of the box. Front-panel audio headers let cases route headphone and microphone jacks directly to the ALC897 codec. The single M.2 slot accepts high-speed storage devices while the four SATA III ports handle additional drives. Users requiring multiple M.2 drives or onboard Wi-Fi will need to add expansion cards.

Highlights

  • Supports up to 64GB DDR4 at 3200MHz for smooth multitasking
  • PCIe 4.0 and M.2 slot enable fast storage upgrades
  • Realtek ALC897 with 7.1-channel Audio Boost delivers clear sound
  • Steel Armor shields graphics cards from bending and EMI
  • Micro ATX form factor fits compact and versatile PC builds

Specifications

No published specifications for this item yet.

Questions about this item

How do I install the motherboard into a micro ATX case and which standoff pattern should I use?

Mount the board using the standard micro ATX standoff holes; align the LGA 1700 socket cut-out with the I/O shield before securing the screws.

What component will need replacement first during long-term ownership?

The Realtek ALC897 audio codec and onboard Ethernet controller are soldered; only the CMOS battery is user-replaceable.

Which limit appears first when the system runs sustained heavy loads?

The two DDR4 slots cap memory at 64 GB and 3200 MHz, so capacity and bandwidth ceiling is reached before other interfaces.
