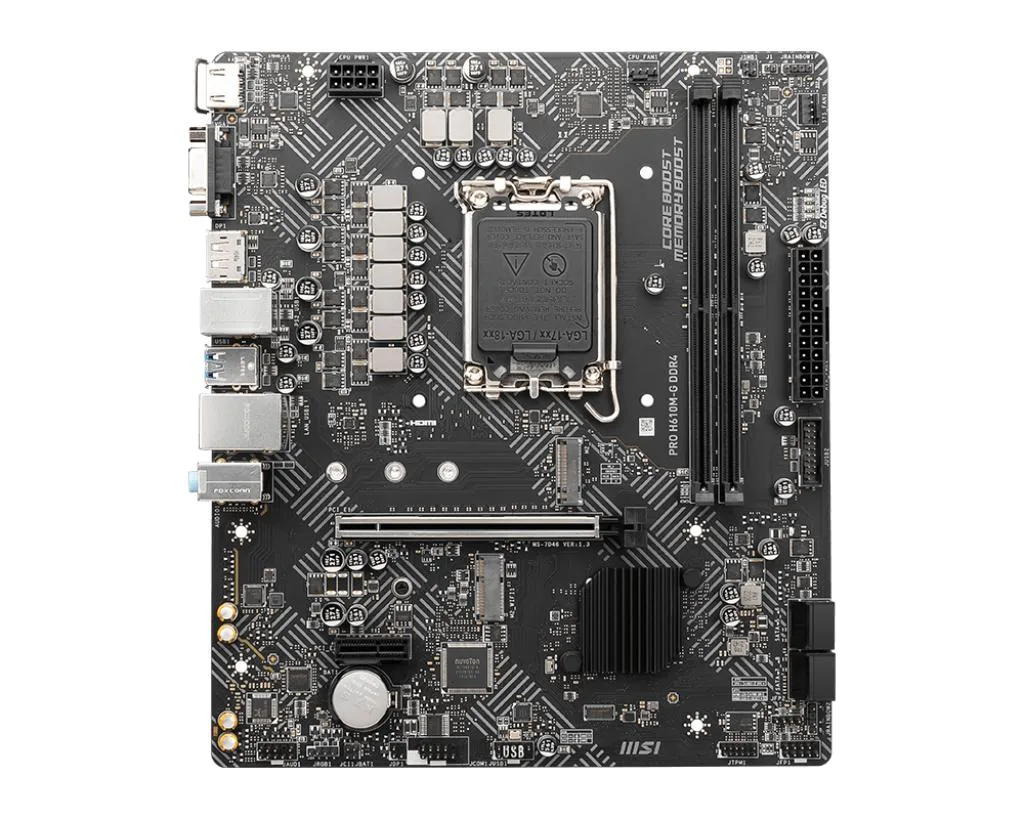

MSI PRO H610M-G DDR4 micro-ATX board, dark PCB, silver I/O shield, LGA 1700 socket, two RAM slots, PCIe x16 and x1, M.2 WIFI1 key

MSI

MSI PRO H610M-G DDR4 Intel H610 LGA 1700 Micro ATX Motherboard

SKU CH-NTMN-X8H5F

Supports 12th Gen Intel Core processors on LGA 1700 with up to 64 GB DDR4 across two slots, one PCIe 4.0 x16 slot, four SATA III ports.

  • CPU Socket TypeLGA 1700
  • CPU TypeSupports 12th Gen Intel Core™ Processors, Pentium Gold and C
  • ChipsetIntel H610
  • Memory Standard2 DDR4 slots, total support up to 64GB Supports 1R 2133/2666
  • Maximum Memory Supported64GB
  • PCI Slots1x PCIe x16 slot (From CPU) Supports up to PCIe 4.0 x16 1x P
  • Supports 12th Gen Intel Core processors on LGA 1700 socket
  • Dual-channel DDR4 memory up to 64 GB across two slots
  • PCIe 4.0 x16 graphics slot plus PCIe 3.0 x1 expansion
  • 1-channel high-definition audio with Realtek ALC892/ALC897 codec
  • Intel I219V 1 Gbps LAN and USB 3.2 Gen 1 5 Gbps connectivity

LGA 1700 DDR4 foundation

This Micro ATX board uses the Intel H610 chipset and an LGA 1700 socket to support 12th generation Intel Core processors as well as Pentium Gold and Celeron CPUs. Two DDR4 slots accept up to 64 GB of non-ECC unbuffered memory running at JEDEC speeds of 2133, 2666, 2933 or 3200 MHz in dual-channel mode.

Steady throughput on PCIe 4.0

The primary PCIe x16 slot connects directly to the CPU and operates at up to PCIe 4.0 x16, so a graphics card or accelerator maintains full bandwidth during long rendering or compute sessions. A second PCIe x1 slot and the M.2 E-key slot for a WiFi module run at PCIe 3.0, keeping auxiliary devices stable without throttling the main lane.

Interface limits at a glance

Four SATA III ports and a single M.2 interface provide storage connectivity capped at the SATA III transfer rate. Rear I/O supplies four USB 3.2 Gen 1 ports at 5 Gbps and six USB 2.0 ports, while the Intel I219V controller handles 1 Gbps wired networking and the Realtek ALC892/897 codec delivers 7.1-channel audio.

Highlights

  • Supports 12th Gen Intel Core processors on LGA 1700 socket
  • Dual-channel DDR4 memory up to 64 GB across two slots
  • PCIe 4.0 x16 graphics slot plus PCIe 3.0 x1 expansion
  • 1-channel high-definition audio with Realtek ALC892/ALC897 codec
  • Intel I219V 1 Gbps LAN and USB 3.2 Gen 1 5 Gbps connectivity

Specifications

BrandMSI
SeriesMSI PRO H610M-G DDR4
ModelMSI PRO H610M-G DDR4
CPU Socket TypeLGA 1700
CPU TypeSupports 12th Gen Intel Core™ Processors, Pentium Gold and Celeron Processors
Processor socket LGA1700
ChipsetIntel H610
Memory Standard2 DDR4 slots, total support up to 64GB
Supports 1R 2133/2666/2933/3200 MHz (by JEDEC & POR)
Supports dual channel mode
Support non-ECC, unbuffered memory
Maximum Memory Supported64GB
PCI Slots1x PCIe x16 slot (From CPU)
Supports up to PCIe 4.0 x16
1x PCIe x1 slot
Supports PCIe 3.0 x1
1x M.2 slot with E-key for PCIe WiFi module only (M2_ WIFI1)
SATA RAID1XM.2 interface, 4xSATA III interface
Audio ChipsetRealtek ALC892/ ALC897 Codec
7.1-Channel High Definition Audio
LAN Chipset1x Intel I219V 1Gbps LAN controller
Onboard USBIntel H610 Chipset
4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector)
6x USB 2.0 ports (4 Type-A ports on the back panel(hub-GL850G), 2 ports available through the internal USB 2.0 connector)

Questions about this item

How does the H610 chipset handle heat and power draw during continuous operation?

The Intel H610 chipset runs at low power with passive cooling; the board has no dedicated chipset fan, so system airflow is the only cooling it needs.

Which LGA 1700 processors and DDR4 memory must I already have for this board to function?

You need a 12th Gen Intel Core, Pentium Gold or Celeron CPU plus one or two DDR4 DIMMs at 2133/2666/2933/3200 MHz, up to 64 GB total.

Can I keep my existing SATA SSDs, hard drives and PCIe 3.0 add-in cards when moving to this motherboard?

Yes — four SATA III ports and one PCIe 3.0 x1 slot are available, so current SATA storage and PCIe 3.0 cards will work without change.
