Green Micro-ATX board with silver I/O shield, two black DDR5 slots, single reinforced PCIe x16 slot, M.2 heatsink, four SATA ports

MSI

MSI PRO H610M-G WIFI Intel motherboard

SKU CH-2N11-13N0C MPN PRO H610M-G WIFI

A Micro-ATX board for Intel Core 12th, 13th and 14th Gen CPUs with DDR5-5600, Wi-Fi 6E, Bluetooth 5.3 and a PCIe 4.0 x16 slot

  • CPU Socket TypeLGA 1700
  • CPU TypeIntel® Pentium® Gold and Celeron® Processors
  • ChipsetIntel H610
  • Number of Memory Slots2x288pin (DDR5)
  • Memory StandardDDR5-5600MHz (MAX)
  • Maximum Memory Supported64GB
  • Supports 12th, 13th and 14th Gen Intel Core processors via LGA 1700 socket
  • Dual-channel DDR5-5600 memory up to 64 GB across two 288-pin slots
  • PCIe 4.0 x16 slot with Steel Armor reinforcement for heavy graphics cards
  • Gen3 M.2 connector delivering 32 Gbps bandwidth for fast storage
  • Wi-Fi 6E and Bluetooth 5.3 plus Intel I219-V 1 Gb LAN for wireless and wired connectivity

Business Micro-ATX Board

The MSI PRO H610M-G WIFI is a Micro-ATX motherboard built around the Intel H610 chipset for business and everyday systems. It accepts 12th, 13th and 14th Gen Intel Core, Pentium Gold and Celeron processors in the LGA 1700 socket. Two 288-pin DDR5 slots run dual-channel memory up to 5600 MHz with a 64 GB maximum. One PCIe 4.0 x16 slot with Steel Armor, one PCIe 3.0 x1 slot and two legacy PCI slots handle expansion. Four SATA 6Gb/s ports and one M.2 Key M connector provide storage options.

Build Integration

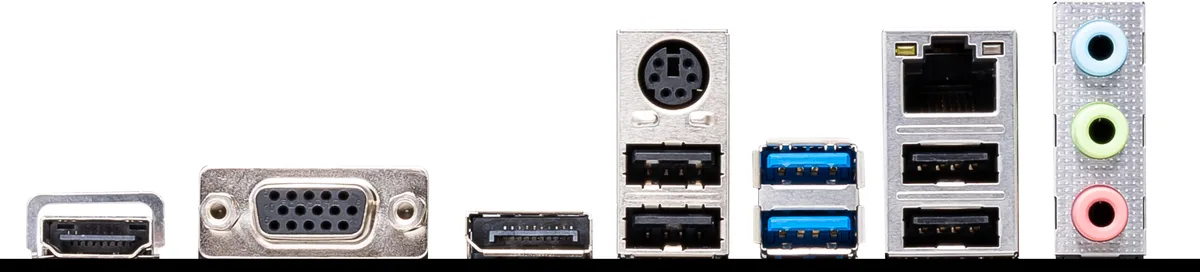

The board fits standard Micro-ATX chassis and uses a 24-pin ATX plus 8-pin CPU power layout. The single M.2 Key M slot supports PCIe Gen3 x4 or SATA drives, while a second Key E slot is pre-populated with the Wi-Fi 6E and Bluetooth 5.3 module. Four SATA ports leave room for multiple hard drives or SATA SSDs. The reinforced PCIe 4.0 x16 slot holds heavy graphics cards without flex. Rear I/O includes HDMI, 1 Gb Intel I219-V LAN, USB 3.1 ports and a PS/2 combo port for legacy peripherals.

Sustained Operation

A dedicated chipset heatsink provides passive cooling for the H610 PCH during long workloads. Frozr AI Cooling monitors CPU and GPU temperatures to adjust system fan curves automatically, keeping airflow matched to actual heat output. Memory Boost isolates the DDR5 traces for signal integrity during extended high-frequency operation. The 8-channel HD Audio with Audio Boost uses a separate PCB layer to reduce noise during continuous playback or conferencing. Intel I219-V LAN and Wi-Fi 6E maintain stable network throughput over prolonged transfers.

Highlights

  • Supports 12th, 13th and 14th Gen Intel Core processors via LGA 1700 socket
  • Dual-channel DDR5-5600 memory up to 64 GB across two 288-pin slots
  • PCIe 4.0 x16 slot with Steel Armor reinforcement for heavy graphics cards
  • Gen3 M.2 connector delivering 32 Gbps bandwidth for fast storage
  • Wi-Fi 6E and Bluetooth 5.3 plus Intel I219-V 1 Gb LAN for wireless and wired connectivity

Specifications

BrandMSI
ModelPRO H610M-G WIFI
Part NumberPRO H610M-G WIFI
CPU Socket TypeLGA 1700
CPU TypeIntel® Pentium® Gold and Celeron® Processors
ChipsetIntel H610
Number of Memory Slots2x288pin (DDR5)
Memory StandardDDR5-5600MHz (MAX)
Maximum Memory Supported64GB
Channel SupportedDual Channel
PCI Express 4.0 x161 x PCI Express 4.0 x16
PCI Express x11x PCIe 3.0 x1 slot
PCI Slots2 x PCI Slots
Serial ATA (SATA)4 x SATA 6Gb/s
M.21xKey M(PCIe/SATA)+ 1x Key E(WiFi/BT)
Audio Channels8-Channel(7.1) HD Audio with Audio Boost
LAN ChipsetIntel®
I219-V 1G LAN
Max LAN SpeedWi-Fi 6E
BluetoothBluetooth 5.3
PS/21 x PS/2 keyboard/mouse port
Video PortsVGA
HDMISupport 4K@60Hz as specified in HDMITM 2.1
RJ451 x RJ45
DisplayPortDisplayPort 1.4, VGA – Requires Processor Graphics
USB 3.12x USB 3.2 Gen 1 5Gbps Type-A
USB 1.1/2.04 x USB 2.0
Audio Ports3 Ports
Onboard USB2x USB 3.2 Gen 1 5Gbps(4 Type-A)
2 x USB 2.0
Form FactorMicro ATX
Shipping weight0.82 kg
Package size259 × 259 × 51 mm

Questions about this item

What is the maximum memory speed this board can sustain when both DDR5 slots are populated under continuous load?

The board supports DDR5 up to 5600 MHz maximum with two 288-pin slots in dual-channel mode, allowing 64 GB total capacity.

How much heat and noise does the passive chipset heatsink produce during all-day operation?

The chipset uses a passive heatsink with no fan, so it adds no audible noise; Frozr AI Cooling adjusts attached system fans based on CPU and GPU temperatures.

Which processor and memory must I already have for this motherboard to function?

An Intel LGA 1700 CPU from the 12th, 13th or 14th generation Core, Pentium Gold or Celeron lines, plus DDR5 modules, are required.
