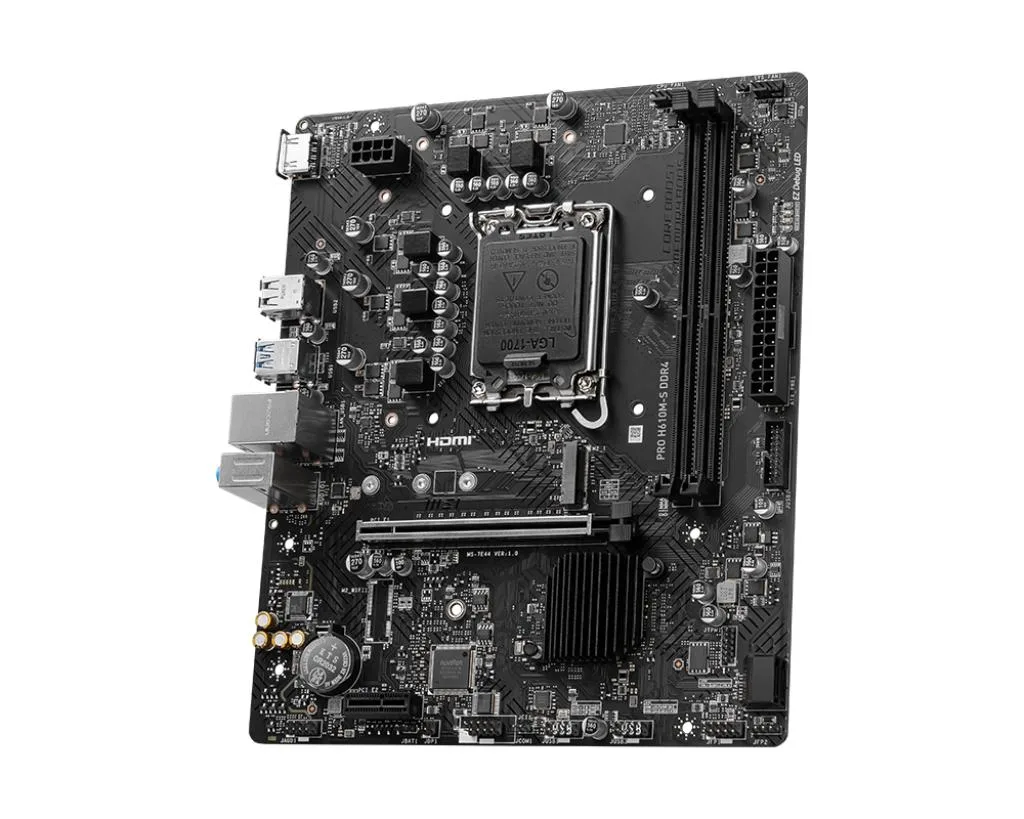

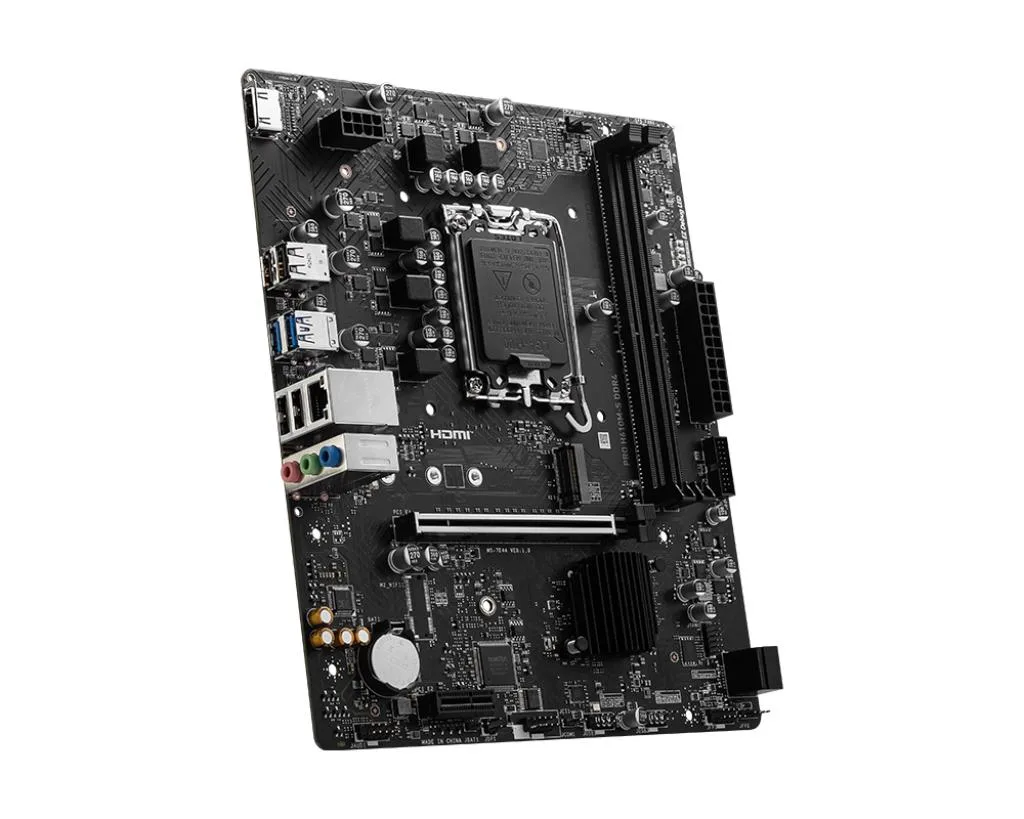

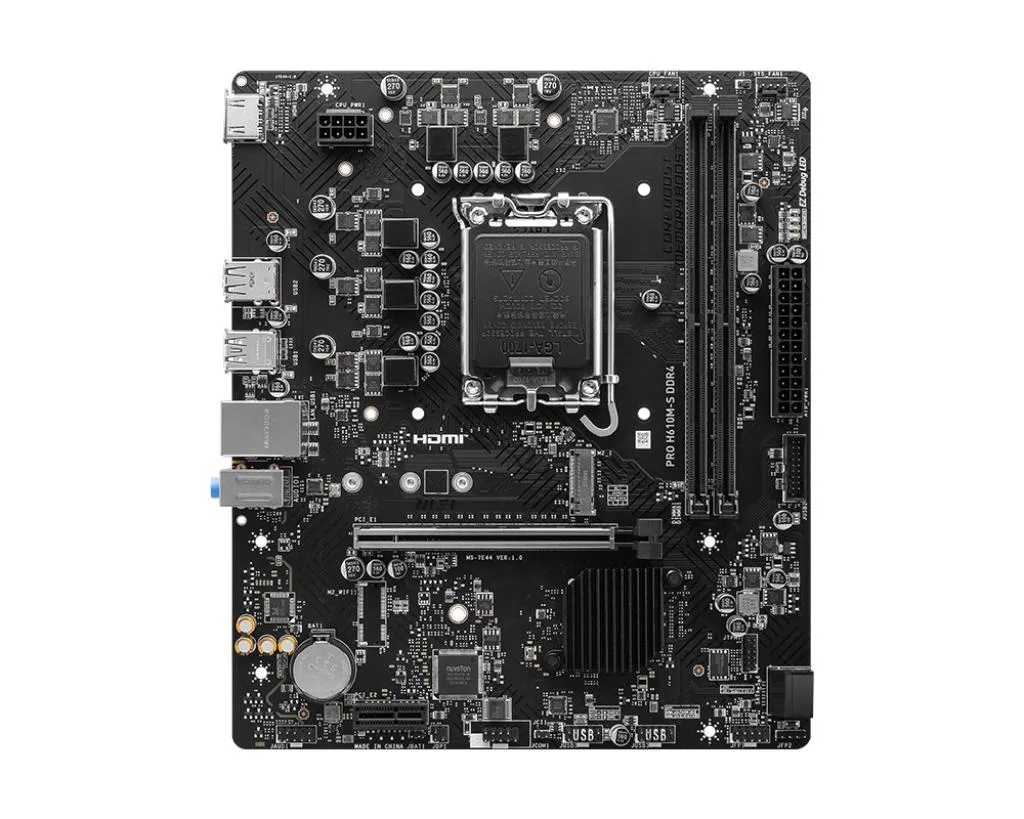

Micro-ATX motherboard, matte black PCB, silver heatsinks, LGA 1700 socket, two DDR4 slots, single PCIe x16 slot, HDMI port

MSI

MSI PRO H610M-S DDR4 Intel Motherboard

SKU CH-8ZR6-ZP04P

Micro-ATX board for 12th, 13th and 14th gen Intel CPUs with DDR4 up to 3200 MHz, PCIe 4.0 x16, HDMI 1.4, 7.1 audio and Gigabit LAN

  • Supports 12th, 13th and 14th generation Intel Core processors on LGA 1700 socket
  • DDR4 memory up to 3200 MHz with dual-channel support for 64 GB capacity
  • Core Boost digital power design delivers stable power to multi-core CPUs
  • PCIe 4.0 x16 slot and PCIe 3.0 x4 M.2 interface for fast graphics and storage
  • Realtek ALC897 codec provides 7.1-channel high-definition audio with Gigabit LAN

Product identity

This MSI H610 motherboard supports 12th, 13th and 14th generation Intel Core, Pentium Gold and Celeron processors in the LGA 1700 socket. It uses the Intel H610 chipset and a Micro ATX form factor with two DDR4 memory slots for up to 64 GB capacity.

Setup checks

A BIOS update may be required before a 14th generation processor will boot, so check the MSI support site first. You need a CPU with integrated graphics to use the HDMI 1.4 port, which outputs 4K at 30 Hz. The single M.2 slot connects through the chipset at PCIe 3.0 x4 and accepts 2280, 2260 or 2242 devices.

Build and daily use

Core Boost and Memory Boost circuitry aim to deliver stable power and clean signal integrity for multi-core workloads. PCIe Steel Armor reinforces the primary x16 slot, while the Realtek ALC897 codec provides 7.1-channel high-definition audio. Rear I/O includes four USB 2.0 and two USB 5 Gbps Type-A ports, plus Gigabit LAN from the Realtek RTL8111H controller.

Highlights

  • Supports 12th, 13th and 14th generation Intel Core processors on LGA 1700 socket
  • DDR4 memory up to 3200 MHz with dual-channel support for 64 GB capacity
  • Core Boost digital power design delivers stable power to multi-core CPUs
  • PCIe 4.0 x16 slot and PCIe 3.0 x4 M.2 interface for fast graphics and storage
  • Realtek ALC897 codec provides 7.1-channel high-definition audio with Gigabit LAN

Specifications

No published specifications for this item yet.

Questions about this item

What comes in the box with the MSI PRO H610M-S DDR4 motherboard and do I need to buy a CPU cooler or memory separately?

The board ships with the motherboard itself and an I/O shield; a compatible LGA 1700 processor and DDR4 memory modules must be purchased separately.

Which DDR4 speed should I choose for this board — 3200 MHz or a lower JEDEC speed?

The motherboard supports DDR4 up to 3200 MHz by JEDEC; pick the highest speed your budget allows for maximum bandwidth.

What does the PCIe 4.0 x16 slot mean for a graphics card installed in this Micro ATX board?

The primary PCIe x16 slot runs at PCIe 4.0 from the CPU, giving modern GPUs full x16 bandwidth for gaming or compute workloads.
