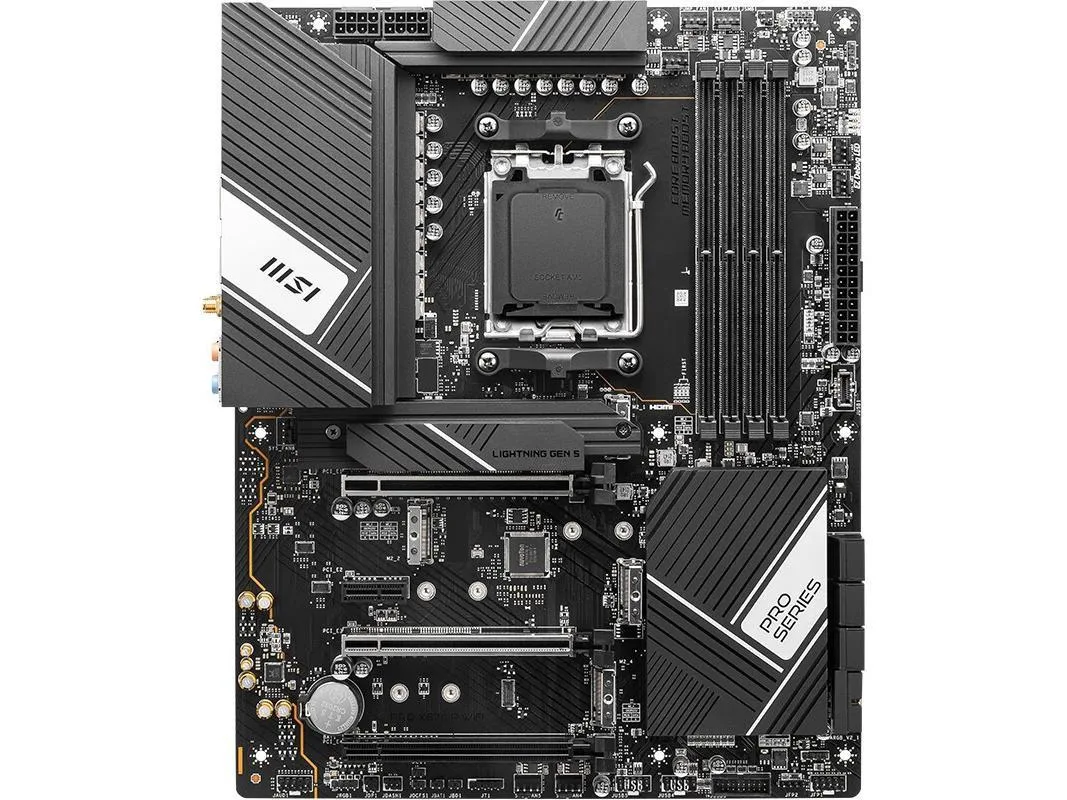

ATX motherboard in matte black with silver heatsinks and rear I/O shield

MSI

MSI PRO X670-P WIFI AMD motherboard

SKU CH-2EV5-19DQ6

ATX board for Socket AM5 Ryzen 7000 and 8000 CPUs with DDR5 6600 support to 256 GB, 2.5 Gb LAN and 7.1 audio

  • CPU Socket TypeSocket AM5
  • CPU TypeSupports AMD Ryzen™ 8000/ 7000 Series Desktop Processors Soc
  • ChipsetAMD X670
  • Memory StandardSupports dual-channel DDR5 6600 + MHz
  • Maximum Memory Supported256GB
  • PCI Slots3X PCI-E x16 slots (quantity) Supports x16/x4/x2 (For Ryzen™
  • Supports AMD Ryzen 8000 and 7000 series processors on Socket AM5
  • Dual-channel DDR5 memory up to 6600 MHz with 256 GB maximum capacity
  • Three PCI-E x16 slots offering x16, x4 and x2 lane configurations
  • Realtek ALC4080 codec delivers 7.1-channel audio at 32-bit/384 kHz
  • Realtek RTL8125BG provides 2.5 Gbps LAN plus USB 20 Gbps Type-C connectivity

AM5 Platform Motherboard

The MSI PRO X670-P WIFI is an ATX board built on the AMD X670 chipset for Socket AM5 processors. It accepts Ryzen 7000 and 8000 series CPUs and runs dual-channel DDR5 memory up to 6600 MHz with a 256 GB ceiling.

Builders who need high core counts and fast memory

This board suits users moving to the AM5 platform who want 2.5 GbE LAN, Realtek ALC4080 7.1-channel audio and a generous spread of USB 5 Gbps, 10 Gbps and 20 Gbps Type-C ports. Buyers staying on an older socket or needing legacy PCI slots should look elsewhere.

DDR5 6600 MHz dual-channel support to 256 GB

The memory controller tops out at 6600 MHz across two channels with a 256 GB maximum. If your workload demands higher memory frequency or a different capacity limit, this specification will be the deciding factor.

Highlights

  • Supports AMD Ryzen 8000 and 7000 series processors on Socket AM5
  • Dual-channel DDR5 memory up to 6600 MHz with 256 GB maximum capacity
  • Three PCI-E x16 slots offering x16, x4 and x2 lane configurations
  • Realtek ALC4080 codec delivers 7.1-channel audio at 32-bit/384 kHz
  • Realtek RTL8125BG provides 2.5 Gbps LAN plus USB 20 Gbps Type-C connectivity

Specifications

BrandMSI
SeriesMSI PRO X670-P WIFI
ModelMSI PRO X670-P WIFI
CPU Socket TypeSocket AM5
CPU TypeSupports AMD Ryzen™ 8000/ 7000 Series Desktop Processors
Socket AM5
ChipsetAMD X670
Memory StandardSupports dual-channel DDR5 6600 + MHz
Maximum Memory Supported256GB
PCI Slots3X PCI-E x16 slots (quantity)
Supports x16/x4/x2 (For Ryzen™ 7000 Series processors)
Supports x8/x4/x2 (For Ryzen™ 7 8700G and Ryzen™ 5 8600G processors)
Supports x4/x2/x2 (For Ryzen™ 5 8500G processor)
1X PCI-E x1 slot (quantity)
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From CPU)
PCI_E4 Gen PCIe 4.0 supports up to x2 (From Chipset)
SATA RAID4XM.2 interface, 6xSATA III interface
Audio ChipsetRealtek ALC4080 Codec
7.1-Channel USB High Performance Audio
Supports S/PDIF output
Supports up to 32-Bit/384 kHz playback on front panel
LAN ChipsetRealtek RTL8125BG 2.5G LAN
Onboard USB4X USB 2.0 (front)
4x USB 5Gbps Type A (Rear)
4x USB 5Gbps Type A (Front)
2x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Rear)
1x USB 10Gbps Type C (Front)
1x USB 20Gbps Type C (Rear)

Questions about this item

What size ATX case and power connectors does the MSI PRO X670-P WIFI need?

The board follows the standard ATX form factor and requires a 24-pin ATX power connector plus an 8-pin EPS connector for the CPU.

Which BIOS setting is often missed when installing DDR5 memory on this X670 motherboard?

After seating the DDR5 modules, enable the EXPO profile in BIOS so the memory runs at the rated 6600 MHz instead of the default JEDEC speed.

Which replaceable component on the MSI PRO X670-P WIFI keeps BIOS settings when the system is unplugged?

A socketed CMOS battery on the board maintains the real-time clock and BIOS configuration; swap it when the clock starts drifting.
