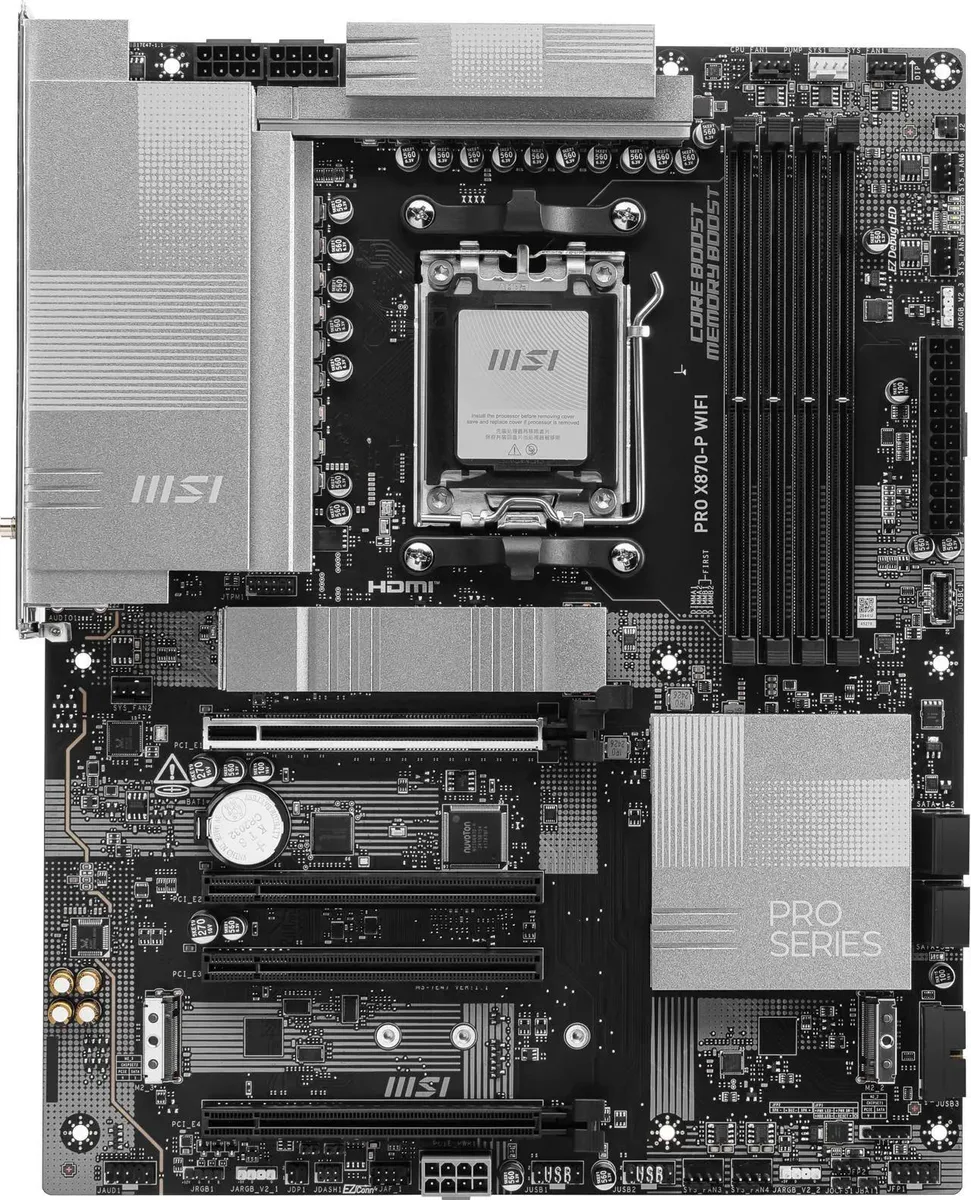

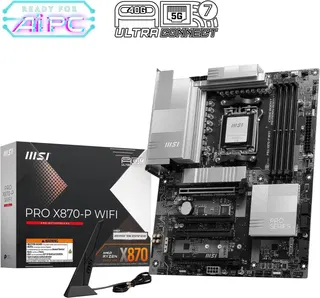

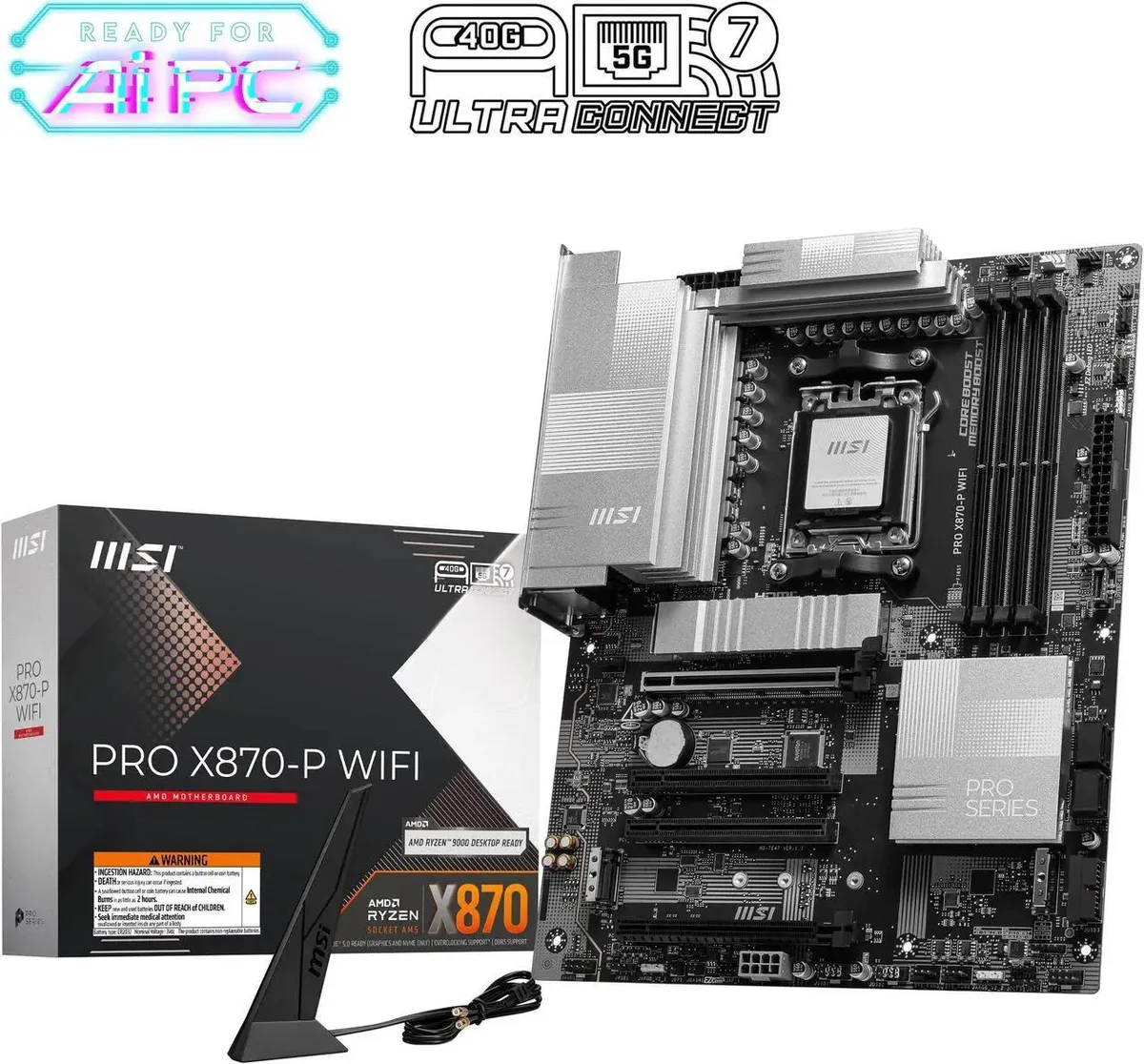

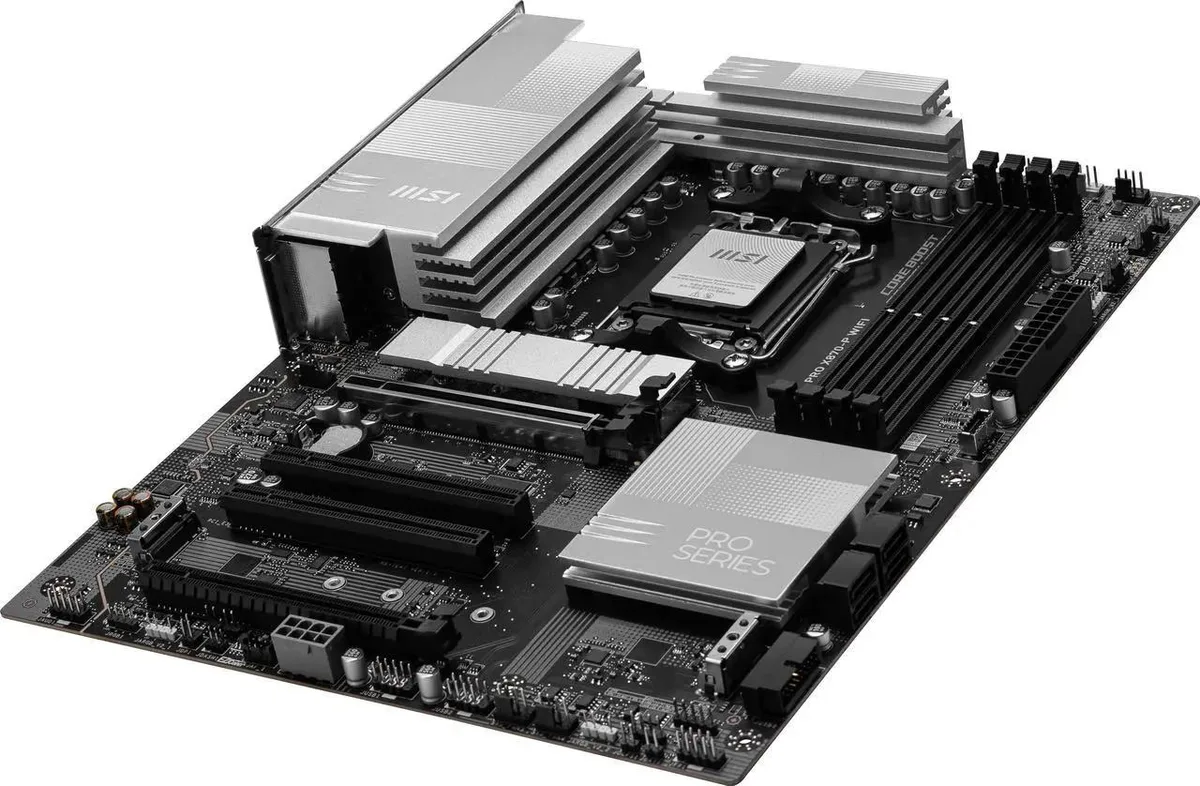

Rectangular ATX board, black PCB with silver heatsinks and grey I/O shield

MSI

MSI PRO X870-P WiFi ProSeries AMD motherboard

SKU CH-Q497-N5559

ATX board for Ryzen 9000, 8000 and 7000 CPUs with DDR5 to 8200 MT/s, PCIe 5.0 x16, triple M.2, USB 40Gbps, Wi-Fi 7, Bluetooth 5.4 and 5 Gbps LAN

  • CPU Socket TypeAM5
  • ChipsetAMD X870
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardDDR5 5600+ (OC)
  • Maximum Memory Supported256GB
  • Channel SupportedDual Channel
  • Wi-Fi 7 with 320 MHz channel delivers up to 5.8 Gbps wireless speed
  • USB 4 port provides 40 Gbps data throughput for fast external devices
  • 5 Gbps LAN gives high-speed wired networking for low-latency transfers
  • Three M.2 slots with Shield Frozr heatsinks keep storage cool under load
  • Frozr AI Cooling monitors CPU and GPU temperatures to adjust fan duty automatically

AM5 Platform Motherboard

The MSI PRO X870-P WiFi is built for AMD Ryzen 9000, 8000 and 7000 series processors on the AM5 socket. It targets system builders who need current-gen connectivity and expandability in a standard ATX layout.

Sustained-Load Behaviour

Frozr AI Cooling monitors CPU and GPU temperatures and adjusts fan duty automatically to keep thermals stable during extended workloads. M.2 Shield Frozr covers the three M.2 slots to dissipate heat from high-speed storage under continuous write pressure.

DDR5 Memory Ceiling

The board supports up to 256GB of DDR5 across four 288-pin slots. Ryzen 9000 series processors can reach 8200+ MT/s with a single-rank DIMM in one slot per channel, dropping to 6400+ MT/s with dual-rank modules or two DIMMs per channel.

Highlights

  • Wi-Fi 7 with 320 MHz channel delivers up to 5.8 Gbps wireless speed
  • USB 4 port provides 40 Gbps data throughput for fast external devices
  • 5 Gbps LAN gives high-speed wired networking for low-latency transfers
  • Three M.2 slots with Shield Frozr heatsinks keep storage cool under load
  • Frozr AI Cooling monitors CPU and GPU temperatures to adjust fan duty automatically

Specifications

BrandMSI
ModelPRO X870-P WIFI
CPU Socket TypeAM5
ChipsetAMD X870
Number of Memory Slots4x288pin (DDR5)
Memory StandardDDR5 5600+ (OC)
Maximum Memory Supported256GB
Channel SupportedDual Channel
ECC SupportedSupports ECC UDIMM memory (non-ECC mode)
Buffer SupportedUn-buffered
Memory FeatureMemory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
Ryzen 9000 Series Processors max. overclocking frequency:
- 1DPC 1R Max speed up to 8200+ MT/s
- 1DPC 2R Max speed up to 6400+ MT/s
- 2DPC 1R Max speed up to 6400+ MT/s
- 2DPC 2R Max speed up to 4800+ MT/s
Supports AMD POR Speed and JEDEC Speed
Supports Memory Overclocking and AMD EXPO
Supports Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM, Clock Driver bypass mode only*
PCI Express 5.0 x16PCI_E1 supports up to PCIe 5.0 x16 (From CPU)
PCI Express x4PCI_E4* slot (From X870 chipset)
PCI_E4 supports up to PCIe 4.0 x4
PCI Express x1PCI_E2 & PCI_E3 (From Chipset X870, ASM2806) Supports up to PCIe 3.0 x1
Other Slots* PCI_E4 & M2_3 share the bandwidth. Default that PCI_E4 slot runs x2 when installing device into the M2_3 slot. Otherwise, PCI_E4 slot will run x4 when M2_3 has no device.
Serial ATA (SATA)4 x SATA 6Gb/s
M.2M2_1 slot (From CPU)
Supports up to PCIe 5.0 x4
Supports 2260/2280 storage devices
M2_2 (From X870 chipset)
Supports up to PCIe 4.0 x4
Supports 2280/110 storage devices
M2_3 slot (From X870 chipset) *
Supports up to PCIe 4.0 x2
Supports 2260/2280 storage devices
* PCI_E4 & M2_3 share the bandwidth. Default that PCI_E4 slot runs x2 when installing device into the M2_3 slot. Otherwise, PCI_E4 slot will run x4 when M2_3 has no device.
Audio ChipsetRealtek ALC897
Audio Channels7.1 Channels
LAN ChipsetRealtek 8126VB
Max LAN Speed5Gbps
Back I/O Ports1 x Flash BIOS button & Clear CMOS bottom
1 x HDMI port
1 x USB 40Gbps Type-C port (From CPU)
1 x USB 5Gbps Type-A port (1x from CPU, 1x from Chipset X870)
2 x USB 10Gbps Type-A ports (From Chipset X870)
4 x USB 2 Type-A ports (From GL850)
1 x 5G LAN (RJ45) port
1 x USB 20Gbps Type-C port (From Chipset X870)
2 x Wi-Fi Antenna connectors
3 x Audio jacks
Onboard USBAMD X870 Chipset
- 1 x USB 10Gbps Type-C connector
- 1 x USB 5Gbps connectors
Supports additional 2 USB 5Gbps ports
- 2 x USB 2.0 connector
Supports additional 4 USB 2.0 ports
Other ConnectorsFan Connectors
- 1x 4-pin CPU fan connector
- 1x 4-pin pump fan connector
- 6x 4-pin System fan connectors
- 1x 7-pin JAF1
System Connectors
- 1x Front panel audio connector
- 2x System panel connectors
- 1x Chassis Intrusion connector
- 1x Tuning Controller connector
Jumpers
- 1x Clear CMOS jumper
Form FactorATX
LED Lighting1 x 4-pin RGB LED connector
3 x 3-pin ARGB_V2 LED connectors
4 x EZ Debug LED
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24-pinPower Connector (ATX_PWR)
2 x 8-pin Power Connector (CPU_PWR)
1 x 8-pin Power Connector (PCIE_PWR)
BIOS Feature1x 256 Mb flash
UEFI AMI BIOS
ACPI 6.4, SMBIOS 3.5
Multi-language
SoftwareDrivers
MSI Center
7-ZIP
Acrobat
Adobe Creative Cloud
Adobe Redeem LauncherDropbox
AIDA64 Extreme-MSI Edition
CPU-Z MSI GAMING
Norton 360
Realtek Console
FeaturesMSI Center Features
- Mystic Light
- Frozr AI Cooling
- User Scenario
- True Color
- Live Update
- Hardware Monitoring
- Super Charger
- Devices Speed Up
- Smart Image Finder
- MSI Companion
- System Diagnosis
Performance
- Core Boost
- Dual CPU Power
- Memory Boost
- Lightning Gen 4 PCI-E Slot
- Lightning Gen 4 M.2 Slot
- 2oz Copper thickened PCB
DIY Friendly
- PCI-E Steel Armor
- EZ DEBUG LED
- EZ LED Control
Audio
- Audio Boost
RGB Support
- Mystic Light Extension (RGB)
- Ambient Devices Support
BIOS
- Click BIOS 5

Questions about this item

How much heat and power does the board draw when the Frozr AI Cooling system is managing fans all day?

The Frozr AI Cooling feature monitors CPU and GPU temperatures and automatically adjusts system fan duty to match the thermal load, keeping noise and power draw proportional to actual heat output.

What CPU, memory and cooler must I already own to use this AM5 motherboard?

You need an AMD Ryzen 9000, 8000 or 7000 series processor, DDR5 memory modules (up to 256 GB across four slots), and an AM5-compatible CPU cooler.

Will my existing PCIe 4.0 M.2 SSD and SATA drives work at full speed alongside the new PCIe 5.0 slot?

Yes — the primary M.2 slot runs at PCIe 5.0 x4 from the CPU, the second at PCIe 4.0 x4 from the chipset, and all four SATA 6 Gb/s ports operate independently, so older drives keep their rated bandwidth.
