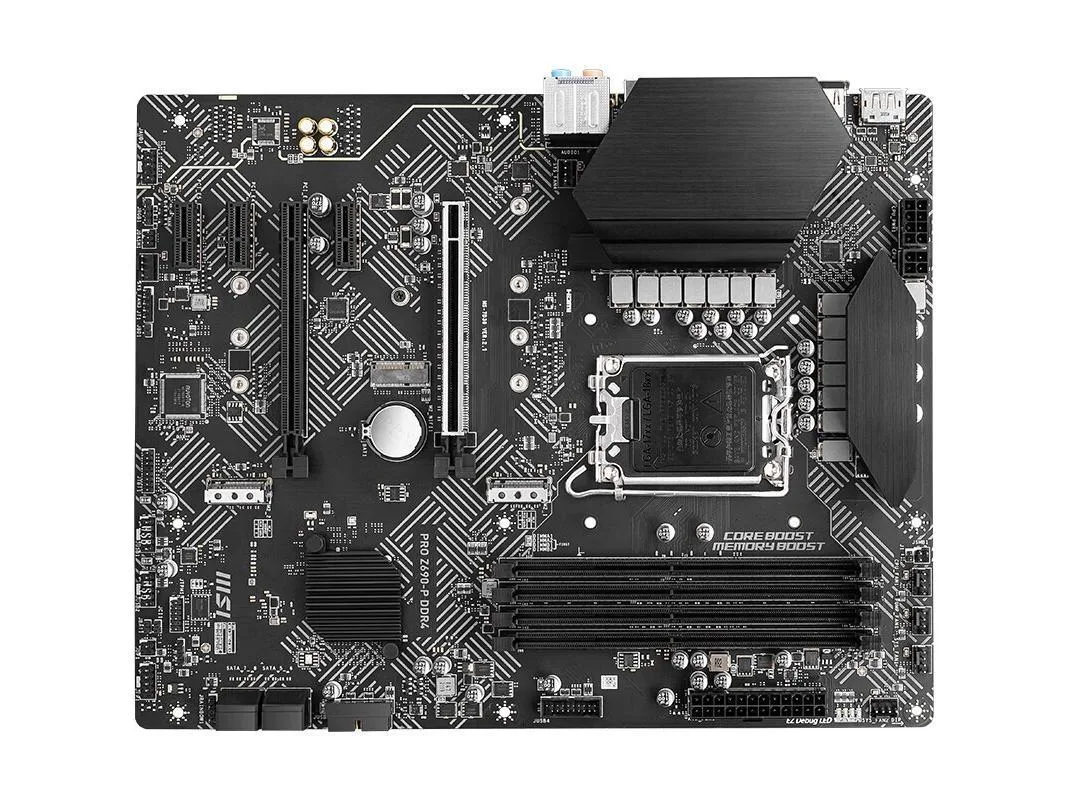

ATX motherboard in matte black with silver heatsinks and grey PCIe slots

MSI

MSI PRO Z690-P DDR4 Intel motherboard

SKU CH-K9JN-EYT4H

Supports 12th Gen Intel Core processors with DDR4 memory up to 5000 MHz, 128 GB capacity, 2.5 Gbps LAN and 7.1-channel audio

  • CPU Socket TypeLGA 1700
  • CPU TypeSupports 12th Gen Intel Core™ Processors, Pentium Gold and C
  • ChipsetIntel Z690
  • Memory StandardSupports dual-channel DDR4 5000 (OC) MHz memory
  • Maximum Memory Supported128GB
  • PCI Slots2x PCIe x16 slots PCI_E1 slot (From CPU) Support PCIe 5.0 x1
  • Supports 12th Gen Intel Core processors on LGA 1700 socket
  • Dual-channel DDR4 memory up to 5000 MHz and 128 GB capacity
  • PCIe 5.0 x16 slot plus PCIe 3.0 x4 and three x1 slots for expansion
  • Realtek ALC897 7.1-channel audio with S/PDIF output
  • Realtek RTL8125BG 2.5 Gbps LAN and eight USB 3.2 Gen 1 ports

Intel Z690 DDR4 motherboard for 12th Gen CPUs

The MSI PRO Z690-P DDR4 uses the Intel Z690 chipset and an LGA 1700 socket to support 12th Gen Intel Core, Pentium Gold and Celeron processors. It provides four memory slots for dual-channel DDR4 up to 5000 MHz (OC) and a maximum capacity of 128 GB. The board follows the Micro ATX form factor.

Bundled accessories for basic installation

The retail package adds a CMOS battery, one SATA cable and a chassis I/O back panel. A Wi-Fi antenna is included only when the board has a built-in wireless module. No further cables, brackets or software media are supplied, so plan for any extra storage or front-panel connectors separately.

Compatibility checks before ordering

Verify that your chassis accepts a Micro ATX board and that your power supply carries the required 24-pin ATX and 8-pin EPS connectors. Confirm the CPU cooler mounting holes match the LGA 1700 pattern. Ensure any DDR4 kits you intend to use are rated for the speeds you want, and check that the single E-key M.2 slot suits your wireless module choice.

Highlights

  • Supports 12th Gen Intel Core processors on LGA 1700 socket
  • Dual-channel DDR4 memory up to 5000 MHz and 128 GB capacity
  • PCIe 5.0 x16 slot plus PCIe 3.0 x4 and three x1 slots for expansion
  • Realtek ALC897 7.1-channel audio with S/PDIF output
  • Realtek RTL8125BG 2.5 Gbps LAN and eight USB 3.2 Gen 1 ports

Specifications

BrandMSI
SeriesMSI PRO Z690-P DDR4
ModelMSI PRO Z690-P DDR4
CPU Socket TypeLGA 1700
CPU TypeSupports 12th Gen Intel Core™ Processors, Pentium Gold and Celeron Processors
Processor socket LGA1700
ChipsetIntel Z690
Memory StandardSupports dual-channel DDR4 5000 (OC) MHz memory
Maximum Memory Supported128GB
PCI Slots2x PCIe x16 slots
PCI_E1 slot (From CPU)
Support PCIe 5.0 x16
PCI_E3 (From Z690 chipset)
Support PCIe 3.0 x4
3x PCIe 3.0 x1 slots (Fom Z690 chipset)
1x M.2 slot with E key for Intel Wireless-AX CNVi and PCIe WiFi module
SATA RAID2XM.2 interface, 4xSATA III interface
Audio ChipsetRealtek ALC897 Codec
7.1-Channel High Definition Audio
Supports S/PDIF output
LAN Chipset1x Realtek RTL8125BG 2.5Gbps LAN controller
Onboard USBIntel Z690 Chipset
8x USB 3.2 Gen 1 5Gbps ports (4 Type-A port on the back panel and 4 ports available through the internal USB connectors)
6x USB 2.0 ports (2 Type-A port on the back panel and 4 ports available through the internal USB connectors)
1x USB 3.2 Gen 2x2 20Gbps Type-C port on the back panel

Questions about this item

How often should the CMOS battery be replaced on the MSI PRO Z690-P DDR4?

The board ships with a CMOS battery; replace it when the system clock drifts or BIOS settings reset, typically after several years of use.

Which thermal limit appears first during continuous load on this motherboard?

The 2.5Gbps Realtek RTL8125BG LAN controller and Z690 chipset are the main sustained-heat sources; their heatsinks set the practical thermal ceiling.

What is the noise and power profile when the board runs all day with all USB 3.2 Gen 1 ports active?

No onboard fans are present, so noise depends on case airflow; the Z690 chipset and 2.5Gbps LAN draw modest power under full USB 3.2 Gen 1 utilisation.
