Rectangular ATX motherboard, dark PCB with silver heatsinks and rear I/O shield

MSI

MSI PRO Z790-A WIFI DDR4 Intel motherboard

SKU CH-9GPX-MCBPA

Supports Intel Core 12, 13 and 14 Gen processors on an LGA 1700 socket with DDR4 memory up to 128 GB and Intel 2.5 Gbps LAN

  • CPU Socket TypeLGA 1700
  • CPU TypeSupport Intel Core™ 14th/ 13th/ 12th Gen Processors, Intel P
  • ChipsetIntel Z790
  • Memory StandardNo data yet
  • Maximum Memory Supported128GB
  • PCI Slots3X PCI-E x16 slots (quantity) 1X PCI-E x1 slot (quantity) PC
  • Supports Intel Core 14th 13th 12th Gen processors via LGA 1700 socket
  • Intel Z790 chipset enables up to 128GB DDR4 memory capacity
  • PCIe 5.0 x16 slot provides high bandwidth for latest graphics cards
  • Intel 2.5Gbps LAN plus WiFi antenna included for flexible connectivity
  • Realtek ALC4080 codec delivers 7.1 channel high performance audio

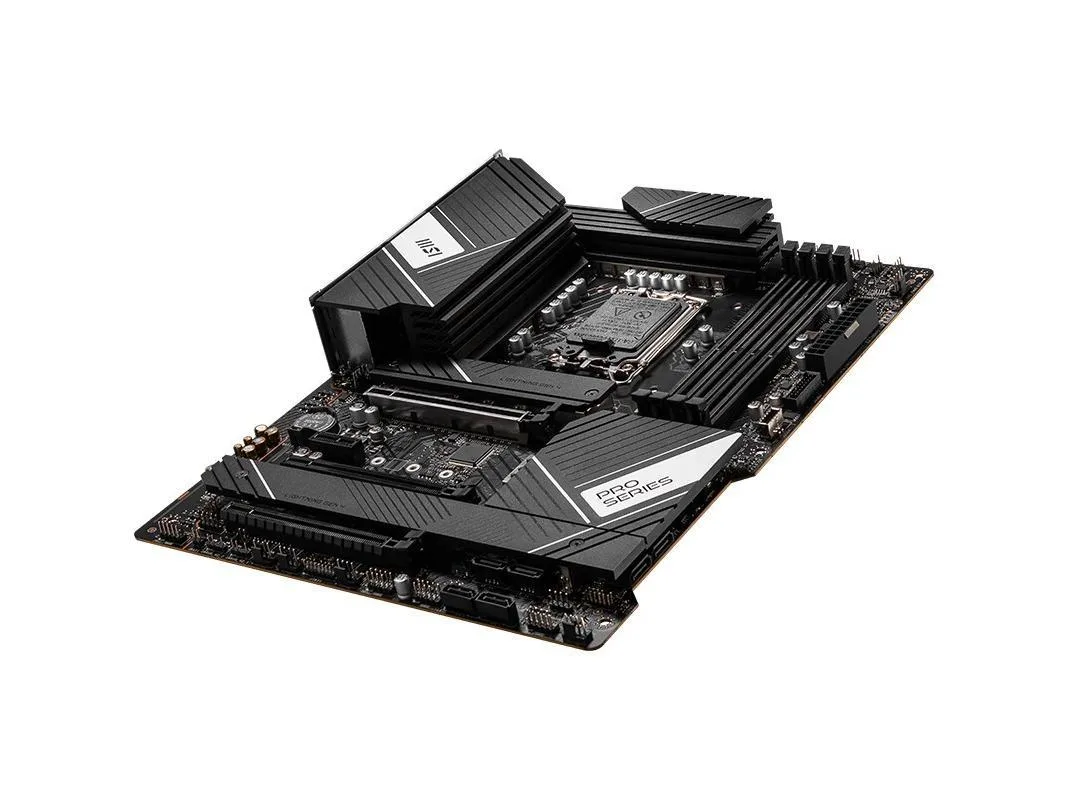

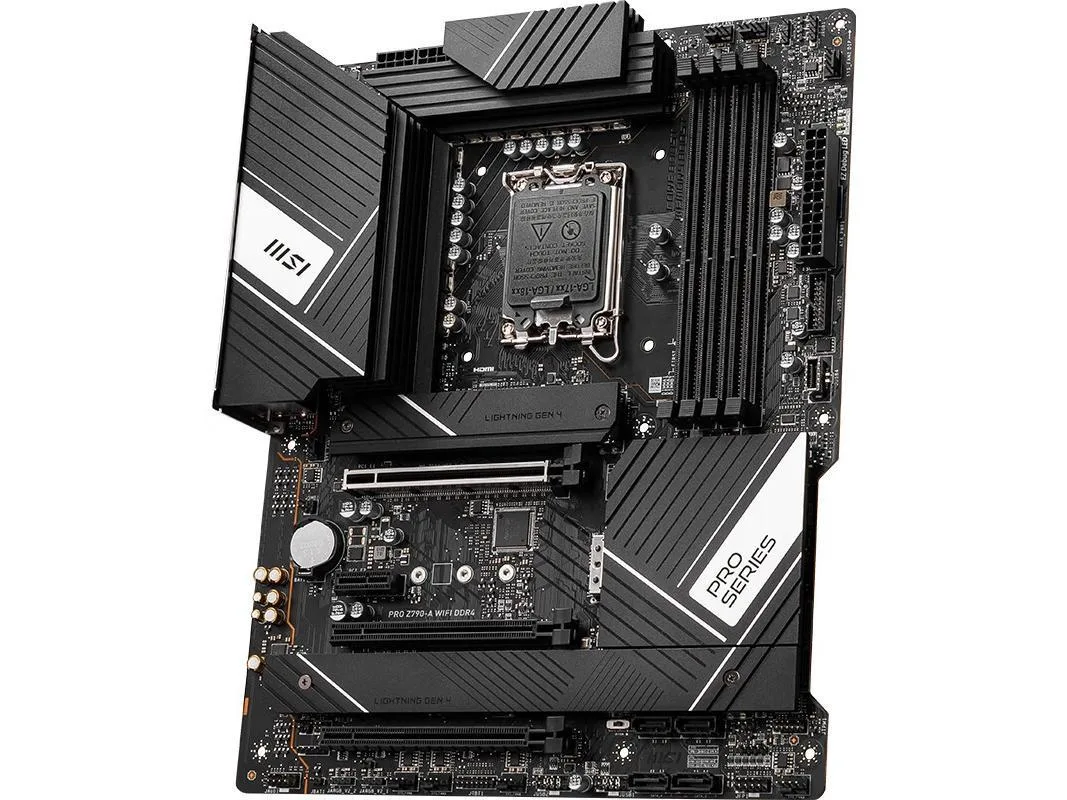

LGA 1700 Z790 DDR4 Motherboard

This ATX board accepts Intel Core 12th, 13th and 14th generation processors in the LGA 1700 socket. It is built for workstations and enthusiast desktops that need Z790 features while keeping existing DDR4 memory kits.

128GB DDR4 Capacity and PCIe Layout

Four slots support up to 128GB of DDR4 memory for heavy multitasking and content creation workloads. The primary PCIe 5.0 x16 slot connects directly to the CPU, a second slot runs at PCIe 3.0 x1 and a third at PCIe 4.0 x4 from the chipset, so add-in cards share bandwidth accordingly.

Bundled I/O Shield, Battery.

The package supplies a rear I/O shield, a CMOS battery and one SATA cable for immediate installation. A Wi-Fi antenna is also included to enable the onboard wireless module, while no further cables or software media are provided.

Highlights

  • Supports Intel Core 14th 13th 12th Gen processors via LGA 1700 socket
  • Intel Z790 chipset enables up to 128GB DDR4 memory capacity
  • PCIe 5.0 x16 slot provides high bandwidth for latest graphics cards
  • Intel 2.5Gbps LAN plus WiFi antenna included for flexible connectivity
  • Realtek ALC4080 codec delivers 7.1 channel high performance audio

Specifications

BrandMSI
SeriesMSI PRO Z790-A WIFI DDR4
ModelMSI PRO Z790-A WIFI DDR4
CPU Socket TypeLGA 1700
CPU TypeSupport Intel Core™ 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors
LGA 1700
ChipsetIntel Z790
Memory StandardNo data yet
Maximum Memory Supported128GB
PCI Slots3X PCI-E x16 slots (quantity)
1X PCI-E x1 slot (quantity)
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)
SATA RAID4XM.2 interface
Audio ChipsetRealtek ALC4080 Codec
7.1-Channel USB High Performance Audio
Supports S/PDIF output
LAN ChipsetIntel 2.5Gbps LAN
Onboard USB2X USB 2.0 (rear)
4X USB 2.0 (front)
2X USB 2.0 interface (back)
4X USB 2.0 interface (front)
2x USB 5Gbps Type A (Rear)
2x USB 5Gbps Type A (Front)
3x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Front)
1x USB 20Gbps Type C (Rear)

Questions about this item

Will my existing DDR4 memory modules work with the LGA 1700 socket on this board?

Yes, the board supports DDR4 memory up to 128 GB total capacity using the LGA 1700 socket.

How can I confirm the Intel 2.5 Gbps LAN and Realtek ALC4080 audio are active after assembly?

Check Device Manager for the Intel 2.5Gbps LAN adapter and Realtek ALC4080 codec, then verify link speed and 7.1-channel output in their respective control panels.

What accessories are included and which essentials must I source separately?

The box contains the motherboard, CMOS battery, one SATA cable and the rear I/O shield; you must purchase a CPU cooler, DDR4 memory, storage drives and a power supply separately.
