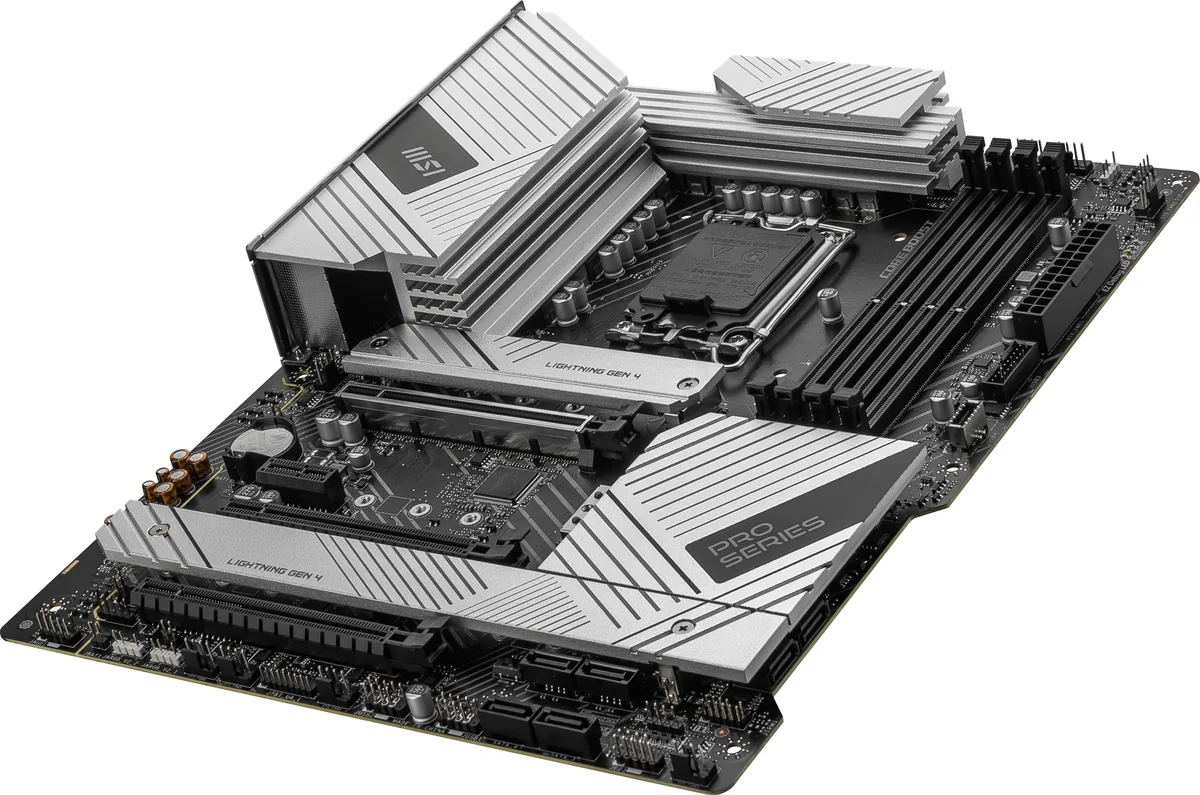

ATX motherboard with silver heatsinks and black PCB

MSI

MSI PRO Z790-A WIFI II Intel motherboard

SKU CH-7PWG-VHMZH MPN PRO Z790-A WIFI II

ATX board for LGA 1700 Intel 12th, 13th and 14th Gen CPUs with DDR5 7800 support, PCIe 5.0 x16, Wi‑Fi 6E and 20 Gbps USB 3.2 Gen 2x2

  • CPU Socket TypeLGA 1700
  • CPU TypeIntel Core 14th/13th/12th Gen, Intel Pentium Gold, and Celer
  • ChipsetIntel Z790
  • South BridgeINTEL Z790
  • Onboard Video ChipsetIntel UHD Graphics
  • Number of Memory Slots4x288pin (DDR5)

Option PRO Z790-A WIFI II

  • MAG Z790 TOMAHAWK MAX WIFI
  • MAG Z790 TOMAHAWK WIFI
  • MEG Z790 ACE
  • MEG Z790 ACE MAX
  • MEG Z790 GODLIKE
  • MPG Z790 CARBON WIFI
  • MPG Z790 CARBON WIFI II
  • MPG Z790 EDGE TI MAX WIFI
  • MPG Z790 EDGE WIFI
  • MPG Z790 EDGE WIFI DDR4
  • PRO Z790-P WIFI
  • PRO Z790-A WIFI
  • PRO Z790-A WIFI DDR4
  • PRO Z790-P WIFI DDR4
  • Z790 GAMING PRO WIFI
  • PRO Z790-A MAX WIFI
  • Z790-S WIFI
  • Z790 PROJECT ZERO
  • Z790 GAMING PLUS WIFI
  • PRO Z790-VC WIFI
  • PRO Z790-A WIFI II

Struck-through versions exist but are not stocked here.

  • Supports 12th, 13th and 14th Gen Intel Core processors via LGA 1700 socket
  • PCIe 5.0 x16 slot delivers up to 128 GB/s bandwidth for next-gen GPUs
  • DDR5 memory up to 7800 MT/s with XMP 3.0 and 256 GB capacity
  • Wi-Fi 6E on 6 GHz band with MU-MIMO reaches 2400 Mbps wireless speed
  • 16-duet-rail 80 A power stages and extended VRM heatsink sustain heavy CPU loads

LGA 1700 ATX platform for Intel Core 12 13 14 Gen

The MSI PRO Z790-A WIFI II is an ATX motherboard built around the Intel Z790 chipset and LGA 1700 socket. It accepts 12th 13th and 14th Gen Intel Core processors along with Pentium Gold and Celeron models. Four 288-pin slots support dual-channel DDR5 up to 256 GB.

Creative professionals and high-load workstations

This board suits users who need sustained CPU power delivery through a 16-duet-rail design with 80 A smart power stages and dual 8-pin connectors. Integrated Wi-Fi 6E and a USB 3.2 Gen 2x2 20 Gbps port handle modern connectivity. Builders who require ECC memory or legacy PCIe 3.0 x16 slots should consider other chipsets.

PCIe 5.0 x16 and DDR5 7800 define the ceiling

The single PCI Express 5.0 x16 slot provides up to 128 GB/s bandwidth for current-generation graphics cards or accelerators. Memory tops out at DDR5 7800 via Intel XMP 3.0. These two specifications determine whether the platform matches your performance targets.

Highlights

  • Supports 12th, 13th and 14th Gen Intel Core processors via LGA 1700 socket
  • PCIe 5.0 x16 slot delivers up to 128 GB/s bandwidth for next-gen GPUs
  • DDR5 memory up to 7800 MT/s with XMP 3.0 and 256 GB capacity
  • Wi-Fi 6E on 6 GHz band with MU-MIMO reaches 2400 Mbps wireless speed
  • 16-duet-rail 80 A power stages and extended VRM heatsink sustain heavy CPU loads

Specifications

BrandMSI
SeriesPRO
CPU Socket TypeLGA 1700
CPU TypeIntel Core 14th/13th/12th Gen, Intel Pentium Gold, and Celeron Processors (LGA 1700)
ChipsetIntel Z790
South BridgeINTEL Z790
Onboard Video ChipsetIntel UHD Graphics
Number of Memory Slots4x288pin (DDR5)
Memory StandardDDR5 7800
Maximum Memory Supported256GB
Channel SupportedDual Channel
Memory Performance ProfileIntel XMP 3.0
ECC SupportedNo
Buffer SupportedNo
PCI Express 5.0 x161 x PCI Express 5.0 x16
PCI Express 4.0 x160 x PCI Express 4.0 x16
PCI Express 3.0 x160 x PCI Express 3.0 x16
PCI Express x163 x PCI Express x16
PCI Express x80 x PCI Express x8
PCI Express x41 x PCI Express x4
PCI Express x11 x PCI Express x1
PCI Slots0 x PCI Slots
Serial ATA (SATA)6 x SATA 6 Gb/s
M.24 x M.2 (Support PCIe 4.0 x4 / SATA)
SATA RAID0/1/5/10
Audio ChipsetRealtek ALC4080
Audio Channels7.1 Channels
Max LAN Speed2.5 Gbps
Wireless LANWiFi IEEE 802.11 a/b/g/n/ac/ax
BluetoothYes
Back I/O Ports1 x DisplayPort, 1 x USB 2.0, 1 x 2.5G LAN, 1 x HDMI, 1 x USB 5Gbps Type-A, 1 x USB 10Gbps Type-A, 1 x USB 20Gbps Type-C, 1 x S/PDIF-OUT, 1 x Audio Connectors
PS/20 PS/2 port(s)
COM0
LPTNo
Video PortsHDMI, DisplayPort
S-VideoNo
HDMI1 x HDMI
RJ451 x RJ45
DisplayPort1 x DisplayPort, 0 x Mini DisplayPort
Thunderbolt Ports0 x Thunderbolt Port
USB 3.04 x USB 3.0
USB 1.1/2.00 x USB 1.1, 6 x USB 2.0
USB Type-C1 x USB Type-C port, with USB 3.2 Gen 2 support and 1 x USB Type-C port, with USB 4.0 Gen 2 support
IEEE 13940 x IEEE 1394a + 0 x IEEE 1394b
S/PDIF Out1 x Coaxial
Game/MIDI PortsNo
Onboard USB2 x USB 2.0 + 2 x USB 3.2 Gen 1 Type-A + 3 x USB 3.2 Gen 2 Type-A + 1 x USB 3.2 Gen 2x2 Type-C
LVDS ConnectorNo
Windows 11Yes
Form FactorATX
LED LightingNone
Dimensions (W x L)9.6" x 12"
Power Pin24 Pin
Shipping weight2.02 kg
Package size343 × 269 × 76 mm

Other versions of this model

4 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What case size and socket does the PRO Z790-A WIFI II require?

The motherboard follows the ATX form factor and uses an LGA 1700 socket, so the chassis must support ATX boards and the processor must fit LGA 1700.

What is the correct order for mounting the Wi-Fi antenna on this board?

The EZ Antenna design lets you snap the fasteners onto the rear I/O panel first, then attach the antenna body without twisting — reversing the steps can leave a loose connection.

Which components on this board will need thermal-pad replacement over time?

The VRM area uses 7W/mK MOSFET thermal pads and additional choke thermal pads; these pads degrade with heat cycles and should be inspected or replaced during major service intervals.
