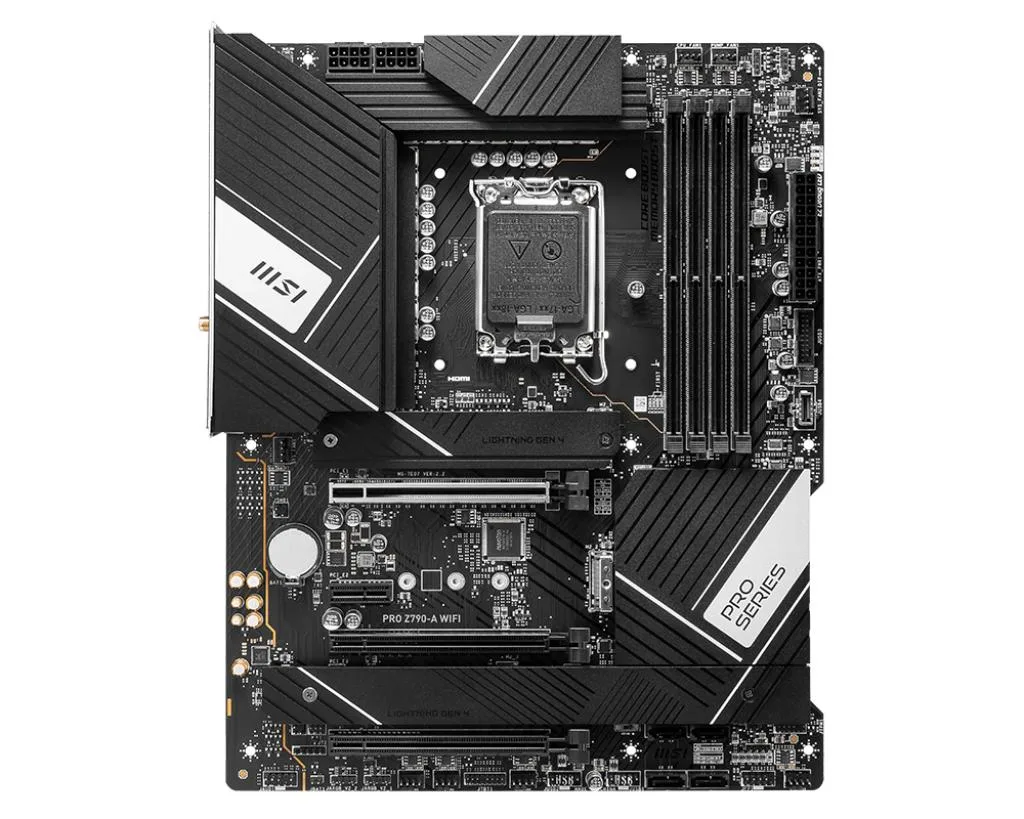

Rectangular ATX motherboard with silver heatsinks and black PCB

MSI

MSI PRO Z790-A WIFI Intel motherboard LGA 1700 DDR5 256GB ATX

SKU CH-BNEW-P73RN

ATX board for Intel Core 12, 13 and 14 Gen CPUs with DDR5 up to 256GB, 2.5Gb LAN and Wi‑Fi

  • CPU Socket TypeLGA 1700
  • CPU TypeSupport Intel Core™ 14th/ 13th/ 12th Gen Processors, Intel P
  • ChipsetIntel Z790
  • Memory StandardSupport dual-channel DDR5 7200 + (OC)/7000 (OC)/6800 (OC)/66
  • Maximum Memory Supported256GB
  • PCI Slots3X PCI-E x16 slots (quantity) 1X PCI-E x1 slot (quantity) PC
  • Supports Intel Core 12th 13th 14th Gen processors with LGA 1700 socket
  • DDR5 memory up to 7200 MHz overclocked and 256 GB capacity
  • PCIe 5.0 x16 slot for high speed graphics cards
  • 5 Gbps Intel LAN and multiple USB 10 Gbps ports
  • Realtek ALC4080 7.1 channel audio with S/PDIF output

Pro Z790-A WIFI platform

The board pairs an Intel Z790 chipset with an LGA 1700 socket, accepting Core 12th, 13th and 14th Gen processors plus Pentium Gold and Celeron parts. It targets builders who need a full-size ATX foundation with integrated wireless and 2.5 Gbps LAN.

DDR5 capacity and headroom

Four slots support dual-channel DDR5 up to 256 GB, running at JEDEC speeds from 4800 to 5600 MHz and overclocked profiles reaching 7200 MHz. The primary PCIe 5.0 x16 slot connects directly to the CPU, while the chipset adds a PCIe 4.0 x4 and a PCIe 3.0 x1 slot for additional cards.

Build integration and I/O

Six SATA III ports and four M.2 interfaces provide storage flexibility. Rear I/O includes 2.0, 5 Gbps and 10 Gbps Type-A ports plus a front-panel 10 Gbps Type-C header. Realtek ALC4080 drives 7.1-channel audio with S/PDIF, and the package ships with a Wi-Fi antenna, CMOS battery, one SATA cable and the I/O shield.

Highlights

  • Supports Intel Core 12th 13th 14th Gen processors with LGA 1700 socket
  • DDR5 memory up to 7200 MHz overclocked and 256 GB capacity
  • PCIe 5.0 x16 slot for high speed graphics cards
  • 5 Gbps Intel LAN and multiple USB 10 Gbps ports
  • Realtek ALC4080 7.1 channel audio with S/PDIF output

Specifications

BrandMSI
SeriesMSI PRO Z790-A WIFI
ModelMSI PRO Z790-A WIFI
CPU Socket TypeLGA 1700
CPU TypeSupport Intel Core™ 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors
LGA 1700
ChipsetIntel Z790
Memory StandardSupport dual-channel DDR5 7200 + (OC)/7000 (OC)/6800 (OC)/6600 (OC)/6400 (OC)/6200 (OC)/6000 (OC)/5800 (OC)/5600 (JEDEC)/5400 (JEDEC)/5200 (JEDEC)/5000 (JEDEC)/4800 (JEDEC) MHz memory
Maximum Memory Supported256GB
PCI Slots3X PCI-E x16 slots (quantity)
1X PCI-E x1 slot (quantity)
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)
SATA RAID4XM.2 interface, 6xSATA III interface
Audio ChipsetRealtek ALC4080 Codec
7.1-Channel USB High Performance Audio
Supports S/PDIF output
LAN ChipsetIntel 2.5Gbps LAN
Onboard USB2X USB 2.0 (rear)
4X USB 2.0 (front)
2X USB 2.0 interface (back)
4X USB 2.0 interface (front)
2x USB 5Gbps Type A (Rear)
2x USB 5Gbps Type A (Front)
3x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Front)
1x USB 20Gbps Type C (Rear)

Questions about this item

Will my existing LGA 1700 cooler fit the socket on this board?

Yes, the board uses the standard LGA 1700 socket so any cooler with that mounting pattern will fit.

How can I confirm the DDR5 memory is running at the speeds listed such as 7200 MHz?

Enter the BIOS and verify the XMP profile shows the rated frequency, or check the memory speed readout in Windows Task Manager.

Which cables and the Wi-Fi antenna are included in the box?

The package contains the motherboard, a CMOS battery, one SATA cable, the rear I/O shield and the Wi-Fi antenna.
