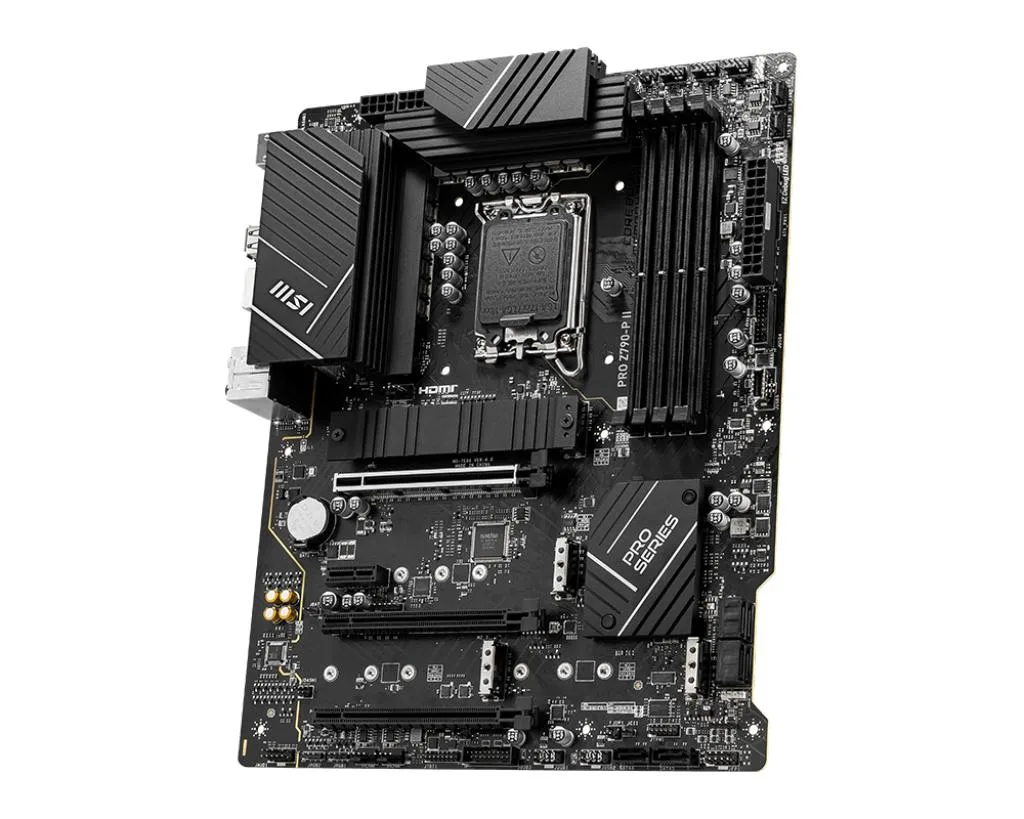

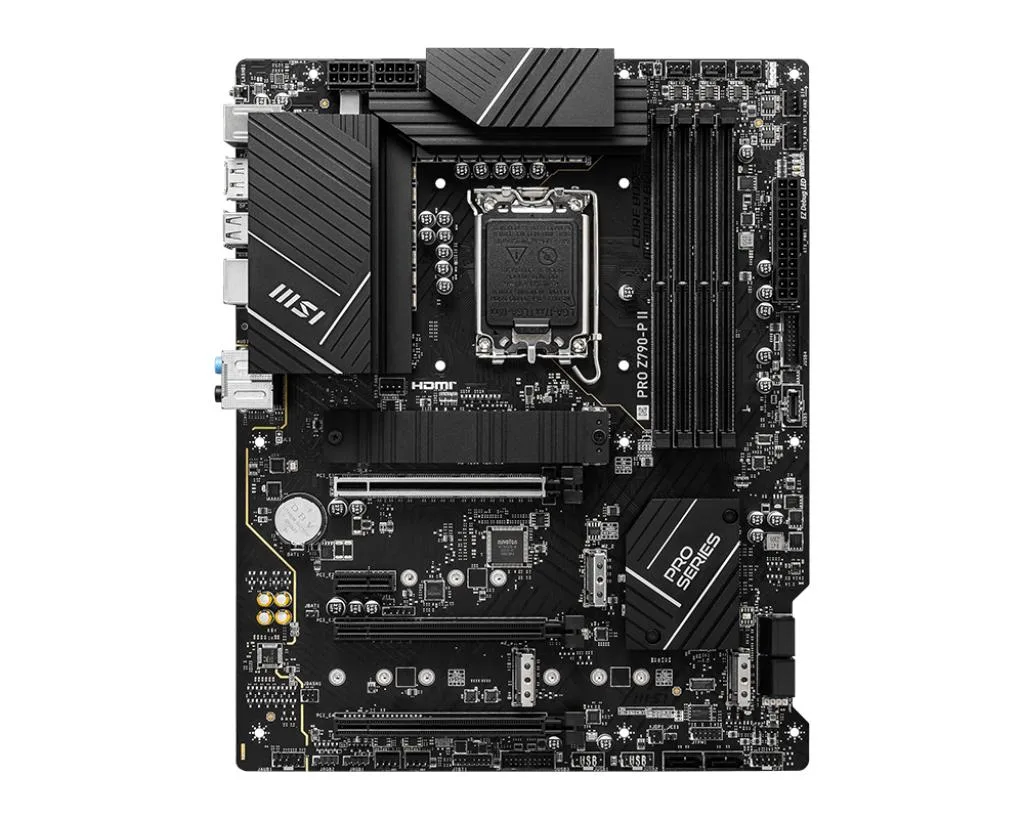

Rectangular ATX motherboard with black PCB and silver heatsinks covering chipset and VRM areas

MSI

MSI PRO Z790-P II DDR5 LGA 1700 Intel motherboard

SKU CH-NJ9A-4XP75

An ATX motherboard for LGA 1700 CPUs with DDR5 memory up to 7200 MHz, 14+1+1 55 A DrMOS power, PCIe 5.0 slot, Gen 4 M.2, USB 3.2 Gen 2x2 and 2.5 G LAN

  • Supports 12th, 13th and 14th Gen Intel Core processors on LGA 1700 socket
  • DDR5 memory support up to 7200 MHz overclocked for faster system responsiveness
  • 14+1+1 phase power design with 55 A DrMOS and dual 8-pin CPU connectors for stable delivery
  • Extended heatsink, 7 W/mK MOSFET pads and M.2 Shield Frozr keep thermals in check
  • PCIe 5.0 slot, Gen 4 x4 M.2, USB 3.2 Gen 2x2 and 2.5G LAN for high-speed connectivity

LGA 1700 Intel Z790 motherboard for DDR5 builds

This ATX board fits LGA 1700 processors from the 12th, 13th and 14th generations. It targets builders who want DDR5 memory support and PCIe 5.0 graphics bandwidth in a single platform. The 14+1+1 phase VRM with 55A DrMOS handles multi-core workloads without throttling. Dual 8-pin CPU power inputs give headroom for sustained boost clocks.

Check CPU cooler clearance

Verify that your chassis accepts ATX dimensions and that the CPU cooler does not overhang the VRM heatsink area. The board requires two 8-pin EPS connectors; confirm your power supply provides both. Memory slots are DDR5 only, so existing DDR4 kits cannot be reused. M.2 screws and standoffs should be on hand for the Gen 4 x4 slot.

6-layer 2oz copper PCB

Thickened copper layers improve signal integrity and heat spreading across the board. MOSFET pads rated at 7W/mK and extra choke pads keep the VRM cool during long sessions. The M.2 Shield Frozr covers the primary slot to prevent thermal throttling of high-speed drives. Rear I/O includes USB 3.2 Gen 2x2 and 2.5G LAN for fast external storage and wired networking.

Highlights

  • Supports 12th, 13th and 14th Gen Intel Core processors on LGA 1700 socket
  • DDR5 memory support up to 7200 MHz overclocked for faster system responsiveness
  • 14+1+1 phase power design with 55 A DrMOS and dual 8-pin CPU connectors for stable delivery
  • Extended heatsink, 7 W/mK MOSFET pads and M.2 Shield Frozr keep thermals in check
  • PCIe 5.0 slot, Gen 4 x4 M.2, USB 3.2 Gen 2x2 and 2.5G LAN for high-speed connectivity

Specifications

No published specifications for this item yet.

Questions about this item

Will this board run DDR5 memory at 7200 MHz out of the box?

The board supports DDR5 up to 7200+ MHz when overclocked; standard JEDEC speeds will run automatically without manual tuning.

Do I need two 8-pin CPU power cables for a high-wattage processor?

Yes, the 14+1+1 phase design uses dual 8-pin connectors to deliver stable current to 55 A DrMOS stages under heavy load.

What LAN speed does the onboard controller provide?

The integrated 2.5 G LAN controller offers up to 2.5 Gbps wired throughput for low-latency networking.
