Green ATX board with silver heatsinks, black slots and rear I/O panel

MSI

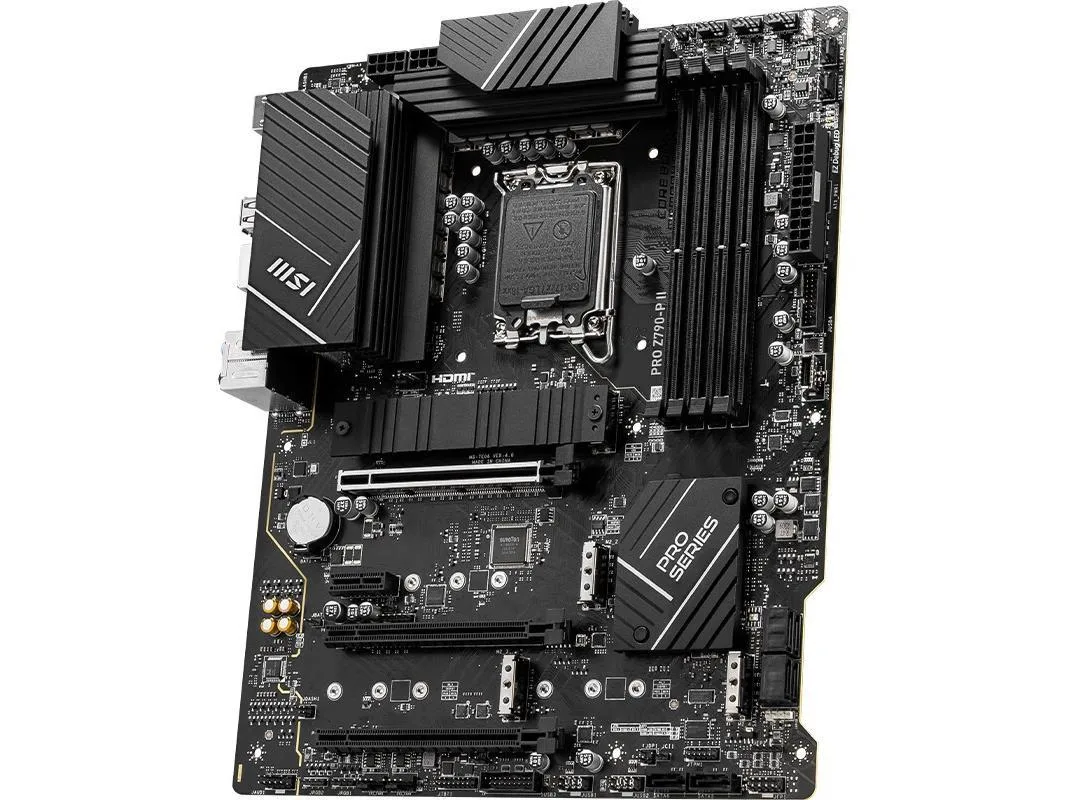

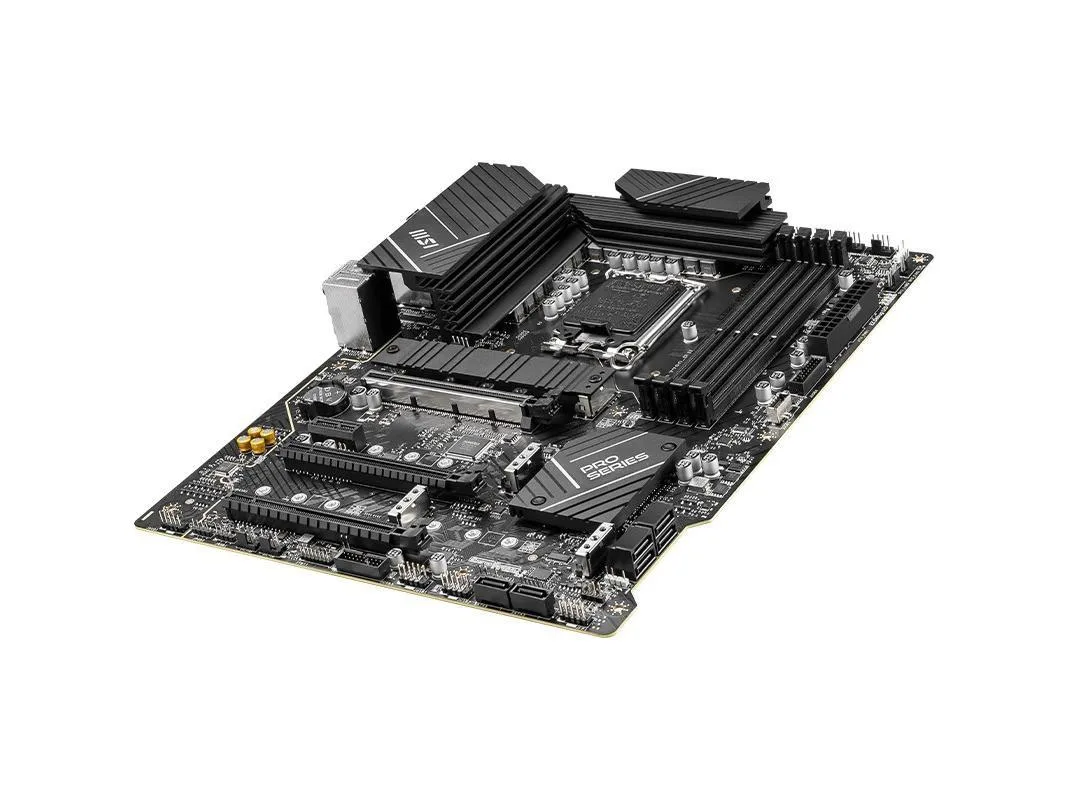

MSI PRO Z790-P II Intel motherboard

SKU CH-4XJB-5S021

Supports Intel Core 12, 13 and 14th Gen processors on LGA 1700 with dual-channel DDR5 up to 256GB and Intel 2.5Gbps LAN

  • CPU Socket TypeLGA 1700
  • CPU TypeSupport Intel Core™ 14th/ 13th/ 12th Gen Processors, Intel P
  • ChipsetIntel Z790
  • Memory StandardSupport dual channel DDR5 7800 + (OC)/7600 (OC)/7400 (OC)/72
  • Maximum Memory Supported256GB
  • PCI Slots3X PCI-E x16 slots (quantity) 1X PCI-E x1 slot (quantity) PC
  • Supports 256GB DDR5 for heavy multitasking
  • 7800MHz DDR5 overclocking headroom for faster memory speeds
  • PCIe 5.0 x16 slot ready for latest graphics cards
  • Intel 2.5Gbps LAN delivers low-latency wired networking
  • 20Gbps USB-C on rear panel for rapid data transfers

LGA 1700 Z790 ATX platform

The MSI PRO Z790-P II is an Intel Z790 motherboard built for LGA 1700 processors from the 12th, 13th and 14th generations. It supports dual-channel DDR5 memory up to 256 GB with speeds ranging from 4800 to 7800 MHz. The board provides three PCI-E x16 slots and one PCI-E x1 slot, plus six SATA III ports and four M.2 interfaces for storage expansion.

Builders needing 2.5 Gbps LAN and USB 20 Gbps

This board suits users who want wired 2.5 Gbps Ethernet and a rear USB 20 Gbps Type-C port alongside multiple 10 Gbps and 5 Gbps connections. It also delivers 7.1-channel audio through the Realtek ALC897 codec. Builders who require integrated Wi-Fi or more than four M.2 slots should consider other models.

Four M.2 interfaces and six SATA III ports

The single specification that decides fit is the combination of four M.2 interfaces and six SATA III ports, which sets the maximum number of drives you can attach directly to the board. Verify that your storage plan matches this count before purchase.

Highlights

  • Supports 256GB DDR5 for heavy multitasking
  • 7800MHz DDR5 overclocking headroom for faster memory speeds
  • PCIe 5.0 x16 slot ready for latest graphics cards
  • Intel 2.5Gbps LAN delivers low-latency wired networking
  • 20Gbps USB-C on rear panel for rapid data transfers

Specifications

BrandMSI
SeriesMSI PRO Z790-P II
ModelMSI PRO Z790-P II
CPU Socket TypeLGA 1700
CPU TypeSupport Intel Core™ 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors
LGA 1700
ChipsetIntel Z790
Memory StandardSupport dual channel DDR5 7800 + (OC)/7600 (OC)/7400 (OC)/7200 (OC)/7000 (OC)/6800 (OC)/6600 (OC)/6400 (OC)/6200 (OC)/6000 (OC)/5800 (OC)/5600 (JEDEC)/5400 (JEDEC)/5200 (JEDEC)/5000 (JEDEC)/4800 (JEDEC) MHz memory
Maximum Memory Supported256GB
PCI Slots3X PCI-E x16 slots (quantity)
1X PCI-E x1 slot (quantity)
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)
SATA RAID4XM.2 interface, 6xSATA III interface
Audio ChipsetRealtek ALC897 Codec
7.1-Channel High Definition Audio
LAN ChipsetIntel 2.5Gbps LAN
Onboard USB4X USB 2.0 (rear)
4X USB 2.0 (front)
2x USB 5Gbps Type A (Rear)
4x USB 5Gbps Type A (Front)
1x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Front)
1x USB 20Gbps Type C (Rear)

Questions about this item

Which DDR5 memory speeds does the board officially support up to?

The board supports DDR5 from 4800 MHz JEDEC up to 7800 MHz when overclocked, with dual-channel operation and a 256 GB maximum capacity.

Will my existing PCIe 3.0 x1 expansion cards work in the second full-size slot?

Yes, the PCI_E2 slot runs at PCIe 3.0 x1 from the chipset, so legacy x1 cards will function normally.

How can I confirm the 2.5 Gbps LAN is active after installing drivers?

Open the network adapter properties in Windows and verify the link speed shows 2.5 Gbps; the Intel LAN chipset will report that rate when connected to a 2.5 Gbps switch.
