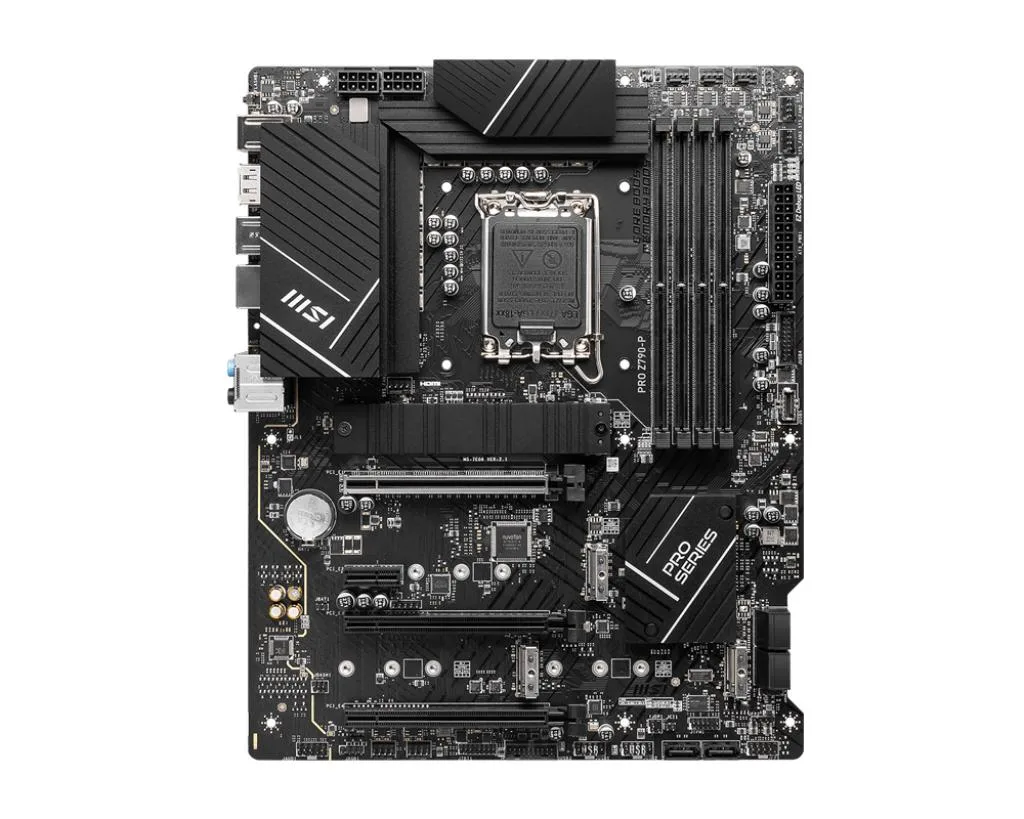

Rectangular ATX motherboard in black with silver heatsinks and silver PCIe slots

MSI

MSI PRO Z790-P Intel motherboard

SKU CH-KAPK-21WTG

ATX board for LGA 1700 CPUs with DDR5 support up to 7000 MHz and 256 GB capacity

  • CPU Socket TypeLGA 1700
  • CPU TypeSupport Intel Core™ 14th/ 13th/ 12th Gen Processors, Intel P
  • ChipsetIntel Z790
  • Memory StandardSupport dual channel DDR5 7000 + (OC)/6800 (OC)/6600 (OC)/64
  • Maximum Memory Supported256GB
  • PCI Slots3X PCI-E x16 slots (quantity) 1X PCI-E x1 slot (quantity) PC
  • Supports Intel Core 12 13 14 Gen processors with LGA 1700 socket
  • Dual channel DDR5 memory up to 7000 MHz OC and 256GB capacity
  • PCIe 5.0 x16 slot for latest graphics cards
  • Intel 2.5Gbps LAN for fast wired networking
  • Realtek ALC897 7.1 channel high definition audio

LGA 1700 Intel Z790 DDR5 platform

The MSI PRO Z790-P motherboard supports Intel Core 12th, 13th and 14th generation processors along with Pentium Gold and Celeron chips. Dual-channel DDR5 memory scales from JEDEC 4800 MHz up to 7000 MHz when overclocked. Maximum supported capacity reaches 256 GB for demanding workloads.

ATX layout with PCIe 5.0 and 2.5 Gbps LAN

An ATX form factor provides three PCIe x16 slots and one x1 slot, with the primary slot wired for PCIe 5.0 x16 from the CPU. Storage connectivity includes four M.2 interfaces and six SATA ports. Rear I/O supplies 2.5 Gbps Ethernet, HDMI, DisplayPort and a mix of USB 2.0, 5 Gbps and 10 Gbps Type-A ports plus a front-panel USB 20 Gbps Type-C header.

Boxed accessories for immediate assembly

The package ships with the motherboard, a CMOS battery, one SATA cable and a chassis I/O back panel. A Wi-Fi antenna is included when the board integrates a wireless module. No further cables, brackets or software media are supplied, so builders should plan additional storage cables or mounting hardware separately.

Highlights

  • Supports Intel Core 12 13 14 Gen processors with LGA 1700 socket
  • Dual channel DDR5 memory up to 7000 MHz OC and 256GB capacity
  • PCIe 5.0 x16 slot for latest graphics cards
  • Intel 2.5Gbps LAN for fast wired networking
  • Realtek ALC897 7.1 channel high definition audio

Specifications

BrandMSI
SeriesMSI PRO Z790-P
ModelMSI PRO Z790-P
CPU Socket TypeLGA 1700
CPU TypeSupport Intel Core™ 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors
LGA 1700
ChipsetIntel Z790
Memory StandardSupport dual channel DDR5 7000 + (OC)/6800 (OC)/6600 (OC)/6400 (OC)/6200 (OC)/6000 (OC)/5800 (OC)/5600 (JEDEC)/5400 (JEDEC)/5200 (JEDEC)/5000 (JEDEC)/4800 (JEDEC) MHz memory
Maximum Memory Supported256GB
PCI Slots3X PCI-E x16 slots (quantity)
1X PCI-E x1 slot (quantity)
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)
SATA RAID4XM.2 interface, 6xSATA III interface
Audio ChipsetRealtek ALC897 Codec
7.1-Channel High Definition Audio
LAN ChipsetIntel 2.5Gbps LAN
Onboard USB4X USB 2.0 (rear)
4X USB 2.0 (front)
4X USB 2.0 interface (back)
4X USB 2.0 interface (front)
2x USB 5Gbps Type A (Rear)
4x USB 5Gbps Type A (Front)
1x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Front)
1x USB 20Gbps Type C (Rear)

Questions about this item

Will this board accept a 13th Gen Intel Core i7 processor?

Yes, the LGA 1700 socket supports Intel Core 12th, 13th and 14th Gen processors, plus Pentium Gold and Celeron CPUs.

What is the maximum DDR5 capacity and what speeds are supported?

Four slots take up to 256 GB total. JEDEC speeds run from 4800 to 5600 MHz; overclocked profiles reach 7000 MHz.

How many M.2 drives and SATA drives can I connect?

Four M.2 slots and six SATA III ports are available for storage devices.
