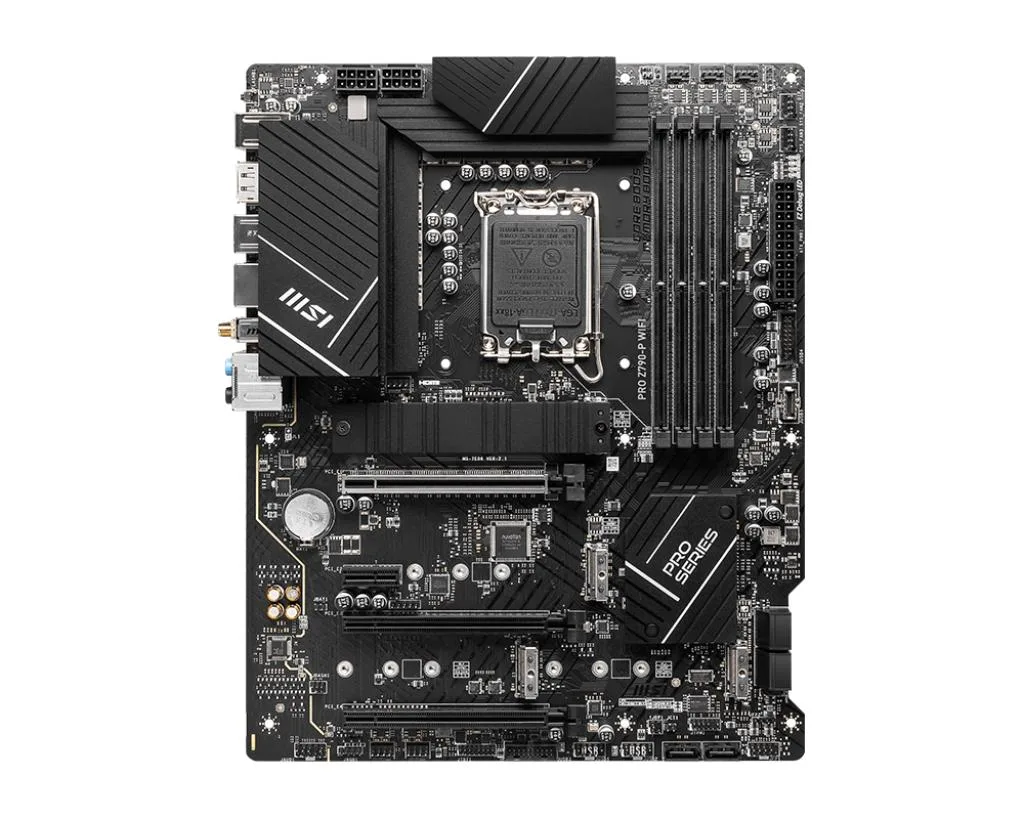

ATX motherboard in black with silver heatsinks and LGA 1700 socket

MSI

MSI PRO Z790-P WIFI DDR5 Intel motherboard

SKU CH-5CH4-VQGH1

Supports Intel Core 12th 13th 14th Gen CPUs with DDR5 up to 7000 MHz and 256 GB capacity on Z790 chipset

  • CPU Socket TypeLGA 1700
  • CPU TypeSupport Intel Core™ 14th/ 13th/ 12th Gen Processors, Intel P
  • ChipsetIntel Z790
  • Memory StandardSupport dual channel DDR5 7000 + (OC)/6800 (OC)/6600 (OC)/64
  • Maximum Memory Supported256GB
  • PCI Slots3X PCI-E x16 slots (quantity) 1X PCI-E x1 slot (quantity) PC
  • Supports Intel Core 12 13 14 Gen processors via LGA 1700 socket
  • Dual-channel DDR5 memory up to 7000 MHz overclocked with 256 GB maximum capacity
  • Intel 2.5 Gbps LAN provides fast wired networking for low-latency transfers
  • Realtek ALC897 codec delivers 7.1-channel high-definition audio for immersive sound
  • Four M.2 slots and six SATA ports offer extensive storage expansion options

Z790 DDR5 ATX board for Intel LGA 1700 CPUs

The MSI PRO Z790-P WIFI is an ATX motherboard built on the Intel Z790 chipset for LGA 1700 processors. It supports 12th, 13th and 14th Gen Core CPUs plus Pentium Gold and Celeron chips. The board provides four DDR5 slots with a maximum capacity of 256GB.

DDR5 speeds up to 7000 MT/s overclocked

Memory can run at JEDEC speeds from 4800 to 5600 MT/s and overclocked steps from 5800 to 7000 MT/s in dual-channel mode. The primary PCIe x16 slot operates at Gen 5.0 from the CPU while two additional x16 slots and one x1 slot run at Gen 4.0 and Gen 3.0 respectively from the chipset.

Suits builders needing high DDR5 capacity

This board fits users who want 256GB DDR5 headroom, a PCIe 5.0 graphics slot and 2.5Gbps LAN with Realtek 7.1 audio. Buyers requiring AMD AM4 compatibility or a micro-ATX form factor should choose a different model.

Highlights

  • Supports Intel Core 12 13 14 Gen processors via LGA 1700 socket
  • Dual-channel DDR5 memory up to 7000 MHz overclocked with 256 GB maximum capacity
  • Intel 2.5 Gbps LAN provides fast wired networking for low-latency transfers
  • Realtek ALC897 codec delivers 7.1-channel high-definition audio for immersive sound
  • Four M.2 slots and six SATA ports offer extensive storage expansion options

Specifications

BrandMSI
SeriesMSI PRO Z790-P WIFI
ModelMSI PRO Z790-P WIFI
CPU Socket TypeLGA 1700
CPU TypeSupport Intel Core™ 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors
LGA 1700
ChipsetIntel Z790
Memory StandardSupport dual channel DDR5 7000 + (OC)/6800 (OC)/6600 (OC)/6400 (OC)/6200 (OC)/6000 (OC)/5800 (OC)/5600 (JEDEC)/5400 (JEDEC)/5200 (JEDEC)/5000 (JEDEC)/4800 (JEDEC) MHz memory
Maximum Memory Supported256GB
PCI Slots3X PCI-E x16 slots (quantity)
1X PCI-E x1 slot (quantity)
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)
SATA RAID4XM.2 interface, 6xSATA III interface
Audio ChipsetRealtek ALC897 Codec
7.1-Channel High Definition Audio
LAN ChipsetIntel 2.5Gbps LAN
Onboard USB4X USB 2.0 (rear)
4X USB 2.0 (front)
4X USB 2.0 interface (back)
4X USB 2.0 interface (front)
2x USB 5Gbps Type A (Rear)
4x USB 5Gbps Type A (Front)
1x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Front)
1x USB 20Gbps Type C (Rear)

Questions about this item

Will DDR5-7000 memory run at that speed once installed in this board?

DDR5-7000 is listed as an overclocked speed; the board supports it through XMP profiles when paired with a compatible 12th, 13th or 14th Gen CPU and suitable modules.

What does the PCIe 5.0 x16 slot cap at in practice?

The top PCIe x16 slot is wired for PCIe 5.0 x16 from the CPU, so a graphics card or add-in card can use the full 5.0 bandwidth when a supported processor is installed.

Does the ATX form factor fit a standard mid-tower case?

Yes, the board follows the ATX layout and mounts with the usual nine screw holes found in standard mid-tower and full-tower chassis.
