ATX motherboard with back-connect layout, black PCB and silver heatsinks

MSI

MSI PRO Z890-S WIFI PZ Intel motherboard

SKU CH-1TH4-H7H8W MPN PRO Z890-S WIFI PZ

Back-connect ATX board for Intel Core Ultra Series 2 processors with DDR5 up to 8800 MT/s, PCIe 5.0 x16, Wi-Fi 7 and Thunderbolt 4

  • CPU Socket TypeLGA 1851
  • CPU TypeSupports Intel® Core™ Ultra Processors (Series 2) LGA 1851
  • ChipsetIntel Z890
  • Number of Memory Slots4x288pin (DDR5)
  • Memory Standard4x DDR5 UDIMM, Maximum Memory Capacity 256GB Memory Support
  • Maximum Memory Supported256GB

Option PRO Z890-S WIFI PZ

  • B760M PROJECT ZERO
  • PRO Z890-S WIFI PZ

Struck-through versions exist but are not stocked here.

  • Supports Intel Core Ultra Series 2 processors via LGA 1851 socket
  • DDR5 memory overclocking up to 8800+ MT/s with Memory Boost technology
  • PCIe 5.0 x16 slot plus M.2 Gen5 for fastest storage and graphics
  • Intel Wi-Fi 7 with 320 MHz channels reaching 5.8 Gbps
  • Thunderbolt 4 at 40 Gbps plus USB 20 Gbps and 2.5G LAN

Intel Z890 Back-Connect ATX Motherboard

The MSI PRO Z890-S WIFI PZ is a back-connect ATX motherboard built on the Intel Z890 chipset for LGA 1851 processors. It supports Intel Core Ultra Processors Series 2 and provides four DDR5 slots with a maximum capacity of 256 GB. Overclocked memory speeds reach 8800+ MT/s in a 1DPC 1R configuration.

Suited for High-Speed Storage and Network Builds

This board suits builders who need one PCIe 5.0 x16 slot, one PCIe 5.0 M.2 slot and two additional PCIe 4.0 M.2 slots for fast NVMe storage. It also provides Thunderbolt 4 at 40 Gbps, USB 20 Gbps Type-C, Intel Wi-Fi 7 and 2.5 Gbps LAN. Users requiring more than one PCIe 5.0 x16 slot should consider other options.

Deciding Specification: Single PCIe 5.0 x16 Slot

The defining specification is the single PCIe 5.0 x16 slot wired from the CPU. If the build requires only one graphics card or PCIe 5.0 add-in card, this motherboard delivers the platform bandwidth and connectivity. If a second full-bandwidth x16 slot is needed, a different Z890 model must be selected.

Highlights

  • Supports Intel Core Ultra Series 2 processors via LGA 1851 socket
  • DDR5 memory overclocking up to 8800+ MT/s with Memory Boost technology
  • PCIe 5.0 x16 slot plus M.2 Gen5 for fastest storage and graphics
  • Intel Wi-Fi 7 with 320 MHz channels reaching 5.8 Gbps
  • Thunderbolt 4 at 40 Gbps plus USB 20 Gbps and 2.5G LAN

Specifications

BrandMSI
ModelPRO Z890-S WIFI PZ
Part NumberPRO Z890-S WIFI PZ
CPU Socket TypeLGA 1851
CPU TypeSupports Intel® Core™ Ultra Processors (Series 2)
LGA 1851
ChipsetIntel Z890
Number of Memory Slots4x288pin (DDR5)
Memory Standard4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory Support 8800 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s
Max. overclocking frequency:
• 1DPC 1R Max speed up to 8800+ MT/s
• 1DPC 2R Max speed up to 7200+ MT/s
• 2DPC 1R Max speed up to 6400+ MT/s
• 2DPC 2R Max speed up to 5600+ MT/s
Supports Intel® POR Speed and JEDEC Speed
Supports Memory Overclocking and Intel® XMP 3.0
Supports Dual-Controller Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM
• The DIMM slots on this motherboard have double-sided latches.
• Memory compatibility and supported speeds can vary d
Maximum Memory Supported256GB
PCI Express 5.0 x161 x PCI Express 5.0 x16
PCI Express x16PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
PCI_E4 Gen PCIe 4.0 supports up to x4 (From CPU)
Serial ATA (SATA)4 x SATA 6Gb/s
M.23x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260/2242 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
SATA RAIDSupports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices
Audio ChannelsRealtek® ALC897 Codec
7.1-Channel High Definition Audio
Max LAN SpeedRealtek® 8125D 2.5Gbps LAN
Wireless LANIntel® Wi-Fi 7
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
Supports Bluetooth® 5.4**, MLO, 4KQAM
* 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2.
** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.
BluetoothYes

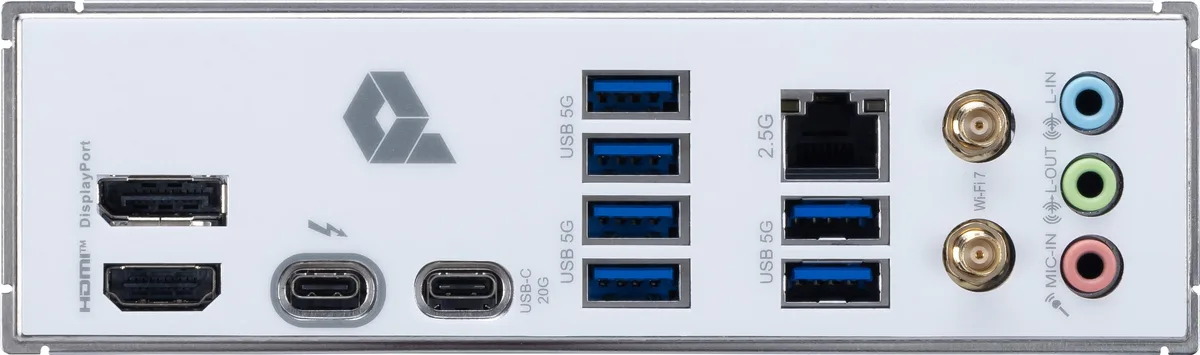

Back I/O PortsDisplayPort
USB 5Gbps Type-A
2.5G LAN
Wi-Fi / Bluetooth
Audio Connectors
HDMI™
Thunderbolt™ 4 40Gbps (Type-C)
USB 20Gbps Type-C
USB 5Gbps Type-A
Other Connectors1x Thunderbolt5 card connector(JTBT5, support RTD3)
1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x Power Connector(PCIE_PWR 8pin)
1x CPU Fan
1x Combo Fan (Pump_Sys Fan)
4x System Fan
1x EZ Conn-header (JAF_1)
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Tuning Controller connector(JDASH)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 5Gbps Type A ports
1x USB 20Gbps Type C ports
Windows 11Support for Windows® 11 64-bit
Form FactorATX (Back Connect)
Dimensions (W x L)243.84mmx304.8mm
FeaturesSupport Intel® Core™ Ultra Processors (Series 2) for LGA 1851 socket
Supports DDR5 Memory, Dual Channel DDR5 8800+ MT/s (OC)
Enhanced Power Design: 12+1+1+1 Duet Rail Power System with P-PAK , dual 8-pin CPU power connectors, Core Boost, Memory Boost, 6-layer server-grade PCB
Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop experience
EZ DIY: EZ M.2 Clip II, EZ PCIe Clip II and EZ Antenna
Lightning Fast Game experience: PCIe 5.0 slot and Lightning Gen 5 x4 M.2
Thu
Shipping weight1.91 kg
Package size356 × 279 × 76 mm

Questions about this item

Will this board fit a standard ATX case with the back-connect layout?

The PRO Z890-S WIFI PZ uses a back-connect ATX form factor, so it mounts in any standard ATX chassis using the usual nine standoff positions.

Which power connectors must be plugged in before first boot, and which one do builders often forget?

Connect the 24-pin ATX_PWR, both CPU_PWR 8-pin headers, and the PCIe_PWR 8-pin for the primary PEG slot; the extra PCIe_PWR is the one most often missed.

The Wi-Fi 7 module sits in an M.2 Key-E slot — can it be upgraded later?

Yes, the Intel Wi-Fi 7 card is pre-installed in the M.2 Key-E slot and can be replaced with another Key-E module when a newer standard arrives.
