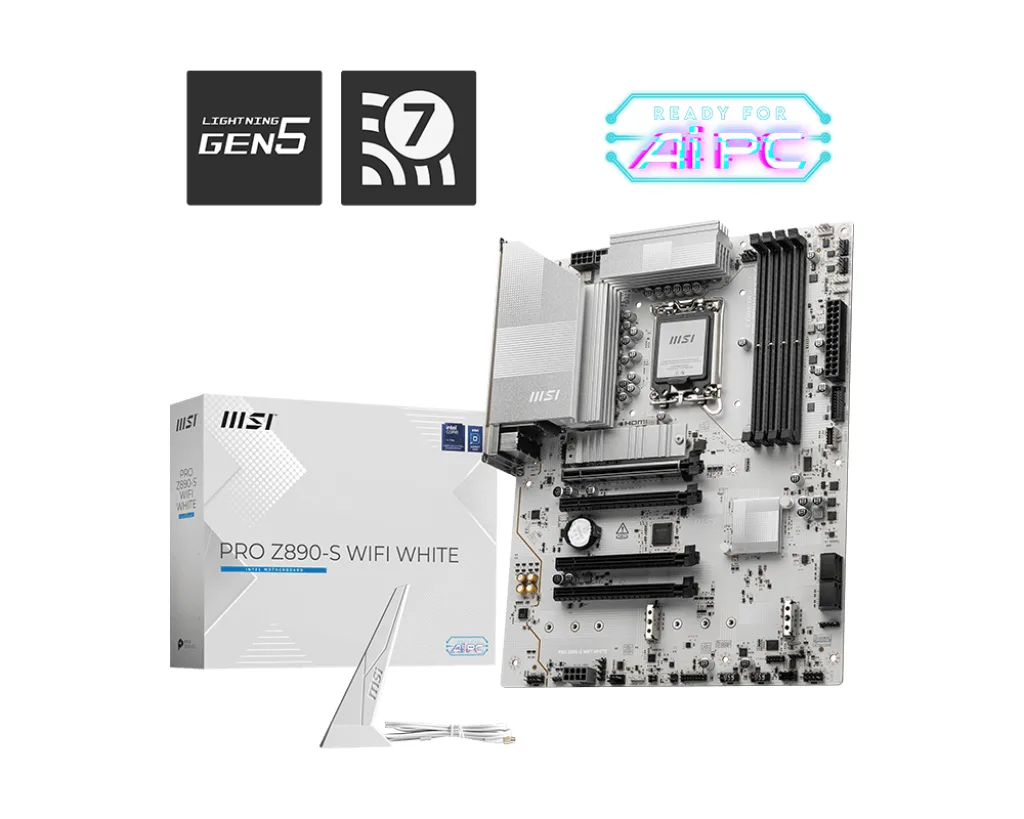

White ATX motherboard with silver heatsinks and black PCB

MSI

MSI PRO Z890-S WIFI WHITE Intel motherboard

SKU CH-MPWA-MV8YC MPN PRO Z890-S WIFI WHITE

ATX board for Intel Core Ultra Series 2 processors with DDR5 memory up to 256GB, PCIe 5.0 graphics slot, three M.2 sockets, 2.5Gbps LAN, Wi-Fi 7, Thunderbolt 4 and 7.1-channel audio

  • CPU Socket TypeLGA 1851
  • CPU TypeSupports Intel® Core™ Ultra Processors (Series 2) LGA 1851
  • ChipsetIntel Z890
  • Memory Standard4x DDR5 UDIMM, Maximum Memory Capacity 256GB Memory Support
  • Maximum Memory Supported256GB
  • Channel SupportedDual Channel
  • Supports Intel Core Ultra Series 2 processors on LGA 1851 socket
  • 4 DDR5 slots reach 8800 MT/s with 256 GB maximum capacity
  • PCIe 5.0 x16 plus three M.2 slots for high-speed storage
  • Intel Wi-Fi 7 with 320 MHz channels delivers 5.8 Gbps wireless speed
  • Thunderbolt 4 port provides 40 Gbps connectivity and 8K display support

Socket and chipset

This ATX motherboard uses the Intel Z890 chipset and an LGA 1851 socket for Intel Core Ultra Processors (Series 2). It provides four DDR5 UDIMM slots supporting up to 256GB in dual-channel mode. The board also includes a Thunderbolt 4 port on the rear I/O.

Before ordering

Verify that your CPU is an Intel Core Ultra Processor (Series 2) for the LGA 1851 socket. Check that your memory kit is DDR5 UDIMM and that your chassis accepts an ATX form factor. Ensure your power supply has the required ATX, CPU and PCIe power connectors for the 12 Duet Rail Power System.

Thermals and power

The Frozr Guard design uses extended heatsinks, 7W/mK MOSFET thermal pads, choke thermal pads and M.2 Shield Frozr to dissipate heat. Frozr AI Cooling monitors CPU and GPU temperatures and adjusts fan duty automatically. The 12 Duet Rail Power System with P-PAK delivers stable power for heavy workloads.

Highlights

  • Supports Intel Core Ultra Series 2 processors on LGA 1851 socket
  • 4 DDR5 slots reach 8800 MT/s with 256 GB maximum capacity
  • PCIe 5.0 x16 plus three M.2 slots for high-speed storage
  • Intel Wi-Fi 7 with 320 MHz channels delivers 5.8 Gbps wireless speed
  • Thunderbolt 4 port provides 40 Gbps connectivity and 8K display support

Specifications

BrandMSI
ModelPRO Z890-S WIFI WHITE
CPU Socket TypeLGA 1851
CPU TypeSupports Intel® Core™ Ultra Processors (Series 2)
LGA 1851
ChipsetIntel Z890
Memory Standard4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory Support 8800 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s
Max. overclocking frequency:
• 1DPC 1R Max speed up to 8800+ MT/s
• 1DPC 2R Max speed up to 7200+ MT/s
• 2DPC 1R Max speed up to 6400+ MT/s
• 2DPC 2R Max speed up to 5600+ MT/s
Supports Intel® POR Speed and JEDEC Speed
Supports Memory Overclocking and Intel® XMP 3.0
Supports Dual-Controller Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM
• The DIMM slots on this motherboard have double-sided latches.
• Memory compatibility and supported speeds can vary d
Maximum Memory Supported256GB
Channel SupportedDual Channel
PCI Express 5.0 x161 x PCI Express 5.0 x16
PCI Express x164x PCI-E x16 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
PCI_E4 Gen PCIe 4.0 supports up to x4 (From CPU)
Serial ATA (SATA)4 x SATA 6Gb/s
M.23x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260/2242 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
SATA RAIDSupports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices
Audio ChannelsRealtek® ALC897 Codec
7.1-Channel High Definition Audio
Max LAN SpeedRealtek® 8125D 2.5Gbps LAN
Wireless LANIntel® Wi-Fi 7
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
Supports Bluetooth® 5.4**, MLO, 4KQAM
* 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2.
** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.
BluetoothYes

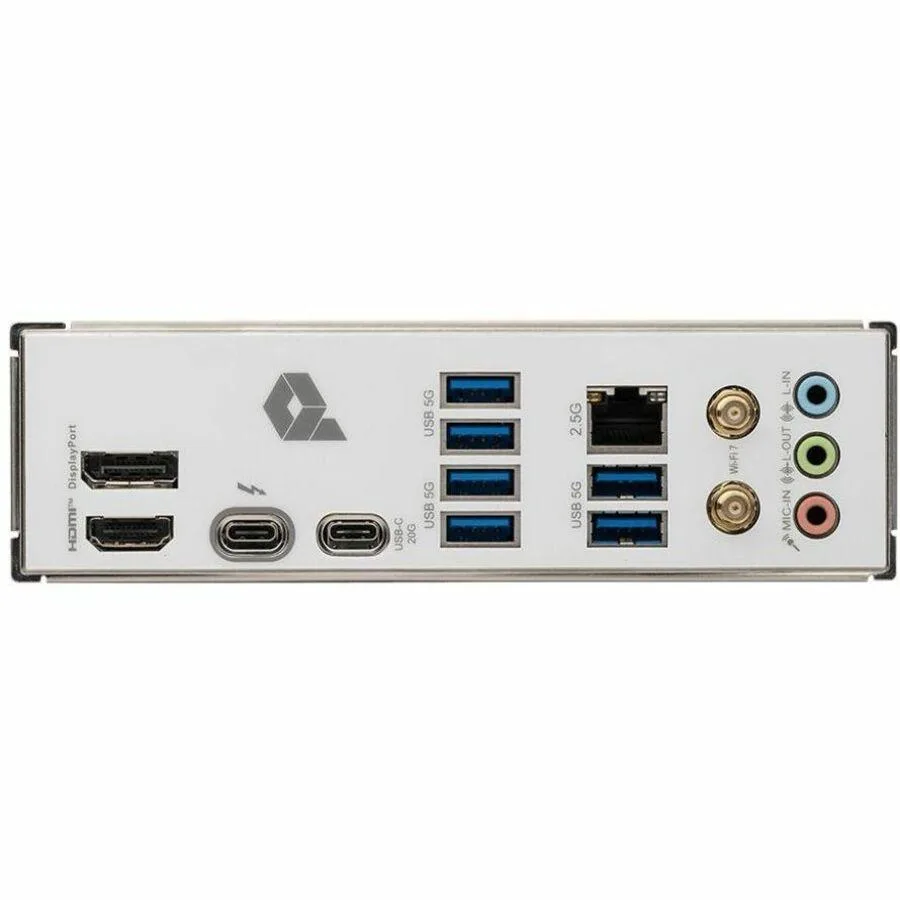

Back I/O PortsDisplayPort
USB 5Gbps Type-A
2.5G LAN
Wi-Fi / Bluetooth
Audio Connectors
HDMI™
Thunderbolt™ 4 40Gbps (Type-C)
USB 20Gbps Type-C
USB 5Gbps Type-A
Other Connectors1x Thunderbolt5 card connector(JTBT5, support RTD3)
1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x Power Connector(PCIE_PWR 8pin)
1x CPU Fan
1x Combo Fan (Pump_Sys Fan)
4x System Fan
1x EZ Conn-header (JAF_1)
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Tuning Controller connector(JDASH)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 5Gbps Type A ports
1x USB 20Gbps Type C ports
Windows 11Support for Windows® 11 64-bit
Form FactorATX
Dimensions (W x L)243.84mmx304.8mm
FeaturesSupport Intel® Core™ Ultra Processors (Series 2) for LGA 1851 socket
Supports DDR5 Memory, Dual Channel DDR5 8800+ MT/s (OC)
Enhanced Power Design: 12+1+1+1 Duet Rail Power System with P-PAK , dual 8-pin CPU power connectors, Core Boost, Memory Boost, 6-layer server-grade PCB
Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop experience
EZ DIY: EZ M.2 Clip II, EZ PCIe Clip II and EZ Antenna
Lightning Fast Game experience: PCIe 5.0 slot and Lightning Gen 5 x4 M.2
Thu
Shipping weight1.63 kg
Package size343 × 273 × 72 mm

Questions about this item

Does the board include the Wi-Fi antenna and mounting hardware, or do I need to buy them separately?

The wireless module is pre-installed in the M.2 Key-E slot; the antenna and mounting hardware are included in the box so no separate purchase is required.

Should I choose DDR5 modules rated at 6400 MT/s JEDEC or faster 8800 MT/s overclocked kits for this motherboard?

The board runs DDR5 at 6400 MT/s JEDEC by default; 8800 MT/s is only reachable with 1DPC 1R modules and manual overclocking, so standard 6400 MT/s kits work without tuning.

What does the 5.8 Gbps Wi-Fi 7 figure mean for real-world throughput on this board?

The 5.8 Gbps is the maximum PHY rate on a 320 MHz 6 GHz link; actual throughput will be lower and depends on router capability, channel congestion and client distance.
