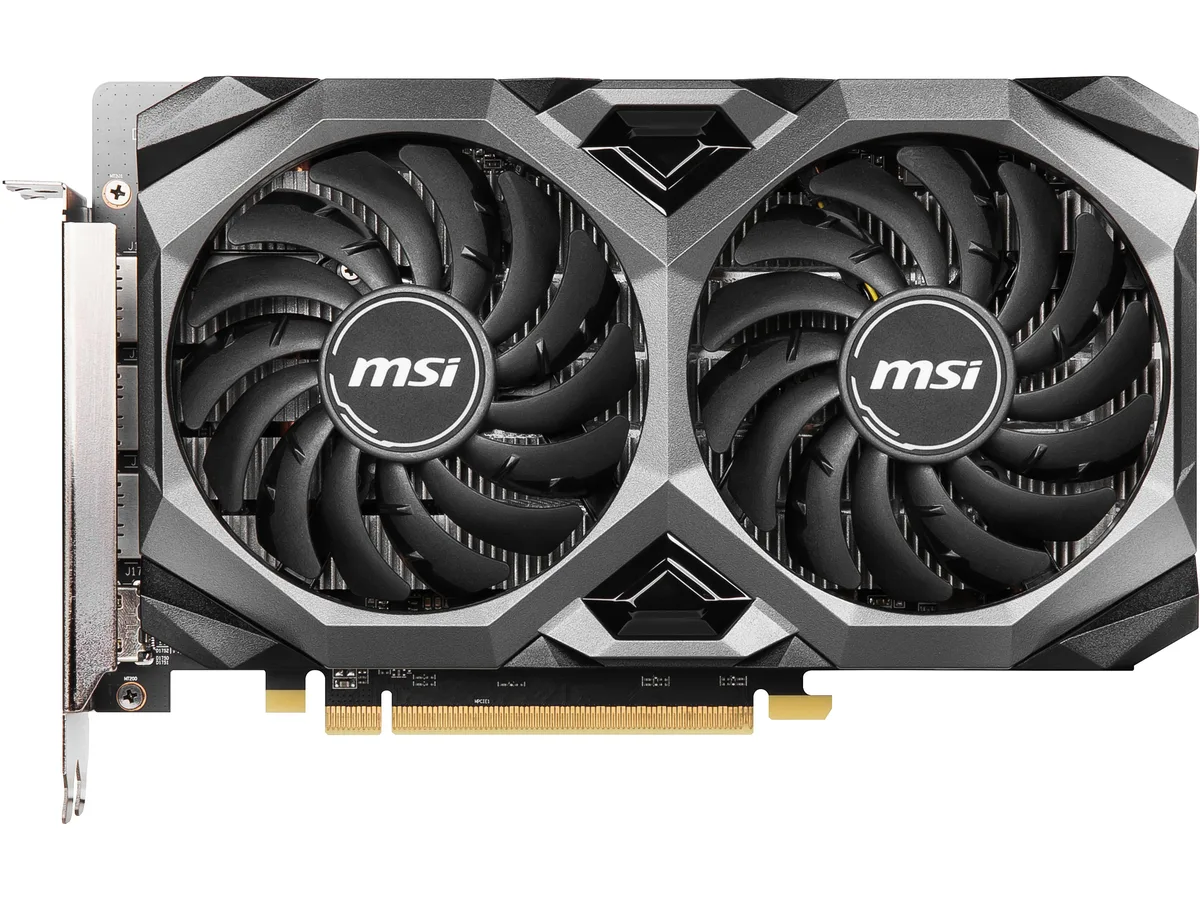

Black dual-fan graphics card with metal backplate and three DisplayPort plus one HDMI output

MSI

MSI R5500XTM8C Radeon RX 5500 XT graphics card

SKU CH-XYG0-M2R0N MPN R5500XTM8C

Refurbished Radeon RX 5500 XT GPU with 8GB GDDR6 memory, 1408 stream processors and boost clock of 1845 MHz on a PCI Express 4.0 interface

  • InterfacePCI Express 4.0
  • Chipset ManufacturerAMD
  • GPU SeriesAMD Radeon RX 5500 Series
  • GPURadeon RX 5500 XT
  • Core Clock1647 MHz
  • Boost Clock1845 MHz
  • 8 GB GDDR6 memory for smooth 1080p gaming
  • Boost clock 1845 MHz delivers responsive frame rates
  • PCI Express 4.0 interface doubles bandwidth over 3.0
  • Four display outputs drive multi-monitor setups
  • TORX Fan 3.0 cooler keeps thermals in check

Radeon RX 5500 XT 8GB GDDR6

The MSI Radeon RX 5500 XT MECH 8G OC is a PCI Express 4.0 graphics card built for 1080p gaming. It uses the AMD Radeon GPU with 1408 stream processors and 8GB of GDDR6 memory on a 128-bit bus. The card delivers a core clock of 1647 MHz and a boost clock of 1845 MHz with an effective memory speed of 14 Gbps. It supports up to four displays via one HDMI 2.0b and three DisplayPort 1.4 connectors.

Sustained load with 140W TDP

The board has a thermal design power of 140W and uses a dual-fan cooler with TORX Fan 3.0 blades. The design mixes steep curved blades for accelerated airflow with traditional blades for steady flow across the heatsink. This layout aims to keep temperatures stable during extended gaming sessions rather than only short bursts. The 8-pin power connector feeds the GPU under continuous load.

Check PSU and case clearance

The manufacturer recommends a 450W power supply to run this card reliably. Verify that your PSU has a spare 8-pin PCIe power cable available. Confirm the physical length fits your chassis and that the dual-slot bracket aligns with your motherboard's PCI Express 4.0 slot. The card is HDCP ready and supports AMD Radeon FreeSync for variable refresh displays.

Highlights

  • 8 GB GDDR6 memory for smooth 1080p gaming
  • Boost clock 1845 MHz delivers responsive frame rates
  • PCI Express 4.0 interface doubles bandwidth over 3.0
  • Four display outputs drive multi-monitor setups
  • TORX Fan 3.0 cooler keeps thermals in check

Specifications

BrandMSI
ModelRX 5500 XT MECH 8G OC
InterfacePCI Express 4.0
Chipset ManufacturerAMD
GPU SeriesAMD Radeon RX 5500 Series
GPURadeon RX 5500 XT
Core Clock1647 MHz
Boost Clock1845 MHz
Stream Processors1408
Effective Memory Clock14 Gbps
Memory Size8GB
Memory Interface128-Bit
Memory TypeGDDR6
DirectXDirectX 12
OpenGLOpenGL 4.6
Multi-Monitor Support4
HDMI1 x HDMI 2.0b
DisplayPort3 x DisplayPort 1.4
ColorBlack
Max Resolution7680 x 4320
Virtual Reality ReadyYes
CoolerDouble Fans
Thermal Design Power140W
System RequirementsRecommended PSU: 450W
Recommended PSU Wattage450W
Power Connector8-Pin
HDCP ReadyYes
FeaturesTORX Fan 3.0
Dispersion fan blade: Steep curved blade accelerating the airflow.
Traditional fan blade: Provides steady airflow to massive heat sink below.
Afterburner Overclocking Utility
Kombustor: The latest DirectX versions benchmark supporting.
Predator: In-game video recording.
AMD Radeon FreeSync
Synchronizes the display refresh to your Radeon RX Series GPU for the fast, smooth gaming.
Max GPU Length215 mm
Card Dimensions (L x H)8.46" x 5.04"
Shipping weight1.11 kg
Package size366 × 229 × 102 mm

Questions about this item

How loud and hot does the MSI RX 5500 XT MECH 8G OC get with its 140W TDP running all day?

The card has a 140W thermal design power and uses a dual-fan TORX Fan 3.0 cooler with steep curved blades for accelerated airflow and traditional blades for steady flow across the heatsink.

What power supply and connector does the MSI RX 5500 XT MECH 8G OC require to operate?

A 450W power supply is recommended and the card draws auxiliary power through a single 8-pin connector.

Will the MSI RX 5500 XT MECH 8G OC work in my older motherboard that only has PCI Express 3.0 slots?

Yes, the PCI Express 4.0 interface is backward compatible with PCI Express 3.0 motherboards, though bandwidth will be limited to 3.0 speeds.
