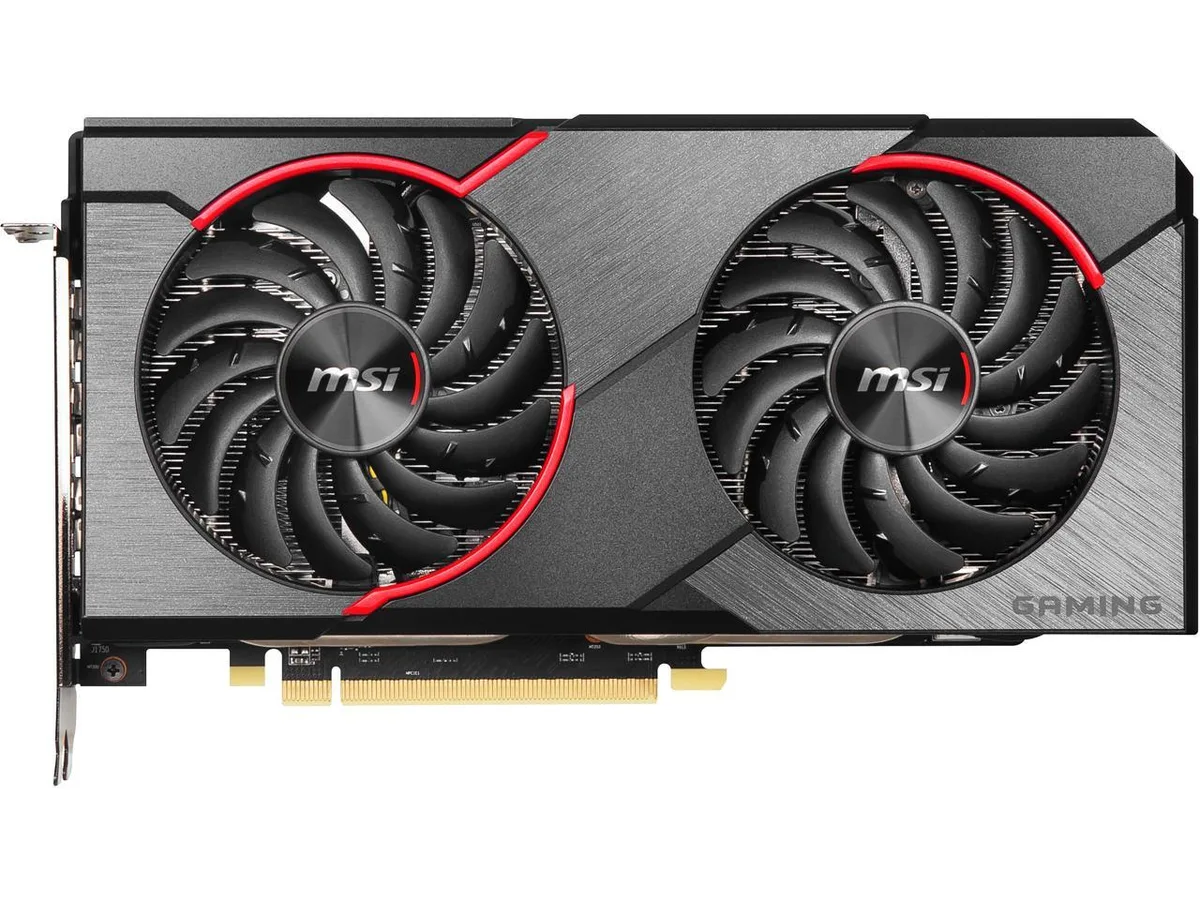

MSI Radeon RX 5500 XT GAMING X 8G dual-fan graphics card with black metal shroud and RGB lighting

MSI

MSI Radeon RX 5500 XT GAMING X 8G 8GB graphics card

SKU CH-AFS6-NJ6F2

An 8 GB GDDR6 graphics card with a 128-bit bus, 1408 stream processors and boost clock of 1845 MHz, plus HDMI 2.0b and three DisplayPort 1.4 outputs for up to four monitors

  • InterfacePCI Express 4.0
  • Chipset ManufacturerAMD
  • GPU SeriesAMD Radeon RX 5500 Series
  • GPURadeon RX 5500 XT
  • Core Clock1685 MHz
  • Boost Clock1845 MHz
  • 8GB GDDR6 memory at 14 Gbps fuels high-detail textures
  • Boost clock of 1845 MHz drives responsive 1080p frame rates
  • TWIN FROZR 7 cooling keeps thermals steady under load
  • PCI Express 4.0 interface doubles host bandwidth headroom
  • Four display outputs support 7680 x 4320 multi-monitor setups

Radeon RX 5500 XT GAMING X 8G

This MSI graphics card uses the AMD Radeon RX 5500 XT GPU with 1408 stream processors. It runs at a core clock of 1685 MHz and a boost clock of 1845 MHz. The board carries 8GB of GDDR6 memory on a 128-bit interface clocked at 14 Gbps. It connects via PCI Express 4.0 and supports DirectX 12 and OpenGL 4.6.

1080p gamers and multi-monitor users

The card suits players targeting 1080p resolution with high refresh rates and creators who need up to four displays. It offers one HDMI 2.0b port and three DisplayPort 1.4 outputs for a maximum resolution of 7680 x 4320. Buyers aiming at 1440p ultra settings or 4K gaming should look at higher-tier GPUs with wider memory buses and more VRAM.

PCIe 4.0 platform with adequate power

Install the card in a PCI Express 4.0 slot to use the full interface bandwidth; it also works in 3.0 slots at reduced speed. The 128-bit memory bus and 8GB frame buffer free up system RAM for other tasks. Ensure your power supply has the required 8-pin connectors and that your case has enough length clearance for a dual-fan design.

Highlights

  • 8GB GDDR6 memory at 14 Gbps fuels high-detail textures
  • Boost clock of 1845 MHz drives responsive 1080p frame rates
  • TWIN FROZR 7 cooling keeps thermals steady under load
  • PCI Express 4.0 interface doubles host bandwidth headroom
  • Four display outputs support 7680 x 4320 multi-monitor setups

Specifications

BrandMSI
ModelRX 5500 XT GAMING X 8G
InterfacePCI Express 4.0
Chipset ManufacturerAMD
GPU SeriesAMD Radeon RX 5500 Series
GPURadeon RX 5500 XT
Core Clock1685 MHz
Boost Clock1845 MHz
Stream Processors1408
Effective Memory Clock14 Gbps
Memory Size8GB
Memory Interface128-Bit
Memory TypeGDDR6
DirectXDirectX 12
OpenGLOpenGL 4.6
Multi-Monitor Support4
HDMI1 x HDMI 2.0b
DisplayPort3 x DisplayPort 1.4
Max Resolution7680 x 4320
Virtual Reality ReadyYes
CoolerDouble Fans
Thermal Design Power140W
System RequirementsRecommended PSU: 450W
Power Connector8-Pin
HDCP ReadyYes
FeaturesTORX FAN 3.0: Supremely silent Dispersion fan blade: Steeper curved blade accelerating the airflow. Traditional fan blade: Provides steady airflow to massive heat sink below. RGB Mystic Light Customize colors and LED effects with exclusive MSI software and synchronize the look & feel with other components. Afterburner Overclocking Utility Wireless control through Android / iOS devices. Predator: In-game video recording. Dragon Center A consolidated platform that offers all software including MYSTIC LIGHT functionality for your MSI Gaming product.
Max GPU Length247 mm
Card Dimensions (L x H)9.72" x 5.04"

Questions about this item

Does my motherboard need a PCI Express 4.0 slot for this RX 5500 XT GAMING X 8G to function?

The card uses a PCI Express 4.0 interface and will also run in a 3.0 slot at 3.0 speeds.

Can I keep my older 1080p monitor connected via HDMI while adding a DisplayPort 1.4 display?

Yes, the card provides one HDMI 2.0b and three DisplayPort 1.4 outputs, supporting up to four monitors simultaneously.

How can I verify the 1845 MHz boost clock is actually reached during a game?

Use MSI Afterburner or the Radeon overlay to monitor the real-time GPU frequency while under load.
