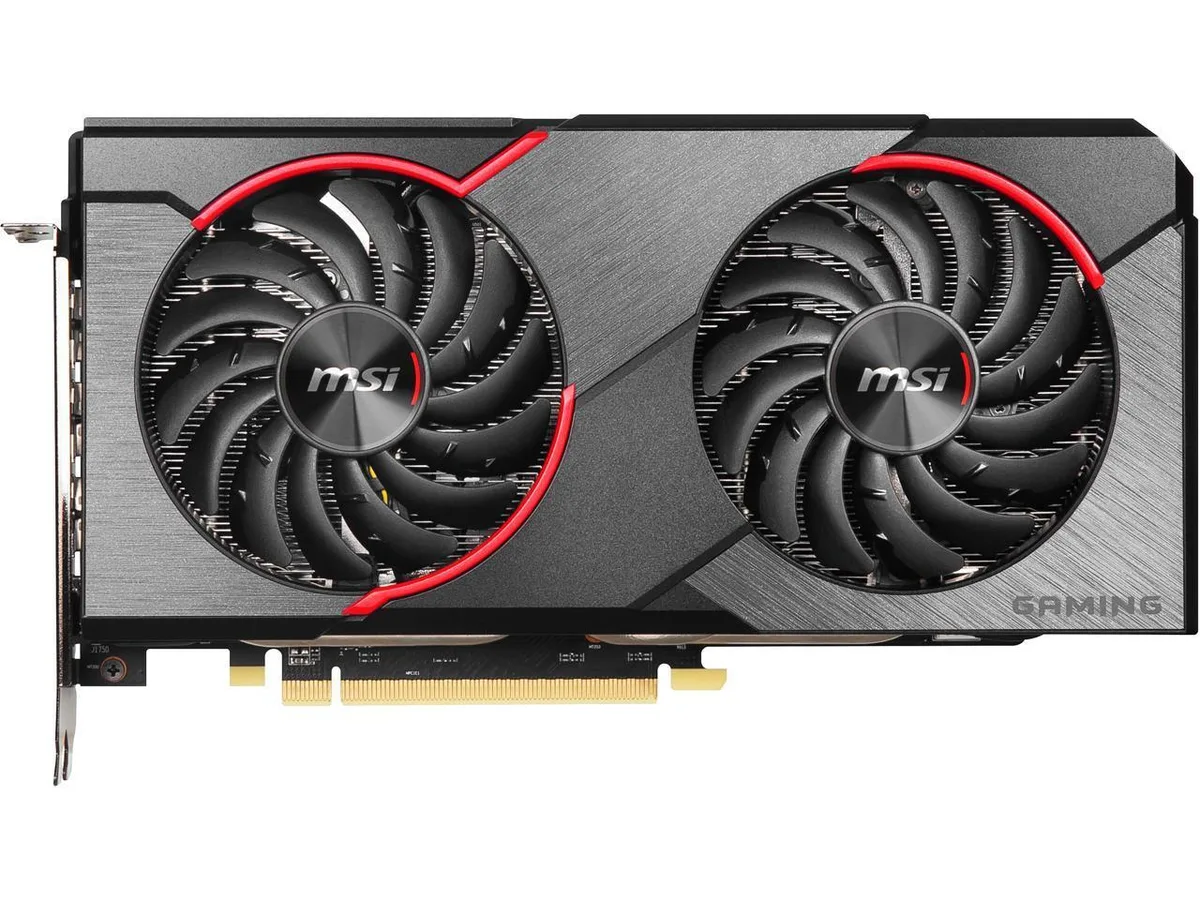

MSI Radeon RX 5500 XT GAMING X 8G dual-fan graphics card in black and silver finish

MSI

MSI Radeon RX 5500 XT GAMING X 8G graphics card

SKU CH-0KCA-VKJ1J

Mid-range graphics card with 8 GB GDDR6 memory, 1408 stream processors and a 1845 MHz boost clock for 1080p gaming

  • InterfacePCI Express 4.0
  • Chipset ManufacturerAMD
  • GPU SeriesAMD Radeon RX 5500 Series
  • GPURadeon RX 5500 XT
  • Core Clock1685 MHz
  • Boost Clock1845 MHz
  • 8 GB GDDR6 memory delivers high-speed texture handling
  • Boost clock reaches 1845 MHz for responsive gaming performance
  • PCI Express 4.0 interface provides doubled bandwidth over previous standard
  • Four display outputs support multi-monitor setups up to 7680 × 4320
  • Twin Frozr 7 cooling keeps thermals in check during extended sessions

Radeon RX 5500 XT 8G Gaming Card

The MSI Radeon RX 5500 XT GAMING X 8G is a mid-range graphics card built on the AMD RDNA architecture with 1408 stream processors. It targets 1080p gamers who want high frame rates in modern titles without moving to a larger GPU. The 8GB GDDR6 frame buffer and PCI Express 4.0 interface keep texture streaming smooth in current engines.

TWIN FROZR 7 Thermals and Power

The TWIN FROZR 7 thermal system uses dual fans and a large heatsink to dissipate heat from the GPU and memory modules. Under typical gaming loads the card runs at its 1845 MHz boost clock while fan speeds stay low enough for a quiet case environment. Power draw remains compatible with a single 8-pin connector and a standard 500 W unit.

Build Integration and Display Outputs

A 128-bit memory bus and compact two-slot bracket leave room for additional expansion cards in tight chassis. The rear I/O provides one HDMI 2.0b port and three DisplayPort 1.4 connectors for up to four simultaneous monitors at 7680 x 4320 resolution. Mystic Light RGB sync ties the card lighting into a unified system theme.

Highlights

  • 8 GB GDDR6 memory delivers high-speed texture handling
  • Boost clock reaches 1845 MHz for responsive gaming performance
  • PCI Express 4.0 interface provides doubled bandwidth over previous standard
  • Four display outputs support multi-monitor setups up to 7680 × 4320
  • Twin Frozr 7 cooling keeps thermals in check during extended sessions

Specifications

BrandMSI
ModelRX 5500 XT GAMING X 8G
InterfacePCI Express 4.0
Chipset ManufacturerAMD
GPU SeriesAMD Radeon RX 5500 Series
GPURadeon RX 5500 XT
Core Clock1685 MHz
Boost Clock1845 MHz
Stream Processors1408
Effective Memory Clock14 Gbps
Memory Size8GB
Memory Interface128-Bit
Memory TypeGDDR6
DirectXDirectX 12
OpenGLOpenGL 4.6
Multi-Monitor Support4
HDMI1 x HDMI 2.0b
DisplayPort3 x DisplayPort 1.4
Max Resolution7680 x 4320
Virtual Reality ReadyYes
CoolerDouble Fans
Thermal Design Power140W
System RequirementsRecommended PSU: 450W
Recommended PSU Wattage450W
Power Connector8-Pin
HDCP ReadyYes
FeaturesTORX FAN 3.0: Supremely silent
Dispersion fan blade: Steeper curved blade accelerating the airflow.
Traditional fan blade: Provides steady airflow to massive heat sink below.
RGB Mystic Light
Customize colors and LED effects with exclusive MSI software and synchronize the look & feel with other components.
Afterburner Overclocking Utility
Wireless control through Android / iOS devices.
Predator: In-game video recording.
Dragon Center
A consolidated platform that offers all software including MYSTIC LIGHT functionality for your MSI Gaming product.
Max GPU Length247 mm
Card Dimensions (L x H)9.72" x 5.04"

Questions about this item

How do I install the MSI Radeon RX 5500 XT GAMING X 8G into a PCI Express 4.0 slot?

Align the card with the PCI Express 4.0 x16 slot, press firmly until the retention latch clicks, then connect the required power cables from your PSU. The step many miss is securing the rear bracket screw before tightening the case side panel.

What maintenance will the TWIN FROZR 7 thermal system need later?

Every 6 to 12 months, power down the PC and use compressed air to clear dust from the heatsink fins and dual fans. Avoid spinning the fans with the air stream; hold them in place to prevent bearing wear.

At what point does the 128-Bit memory interface limit sustained performance?

The 128-Bit bus and 14 Gbps GDDR6 memory saturate first at 4K resolution or heavy texture loads, capping effective bandwidth before the 1408 stream processors reach full utilisation.
