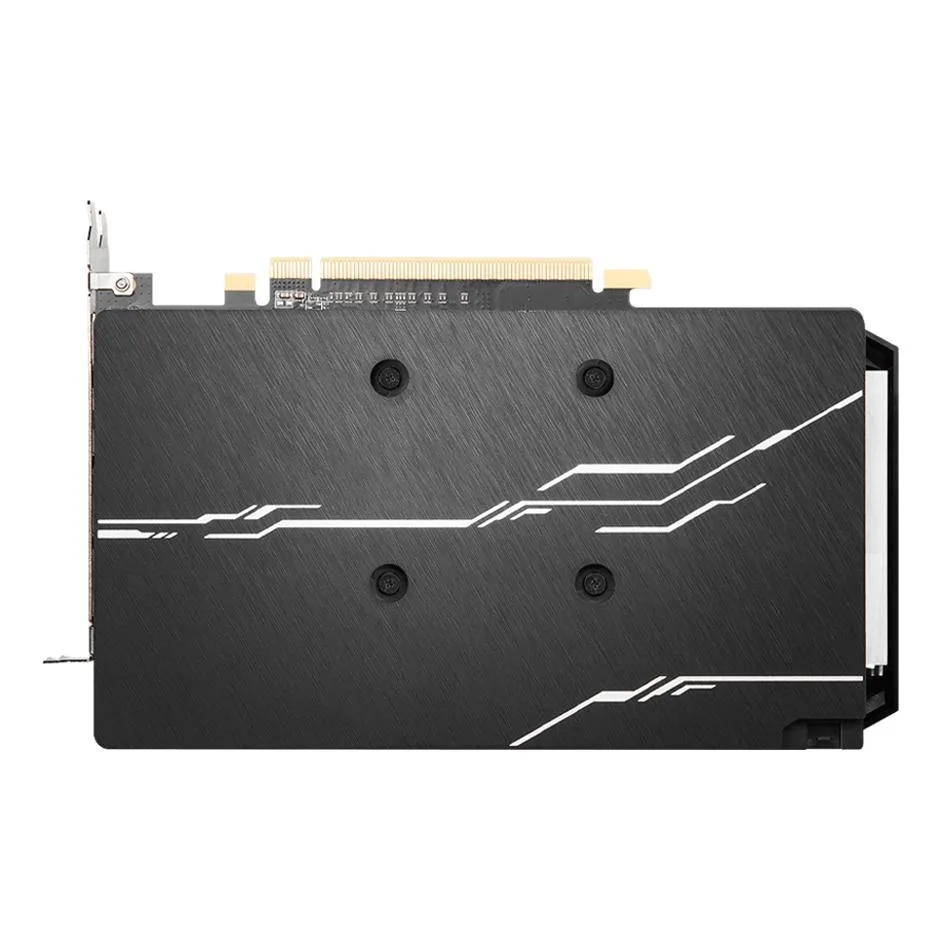

Dual-fan graphics card with silver shroud and black backplate

MSI

MSI Radeon RX 5500 XT MECH 8G OC 8GB 128-Bit GDDR6 graphics card

SKU CH-SAXD-MQMFB

Mid-range graphics card with 8GB GDDR6 memory and 1408 stream processors for 1080p gaming

  • InterfacePCI Express 4.0
  • Chipset ManufacturerAMD
  • GPU SeriesAMD Radeon RX 5500 Series
  • GPURadeon RX 5500 XT
  • Core Clock1647 MHz
  • Boost Clock1845 MHz
  • 8 GB GDDR6 memory handles high-resolution textures at 14 Gbps
  • Boost clock reaches 1845 MHz for responsive 1080p gaming
  • 1408 stream processors accelerate DirectX 12 and OpenGL 4.6 workloads
  • PCI Express 4.0 interface doubles host bandwidth over PCIe 3.0
  • Four-display support via HDMI 2.0b and three DisplayPort 1.4 outputs

Radeon RX 5500 XT 8GB for 1080p Gaming

The MSI Radeon RX 5500 XT MECH 8G OC is a PCI Express 4.0 graphics card built around the AMD Radeon RX 5500 XT GPU with 8GB of GDDR6 memory on a 128-Bit bus. It targets gamers who want smooth 1080p performance in modern titles and supports up to four simultaneous displays for productivity or sim rigs.

Check PCIe Slot and Power Connectors

Verify your motherboard has a free PCI Express x16 slot compatible with the 4.0 interface and that your power supply delivers the required auxiliary connectors for this board. Ensure the case offers enough length clearance for a dual-fan design and that your monitor cables match the single HDMI 2.0b port or the three DisplayPort 1.4 outputs.

Dual-Fan Cooling at 1845 MHz Boost

The MECH cooler uses two fans to manage heat from the 1408 stream processors running at a 1647 MHz core clock and a 1845 MHz boost clock with memory at 14 Gbps. In typical gaming loads the card stays within its thermal envelope while the fans spin at moderate speeds, keeping noise low. Power draw scales with the 128-Bit memory interface and the 8GB frame buffer during sustained 1080p workloads.

Highlights

  • 8 GB GDDR6 memory handles high-resolution textures at 14 Gbps
  • Boost clock reaches 1845 MHz for responsive 1080p gaming
  • 1408 stream processors accelerate DirectX 12 and OpenGL 4.6 workloads
  • PCI Express 4.0 interface doubles host bandwidth over PCIe 3.0
  • Four-display support via HDMI 2.0b and three DisplayPort 1.4 outputs

Specifications

BrandMSI
ModelRadeon RX 5500 XT MECH 8G OC
InterfacePCI Express 4.0
Chipset ManufacturerAMD
GPU SeriesAMD Radeon RX 5500 Series
GPURadeon RX 5500 XT
Core Clock1647 MHz
Boost Clock1845 MHz
Stream Processors1408
Effective Memory Clock14 Gbps
Memory Size8GB
Memory Interface128-Bit
Memory TypeGDDR6
DirectXDirectX 12
OpenGLOpenGL 4.6
Multi-Monitor Support4
HDMI1 x HDMI 2.0b
DisplayPort3 x DisplayPort 1.4
Max Resolution7680 x 4320
Virtual Reality ReadyYes
CoolerDouble Fans
Thermal Design Power140W
System RequirementsRecommended PSU: 450W
Recommended PSU Wattage450W
Power Connector8-Pin
HDCP ReadyYes
FeaturesTORX Fan 3.0
Dispersion fan blade: Steep curved blade accelerating the airflow.
Traditional fan blade: Provides steady airflow to massive heat sink below.
Afterburner Overclocking Utility
Kombustor: The latest DirectX versions benchmark supporting.
Predator: In-game video recording.
AMD Radeon FreeSync
Synchronizes the display refresh to your Radeon RX Series GPU for the fast, smooth gaming.
Max GPU Length215 mm
Card Dimensions (L x H)8.46" x 5.04"

Questions about this item

What cables or adapters are included with the MSI Radeon RX 5500 XT MECH 8G OC, and what must I buy separately?

The card provides 1 x HDMI 2.0b and 3 x DisplayPort 1.4 outputs; any cables or adapters for those ports are sold separately.

Should I choose the 8 GB version of the RX 5500 XT MECH 8G OC or a different capacity?

This model comes only with 8 GB of GDDR6 on a 128-bit bus, so there is no other capacity to select.

What does the 1845 MHz boost clock mean for actual gaming performance?

The 1845 MHz boost clock is the peak frequency the 1408 stream processors can reach under load, delivering higher frame rates in supported titles.
