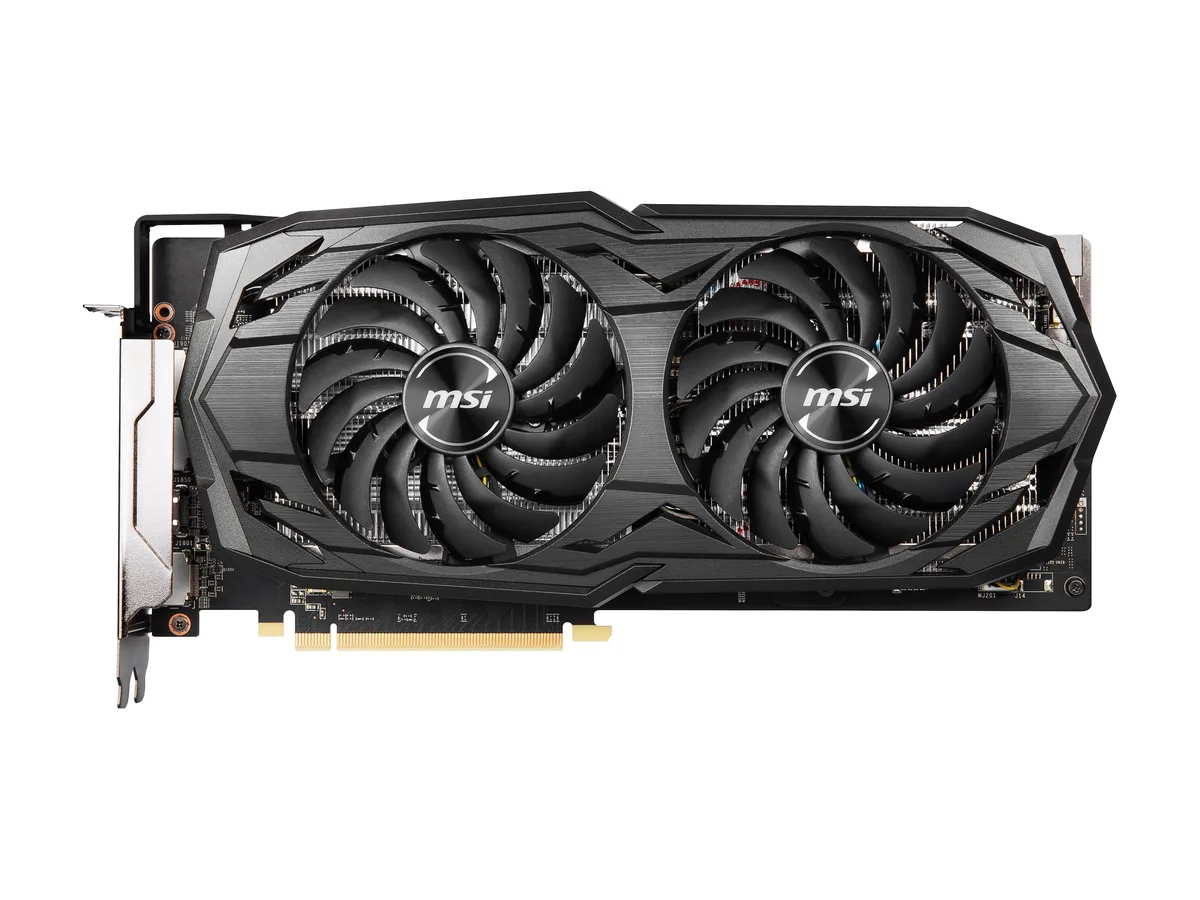

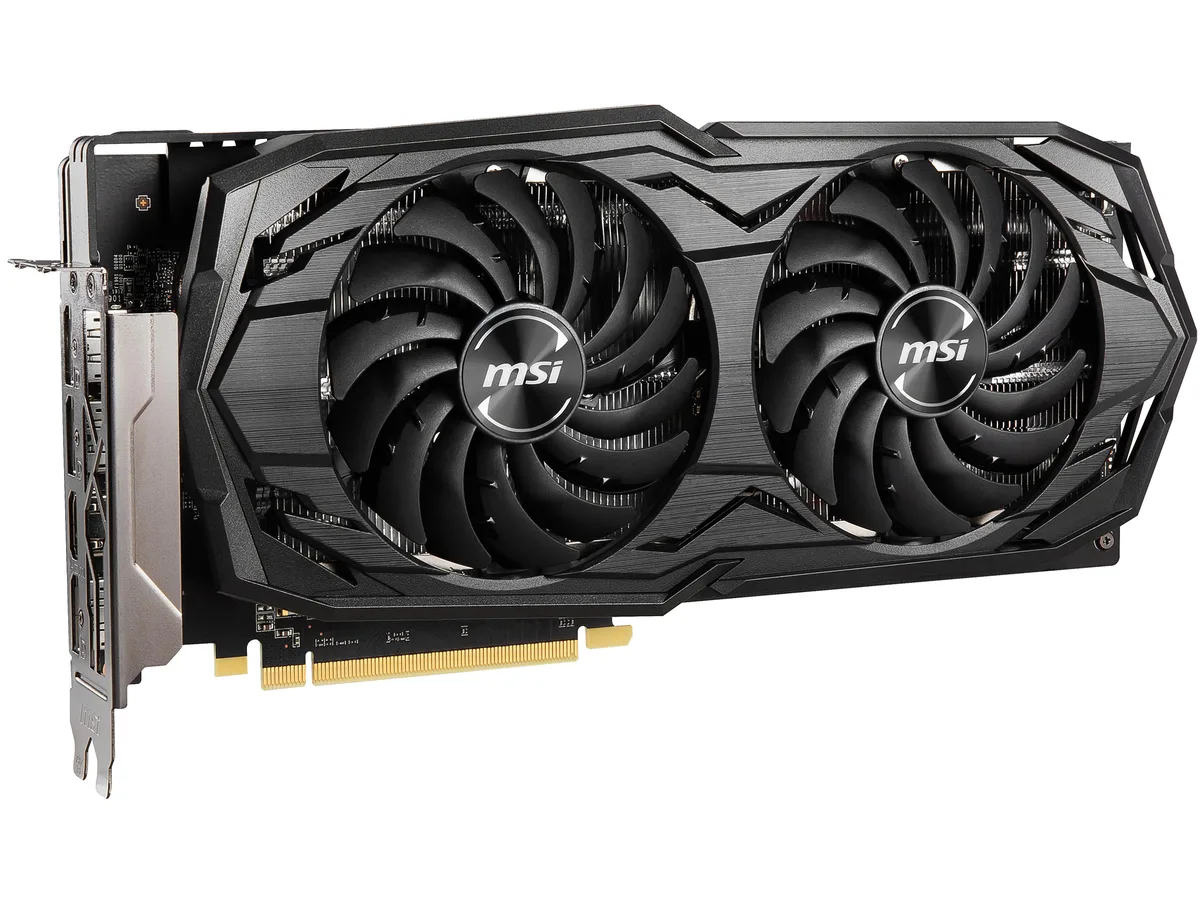

Black dual-fan graphics card with silver backplate and PCIe bracket

MSI

MSI Radeon RX 5600 XT GAMING MX 6GB GDDR6 192-bit graphics card

SKU CH-QMF9-EC4CN MPN RX 5600 XT GAMING MX

Refurbished Radeon graphics card with 6 GB GDDR6 memory, 2304 stream processors and a 1620 MHz boost clock for 1080p gaming

  • InterfacePCI Express 4.0
  • Chipset ManufacturerAMD
  • GPU SeriesAMD Radeon RX 5600 Series
  • GPURadeon RX 5600 XT
  • Core Clock1280 MHz
  • Boost Clock1620 MHz
  • 6 GB GDDR6 memory drives 14 Gbps bandwidth for smooth 1440p gaming
  • Boost clock reaches 1620 MHz to accelerate frame rates in demanding titles
  • 2304 stream processors deliver parallel compute power for modern workloads
  • PCI Express 4.0 interface doubles link bandwidth versus earlier standards
  • TORX FAN 3.0 cooler runs quietly while keeping the GPU cool

Ready for 1080p and 1440p gaming

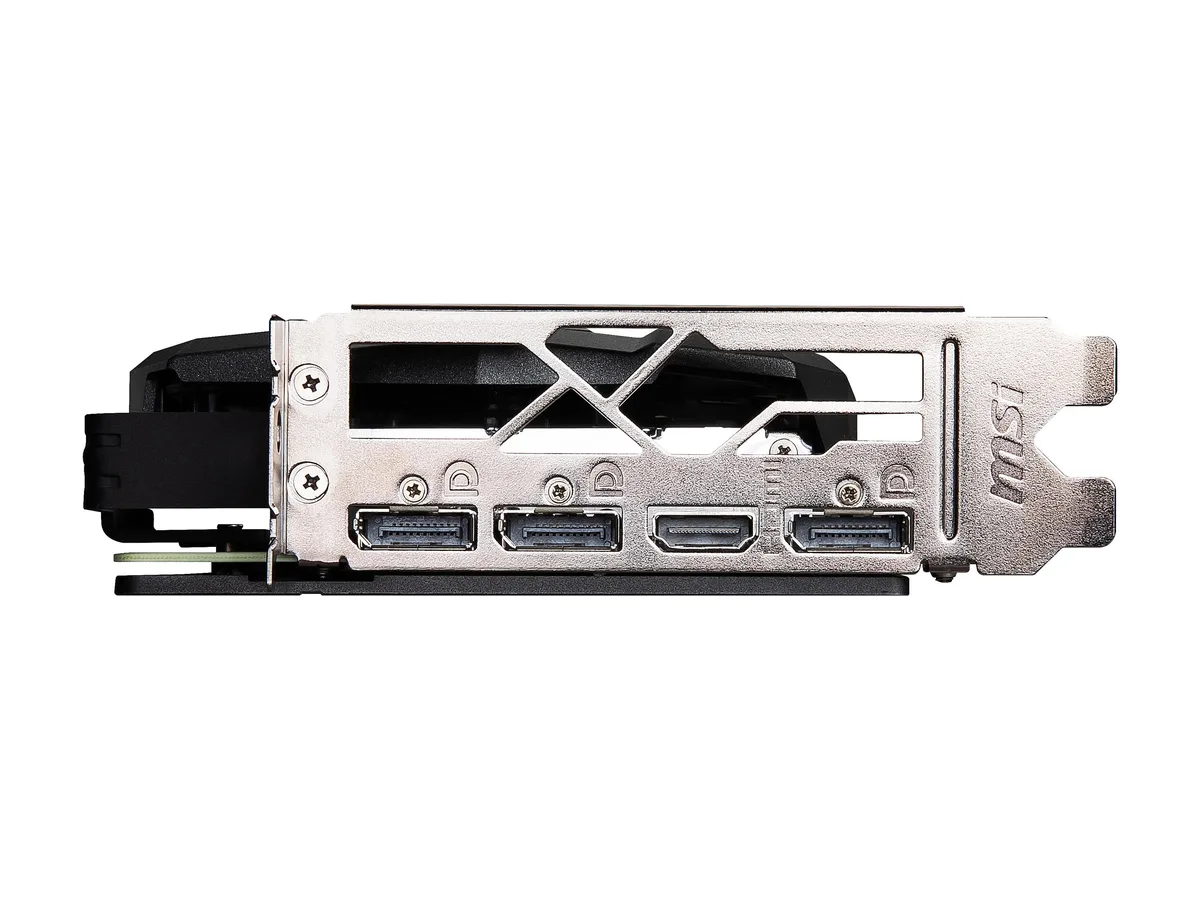

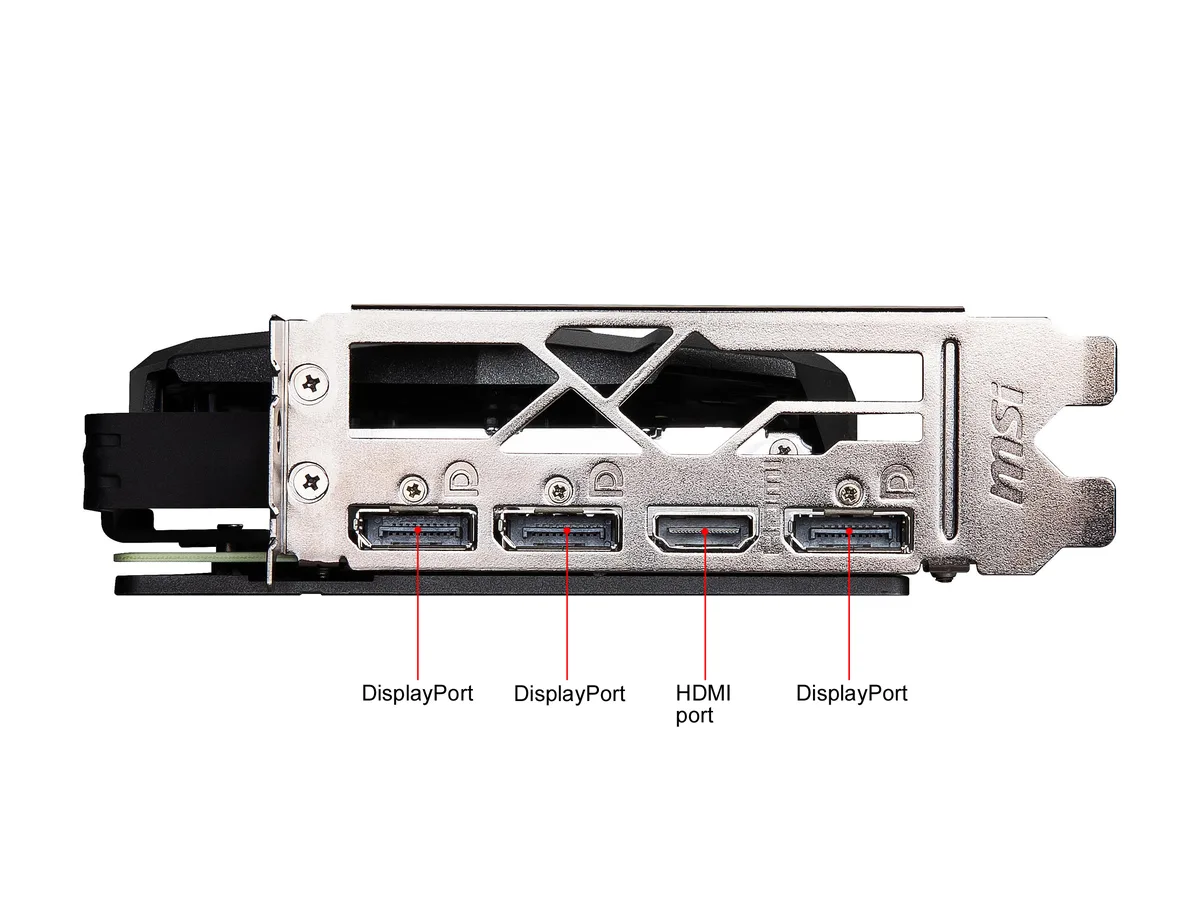

The MSI Radeon RX 5600 XT GAMING MX delivers 6GB GDDR6 on a 192-Bit bus with a boost clock of 1620 MHz and 2304 stream processors. It targets players who want high frame rates at 1080p and solid entry-level 1440p performance. The card uses a PCI Express 4.0 interface and supports DirectX 12 and OpenGL 4.5. Four-display output is available via one HDMI 2.0b and three DisplayPort 1.4 connectors.

Check power and space before ordering

Your power supply should provide at least 450W and two 8-Pin connectors for the 150W board. The dual-slot cooler measures 297 mm in length, so verify case clearance. A PCI Express 4.0 slot is required for full bandwidth, though the card will run in older slots at reduced speed. Ensure your motherboard and PSU meet these requirements before installation.

Dual-fan cooler with quiet blade design

The TORX FAN 3.0 layout pairs steeper curved blades for accelerated airflow with traditional blades for steady pressure across the heatsink. This keeps thermals controlled during extended sessions while limiting noise. The black shroud and compact 11.69-inch profile fit most mid-tower builds. HDMI 2.0b and DisplayPort 1.4 support 7680 x 4320 resolution for multi-monitor or VR setups.

Highlights

  • 6 GB GDDR6 memory drives 14 Gbps bandwidth for smooth 1440p gaming
  • Boost clock reaches 1620 MHz to accelerate frame rates in demanding titles
  • 2304 stream processors deliver parallel compute power for modern workloads
  • PCI Express 4.0 interface doubles link bandwidth versus earlier standards
  • TORX FAN 3.0 cooler runs quietly while keeping the GPU cool

Specifications

BrandMSI
ModelRX 5600 XT GAMING MX
InterfacePCI Express 4.0
Chipset ManufacturerAMD
GPU SeriesAMD Radeon RX 5600 Series
GPURadeon RX 5600 XT
Core Clock1280 MHz
Boost Clock1620 MHz
Stream Processors2304
Effective Memory Clock14 Gbps
Memory Size6GB
Memory Interface192-Bit
Memory TypeGDDR6
DirectXDirectX 12
OpenGLOpenGL 4.5
Multi-Monitor Support4
HDMI1 x HDMI 2.0b
DisplayPort3 x DisplayPort 1.4
ColorBlack
Max Resolution7680 x 4320
Virtual Reality ReadyYes
CoolerDouble Fans
Thermal Design Power150W
System RequirementsRecommended PSU: 450W
Recommended PSU Wattage450W
Power Connector2 x 8-Pin
HDCP ReadyYes
FeaturesTORX FAN 3.0: Supremely silent
Dispersion fan blade: Steeper curved blade accelerating the airflow.
Traditional fan blade: Provides steady airflow to massive heat sink below.
Afterburner Overclocking Utility
Wireless control through Android/iOS devices.
Predator: In-game video recording.
Max GPU Length297 mm
Card Dimensions (L x H)11.69" x 5.55"
Shipping weight1.41 kg
Package size345 × 267 × 83 mm

Questions about this item

What comes in the box with the MSI Radeon RX 5600 XT GAMING MX and what must be bought separately?

The card includes a dual-fan cooler with TORX FAN 3.0 blades and a metal backplate. You must supply a 450 W power supply and two 8-pin PCIe power cables, which are not included.

How do I choose between the available versions of this RX 5600 XT?

This GAMING MX model is a single SKU with 6 GB GDDR6 on a 192-bit bus, 1280 MHz base and 1620 MHz boost clocks, and a 297 mm length. There are no other capacity or clock variants to select.

What does the 1620 MHz boost clock mean once the card is installed in my PC?

Under load the GPU can reach 1620 MHz, driving 2304 stream processors and 14 Gbps memory across the 192-bit interface for 1080p and 1440p gaming at a 150 W board power.
