Black dual-fan graphics card with silver backplate and PCIe bracket

MSI

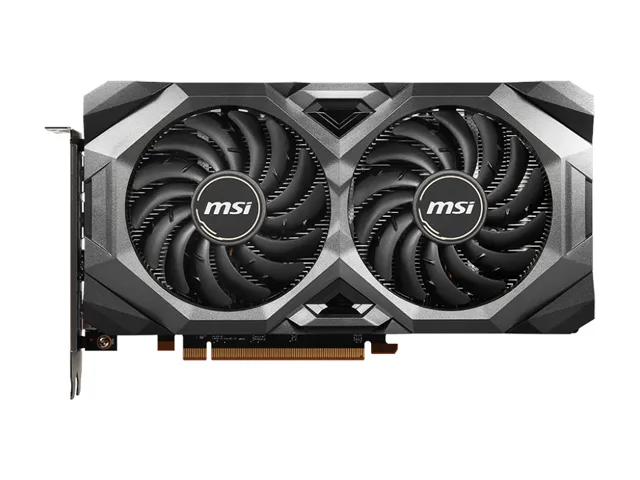

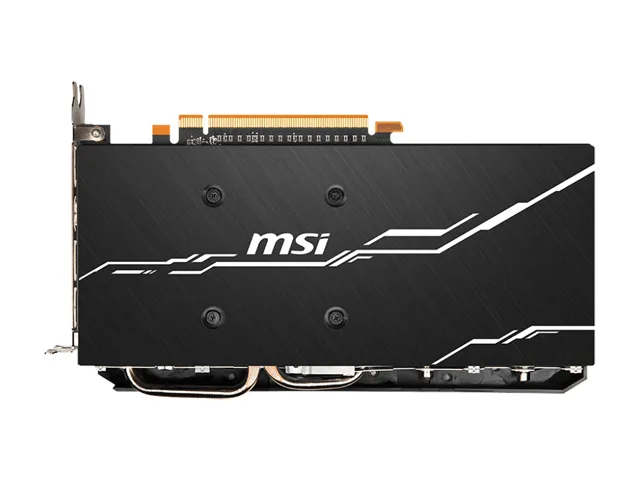

MSI Radeon RX 5700 MECH GP OC graphics card

SKU CH-87P7-YMKF6 MPN RX 5700 MECH GP OC

Refurbished graphics card with 8GB GDDR6 memory, 2304 stream processors and boost clock up to 1750 MHz for 1440p gaming

  • InterfacePCI Express 4.0
  • Chipset ManufacturerAMD
  • GPU SeriesAMD Radeon RX 5700 Series
  • GPURadeon RX 5700
  • Core Clock1515 MHz
  • Boost Clock1750 MHz
  • 8 GB GDDR6 memory with 256-bit bus feeds 2304 stream processors
  • Boost clock of 1750 MHz delivers high frame rates in 1440p gaming
  • PCI Express 4.0 interface doubles bandwidth over the previous standard
  • Four display outputs including HDMI 2.0b and three DisplayPort 1.4 connectors
  • TORX Fan 3.0 cooler uses steep curved and traditional blades for balanced airflow

8GB GDDR6 graphics card

This MSI Radeon RX 5700 MECH GP OC is a PCI Express 4.0 graphics card with 8GB of GDDR6 memory on a 256-Bit bus. It runs at a 1515 MHz core clock and a 1750 MHz boost clock across 2304 stream processors. The card is suited for gaming at high resolutions and multi-monitor workstations.

180W TDP with dual 8-pin and 6-pin power

The board draws 180W and requires a 750W power supply with one 8-pin and one 6-pin connector. It fits builds that have the necessary power headroom and case clearance for a dual-fan cooler. Systems with smaller power supplies or compact cases should consider lower-power alternatives.

PCI Express 4.0 interface

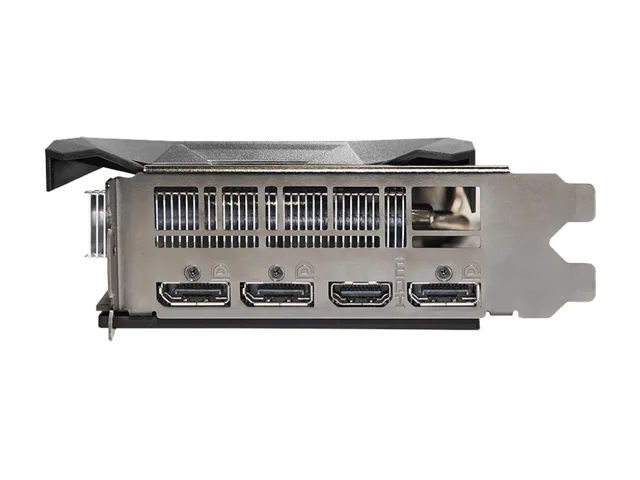

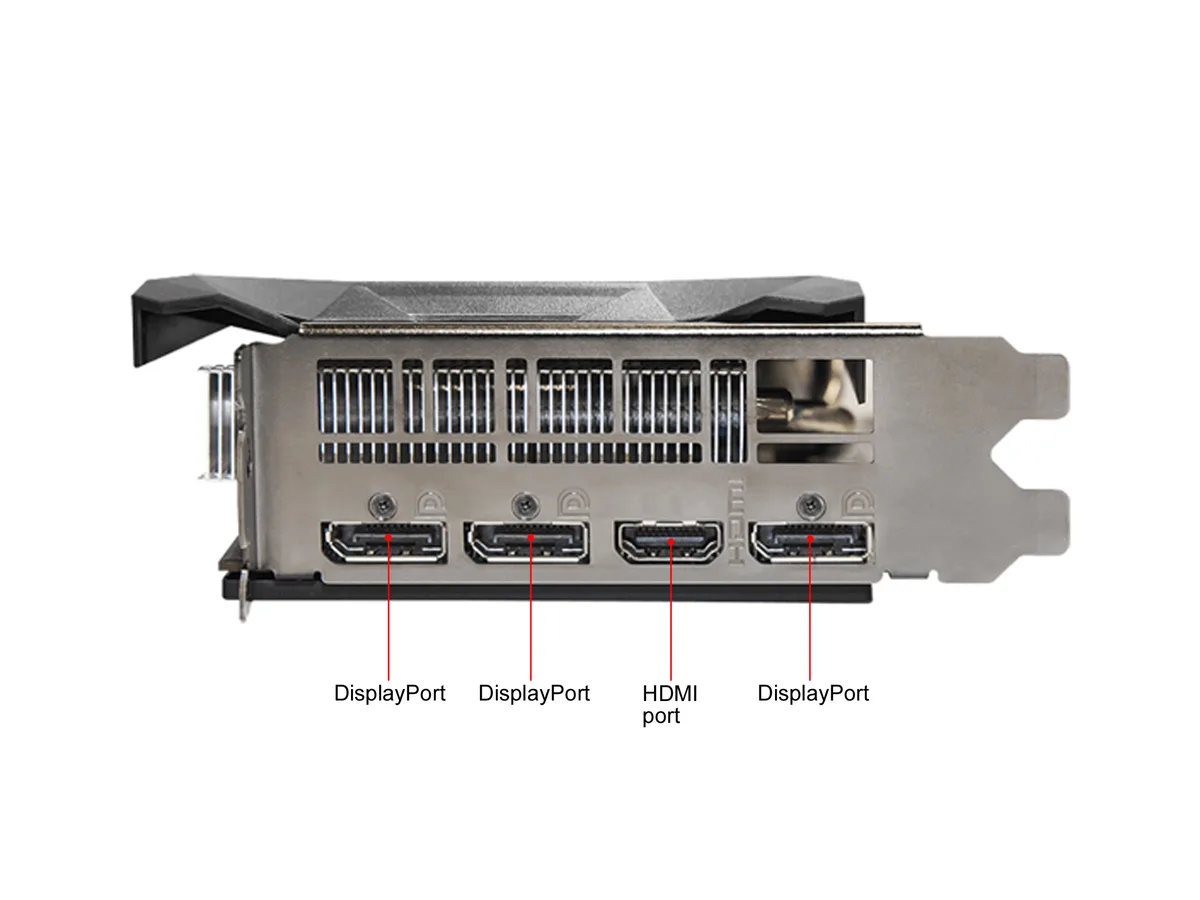

The card connects through a PCI Express 4.0 slot and delivers video through one HDMI 2.0b and three DisplayPort 1.4 outputs. It supports a maximum resolution of 7680 x 4320 across four displays. Compatibility with the motherboard slot and display cables is the deciding factor for installation.

Highlights

  • 8 GB GDDR6 memory with 256-bit bus feeds 2304 stream processors
  • Boost clock of 1750 MHz delivers high frame rates in 1440p gaming
  • PCI Express 4.0 interface doubles bandwidth over the previous standard
  • Four display outputs including HDMI 2.0b and three DisplayPort 1.4 connectors
  • TORX Fan 3.0 cooler uses steep curved and traditional blades for balanced airflow

Specifications

BrandMSI
ModelRX 5700 MECH GP OC
InterfacePCI Express 4.0
Chipset ManufacturerAMD
GPU SeriesAMD Radeon RX 5700 Series
GPURadeon RX 5700
Core Clock1515 MHz
Boost Clock1750 MHz
Stream Processors2304
Effective Memory Clock14 Gbps
Memory Size8GB
Memory Interface256-Bit
Memory TypeGDDR6
DirectXDirectX 12
OpenGLOpenGL 4.6
Multi-Monitor Support4
HDMI1 x HDMI 2.0b
DisplayPort3 x DisplayPort 1.4
ColorBlack
Max Resolution7680 x 4320
Virtual Reality ReadyYes
CoolerDouble Fans
Thermal Design Power180W
System RequirementsRecommended PSU: 750W
Recommended PSU Wattage750W
Power Connector1 x 8-pin, 1 x 6-pin
HDCP ReadyYes
FeaturesTORX Fan 3.0
Dispersion fan blade: Steep curved blade accelerating the airflow.
Traditional fan blade: Provides steady airflow to massive heat sink below.
Afterburner Overclocking Utility
Kombustor: The latest DirectX versions benchmark supporting.
Predator: In-game video recording.
AMD Radeon FreeSync
Synchronizes the display refresh to your Radeon RX Series GPU for the fast, smooth gaming.
Max GPU Length232 mm

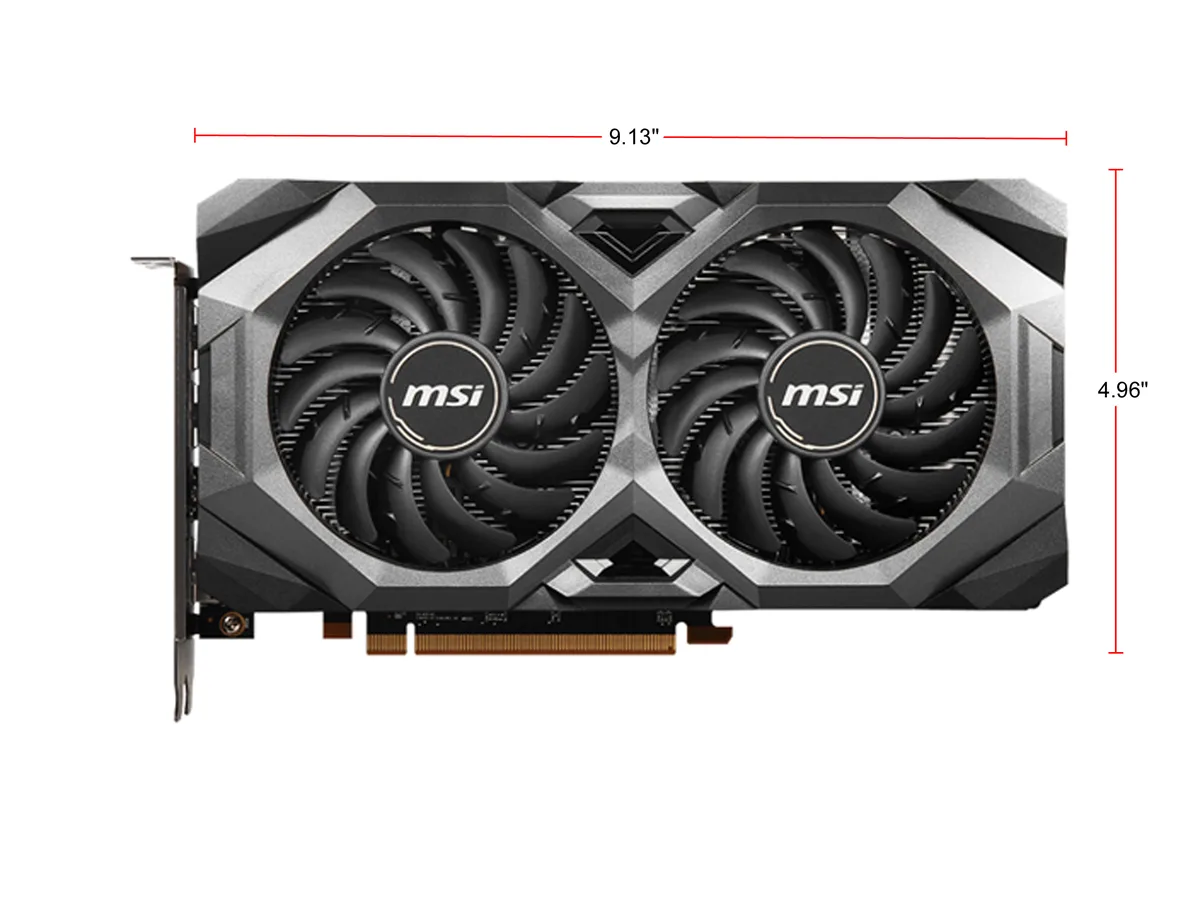

Card Dimensions (L x H)9.13" x 4.96"
Shipping weight1.24 kg
Package size345 × 264 × 81 mm

Questions about this item

What cables and accessories come with the card, and what must be bought separately?

The card itself includes one HDMI 2.0b port and three DisplayPort 1.4 outputs for up to four monitors. You must supply a 750 W power supply with both an 8‑pin and a 6‑pin PCIe connector, plus any display cables you need.

How do I choose between the listed clock speeds for this model?

The board runs at a 1515 MHz core clock and can boost to 1750 MHz automatically; there are no alternate versions to select — the factory overclock is already applied.

What does the 14 Gbps memory speed mean for actual gaming performance?

The 14 Gbps GDDR6 memory on a 256‑bit bus feeds the 2304 stream processors at up to 1750 MHz boost, delivering high bandwidth for 1440p and entry 4K gaming.
