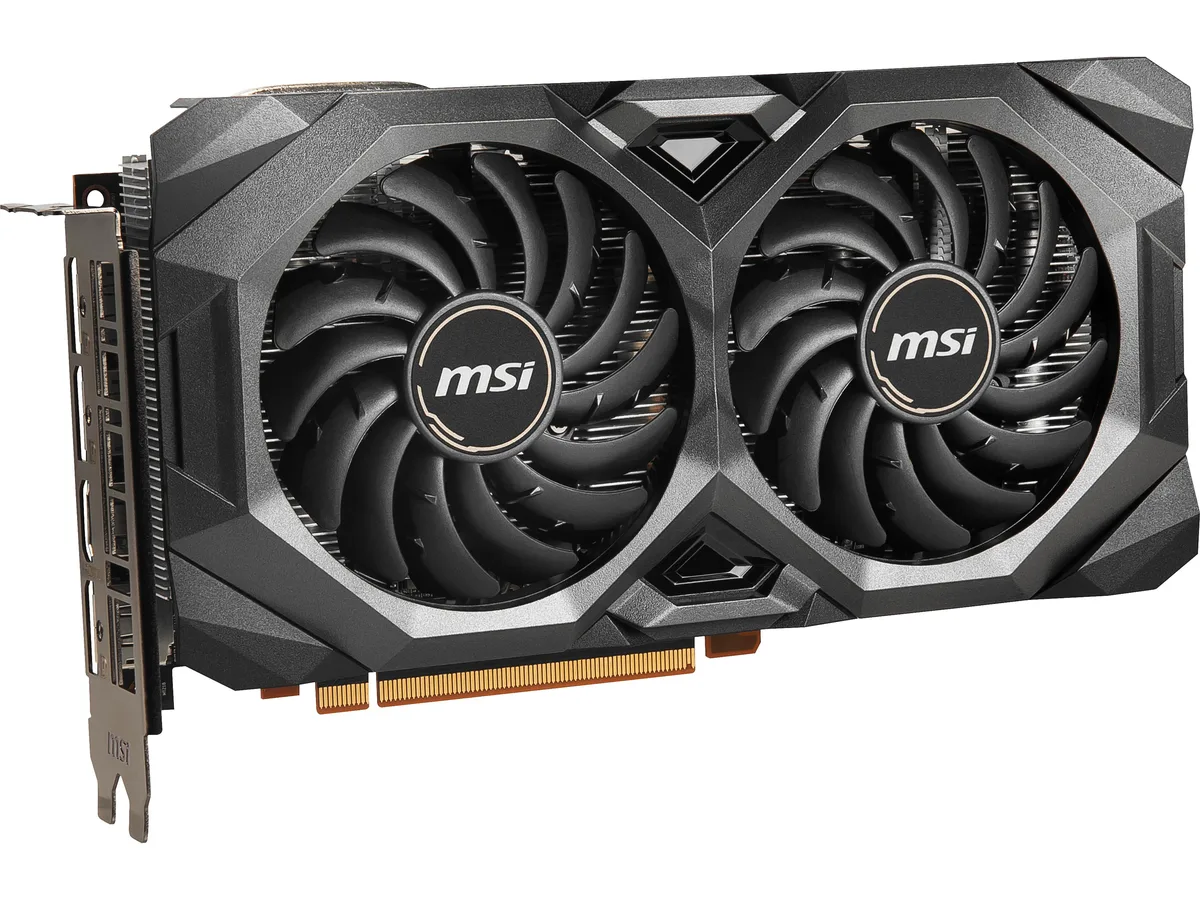

Dual-fan graphics card in silver and black finish

MSI

MSI Radeon RX 5700 MECH OC graphics card

SKU CH-T5FF-KZZHS MPN RX 5700 MECH OC

Refurbished PCIe 4.0 graphics card with 8 GB 256-bit GDDR6 at 14 Gbps, 2304 stream processors, boost to 1750 MHz, triple DisplayPort 1.4 plus HDMI 2.0b for four 7680 × 4320 displays, 225 W TDP

  • InterfacePCI Express 4.0
  • Chipset ManufacturerAMD
  • GPU SeriesAMD Radeon RX 5700 Series
  • GPURadeon RX 5700
  • Core Clock1515 MHz
  • Boost Clock1750 MHz
  • 8 GB GDDR6 memory at 14 Gbps feeds high-resolution textures
  • Boost clock reaches 1750 MHz for responsive 1440p gaming
  • PCI Express 4.0 interface doubles bandwidth over 3.0

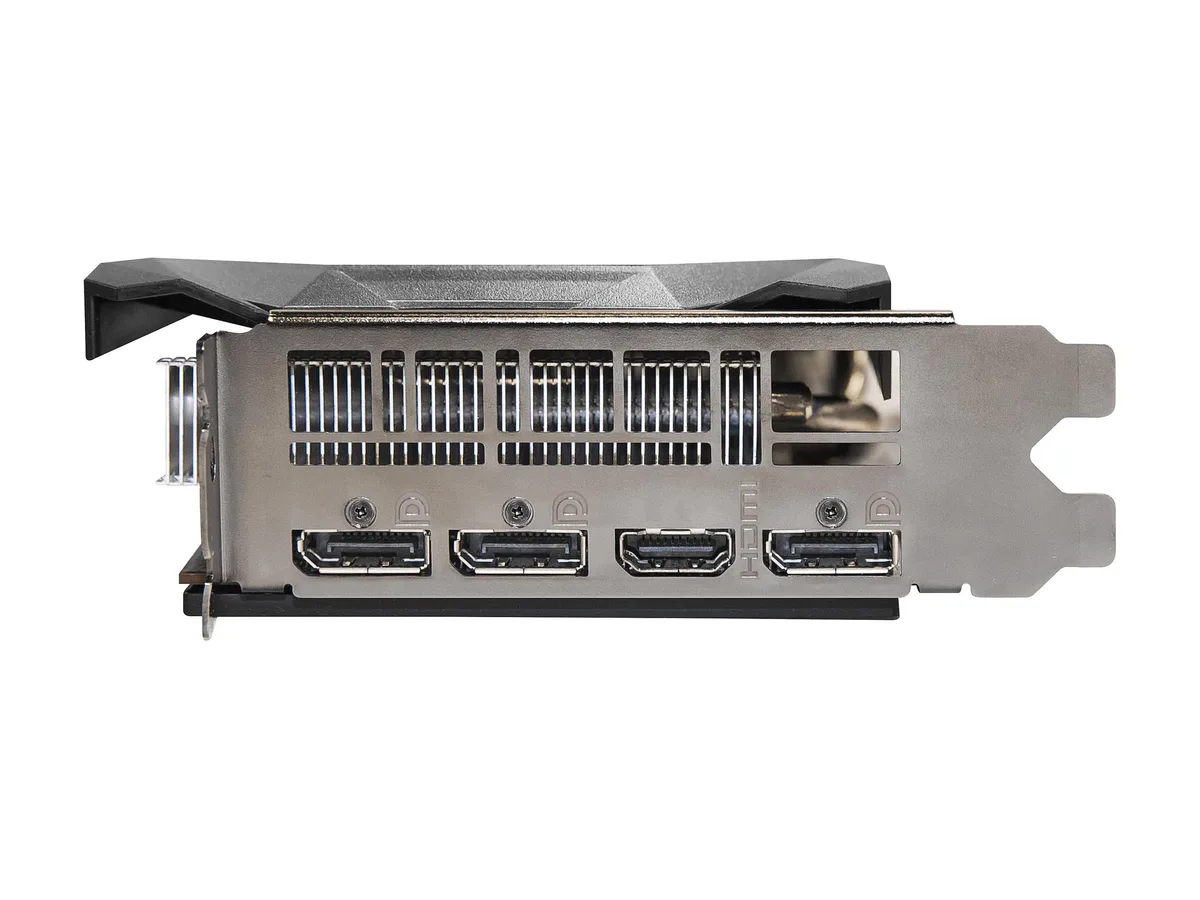

  • Four display outputs drive multi-monitor setups up to 7680 × 4320
  • TORX Fan 3.0 cooler balances airflow and noise under load

Ready for 1440p gaming

The MSI Radeon RX 5700 MECH OC is a refurbished graphics card built on the AMD Radeon RX 5700 GPU. It delivers 2304 stream processors with a 1515 MHz core clock and a 1750 MHz boost clock. The 8GB GDDR6 frame buffer runs at 14 Gbps across a 256-bit interface. It targets gamers who want high frame rates at 1440p resolution.

Verify power and slot

Your motherboard must provide a PCI Express 4.0 slot for full bandwidth. The card draws up to 225W and requires one 8-pin power connector. A 750W power supply is recommended to cover the GPU and the rest of the system. Confirm your case has room for a dual-slot, dual-fan cooler before ordering.

Software adds control and capture

MSI Afterburner gives you manual overclocking control over clocks and fan curves. Kombustor supplies a DirectX 12 benchmark to test stability after tuning. Predator records in-game video without a separate capture device. AMD FreeSync synchronises the display refresh rate with the GPU to reduce tearing on compatible monitors.

Highlights

  • 8 GB GDDR6 memory at 14 Gbps feeds high-resolution textures
  • Boost clock reaches 1750 MHz for responsive 1440p gaming
  • PCI Express 4.0 interface doubles bandwidth over 3.0
  • Four display outputs drive multi-monitor setups up to 7680 × 4320
  • TORX Fan 3.0 cooler balances airflow and noise under load

Specifications

BrandMSI
ModelRX 5700 MECH OC
InterfacePCI Express 4.0
Chipset ManufacturerAMD
GPU SeriesAMD Radeon RX 5700 Series
GPURadeon RX 5700
Core Clock1515 MHz
Boost Clock1750 MHz
Stream Processors2304
Effective Memory Clock14 Gbps
Memory Size8GB
Memory Interface256-Bit
Memory TypeGDDR6
DirectXDirectX 12
OpenGLOpenGL 4.6
Multi-Monitor Support4
HDMI1 x HDMI 2.0b
DisplayPort3 x DisplayPort 1.4
Max Resolution7680 x 4320
CrossFireX SupportCrossfire, 2-Way (Bridgeless) (DX12)
Virtual Reality ReadyYes
CoolerDouble Fans
Thermal Design Power225W
System RequirementsRecommended PSU: 750W
Recommended PSU Wattage750W
Power Connector8-Pin
HDCP Ready2.2
FeaturesTORX Fan 3.0
Dispersion fan blade: Steep curved blade accelerating the airflow.
Traditional fan blade: Provides steady airflow to massive heat sink below.
Afterburner Overclocking Utility
Kombustor: The latest DirectX versions benchmark supporting.
Predator: In-game video recording.
AMD Radeon FreeSync
Synchronizes the display refresh to your Radeon RX Series GPU for the fast, smooth gaming.
Max GPU Length232 mm
Card Dimensions (L x H)9.13" x 4.96"
Shipping weight1.27 kg
Package size348 × 264 × 84 mm

Questions about this item

What comes in the box with the MSI Radeon RX 5700 MECH OC and do I need to buy a power cable separately?

The card includes the graphics card itself with its dual-fan cooler. An 8-pin power connector is required and must come from your power supply; no separate cable is bundled.

Should I choose this 8GB 256-bit GDDR6 version or look for a different capacity?

This model is offered only with 8GB of GDDR6 on a 256-bit bus running at 14 Gbps. There is no alternative capacity for the MECH OC variant.

What does the 1750 MHz boost clock mean when the card is inside my PC?

The GPU can reach 1750 MHz under load if power, temperature and driver conditions allow. Typical in-game clocks will vary around that figure depending on workload and cooling.
