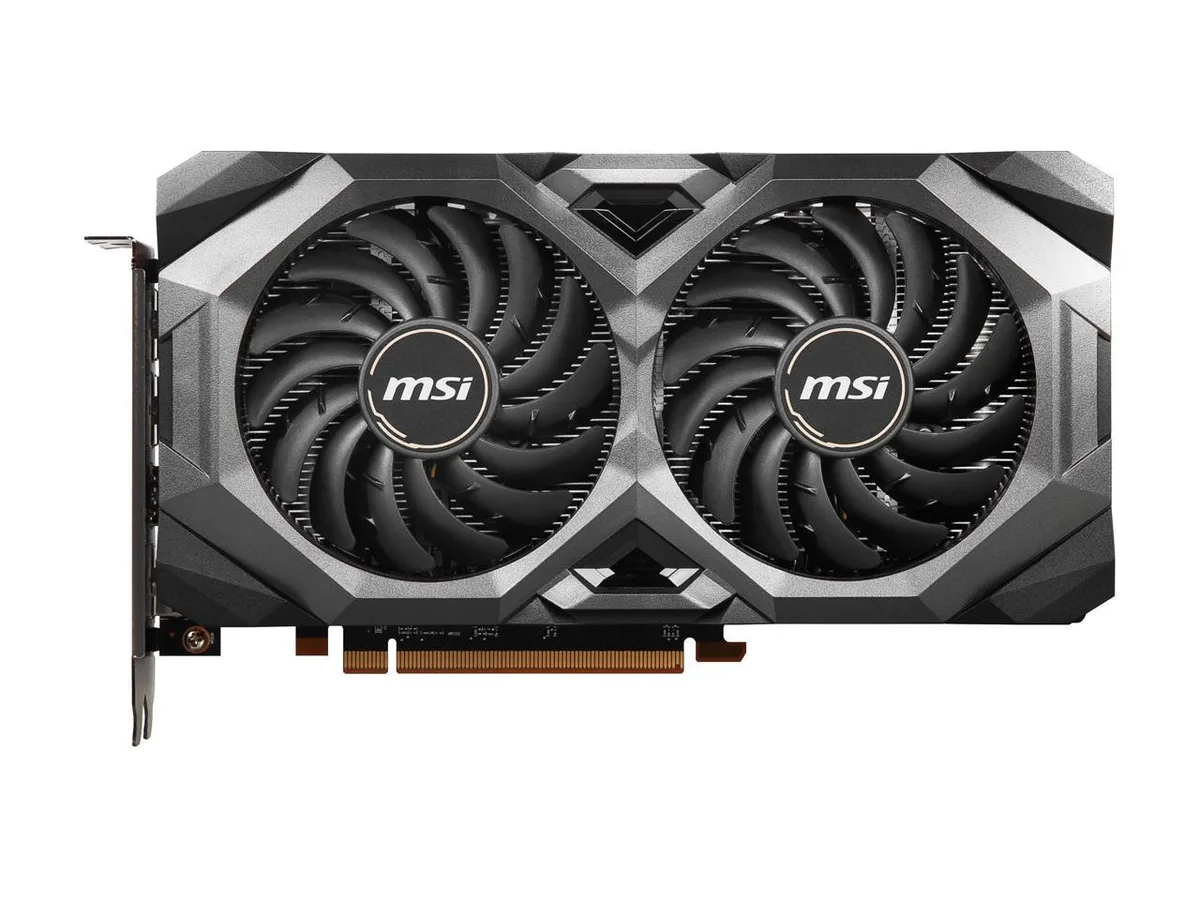

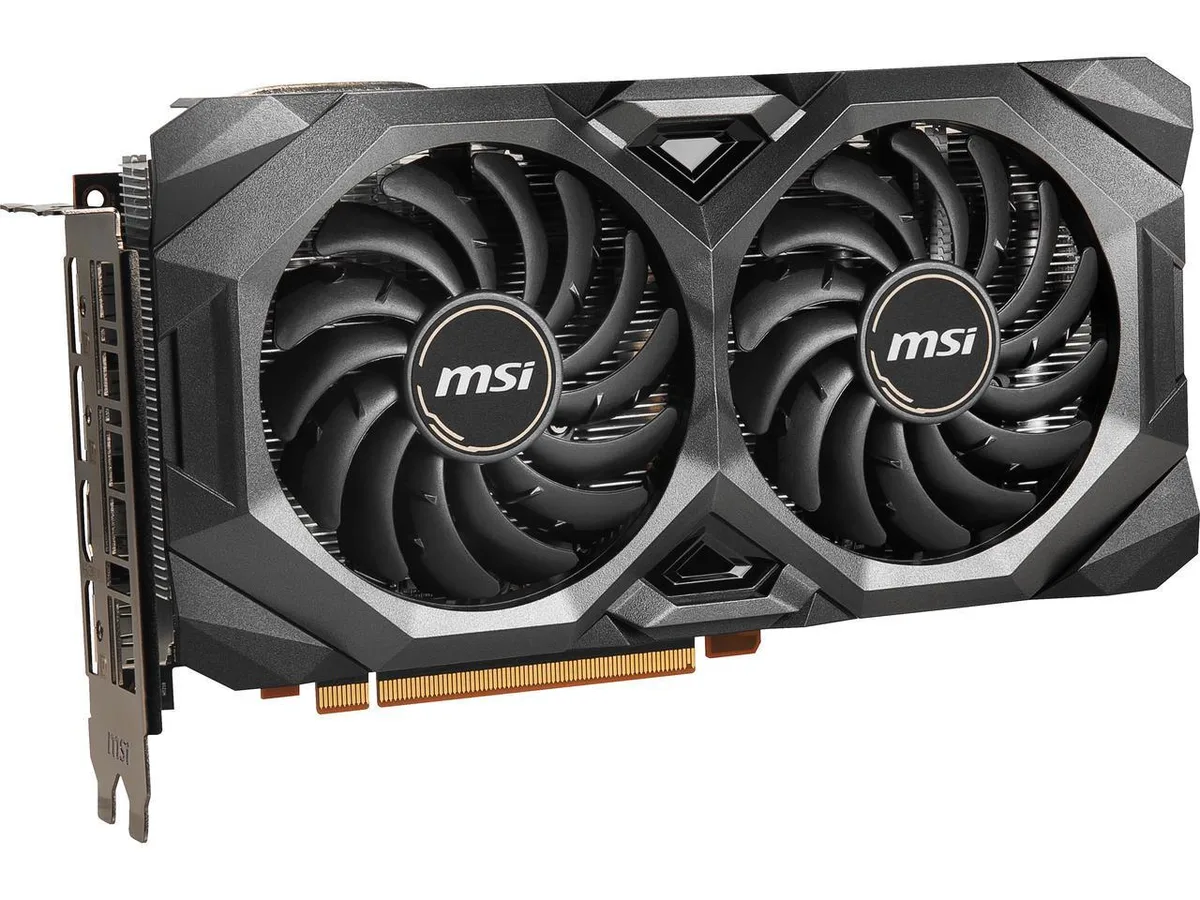

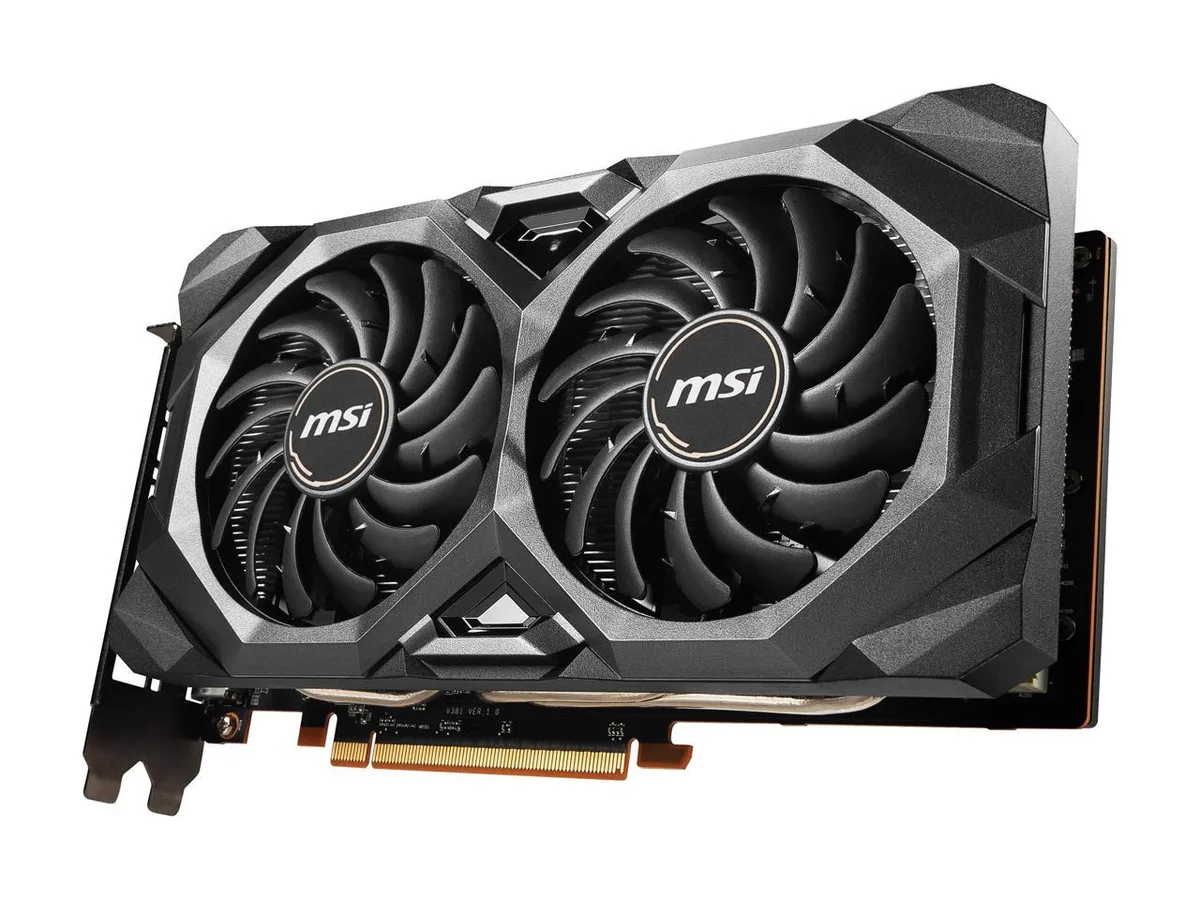

MSI Radeon RX 5700 XT MECH OC dual-fan graphics card with silver shroud and black backplate

MSI

MSI Radeon RX 5700 XT MECH OC 8GB graphics card

SKU CH-J5C8-7RB1N

AMD Radeon RX 5700 XT GPU with 2560 stream processors, 8 GB GDDR6 at 14 Gbps, 1925 MHz boost clock, PCIe 4.0 and four display outputs

  • InterfacePCI Express 4.0
  • Chipset ManufacturerAMD
  • GPU SeriesAMD Radeon RX 5700 Series
  • GPURadeon RX 5700 XT
  • Core Clock1670 MHz
  • Boost Clock1925 MHz
  • 8 GB GDDR6 memory handles high-resolution textures
  • Boost clock reaches 1925 MHz for strong frame rates
  • 2560 stream processors deliver parallel compute power
  • PCI Express 4.0 interface doubles bandwidth headroom
  • Four display outputs drive multi-monitor setups

MECH OC 8GB 256-Bit GDDR6

The MSI Radeon RX 5700 XT MECH OC is a graphics card built on the AMD Radeon RX 5700 Series architecture with 2560 stream processors. It runs at a core clock of 1670 MHz and a boost clock of 1925 MHz. The 8GB frame buffer uses a 256-bit GDDR6 interface at 14 Gbps. A PCI Express 4.0 link provides system bandwidth.

Suited for 4-display 7680x4320 output

This card suits builders who need four simultaneous displays via one HDMI 2.0b and three DisplayPort 1.4 connectors at up to 7680 x 4320 resolution. DirectX 12 and OpenGL 4.5 cover modern APIs. CrossFireX 2-way bridgeless support exists for multi-GPU DX12 workloads. Users targeting ray-tracing hardware acceleration or Nvidia-specific features should evaluate alternatives.

Verify PCI Express 4.0 slot and power budget

Confirm the motherboard offers a full-length PCI Express 4.0 x16 slot and that the chassis accommodates a dual-slot design. Check the power supply for sufficient wattage and the required supplementary connectors for a 1925 MHz boost configuration. Ensure the operating system supports DirectX 12 and AMD Radeon drivers for the RX 5700 XT.

Highlights

  • 8 GB GDDR6 memory handles high-resolution textures
  • Boost clock reaches 1925 MHz for strong frame rates
  • 2560 stream processors deliver parallel compute power
  • PCI Express 4.0 interface doubles bandwidth headroom
  • Four display outputs drive multi-monitor setups

Specifications

BrandMSI
ModelRX 5700 XT MECH OC
InterfacePCI Express 4.0
Chipset ManufacturerAMD
GPU SeriesAMD Radeon RX 5700 Series
GPURadeon RX 5700 XT
Core Clock1670 MHz
Boost Clock1925 MHz
Stream Processors2560
Effective Memory Clock14 Gbps
Memory Size8GB
Memory Interface256-Bit
Memory TypeGDDR6
DirectXDirectX 12
OpenGLOpenGL 4.5
Multi-Monitor Support4
HDMI1 x HDMI 2.0b
DisplayPort3 x DisplayPort 1.4
Max Resolution7680 x 4320
CrossFireX SupportCrossfire, 2-Way (Bridgeless) (DX12)
Virtual Reality ReadyYes
CoolerDouble Fans
Thermal Design Power225W
System RequirementsRecommended PSU: 750W
Power Connector1 x 6-Pin + 1 x 8-Pin
HDCP Ready2.2
FeaturesTORX Fan 3.0 Dispersion fan blade: Steep curved blade accelerating the airflow. Traditional fan blade: Provides steady airflow to massive heat sink below. Afterburner Overclocking Utility Kombustor: The latest DirectX versions benchmark supporting. Predator: In-game video recording. AMD Radeon FreeSync Synchronizes the display refresh to your Radeon RX Series GPU for the fast, smooth gaming.
Max GPU Length232 mm
Card Dimensions (L x H)9.13" x 4.96"

Questions about this item

Does my motherboard need a PCI Express 4.0 slot to run this card?

The card uses a PCI Express 4.0 interface and will operate in a 3.0 slot at reduced bandwidth; a 4.0 slot is not mandatory but lets the GPU reach full link speed.

Can I keep my existing CrossFireX bridge when adding this GPU?

This model supports 2-way CrossFireX in bridgeless mode, so no physical bridge is required and any older bridge can stay unused.

How do I confirm the boost clock is hitting 1925 MHz under load?

Run a GPU monitoring tool while gaming; the sensor should report a boost frequency of 1925 MHz when thermals and power limits allow.
