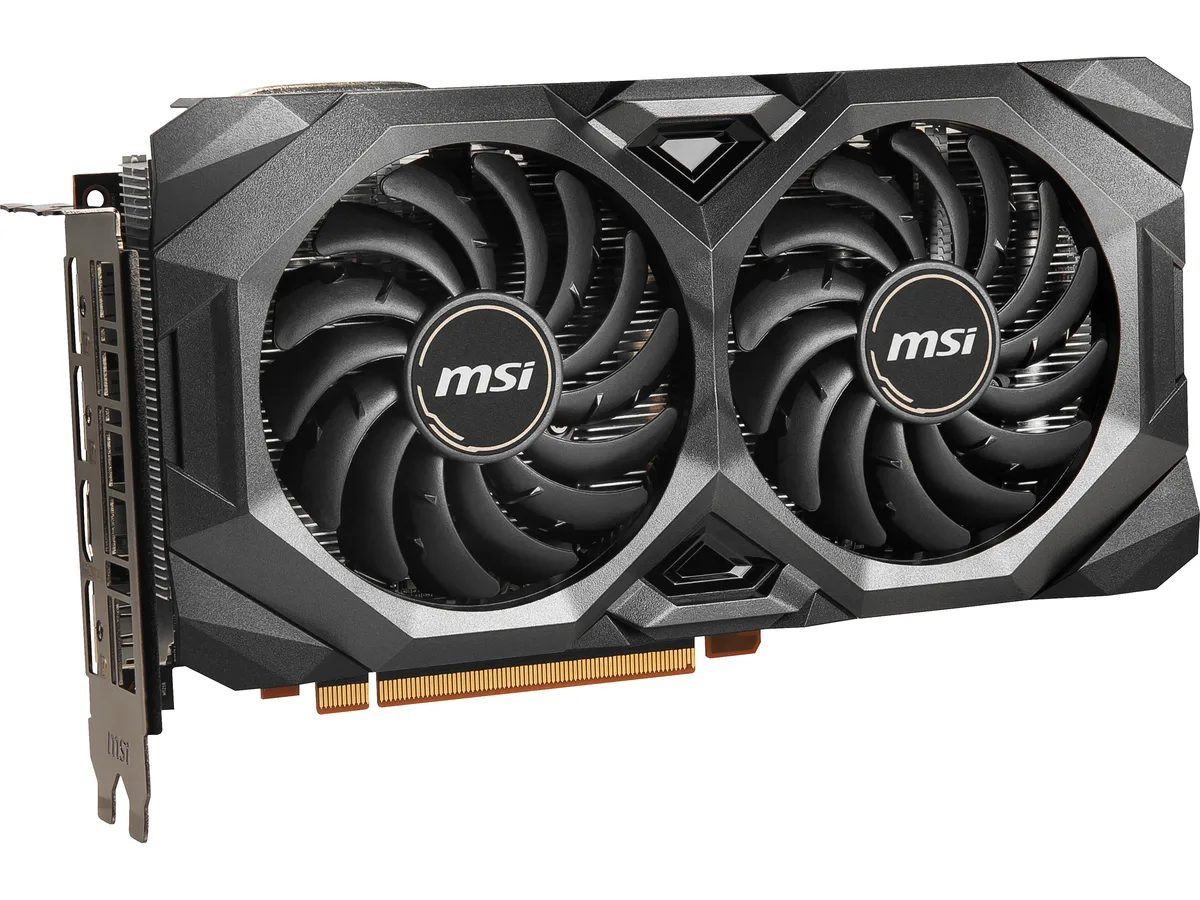

MSI Radeon RX 5700 XT MECH OC graphics card with dual-fan cooler and metal backplate

MSI

MSI Radeon RX 5700 XT MECH OC graphics card

SKU CH-Q18F-NTZG2 MPN RX 5700 XT MECH OC

Refurbished AMD Radeon RX 5700 XT GPU with 8 GB GDDR6 memory, 2560 stream processors and a 1925 MHz boost clock on a PCI Express 4.0 interface

  • InterfacePCI Express 4.0
  • Chipset ManufacturerAMD
  • GPU SeriesAMD Radeon RX 5700 Series
  • GPURadeon RX 5700 XT
  • Core Clock1670 MHz
  • Boost Clock1925 MHz
  • 8 GB GDDR6 memory at 14 Gbps feeds high-resolution textures fast
  • Boost clock reaches 1925 MHz for strong 1440p frame rates
  • PCI Express 4.0 interface doubles bandwidth over the previous standard
  • Three DisplayPort 1.4 and one HDMI 2.0b drive up to four 8K displays
  • TORX Fan 3.0 combines steep curved and traditional blades for focused cooling

PCI Express 4.0 graphics card

The MSI Radeon RX 5700 XT MECH OC is a PCI Express 4.0 graphics card built on the AMD Radeon RX 5700 series architecture. It delivers 2560 stream processors with a 1670 MHz core clock and a 1925 MHz boost clock. The card equips 8GB GDDR6 memory across a 256-bit interface running at 14 Gbps.

1440p gaming and multi-monitor users

This card suits players targeting 1440p resolution with high refresh rates and supports up to four displays via one HDMI 2.0b and three DisplayPort 1.4 outputs. It is VR ready and includes FreeSync support for tear-free motion. Buyers needing newer encoding features or lower power draw should evaluate alternative models.

225W board power and 750W PSU requirement

The board draws up to 225W and requires one 6-pin plus one 8-pin power connector. A 750W power supply is recommended to ensure stable operation. Verify that your chassis and PSU meet these specs before purchase.

Highlights

  • 8 GB GDDR6 memory at 14 Gbps feeds high-resolution textures fast
  • Boost clock reaches 1925 MHz for strong 1440p frame rates
  • PCI Express 4.0 interface doubles bandwidth over the previous standard

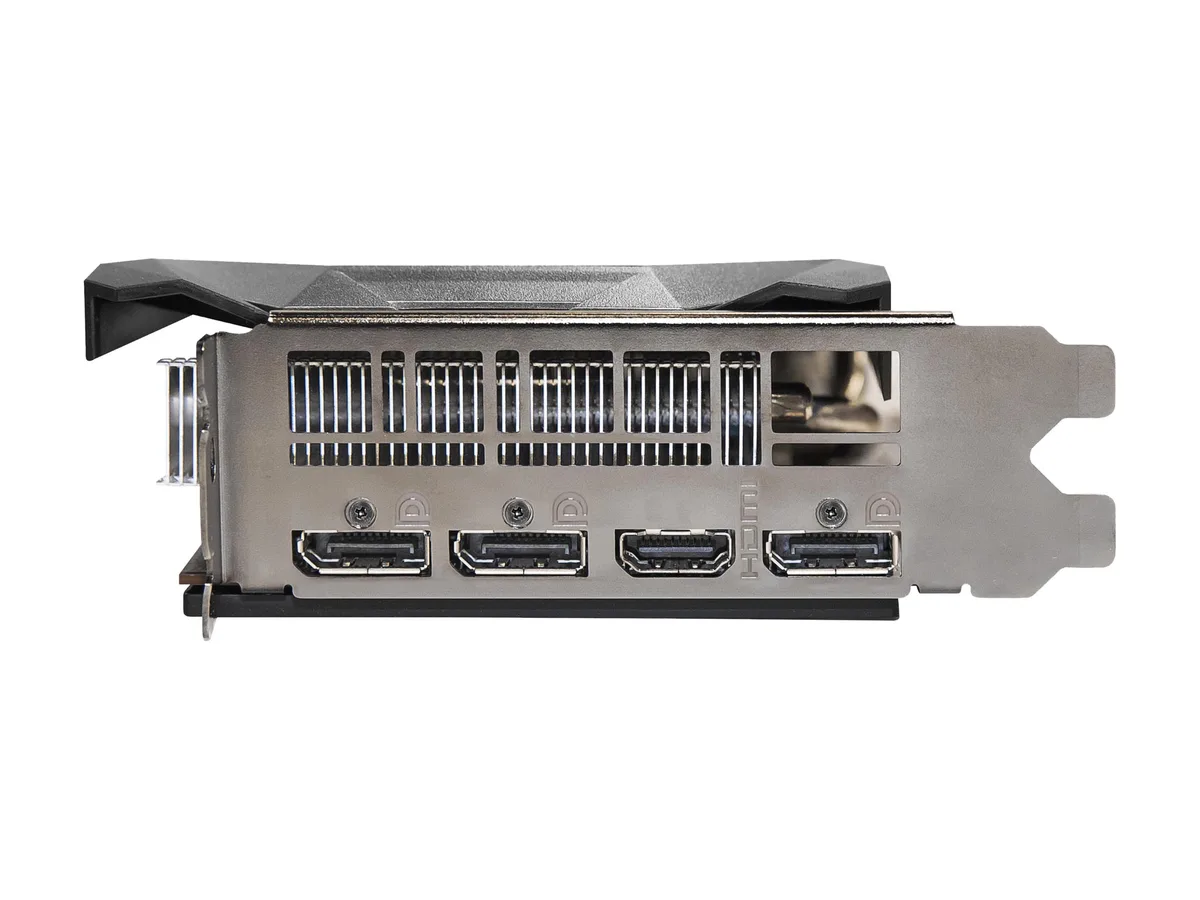

  • Three DisplayPort 1.4 and one HDMI 2.0b drive up to four 8K displays
  • TORX Fan 3.0 combines steep curved and traditional blades for focused cooling

Specifications

BrandMSI
ModelRX 5700 XT MECH OC
InterfacePCI Express 4.0
Chipset ManufacturerAMD
GPU SeriesAMD Radeon RX 5700 Series
GPURadeon RX 5700 XT
Core Clock1670 MHz
Boost Clock1925 MHz
Stream Processors2560
Effective Memory Clock14 Gbps
Memory Size8GB
Memory Interface256-Bit
Memory TypeGDDR6
DirectXDirectX 12
OpenGLOpenGL 4.6
Multi-Monitor Support4
HDMI1 x HDMI 2.0b
DisplayPort3 x DisplayPort 1.4
Max Resolution7680 x 4320
Virtual Reality ReadyYes
CoolerDouble Fans
Thermal Design Power225W
System RequirementsRecommended PSU: 750W
Recommended PSU Wattage750W
Power Connector1 x 6-Pin, 1 x 8-Pin
HDCP Ready2.2
FeaturesTORX Fan 3.0
Dispersion fan blade: Steep curved blade accelerating the airflow.
Traditional fan blade: Provides steady airflow to massive heat sink below.
Afterburner Overclocking Utility
Kombustor: The latest DirectX versions benchmark supporting.
Predator: In-game video recording.
AMD Radeon FreeSync
Synchronizes the display refresh to your Radeon RX Series GPU for the fast, smooth gaming.
Max GPU Length232 mm

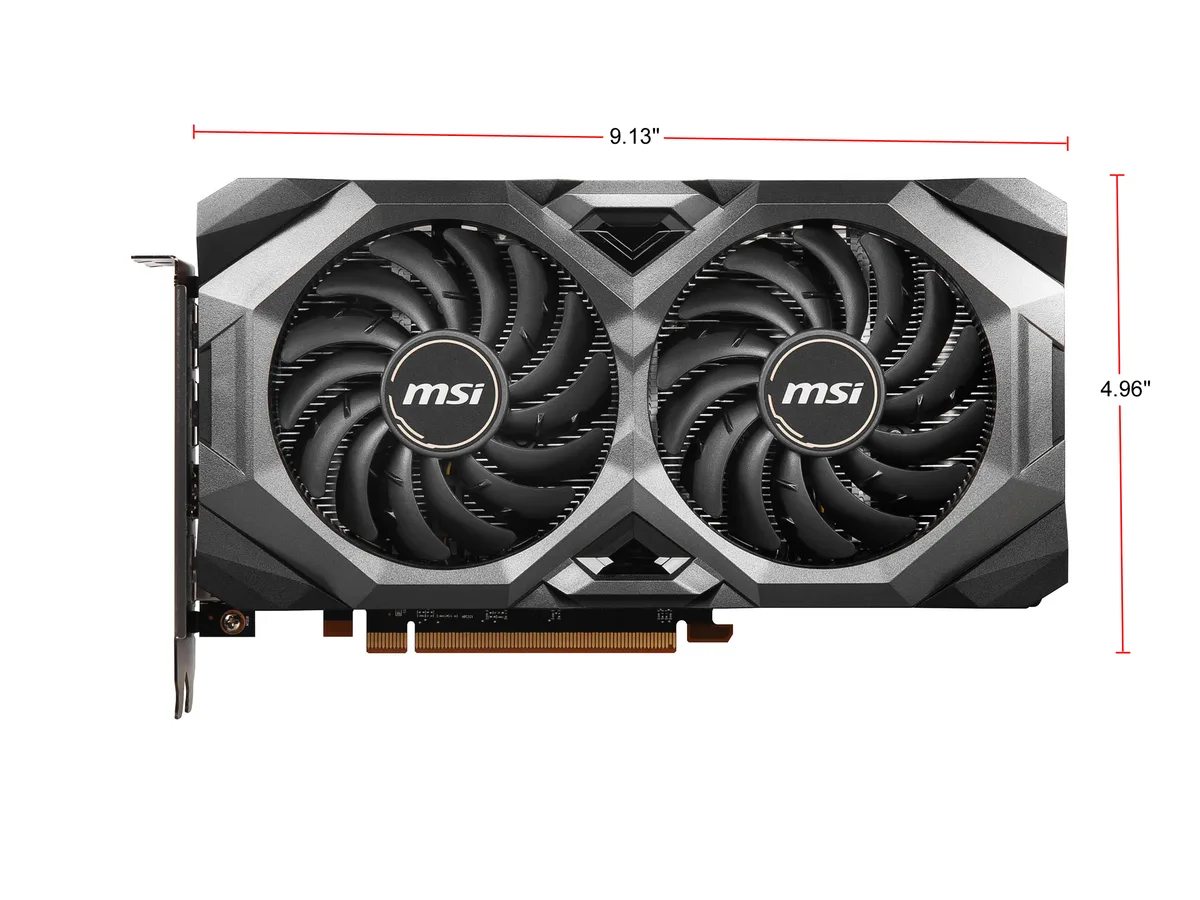

Card Dimensions (L x H)9.13" x 4.96"
Shipping weight1.27 kg
Package size351 × 267 × 102 mm

Questions about this item

What slot and power connectors does the RX 5700 XT MECH OC require?

The card uses a PCI Express 4.0 slot and draws power from one 6‑pin and one 8‑pin connector.

Which step is often missed when installing the MECH OC?

Connecting both the 6‑pin and 8‑pin power cables is essential; using only one leaves the 225 W board under‑powered.

What cooler maintenance does the TORX Fan 3.0 design need later?

Periodically blow dust from the two fans and the heatsink fins to keep airflow over the GDDR6 memory and GPU.
