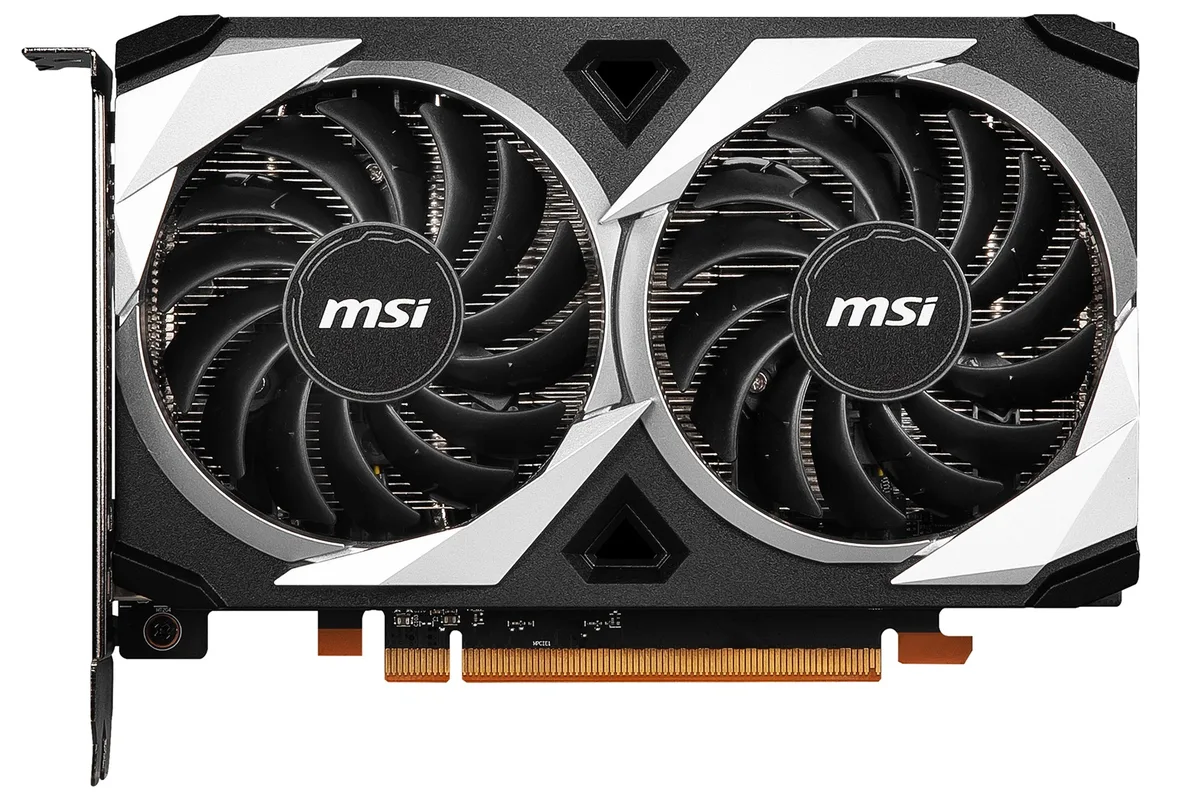

Black dual-fan graphics card with silver accents, PCIe bracket showing one HDMI and one DisplayPort

MSI

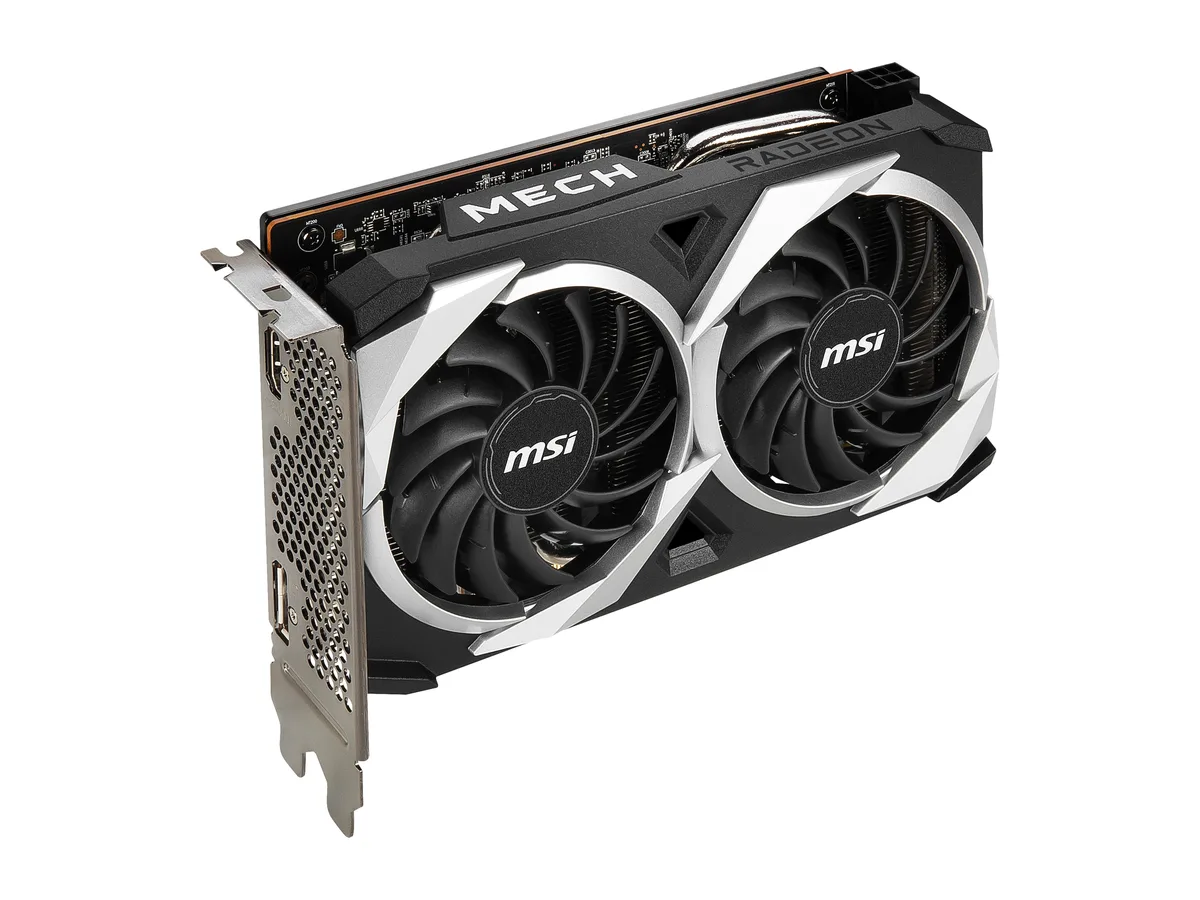

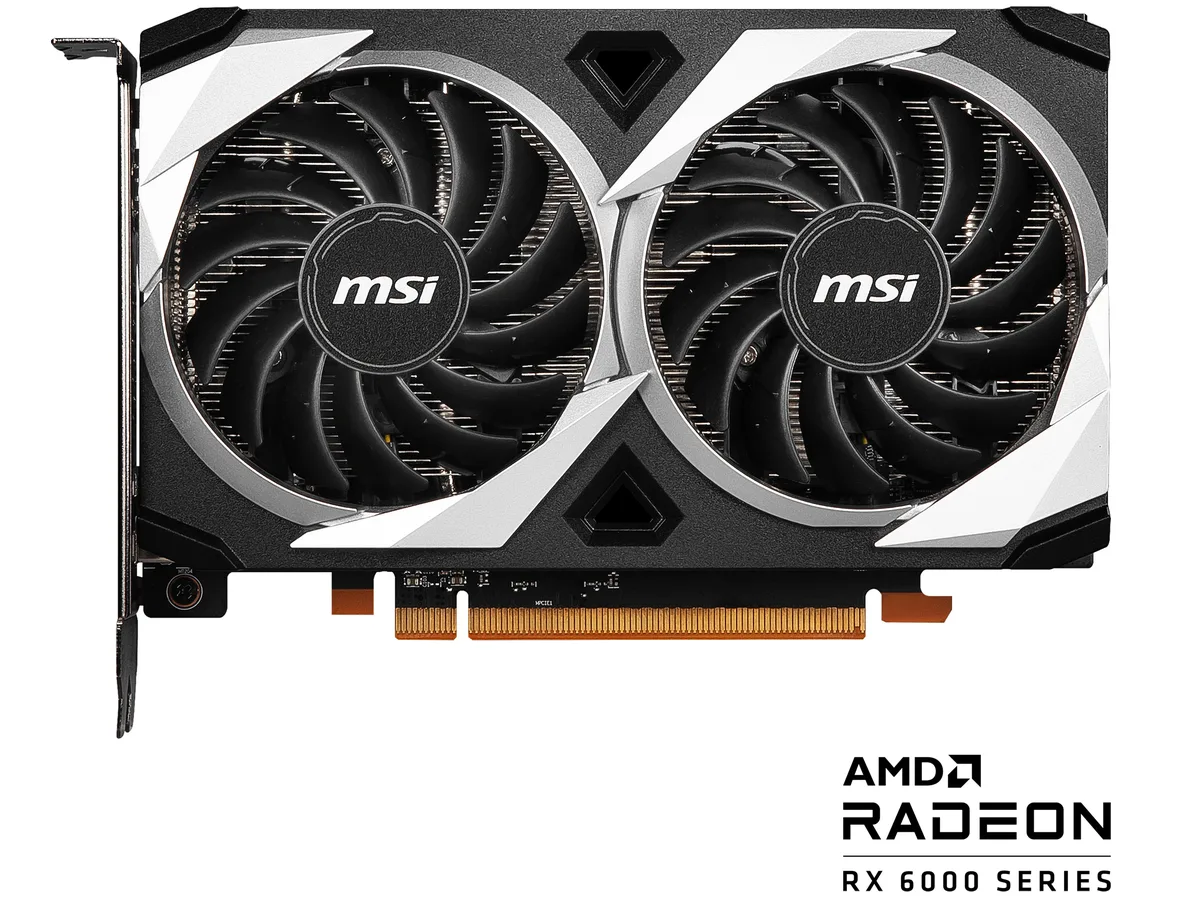

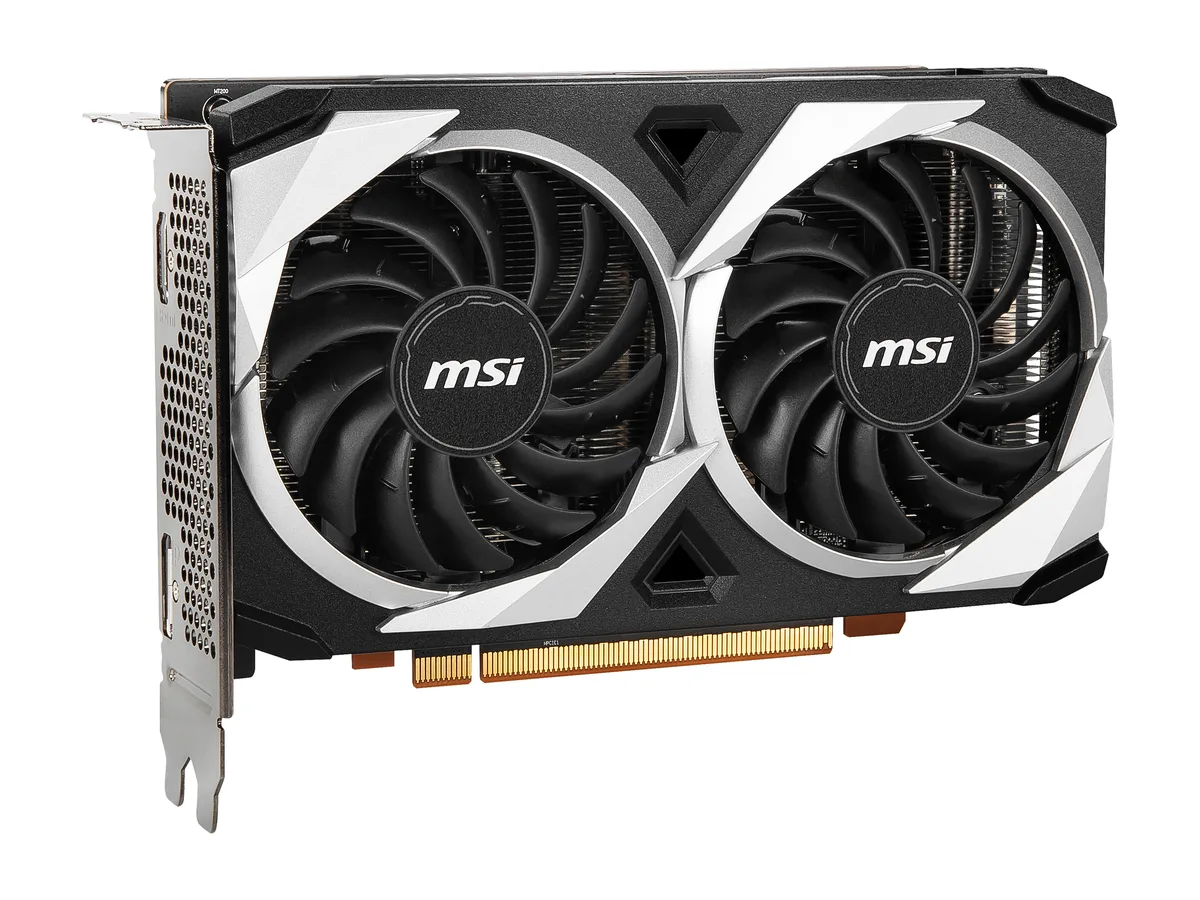

MSI Radeon RX 6500 XT MECH 2X 4G OC graphics card

SKU CH-H09T-895AR MPN RX 6500 XT MECH 2X 4G OC

Entry-level graphics card with 4GB GDDR6, 64-bit memory interface and boost clock of 2825 MHz for 1080p gaming

  • InterfacePCI Express 4.0
  • Chipset ManufacturerAMD
  • GPU SeriesAMD Radeon RX 6000 Series
  • GPURadeon RX 6500 XT
  • Game Clock2685 MHz
  • Boost Clock2825 MHz
  • Boost clock of 2825 MHz drives high frame rates
  • 4 GB GDDR6 on a 64-bit bus feeds textures fast
  • PCI Express 4.0 interface doubles host bandwidth
  • Dual TORX Fan 3.0 cooler keeps temperatures low
  • HDMI 2.1 and DisplayPort 1.4a connect two 8K displays

Product Identity

The MSI Radeon RX 6500 XT MECH 2X 4G OC is a refurbished graphics card built around the AMD Radeon RX 6500 XT GPU with 4GB of GDDR6 memory on a 64-Bit interface. It targets 1080p gaming and multi-monitor productivity with a boost clock of 2825 MHz and 1024 stream processors. The dual-fan cooler uses MSI TORX Fan 3.0 design and a 6-pin power connector within a 107W thermal envelope.

Compatibility Check

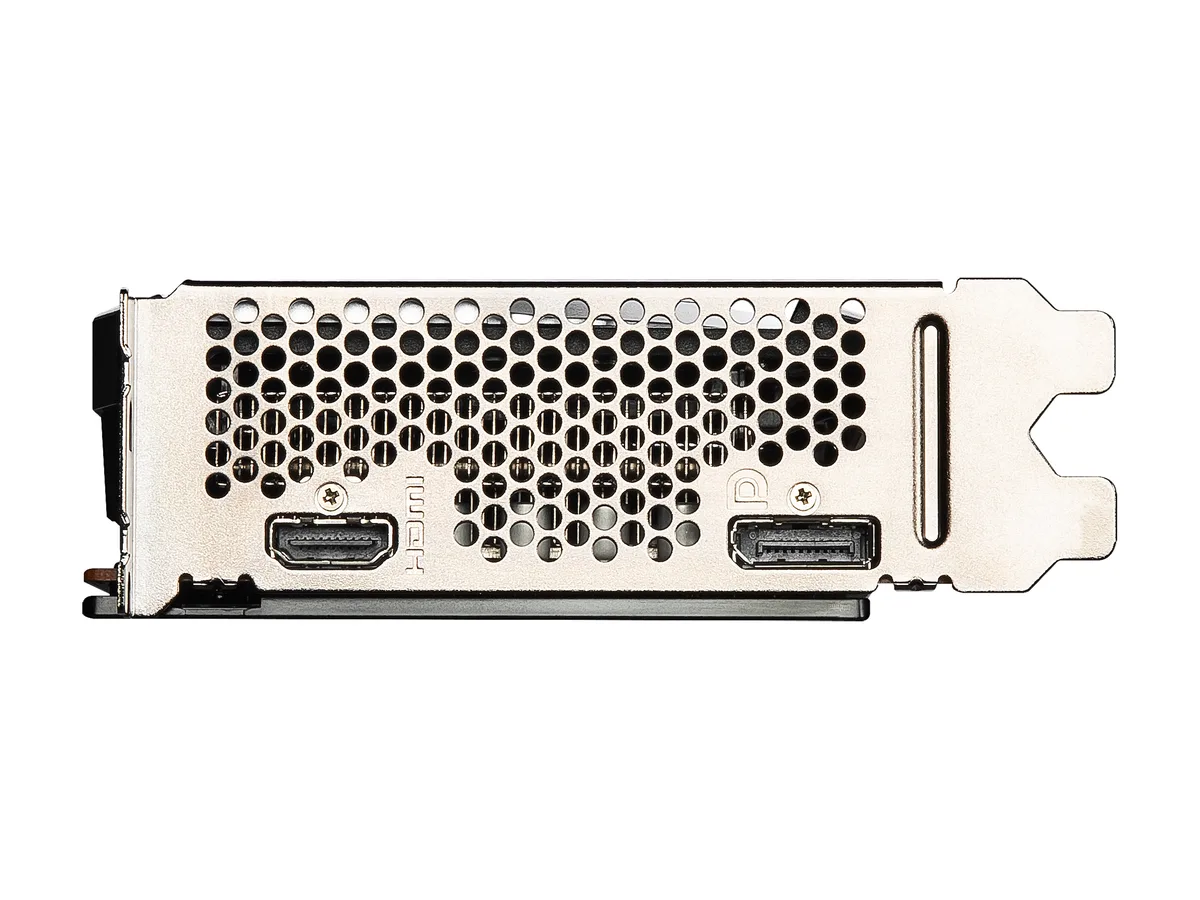

Your motherboard must provide a PCI Express 4.0 slot for full bandwidth and a 6-pin PCIe power cable from the power supply. A unit of at least 400W is recommended. The card offers one HDMI 2.1 port and one DisplayPort 1.4a connector supporting up to 7680 x 4320 resolution across two displays. Verify case length clearance for a dual-slot, dual-fan design.

Ideal User

This card suits builders upgrading older systems for 1080p gaming or dual-monitor office work who want DirectX 12 Ultimate and OpenGL 4.6 support with MSI Afterburner and OC Scanner utilities. Users needing more than 4GB VRAM, a wider memory bus, or higher compute performance for 1440p and 4K gaming should consider a higher-tier GPU.

Highlights

  • Boost clock of 2825 MHz drives high frame rates
  • 4 GB GDDR6 on a 64-bit bus feeds textures fast
  • PCI Express 4.0 interface doubles host bandwidth
  • Dual TORX Fan 3.0 cooler keeps temperatures low
  • HDMI 2.1 and DisplayPort 1.4a connect two 8K displays

Specifications

BrandMSI
SeriesMech
ModelRX 6500 XT MECH 2X 4G OC
InterfacePCI Express 4.0
Chipset ManufacturerAMD
GPU SeriesAMD Radeon RX 6000 Series
GPURadeon RX 6500 XT
Game Clock2685 MHz
Boost Clock2825 MHz
Stream Processors1024
Effective Memory Clock18 Gbps
Memory Size4GB
Memory Interface64-Bit
Memory TypeGDDR6
DirectXDirectX 12 Ultimate
OpenGLOpenGL 4.6
Multi-Monitor Support2
HDMI1 x HDMI 2.1
DisplayPort1 x DisplayPort 1.4a
ColorBlack
Max Resolution7680 x 4320
Virtual Reality ReadyYes
CoolerDouble Fans
Thermal Design Power107W
Recommended PSU Wattage400W
Power Connector6-Pin
HDCP ReadyYes
FeaturesDual Fan Thermal Design
TORX Fan 3.0: The award-winning MSI TORX Fan 3.0 design creates high static pressure and pushes the limits of thermal performance.
Afterburner Overclocking Utility
Supports multi-GPU setups.
OC Scanner: An automated function finds the highest stable overclock settings.
On Screen Display: Provides real-time information of your system's performance.
Predator: In-game video recording.
MSI Center
The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.
Max GPU Length172 mm

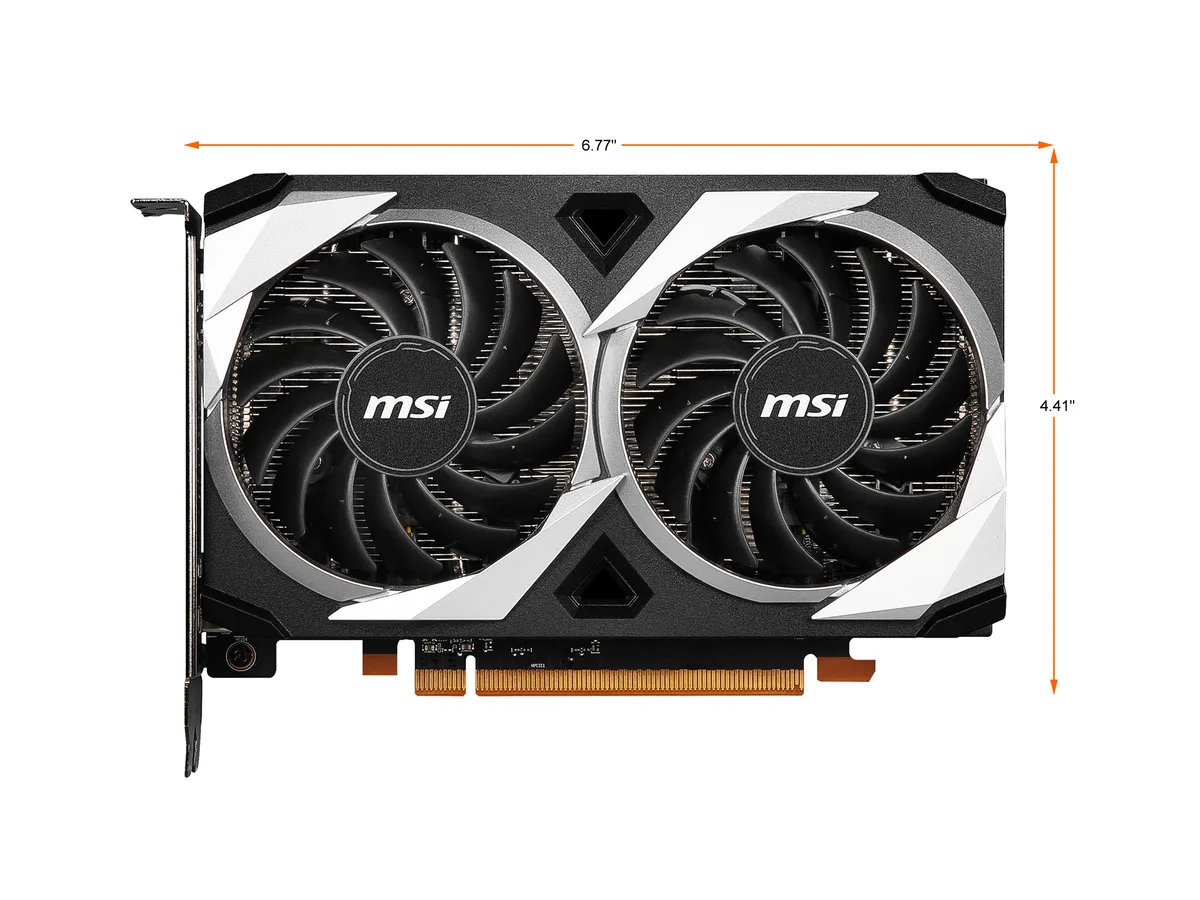

Card Dimensions (L x H)6.77" x 4.41"
Slot Width2 Slots
Shipping weight0.86 kg
Package size305 × 229 × 76 mm

Questions about this item

Will this card fit in a small case and run on my 400 W power supply?

The card draws 107 W and the maker recommends a 400 W PSU, so your supply meets the guideline. It uses a single 6-pin connector and a dual-fan cooler; measure your case length clearance before ordering.

Can I drive two 4K monitors at 60 Hz with the provided ports?

Yes. One HDMI 2.1 and one DisplayPort 1.4a are available, each capable of 4K at 60 Hz, and the card supports up to two displays simultaneously.

What performance level should I expect at 1080p with 4 GB of video memory?

The 64-bit GDDR6 memory running at 18 Gbps and 1024 stream processors deliver playable frame rates in modern titles at 1080p on medium to high settings; the 4 GB buffer may limit texture quality in the latest games.
