MSI

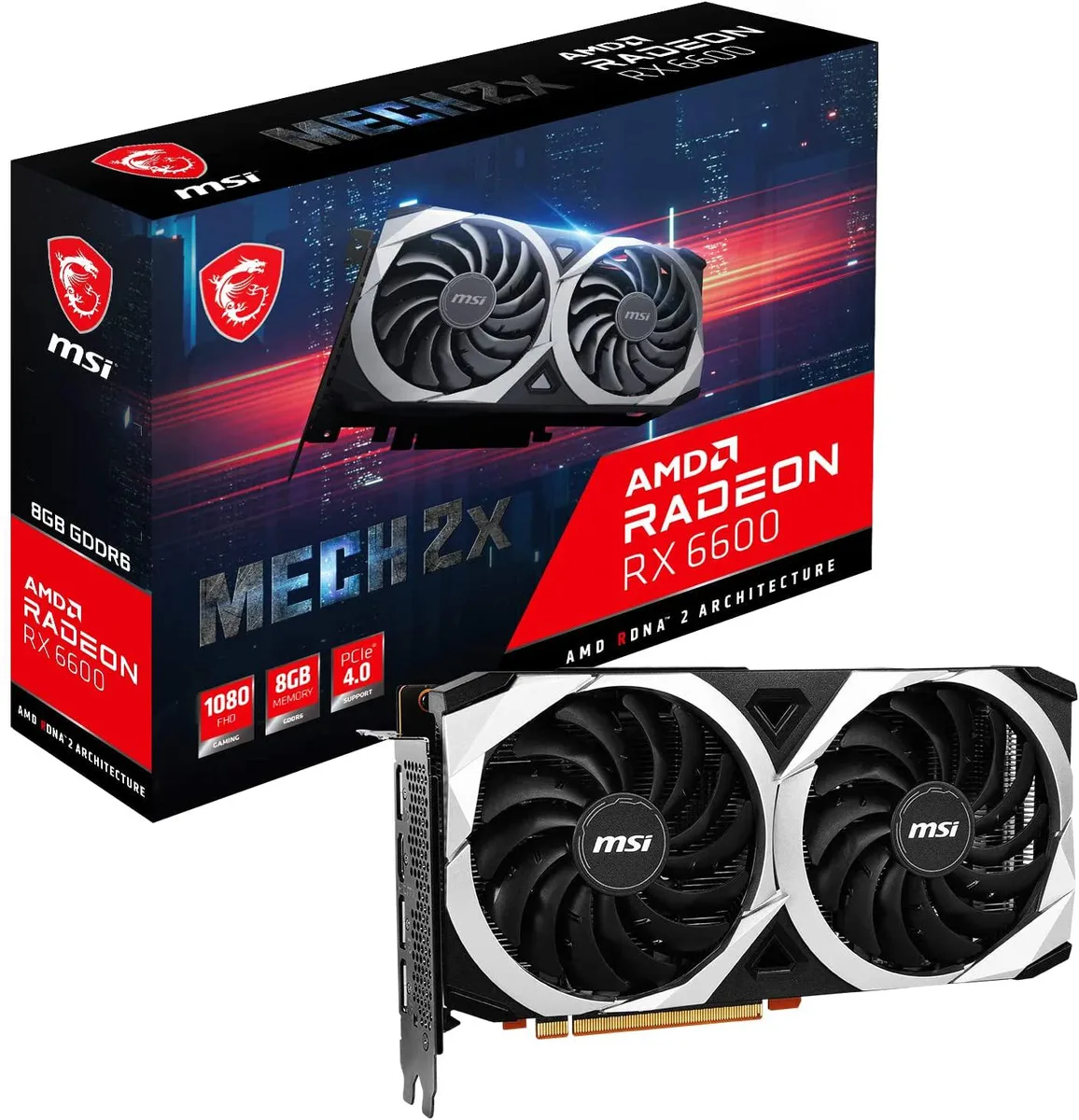

MSI Radeon RX 6600 MECH 2X 8G graphics card
RDNA 2 GPU with 8 GB GDDR6 on a 128-bit bus, PCIe 4.0, triple DisplayPort 1.4a and HDMI 2.1, dual TORX Fan 3.0 cooler with Zero Frozr stop, 132 W TDP
- InterfacePCI Express 4.0
- Chipset ManufacturerAMD
- GPU SeriesAMD Radeon RX 6000 Series
- GPURadeon RX 6600
- ArchitectureRDNA 2
- Core Clock1626 MHz
- 8GB GDDR6 memory handles modern textures at 1080p and 1440p
- PCIe 4.0 x16 interface doubles bandwidth over 3.0 for faster asset streaming

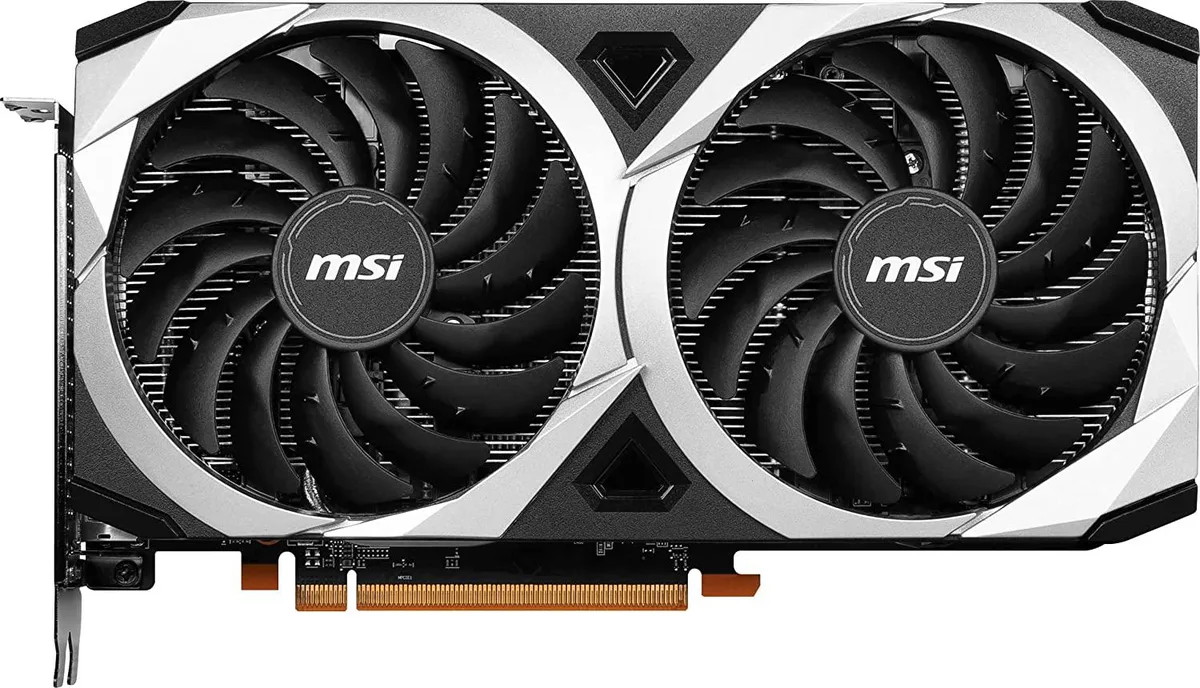

- Dual TORX Fan 3.0 design with Zero Frozr stops fans at low temps for silent idle
- Boost clock reaches 2491 MHz for high frame rates in competitive titles
- 132W TDP and 300W PSU recommendation suit compact builds and upgrades
Capacity and target use
The MSI Radeon RX 6600 MECH 2X 8G is a PCI Express 4.0 graphics card built on the AMD RDNA 2 architecture. It carries 8GB of GDDR6 memory across a 128-Bit interface and is aimed at 1080p gaming builds that need a balanced power draw of 132W with a 300W PSU recommendation.
Clocks and memory headroom
A game clock of 2044 MHz and a boost clock of 2491 MHz give solid frame rates in modern titles at high settings, while the 128-Bit bus and 8GB VRAM become the limiting factor once texture packs or resolution scaling push beyond 1080p. DirectX 12 Ultimate and OpenGL 4.6 support keep the feature set current for today's engines.
Upgrade path and display connectivity
The card replaces older 4GB or 6GB mid-range GPUs and adds a modern display stack of one HDMI 2.1 and three DisplayPort 1.4a outputs for multi-monitor setups. The jump is worth it when moving from a previous-generation 128-Bit board that lacks hardware ray-tracing support or PCI Express 4.0 bandwidth.
Highlights
- 8GB GDDR6 memory handles modern textures at 1080p and 1440p
- PCIe 4.0 x16 interface doubles bandwidth over 3.0 for faster asset streaming
- Dual TORX Fan 3.0 design with Zero Frozr stops fans at low temps for silent idle
- Boost clock reaches 2491 MHz for high frame rates in competitive titles
- 132W TDP and 300W PSU recommendation suit compact builds and upgrades
Specifications
| Brand | MSI |
|---|---|
| Series | Mech |
| Model | RX 6600 MECH 2X 8G |
| Interface | PCI Express 4.0 |
| Chipset Manufacturer | AMD |
| GPU Series | AMD Radeon RX 6000 Series |
| GPU | Radeon RX 6600 |
| Architecture | RDNA 2 |
| Core Clock | 1626 MHz |
| Game Clock | 2044 MHz |
| Boost Clock | 2491 MHz |
| Memory Size | 8GB |
| Memory Interface | 128-Bit |
| Memory Type | GDDR6 |
| DirectX | DirectX 12 Ultimate |
| OpenGL | OpenGL 4.6 |
| HDMI | 1 x HDMI 2.1 |
| DisplayPort | 3 x DisplayPort 1.4a |
| Thermal Design Power | 132W |
| Recommended PSU Wattage | 300W |
| Max GPU Length | 235 mm |
| Slot Width | 2 Slots |
Questions about this item
Will the PCI Express 4.0 interface work on my motherboard that only has PCIe 3.0 slots?
Yes, the card is backward compatible and will operate at PCIe 3.0 speeds when installed in a 3.0 slot.
How can I verify the GPU is hitting the 2491 MHz Boost Clock during a game?
Use MSI Afterburner or AMD Radeon Software to monitor the real-time core frequency while under load.
Does the box include a power adapter for the 8-pin connector or do I need a PSU with native cables?
No adapter is included; your power supply must provide a native 8-pin PCIe connector for the 132W board.
