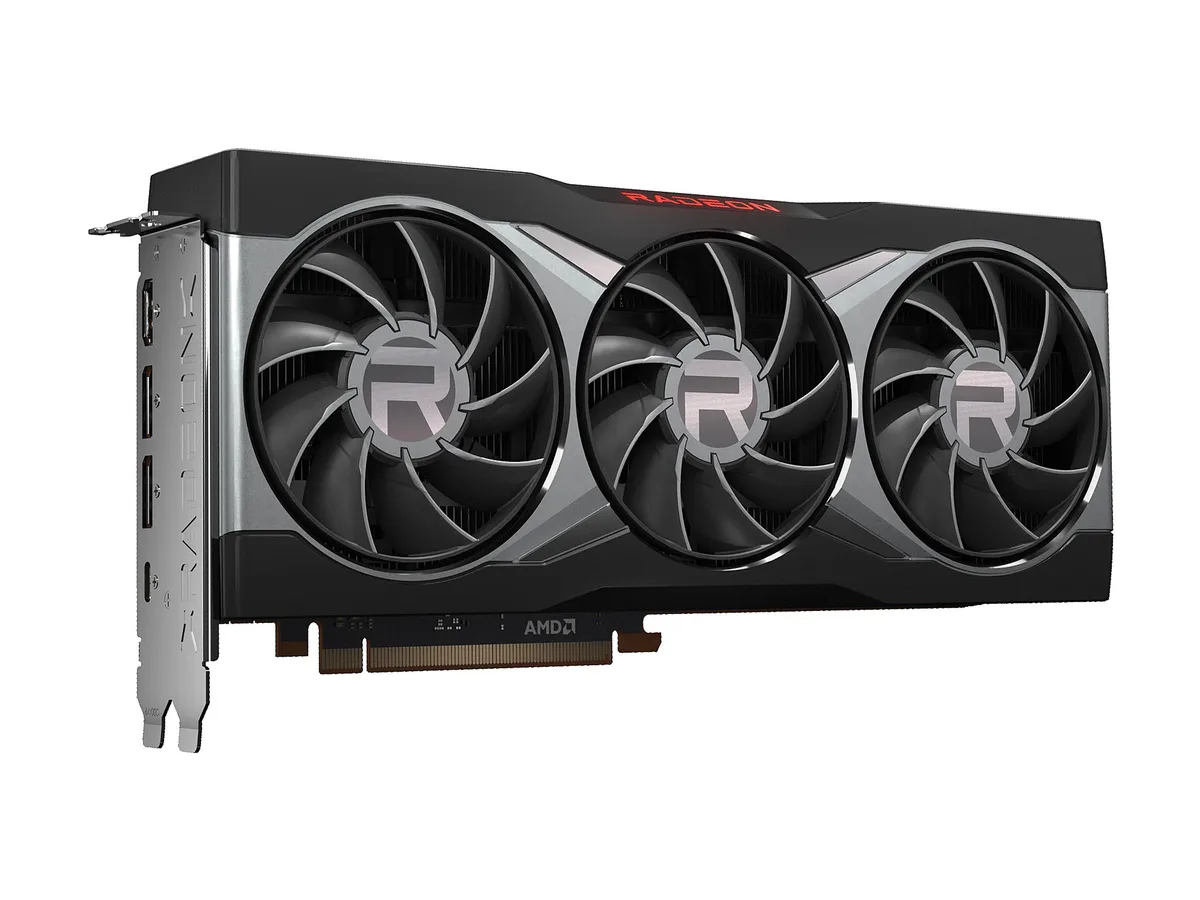

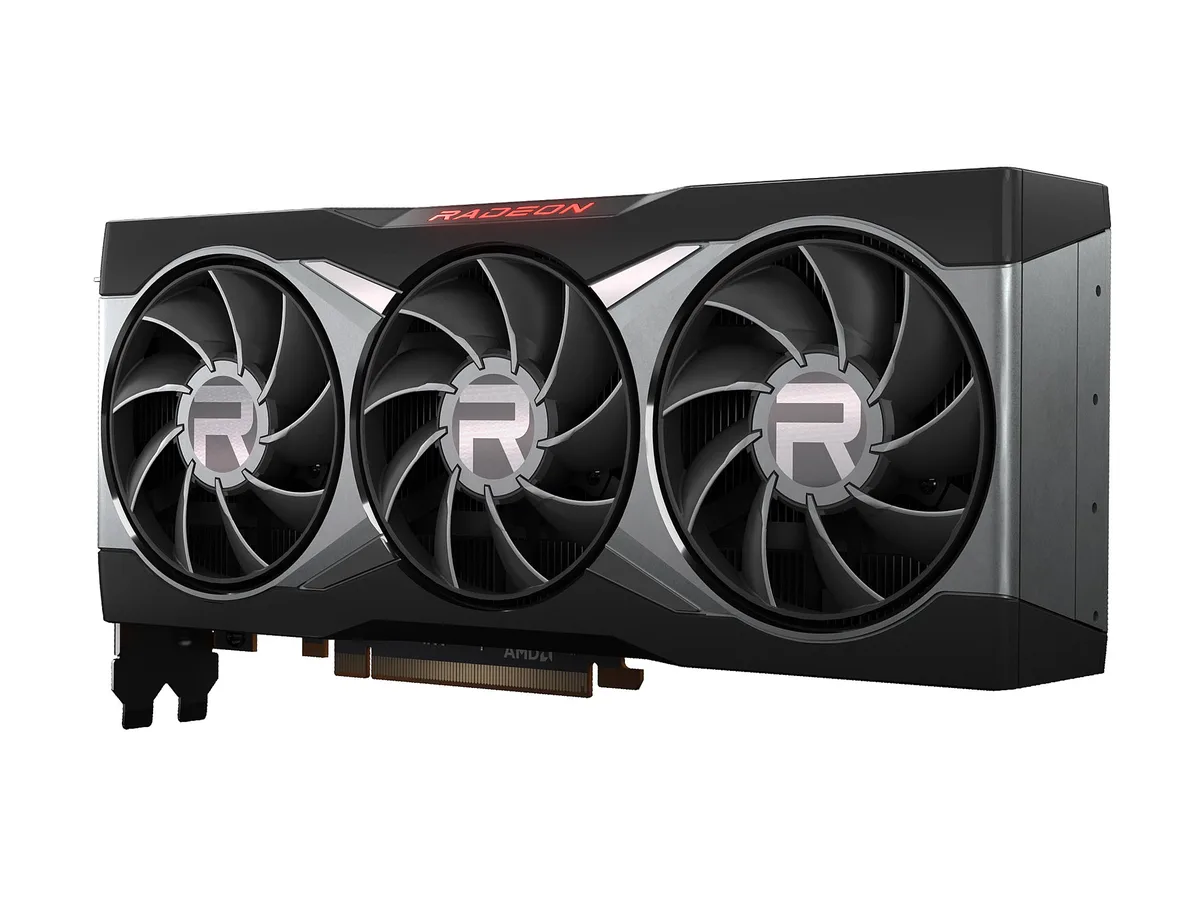

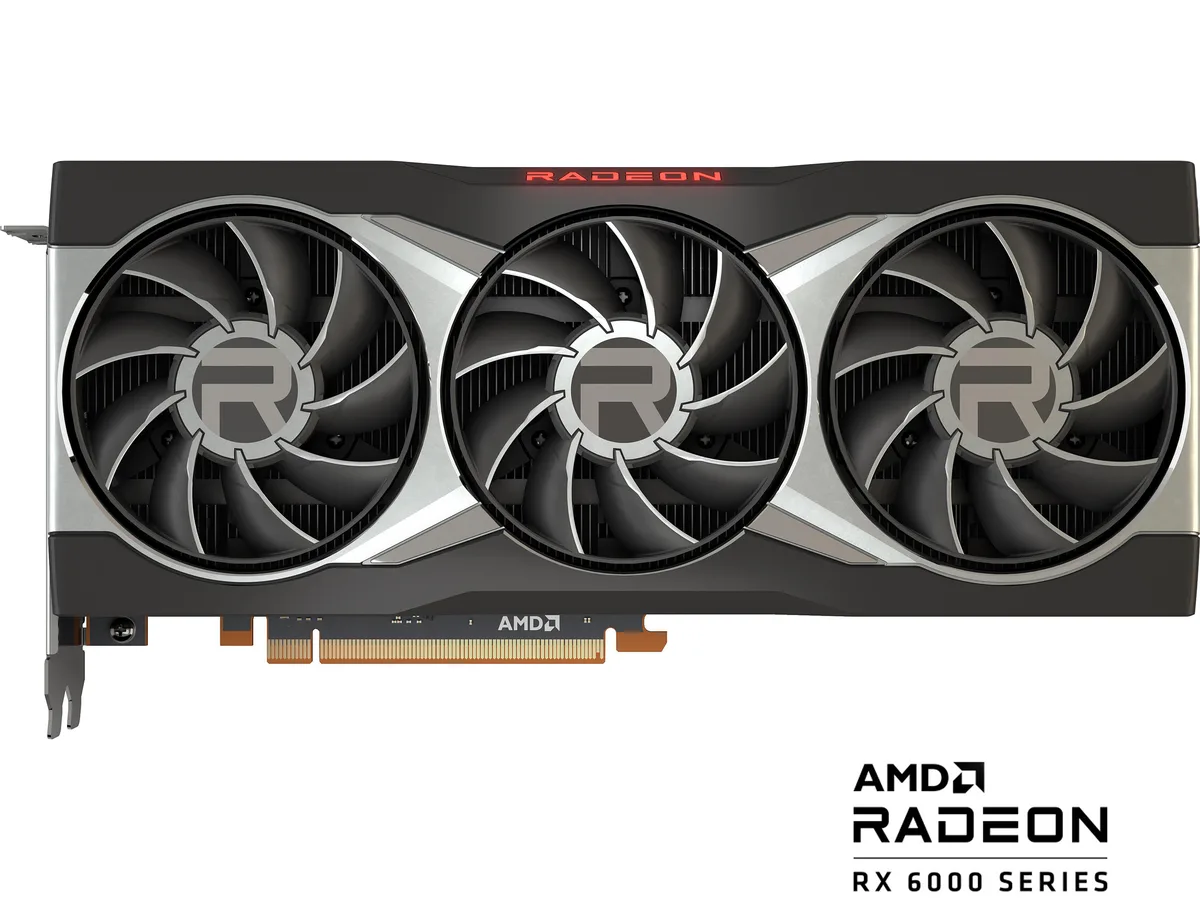

MSI Radeon RX 6800 XT 16G graphics card with triple-fan cooler and aluminium backplate

MSI

MSI Radeon RX 6800XT 16G graphics card

SKU CH-40PJ-S83J2 MPN Radeon RX 6800XT 16G

Refurbished AMD Radeon RX 6800 XT GPU with 16GB GDDR6, 4608 stream processors, boost clock 2250 MHz, PCIe 4.0, HDMI 2.1 and dual DisplayPort 1.4 for 4K gaming

  • InterfacePCI Express 4.0
  • Chipset ManufacturerAMD
  • GPU SeriesAMD Radeon RX 6000 Series
  • GPURadeon RX 6800 XT
  • Core Clock1825 MHz
  • Boost Clock2250 MHz
  • 16GB GDDR6 memory handles high-resolution textures and large assets
  • Boost clock up to 2250 MHz delivers strong frame rates in demanding titles
  • 4608 stream processors provide parallel compute power for gaming and creative workloads
  • PCI Express 4.0 interface enables high-bandwidth data transfer with compatible platforms
  • HDMI 2.1 VRR and dual DisplayPort 1.4 support up to four displays at 7680 x 4320

16GB GDDR6 256-bit graphics card

The MSI Radeon RX 6800 XT 16G is a refurbished GPU built on the AMD Radeon RX 6000 Series architecture. It delivers 16GB of GDDR6 memory across a 256-bit interface with an effective clock of 16 Gbps. The card targets 4K gaming and content creation workloads that benefit from high memory bandwidth and 4608 stream processors.

PCI Express 4.0 slot and 750W power supply check

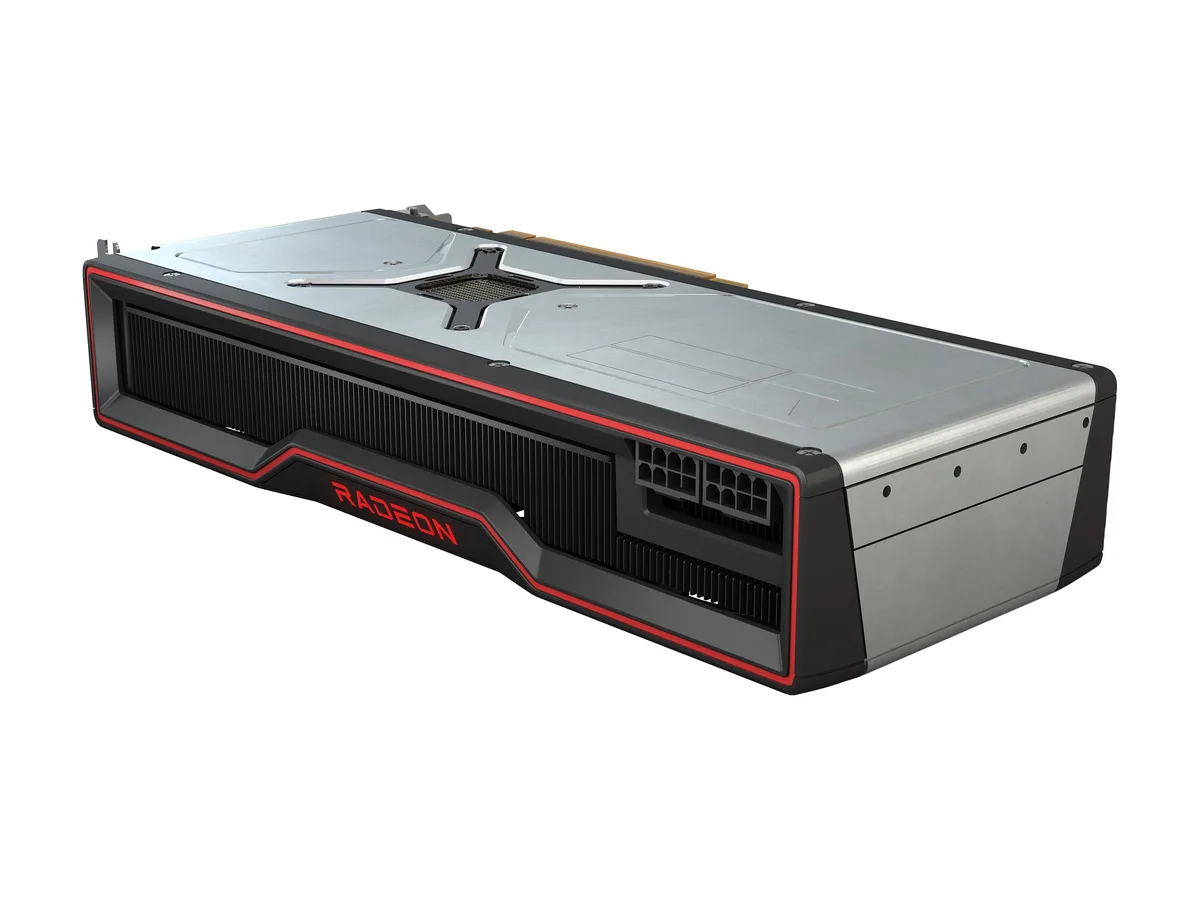

Verify that your motherboard provides a full-length PCI Express 4.0 x16 slot for the interface. The board draws up to 300W and requires two 8-pin power connectors from the PSU. A unit rated at 750W or higher is recommended to maintain stable operation under load. Ensure your case has enough length and airflow clearance for a triple-fan cooler.

DirectX 12 Ultimate and multi-display outputs

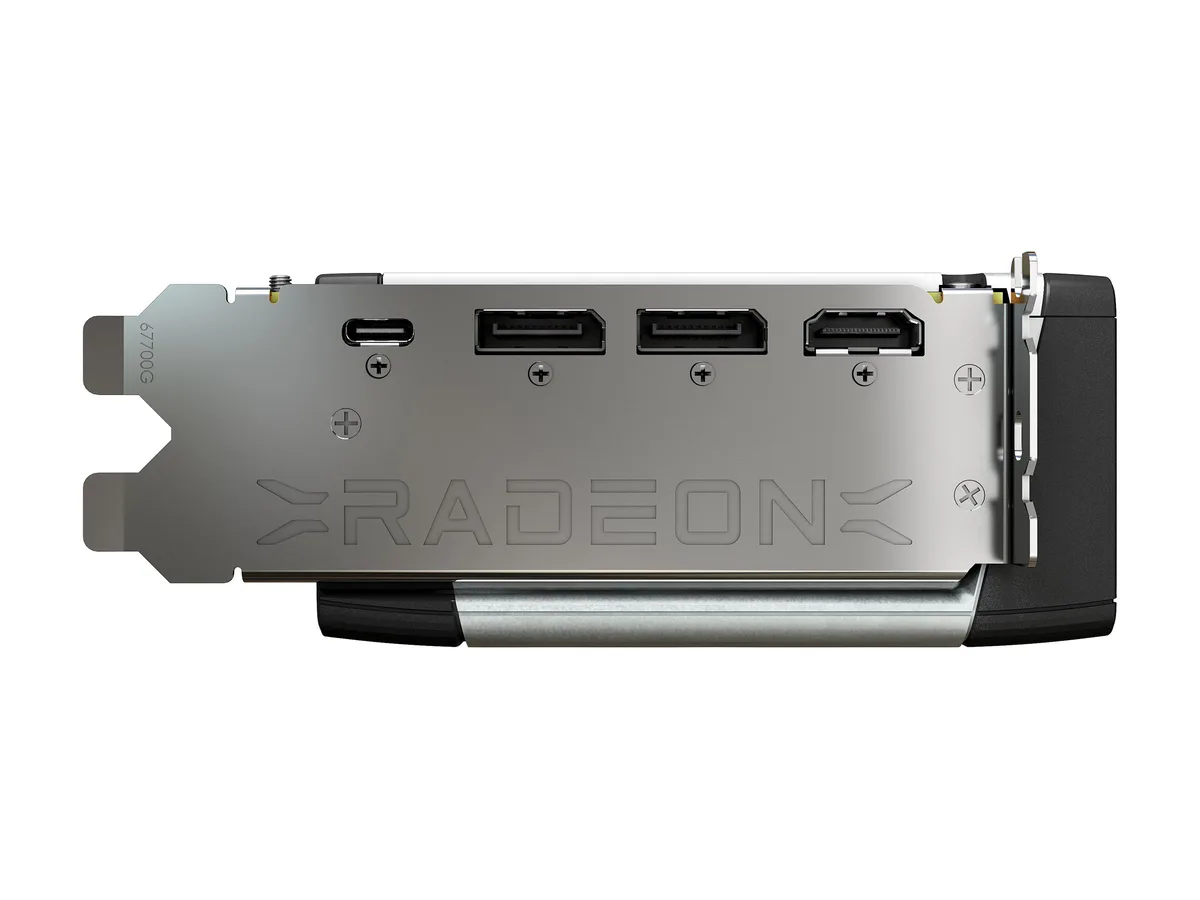

The card supports DirectX 12 Ultimate and OpenGL 4.6 for modern API features. Video outputs consist of one HDMI 2.1VRR port, two DisplayPort 1.4 connectors and a USB Type-C port, enabling up to four simultaneous displays at a maximum resolution of 7680 x 4320. A die-cast aluminum backplate adds structural rigidity and helps dissipate heat from the rear of the PCB.

Highlights

  • 16GB GDDR6 memory handles high-resolution textures and large assets
  • Boost clock up to 2250 MHz delivers strong frame rates in demanding titles
  • 4608 stream processors provide parallel compute power for gaming and creative workloads
  • PCI Express 4.0 interface enables high-bandwidth data transfer with compatible platforms
  • HDMI 2.1 VRR and dual DisplayPort 1.4 support up to four displays at 7680 x 4320

Specifications

BrandMSI
ModelRX 6800 XT 16G
InterfacePCI Express 4.0
Chipset ManufacturerAMD
GPU SeriesAMD Radeon RX 6000 Series
GPURadeon RX 6800 XT
Core Clock1825 MHz
Boost Clock2250 MHz
Stream Processors4608
Effective Memory Clock16 Gbps
Memory Size16GB
Memory Interface256-Bit
Memory TypeGDDR6
DirectXDirectX 12 Ultimate
OpenGLOpenGL 4.6
Multi-Monitor Support4
HDMI1 x HDMI 2.1VRR
DisplayPort2 x DisplayPort 1.4
Other Ports1 x USB Type-C
Max Resolution7680 x 4320
Virtual Reality ReadyYes
CoolerTriple Fans
Thermal Design Power300W
Recommended PSU Wattage750W
Power Connector2 x 8-Pin
HDCP ReadyYes
FeaturesThermal Design
Custom-designed axial fans for outstanding cooling and quiet performance.
Die-cast aluminum backplate.
Gaming Technologies
Truly immersive gaming experiences with DirectX 12 Ultimate.
A robust visual feature set enabled by AMD FidelityFX.
Draw out more detail with Radeon Image Sharpening.
One click overclocking with Radeon Software Performance Tuning Presets.
Dragon Center
MSI's exclusive Dragon Center software lets you monitor, tweak and optimize MSI products in real-time.
Max GPU Length267 mm

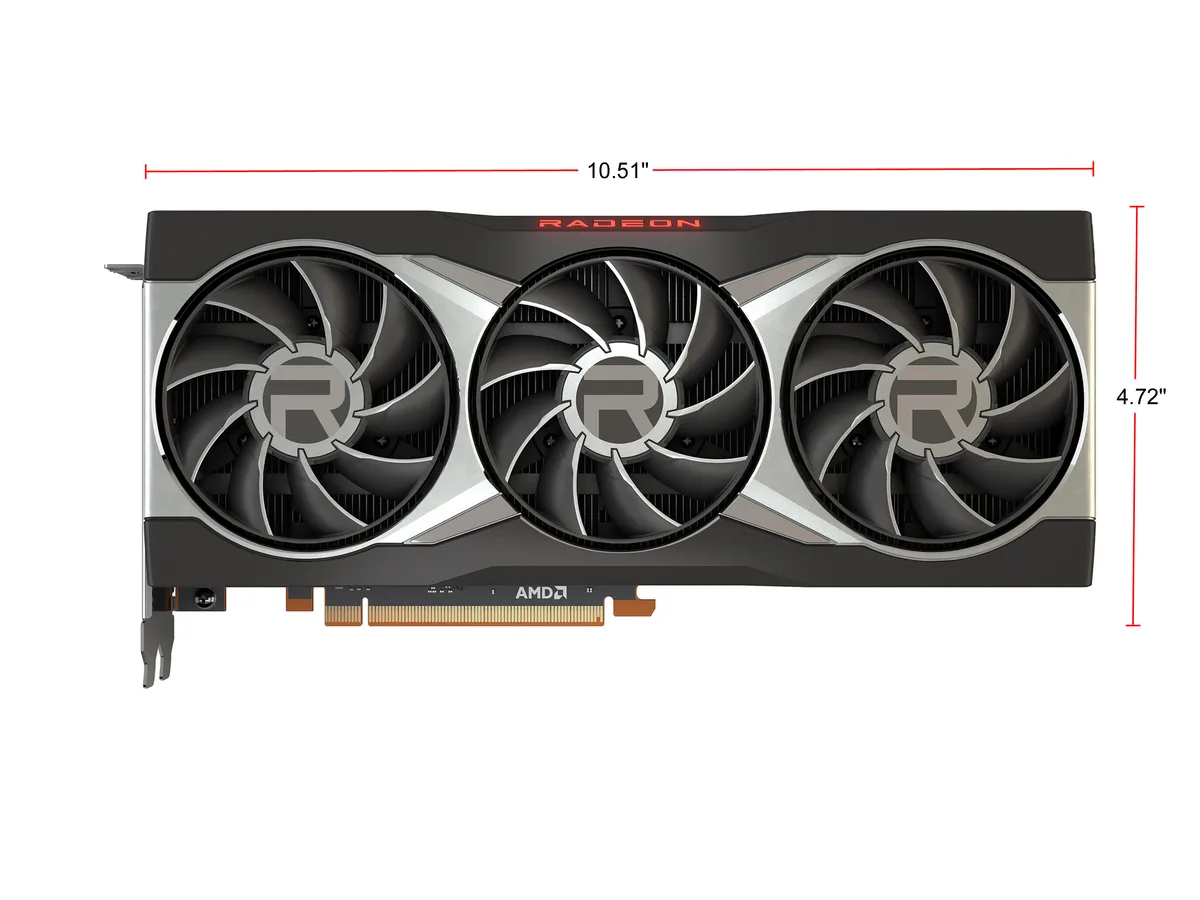

Card Dimensions (L x H)10.51" x 4.72"
Slot Width2.5-slot
Shipping weight1.81 kg
Package size406 × 265 × 80 mm

Questions about this item

What comes in the box and what must I buy separately?

The card itself is included; you must supply a power supply of at least 750W and two 8-pin PCIe power cables.

Which version should I choose for 4K gaming?

The 16GB 256-bit GDDR6 model with a 2250 MHz boost clock gives the memory bandwidth needed for 4K textures.

What does the 2250 MHz boost clock mean once the card is installed?

It is the peak frequency the GPU can reach under load, so actual game clocks will vary with temperature and power limits.
