MSI

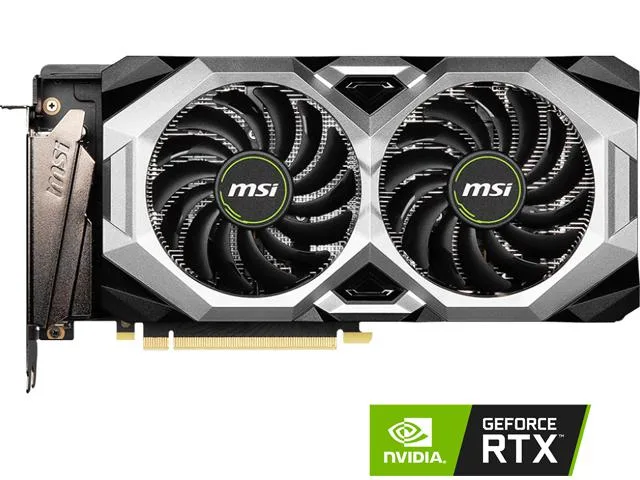

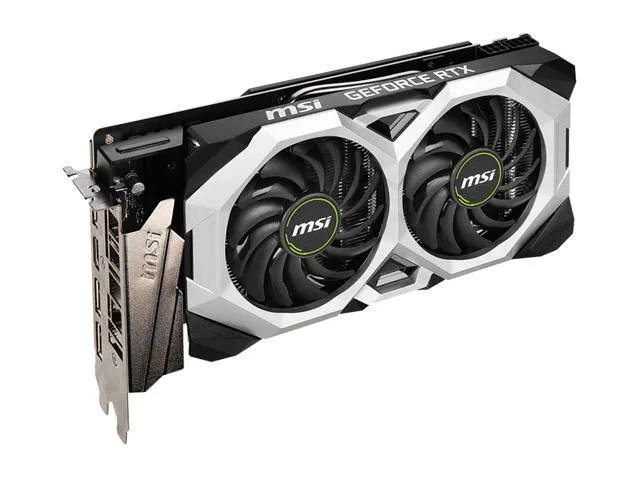

MSI RTX 2060 Ventus GP 12G OC graphics card
GeForce RTX 2060 graphics card with 12GB GDDR6 memory, 2176 CUDA cores and a 1695 MHz boost clock
- InterfacePCI Express 3.0 x16
- Chipset ManufacturerNVIDIA
- GPU SeriesNVIDIA GeForce RTX 20 Series
- GPUGeForce RTX 2060
- Boost Clock1695 MHz
- CUDA Cores2176
- 12 GB GDDR6 memory for large textures
- Boost clock of 1695 MHz for responsive performance
- 2176 CUDA cores handle parallel workloads
- Four display outputs via HDMI 2.0b and three DisplayPort 1.4a
- Dual-slot design fits standard ATX cases
12GB GDDR6 for 1440p Gaming
The MSI RTX 2060 Ventus GP 12G OC targets gamers who need extra frame buffer for modern titles at 1440p. Its GeForce RTX 2060 GPU delivers 2176 CUDA cores and a 1695 MHz boost clock. The 12GB GDDR6 memory on a 192-bit bus runs at 14 Gbps. A PCI Express 3.0 x16 interface connects the dual-slot card.
Upgrade from 6GB RTX 2060
The 12GB variant replaces the original 6GB model when texture packs or modded games exceed the smaller buffer. The jump is worth it if you see stutter caused by VRAM overflow at 1440p or high refresh 1080p. The same GPU core means raster performance stays similar while capacity headroom grows. DirectX 12 and OpenGL 4.6 support remain unchanged.
Handles 1440p Ultra Textures
Comfortable for 1440p gaming with ultra texture settings and moderate ray tracing. The 12GB frame buffer absorbs large texture pools that would spill to system memory on 8GB cards. It runs out at 4K with maximum settings or heavy RT workloads where both compute and bandwidth become limiting. Four-display output via HDMI 2.0b and three DisplayPort 1.4a supports surround setups up to 7680 x 4320.
Highlights
- 12 GB GDDR6 memory for large textures
- Boost clock of 1695 MHz for responsive performance
- 2176 CUDA cores handle parallel workloads
- Four display outputs via HDMI 2.0b and three DisplayPort 1.4a
- Dual-slot design fits standard ATX cases
Specifications
| Brand | MSI |
|---|---|
| Series | Ventus |
| Model | RTX 2060 VENTUS GP 12G OC |
| Interface | PCI Express 3.0 x16 |
| Chipset Manufacturer | NVIDIA |
| GPU Series | NVIDIA GeForce RTX 20 Series |
| GPU | GeForce RTX 2060 |
| Boost Clock | 1695 MHz |
| CUDA Cores | 2176 |
| Effective Memory Clock | 14 Gbps |
| Memory Size | 12GB |
| Memory Interface | 192-Bit |
| Memory Type | GDDR6 |
| DirectX | DirectX 12 |
| OpenGL | OpenGL 4.6 |
| Multi-Monitor Support | 4 |
| HDMI | 1 x HDMI 2.0b |
| DisplayPort | 3 x DisplayPort 1.4a |
| Max Resolution | 7680 x 4320 |
| Virtual Reality Ready | Yes |
| Thermal Design Power | 184W |
| Recommended PSU Wattage | 500W |
| Power Connector | 1 x 6-Pin + 1 x 8-Pin |
| HDCP Ready | Yes |
| Features | TORX Fan 2.0/Dispersion fan blade: Steep curved blade accelerating the airflow./Traditional fan blade: Provides steady airflow to massive heat sink below.//Afterburner Overclocking Utility/OC Scanner: An automated function finds the highest stable overclock settings./Kombustor: The latest DirectX versions benchmark supporting./Predator: In-game video recording.//NVIDIA G-SYNC and HDR/Get smooth, tear-free gameplay at refresh rates up to 240 Hz, plus HDR, and more. This is the ultimate gaming display and the go-to equipment for enthusiast gamers.//GeForce RTX VR/By combining advanced |
| Form Factor | ATX |
| Max GPU Length | 231 mm |

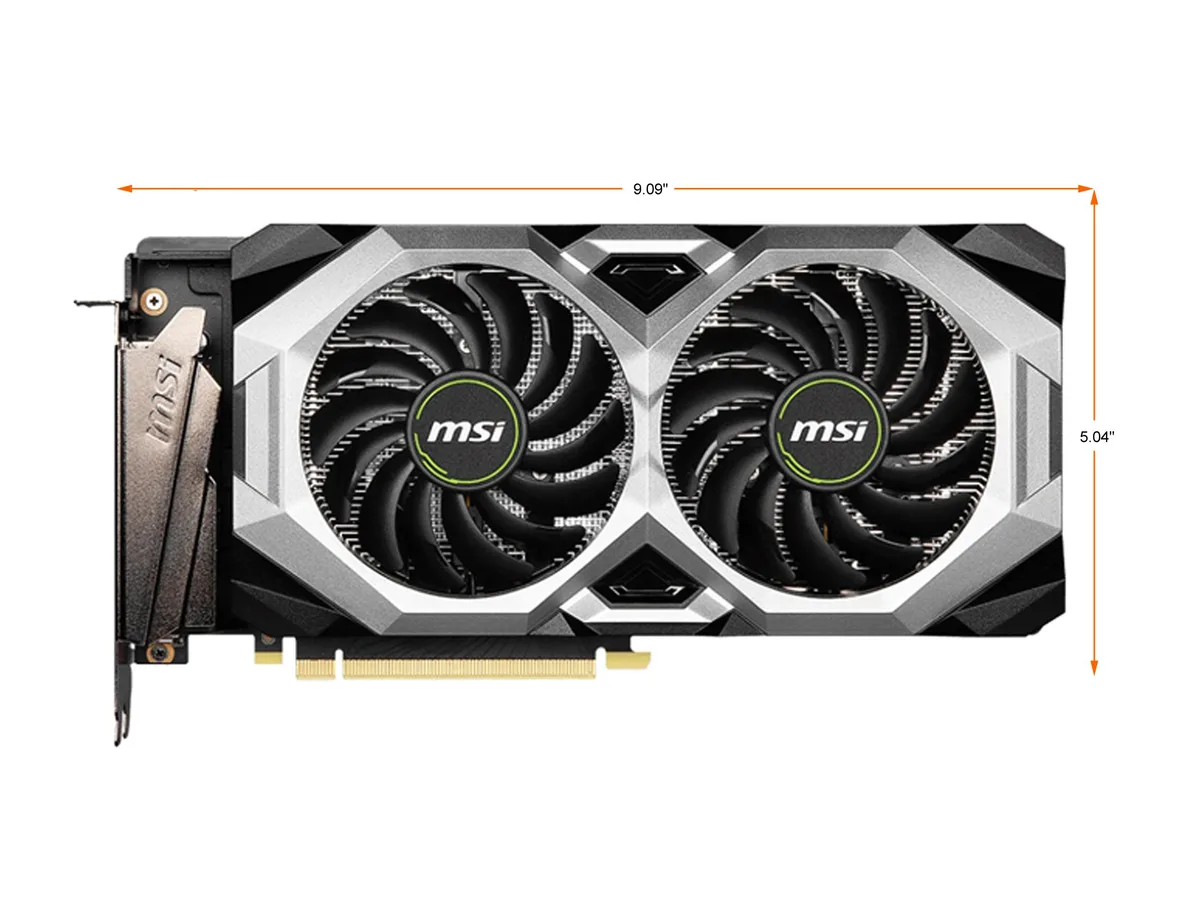

| Card Dimensions (L x H) | 9.09" x 5.04" |
| Slot Width | 2 Slots |
Questions about this item
Will the 9.09 inch length and dual-slot width fit my case?
The card measures 9.09 inches long and 5.04 inches high, occupying two expansion slots. Verify your chassis clearance and motherboard spacing before purchase.
How do I install the PCI Express 3.0 x16 card and what step is often missed?
Insert the card firmly into the top PCIe 3.0 x16 slot until the retention clip clicks, then connect the required PCIe power cable from your PSU. The power cable is the step most often forgotten.
When should I replace the thermal paste on the GeForce RTX 2060 GPU?
Reapply thermal paste if GPU temperatures rise noticeably under load after several years, or whenever the cooler is removed for cleaning or repair.
