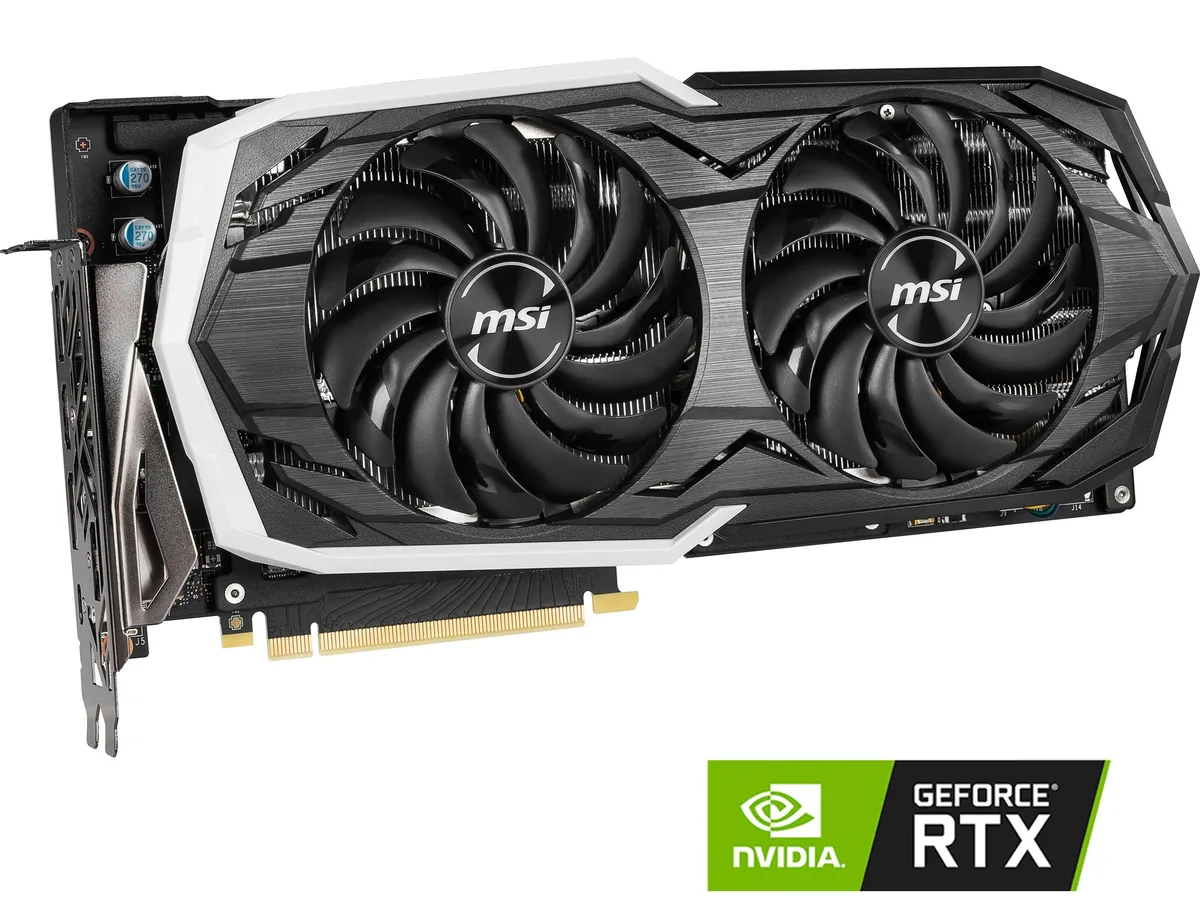

Black dual-fan graphics card with silver backplate, PCIe x16 interface

MSI

MSI RTX 2070 ARMOR 8G graphics card

SKU CH-WH1B-5QW1W

GeForce RTX 2070 GPU with 2304 CUDA cores, 8GB GDDR6 memory at 14 Gbps on a 256-bit bus, boost clock of 1620 MHz, and outputs for up to four displays via HDMI 2.0b, three DisplayPort 1.4 ports

  • InterfacePCI Express 3.0 x16
  • Chipset ManufacturerNVIDIA
  • GPU SeriesNVIDIA GeForce RTX 20 Series
  • GPUGeForce RTX 2070
  • Core Clock1410 MHz
  • Boost Clock1620 MHz
  • 8 GB GDDR6 memory handles high-resolution textures
  • Boost clock reaches 1620 MHz for strong frame rates
  • 2304 CUDA cores accelerate rendering workloads
  • HDMI 2.0b plus three DisplayPort 1.4 outputs drive four displays
  • PCI Express 3.0 x16 interface provides full bandwidth

RTX 2070 ARMOR 8G graphics card

The MSI RTX 2070 ARMOR 8G is a GeForce RTX 2070 video card built for 1440p gaming and content creation. It connects through a PCI Express 3.0 x16 slot and delivers 2304 CUDA cores with a boost clock of 1620 MHz. The 8GB GDDR6 frame buffer runs on a 256-bit bus at 14 Gbps.

Thermals noise and power

The dual-fan Armor cooler moves heat away from the GPU while keeping acoustic output low during typical gaming loads. Power is drawn through the PCI Express 3.0 x16 interface and supplementary connectors, matching the reference board power envelope. Fan speeds scale with temperature so the card stays quiet at idle and under light workloads.

8GB GDDR6 memory capacity

The 8GB GDDR6 memory on a 256-bit interface is the specification that determines whether this card fits your workflow. It provides enough frame-buffer space for high-resolution textures at 1440p and entry-level 4K without hitting capacity limits. If your titles or applications regularly exceed 8GB VRAM, a larger buffer will be required.

Highlights

  • 8 GB GDDR6 memory handles high-resolution textures
  • Boost clock reaches 1620 MHz for strong frame rates
  • 2304 CUDA cores accelerate rendering workloads
  • HDMI 2.0b plus three DisplayPort 1.4 outputs drive four displays
  • PCI Express 3.0 x16 interface provides full bandwidth

Specifications

BrandMSI
ModelRTX 2070 ARMOR 8G
InterfacePCI Express 3.0 x16
Chipset ManufacturerNVIDIA
GPU SeriesNVIDIA GeForce RTX 20 Series
GPUGeForce RTX 2070
Core Clock1410 MHz
Boost Clock1620 MHz
CUDA Cores2304
Effective Memory Clock14 Gbps
Memory Size8GB
Memory Interface256-Bit
Memory TypeGDDR6
DirectXDirectX 12
OpenGLOpenGL 4.5
Multi-Monitor Support4
HDMI1 x HDMI 2.0b
DisplayPort3 x DisplayPort 1.4
Other Ports1 x USB Type-C
Max Resolution7680 x 4320
Virtual Reality ReadyYes
Thermal Design Power175W
System RequirementsRecommended PSU: 550W
Recommended PSU Wattage550W
Power Connector1 x 8-pin, 1 x 6-pin
HDCP Ready2.2
FeaturesArmor Thermal Design/TORX Fan 2.0 with Double Ball Bearings/- Dispersion fan blade: Steep curved blade accelerating the airflow/- Traditional fan blade: Provides steady airflow to massive heat sink below/Mastery of Aerodynamics: The heatsink is optimized for efficient heat dissipation, keeping your temperatures low and performance high/Zero Frozr technology: Stopping the fan in low-load situations, keeping a noise-free environment//RGB Mystic Light/Customize colors and LED effects with exclusive MSI software and synchronize the look & feel with other components
Max GPU Length295 mm

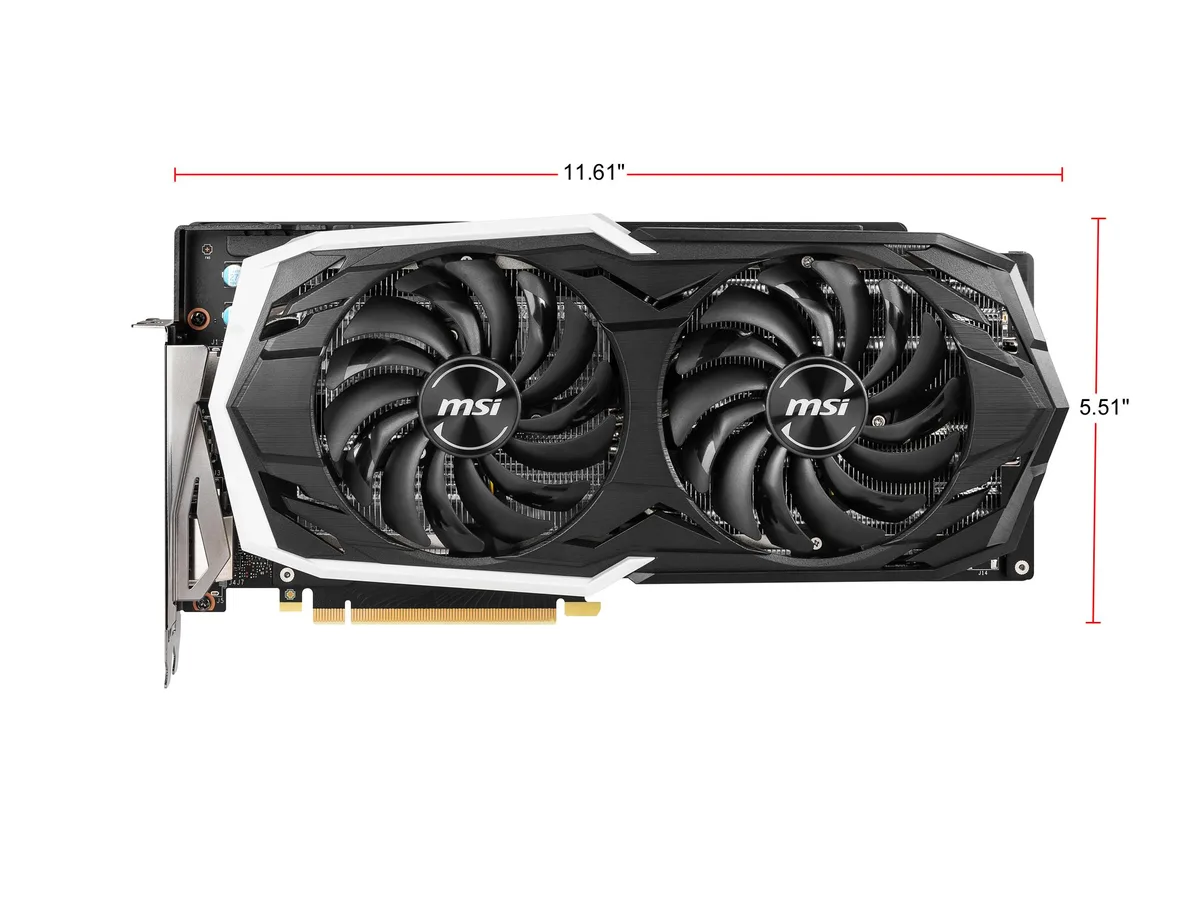

Card Dimensions (L x H)11.61" x 5.51"

Questions about this item

How do I install the MSI RTX 2070 ARMOR 8G into a PCI Express 3.0 x16 slot, and which step is often missed?

Seat the card fully until the retention bracket clicks, then connect both 8-pin power cables from the PSU; the step most often missed is plugging in the second power connector, leaving the GPU underpowered.

What maintenance or replacement will the MSI RTX 2070 ARMOR 8G need later?

Clean the dual-fan heatsink with compressed air every few months to prevent dust buildup; the thermal paste and fans are not user-serviceable, so plan for a full card replacement if cooling degrades.

What limit appears first on the MSI RTX 2070 ARMOR 8G during sustained 14 Gbps memory workloads?

The 8GB GDDR6 frame buffer fills before the 256-bit bus saturates, forcing texture streaming or resolution scaling in extended 7680 x 4320 sessions.
