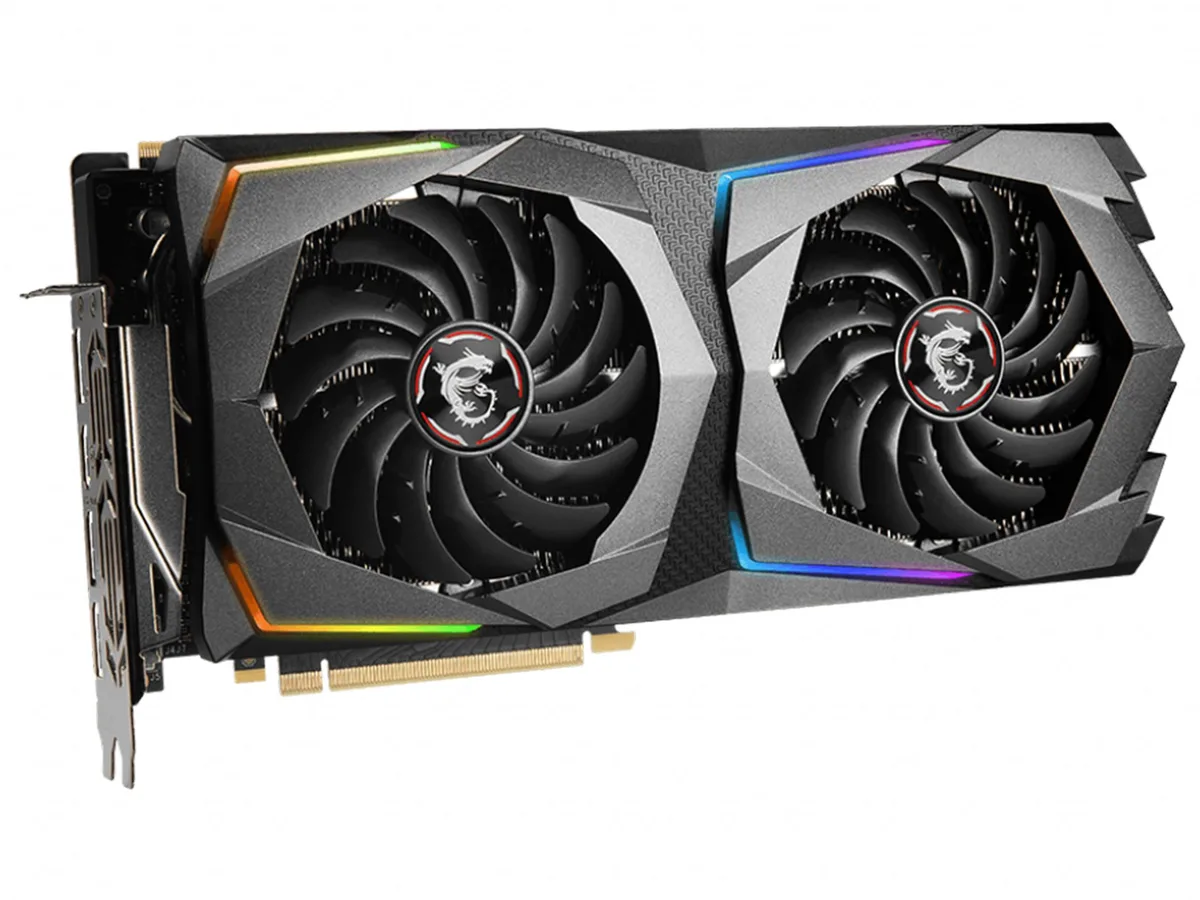

MSI RTX 2070 SUPER GAMING graphics card, dual-fan cooler, black and silver finish, PCIe 3.0 x16 interface

MSI

MSI RTX 2070 SUPER GAMING graphics card

SKU CH-DA2X-AEPE7

GeForce RTX 2070 SUPER GPU with 2560 CUDA cores, 8GB GDDR6 on a 256-bit bus, 1770 MHz boost clock and four-display output via HDMI 2.0b plus three DisplayPort 1.4 connectors

  • InterfacePCI Express 3.0 x16
  • Chipset ManufacturerNVIDIA
  • GPUGeForce RTX 2070 SUPER
  • Boost Clock1770 MHz
  • CUDA Cores2560
  • Effective Memory Clock14 Gpbs
  • 8 GB GDDR6 memory enables smooth 4K gaming
  • 2560 CUDA cores accelerate rendering and compute workloads
  • 1770 MHz boost clock delivers high frame rates
  • Three DisplayPort 1.4 and one HDMI 2.0b outputs drive four displays
  • 215 W TDP fits standard power supplies

Target build

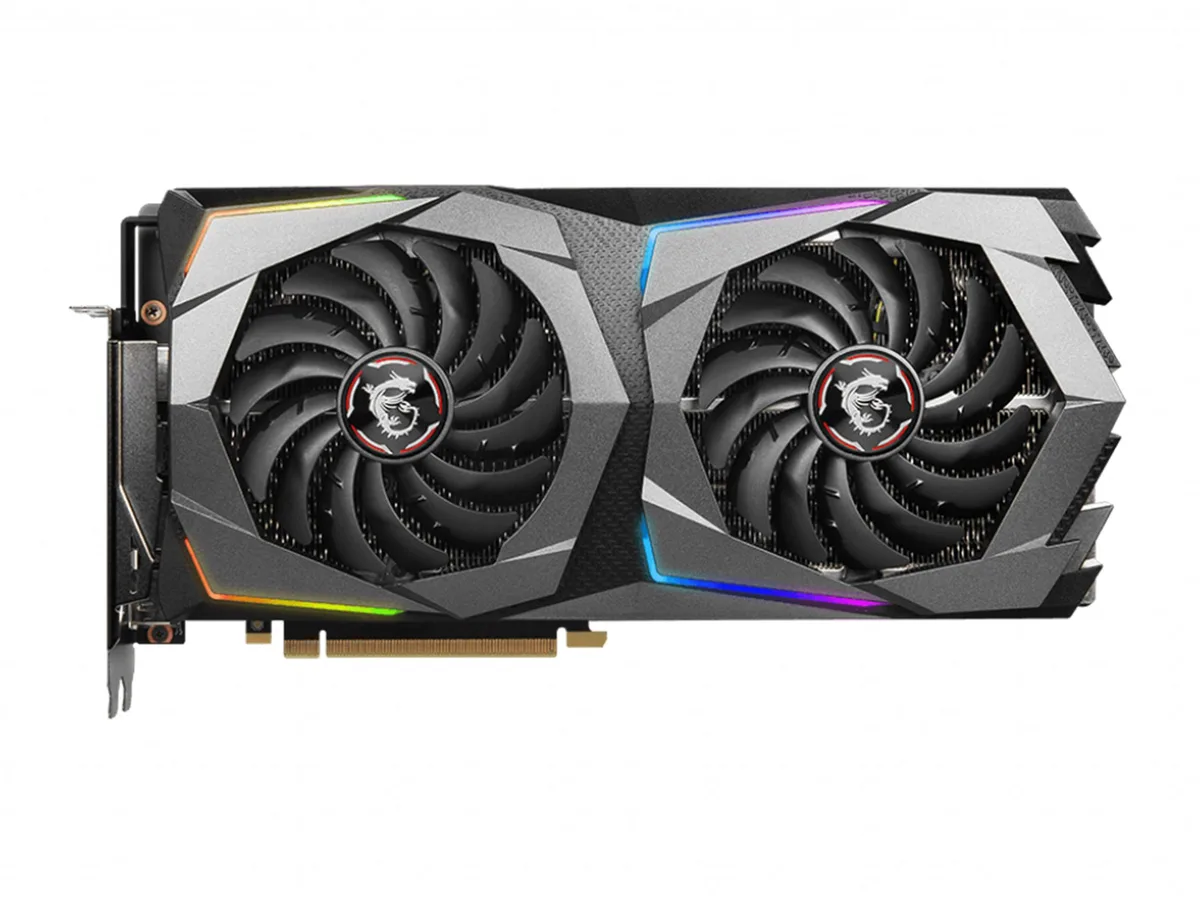

The MSI RTX 2070 SUPER GAMING is a PCI Express 3.0 x16 graphics card built around the NVIDIA GeForce RTX 2070 SUPER GPU. It suits builders who need 2560 CUDA cores and hardware ray-tracing support for 1440p gaming or entry-level content creation. The 215 W thermal design power requires a suitably rated power supply and case airflow.

Memory configuration

The single specification that decides fit is the 8 GB GDDR6 frame buffer on a 256-bit bus running at 14 Gbps effective clock. That combination delivers enough bandwidth for high-resolution textures and 4K output without exceeding the card's physical slot length.

Display connectivity

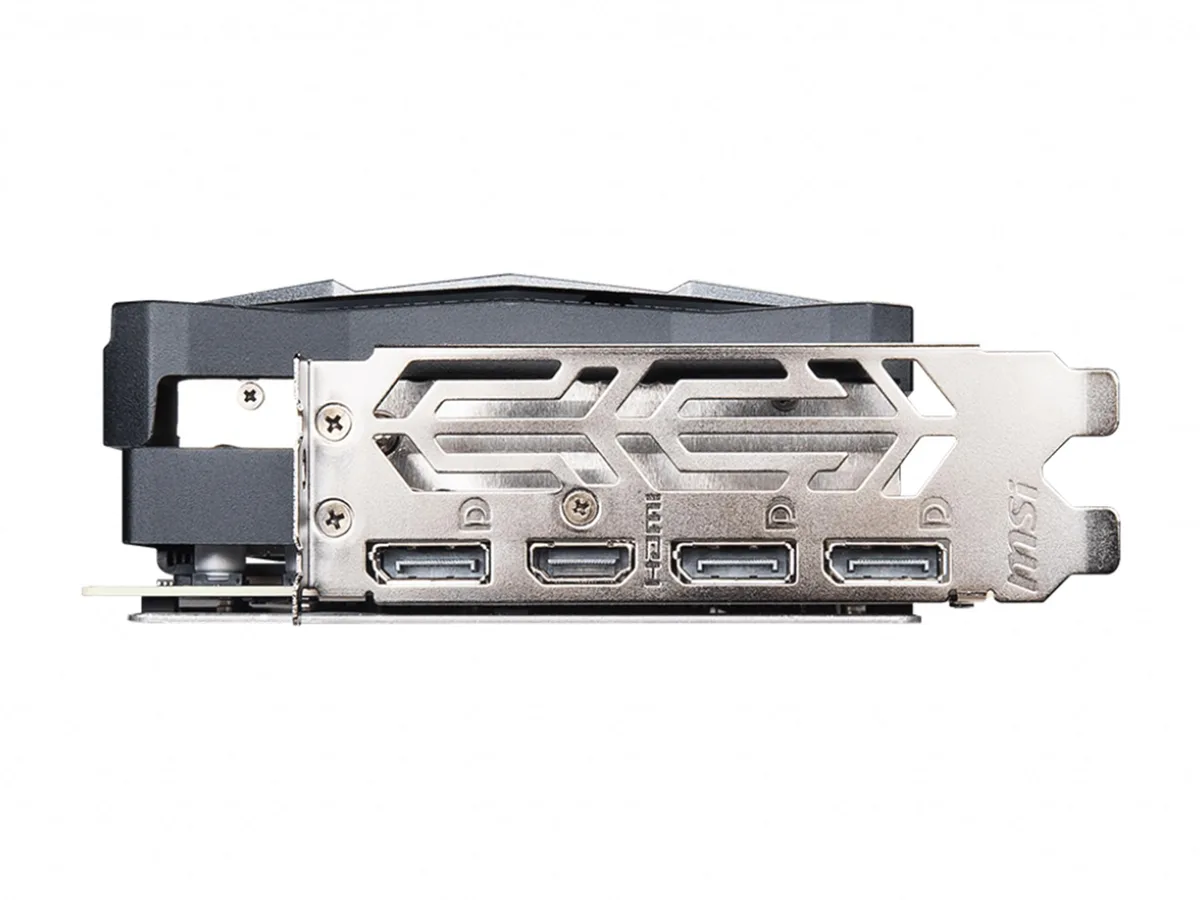

One HDMI 2.0b port and three DisplayPort 1.4 connectors drive up to four monitors simultaneously at a maximum digital resolution of 7680 x 4320. The mix lets you attach a TV, a high-refresh gaming panel and two productivity screens without adapters.

Highlights

  • 8 GB GDDR6 memory enables smooth 4K gaming
  • 2560 CUDA cores accelerate rendering and compute workloads
  • 1770 MHz boost clock delivers high frame rates
  • Three DisplayPort 1.4 and one HDMI 2.0b outputs drive four displays
  • 215 W TDP fits standard power supplies

Specifications

BrandMSI
ModelRTX 2070 SUPER GAMING
InterfacePCI Express 3.0 x16
Chipset ManufacturerNVIDIA
GPUGeForce RTX 2070 SUPER
Boost Clock1770 MHz
CUDA Cores2560
Effective Memory Clock14 Gpbs
Memory Size8GB
Memory Interface256-Bit
Memory TypeGDDR6
DirectXDirectX 12
OpenGLOpenGL 4.5
Multi-Monitor Support4
HDMI1 x HDMI 2.0b
DisplayPort3 x DisplayPort 1.4
Max Resolution7680 x 4320
SLI SupportNVIDIA NVLINK (SLI-Ready), 2-way
Virtual Reality ReadyYes
Thermal Design Power215W
System RequirementsRecommended PSU: 650W
Recommended PSU Wattage650W
Power Connector1 x 6-pin / 1 x 8-pin
HDCP Ready2.2
FeaturesTwin Frozr 7 Thermal Design/TORX Fan 3.0 with Double Ball Bearings/- Dispersion fan blade: Steep curved blade accelerating the airflow./- Traditional fan blade: Provides steady airflow to massive heat sink below./Mastery of Aerodynamics: The heatsink is optimized for efficient heat dissipation, keeping your temperatures low and performance high./Zero Frozr technology: Stopping the fan in low-load situations, keeping a noise-free environment.//RGB Mystic Light/Customize colors and LED effects with exclusive MSI software and synchronize the look & feel with other components.//Drago
Max GPU Length297 mm
Card Dimensions (L x H)11.69" x 5.63"

Questions about this item

What does the 1770 MHz boost clock mean once the card is installed?

The GPU can reach 1770 MHz under load when power and temperature headroom allow, giving higher frame rates in demanding titles.

What does the PCI Express 3.0 x16 interface cap in practice?

The x16 link provides full bandwidth for the RTX 2070 SUPER, so the slot will not limit performance in current games.

What clearance does the 11.69 by 5.63 inch board need to fit?

The dual-slot design measures 11.69 inches long and 5.63 inches tall, so the case must accommodate that length and height.
