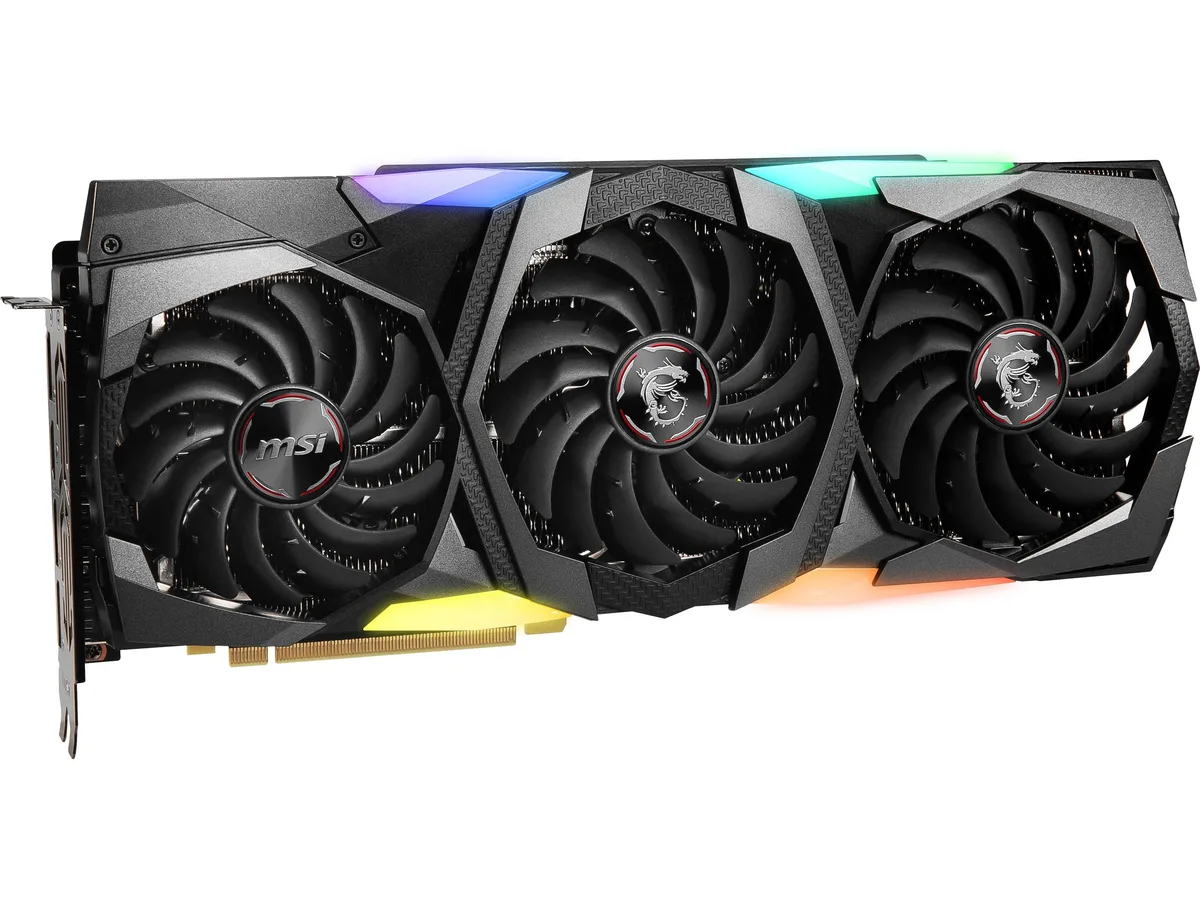

MSI GeForce RTX 2070 SUPER triple-fan graphics card in black and silver finish

MSI

MSI RTX 2070 SUPER GAMING X TRIO graphics card

SKU CH-1B4A-1VFBP

GeForce RTX 2070 SUPER graphics card with 2560 CUDA cores, 8GB GDDR6 memory on a 256-bit bus and a 1800 MHz boost clock

  • InterfacePCI Express 3.0 x16
  • Chipset ManufacturerNVIDIA
  • GPUGeForce RTX 2070 SUPER
  • Boost Clock1800 MHz
  • CUDA Cores2560
  • Effective Memory Clock14 Gpbs
  • 8 GB GDDR6 memory drives 4K and high-refresh 1440p gaming
  • 1800 MHz boost clock pushes frame rates in demanding titles
  • 2560 CUDA cores accelerate ray-tracing and compute workloads
  • Triple DisplayPort plus HDMI 2.0b connect up to four 8K displays
  • Triple-fan cooler keeps the 215 W GPU stable under load

Ready for 1440p and 4K gaming

The MSI RTX 2070 SUPER GAMING X TRIO is built around the NVIDIA GeForce RTX 2070 SUPER GPU with 2560 CUDA cores and 8GB of GDDR6 memory on a 256-bit bus. A boost clock of 1800 MHz and an effective memory clock of 14 Gbps give it the throughput for high-refresh 1440p play and entry-level 4K. It draws up to 215 W and fits in a PCI Express 3.0 x16 slot.

Triple-fan cooler and metal backplate

The card measures 12.91 inches long by 5.51 inches high, so it needs a case with enough length and height clearance. Three axial fans move air through a dense heatsink while a reinforced metal backplate adds rigidity and helps prevent PCB flex during transport or vertical mounting. One HDMI 2.0b port and three DisplayPort outputs drive up to four monitors simultaneously at up to 7680 x 4320 resolution.

PCIe 3.0 x16 and NVLink limits

The PCI Express 3.0 x16 interface provides sufficient bandwidth for the GPU at stock speeds, but it caps transfer rates compared to newer PCIe 4.0 or 5.0 platforms. NVLink allows 2-way SLI for supported render workloads, though game scaling varies and many modern titles no longer implement multi-GPU paths. DirectX 12 and OpenGL 4.5 cover current API requirements for Windows gaming and content creation.

Highlights

  • 8 GB GDDR6 memory drives 4K and high-refresh 1440p gaming
  • 1800 MHz boost clock pushes frame rates in demanding titles
  • 2560 CUDA cores accelerate ray-tracing and compute workloads
  • Triple DisplayPort plus HDMI 2.0b connect up to four 8K displays
  • Triple-fan cooler keeps the 215 W GPU stable under load

Specifications

BrandMSI
ModelRTX 2070 SUPER GAMING X TRIO
InterfacePCI Express 3.0 x16
Chipset ManufacturerNVIDIA
GPUGeForce RTX 2070 SUPER
Boost Clock1800 MHz
CUDA Cores2560
Effective Memory Clock14 Gpbs
Memory Size8GB
Memory Interface256-Bit
Memory TypeGDDR6
DirectXDirectX 12
OpenGLOpenGL 4.5
Multi-Monitor Support4
HDMI1 x HDMI 2.0b
DisplayPort3 x DisplayPort
Max Resolution7680 x 4320
SLI SupportNVIDIA NVLINK (SLI-Ready), 2-way
Virtual Reality ReadyYes
Thermal Design Power215W
System RequirementsPower consumption: 215W/Recommended PSU: 650W
Recommended PSU Wattage650W
Power Connector2 x 8-Pin
HDCP Ready2.2
FeaturesTORX FAN 3.0/Award-winning fan design combining two different fin designs for cool & quiet gaming.//TRI-FROZR THERMAL DESIGN/Using three of the award-winning TORX Fans 2.0 with Double Ball Bearings, Tri-Frozr is the pinnacle of air cooling.//ZERO FROZR/Eliminates fan noise by stopping the fans in low-load situations so you can focus on your game.//RGB MYSTIC LIGHT/Customize colors and LED effects with exclusive MSI software and synchronize the look & feel with other components.//MASTERY OF AERODYNAMICS/Using groundbreaking aerodynamic techniques, the heatsink is optimized for
Max GPU Length328 mm
Card Dimensions (L x H)12.91" x 5.51"

Questions about this item

Does the PCI Express 3.0 x16 interface limit the RTX 2070 SUPER to Gen 3 speeds?

The card runs on a PCI Express 3.0 x16 link, so it operates at Gen 3 bandwidth. It will work in Gen 4 slots but stays at Gen 3 speed.

Will the 12.91 inch length and 5.51 inch height fit in a standard mid-tower case?

The board measures 12.91" long by 5.51" high. Check your case clearance for triple-slot cards and ensure the power connectors have room.

How do I install the 215W card and what step is often missed?

Seat the card in the top x16 slot, connect both 8-pin power plugs, and screw the bracket down. Many builders forget the second 8-pin connector.
