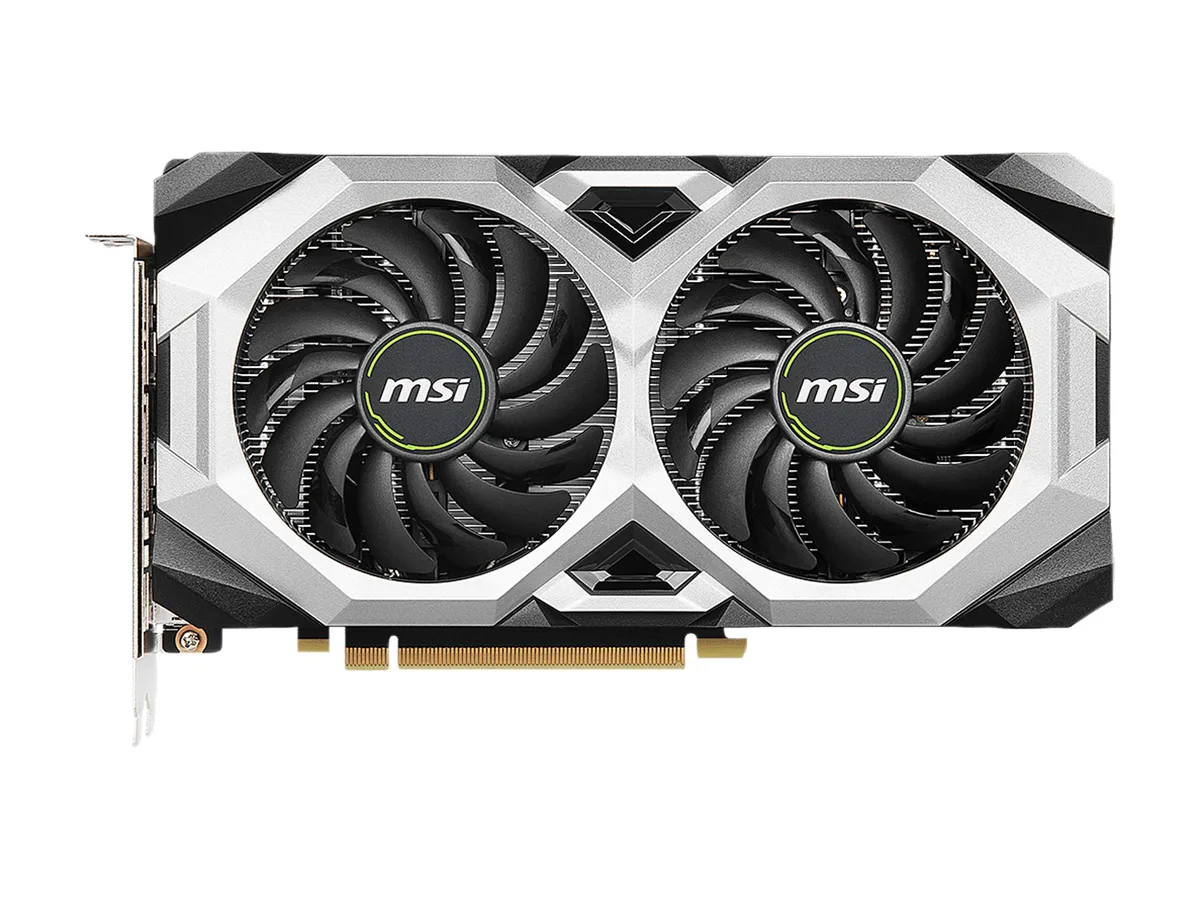

Black dual-fan graphics card, silver backplate, PCIe bracket with HDMI and three DisplayPorts

MSI

MSI RTX 2070 VENTUS GP graphics card

SKU CH-CBAJ-Z557R

GeForce RTX 2070 graphics card with 8 GB GDDR6 memory, 2304 CUDA cores and a 1620 MHz boost clock for 1440p gaming

  • InterfacePCI Express 3.0 x16
  • Chipset ManufacturerNVIDIA
  • GPU SeriesNVIDIA GeForce RTX 20 Series
  • GPUGeForce RTX 2070
  • Boost Clock1620 MHz
  • CUDA Cores2304
  • Drives 4K and 8K workloads with 7680 x 4320 max resolution
  • Delivers high frame rates via 2304 CUDA cores at 1620 MHz boost clock
  • Handles large textures using 8GB GDDR6 on a 256-bit bus at 14 Gbps
  • Connects four displays through HDMI 2.0b and three DisplayPort 1.4 outputs
  • Fits standard builds with a 9.13" length and dual-slot 5.00" height

GeForce RTX 2070 for PCIe 3.0 builds

The MSI RTX 2070 VENTUS GP is a GeForce RTX 2070 graphics card built for a PCI Express 3.0 x16 slot. It carries 2304 CUDA cores and 8GB of GDDR6 memory on a 256-bit bus running at an effective 14 Gbps. The GPU boost clock reaches 1620 MHz. The card supports DirectX 12 and OpenGL 4.5 and is virtual-reality ready. Display outputs are one HDMI 2.0b and three DisplayPort 1.4 connectors for up to four monitors at a maximum resolution of 7680 x 4320.

Sustained-load behaviour with 2304 cores

Under sustained load the 2304 CUDA cores and 8GB GDDR6 frame buffer operate at the rated 1620 MHz boost clock and 14 Gbps memory speed. The 256-bit memory interface maintains bandwidth for extended compute or gaming sessions. Thermal performance depends on case airflow around the dual-slot cooler; the card draws power through a standard PCIe 3.0 x16 connection plus auxiliary connectors. SLI multi-GPU scaling is not supported.

Installation notes for 9.13 inch length

The card measures 9.13 inches long by 5.00 inches high and occupies two expansion slots. Verify that your chassis clears the full length and that the power supply provides the required auxiliary connectors. Seat the card firmly in the primary PCI Express 3.0 x16 slot and attach the display cables to the HDMI 2.0b or DisplayPort 1.4 ports. Common issues are insufficient case clearance, loose power cables, and driver installation on an older operating system without DirectX 12 support.

Highlights

  • Drives 4K and 8K workloads with 7680 x 4320 max resolution
  • Delivers high frame rates via 2304 CUDA cores at 1620 MHz boost clock
  • Handles large textures using 8GB GDDR6 on a 256-bit bus at 14 Gbps
  • Connects four displays through HDMI 2.0b and three DisplayPort 1.4 outputs
  • Fits standard builds with a 9.13" length and dual-slot 5.00" height

Specifications

BrandMSI
ModelRTX 2070 VENTUS GP
InterfacePCI Express 3.0 x16
Chipset ManufacturerNVIDIA
GPU SeriesNVIDIA GeForce RTX 20 Series
GPUGeForce RTX 2070
Boost Clock1620 MHz
CUDA Cores2304
Effective Memory Clock14 Gbps
Memory Size8GB
Memory Interface256-Bit
Memory TypeGDDR6
DirectXDirectX 12
OpenGLOpenGL 4.5
Multi-Monitor Support4
HDMI1 x HDMI 2.0b
DisplayPort3 x DisplayPort 1.4
Max Resolution7680 x 4320
SLI SupportNo
Virtual Reality ReadyYes
Thermal Design Power175W
System RequirementsRecommended PSU: 550W
Recommended PSU Wattage550W
Power Connector8-Pin
HDCP Ready2.2
FeaturesTORX Fan 2.0/Dispersion fan blade: Steep curved blade accelerating the airflow./Traditional fan blade: Provides steady airflow to massive heat sink below.//Afterburner Overclocking Utility/OC Scanner: An automated function finds the highest stable overclock settings./Kombustor: The latest DirectX versions benchmark supporting./Predator: In-game video recording.//NVIDIA G-SYNC and HDR/Get smooth, tear-free gameplay at refresh rates up to 240 Hz, plus HDR, and more. This is the ultimate gaming display and the go-to equipment for enthusiast gamers.//GeForce RTX VR/By combining advanced
Max GPU Length232 mm

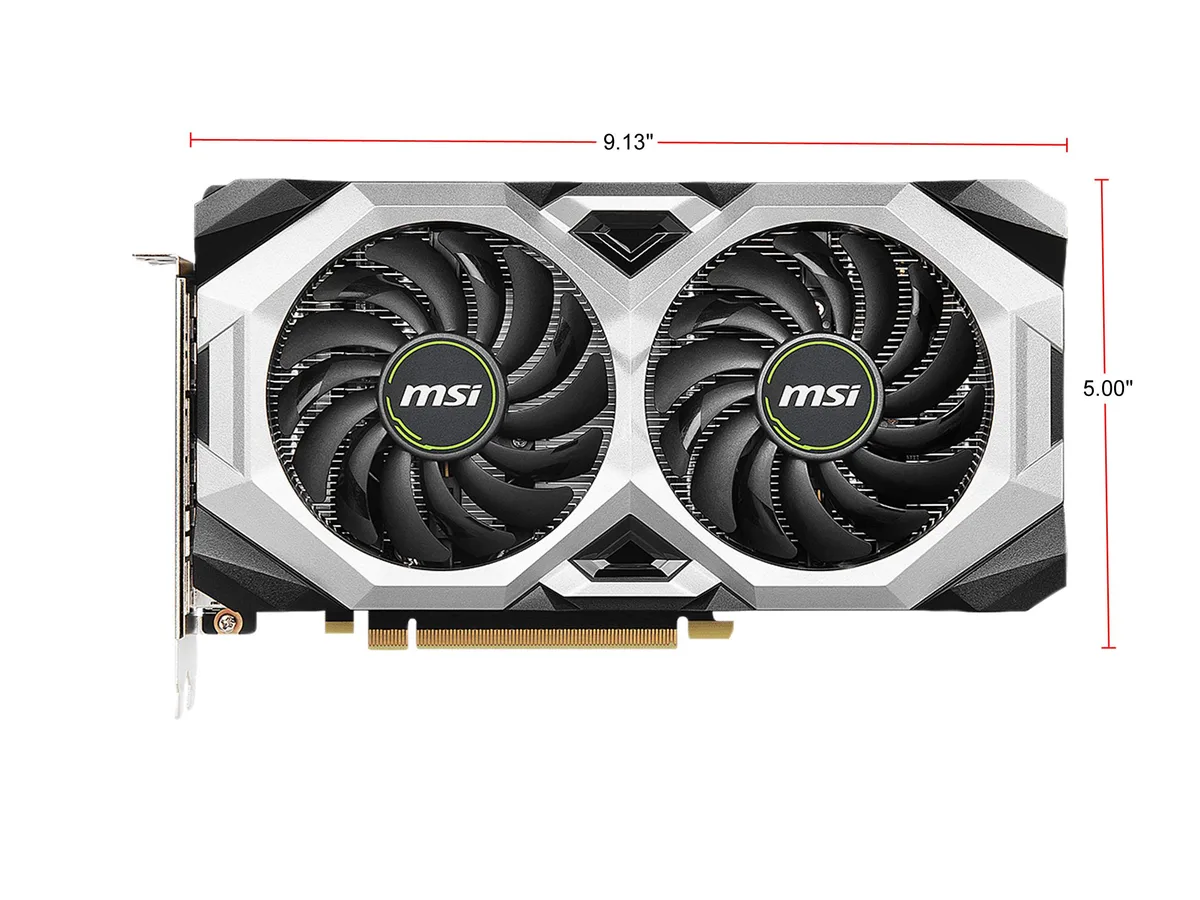

Card Dimensions (L x H)9.13" x 5.00"

Questions about this item

How hot and loud does the RTX 2070 VENTUS GP run during all-day loads?

The dual-fan Ventus cooler keeps the GPU at its 1620 MHz boost clock under sustained load; temperatures and fan noise will vary with your case airflow.

What power connectors and PSU cables must my system already have for this card?

The card draws power through its PCI Express 3.0 x16 slot and onboard PCIe power connectors; ensure your supply includes the required cables.

Will the RTX 2070 VENTUS GP fit and work alongside my older PCIe 2.0 motherboard and CPU?

It installs in any PCI Express 3.0 x16 slot and runs at 3.0 speeds on newer boards or 2.0 speeds on older ones without extra setup.
