MSI

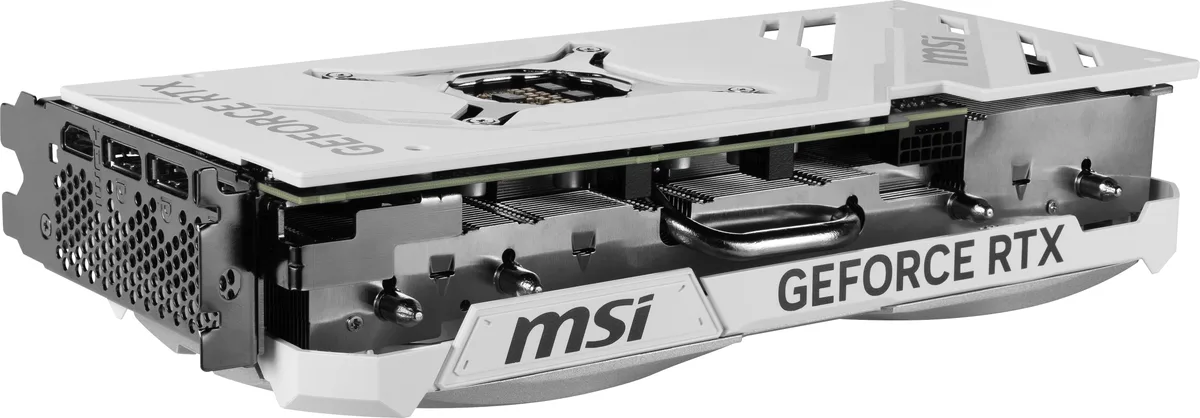

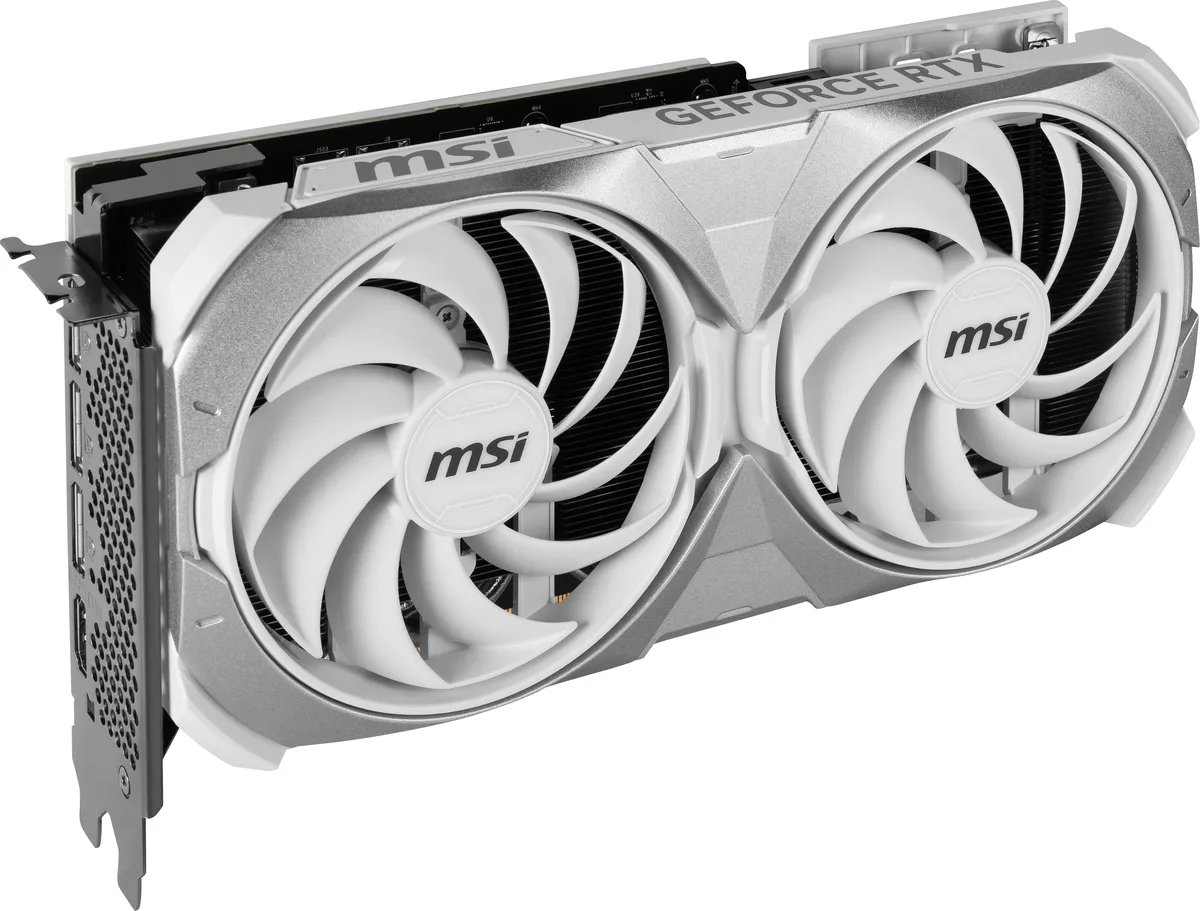

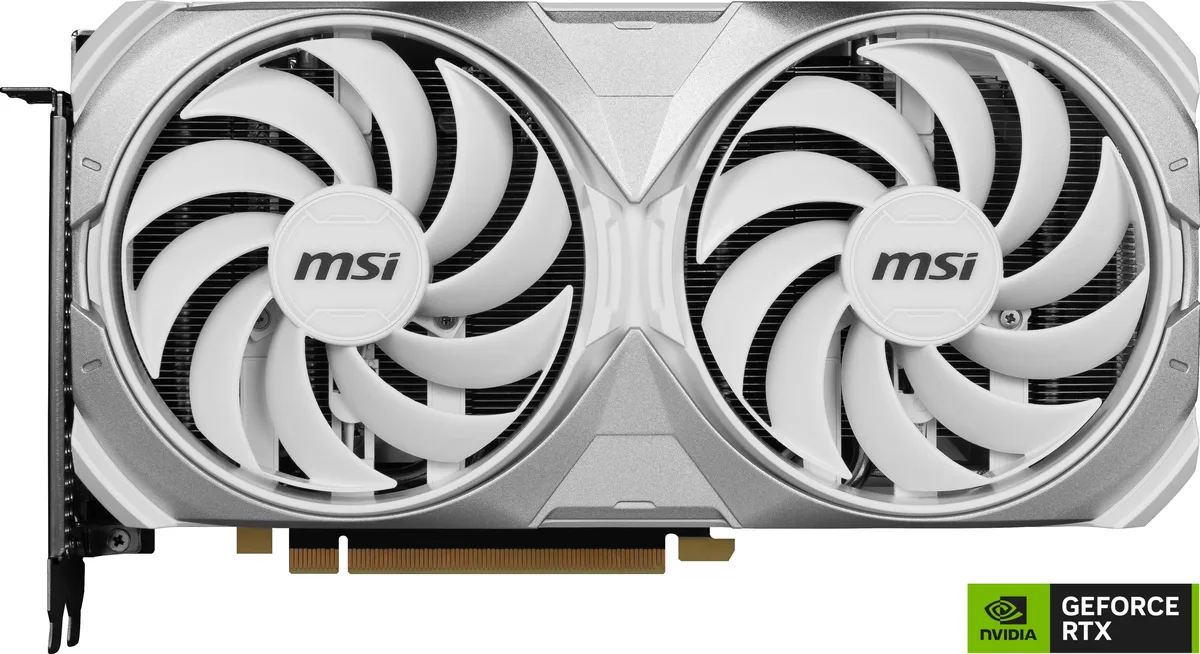

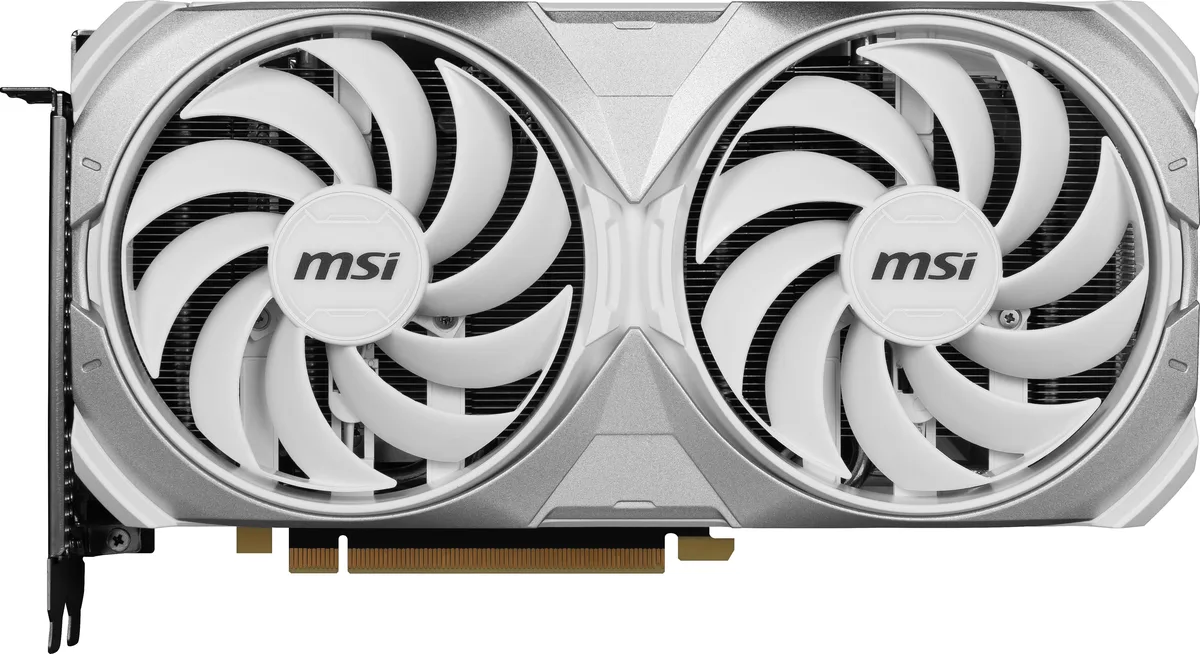

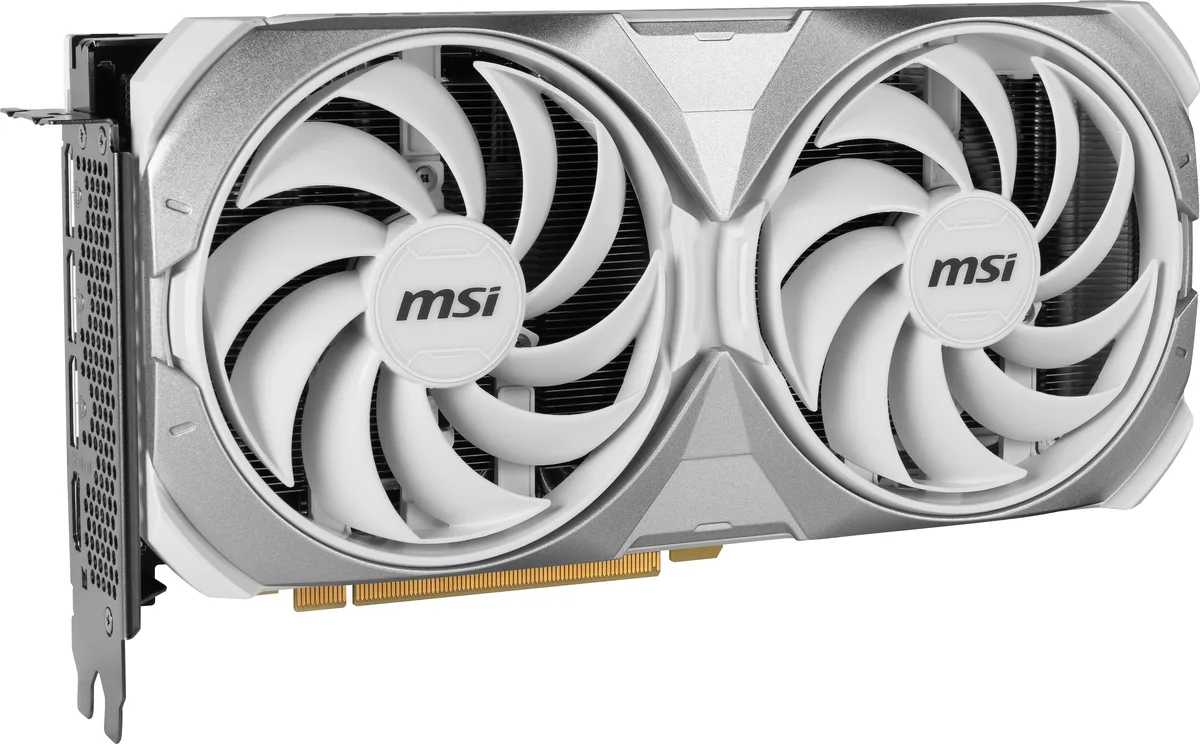

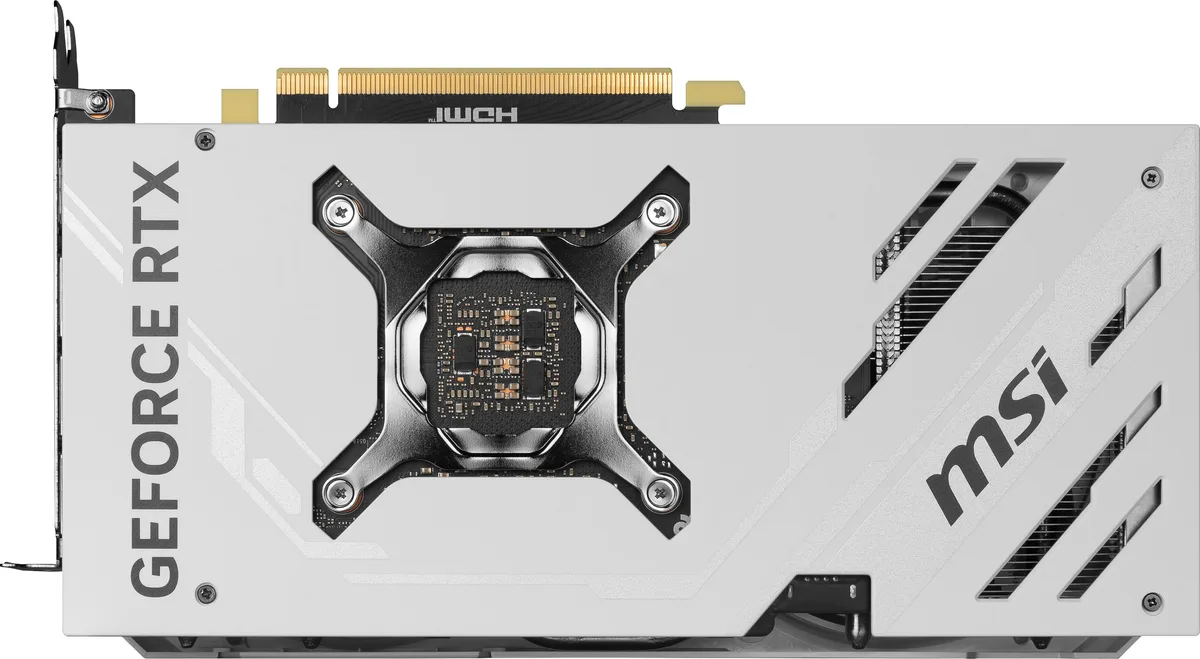

MSI RTX 4070 Ti VENTUS 2X WHITE 12G OC graphics card
A dual-fan GeForce RTX 4070 Ti with 12 GB of GDDR6X memory on a 192-bit bus and a 2640 MHz boost clock
- InterfacePCI Express 4.0
- Chipset ManufacturerNVIDIA
- GPU SeriesNVIDIA GeForce RTX 40 Series
- GPUGeForce RTX 4070 Ti
- Boost Clock2640 MHz
- CUDA Cores7680
- 12 GB GDDR6X memory supports high-resolution textures
- 7680 CUDA cores accelerate compute-intensive workloads
- 2640 MHz boost clock raises frame rates in demanding titles
- HDMI 2.1a and three DisplayPort 1.4a outputs drive four 8K displays
- Dual-fan cooler manages the 285 W thermal design within a 242 mm ATX card
White dual-fan GeForce RTX 4070 Ti for 1440p
This graphics card uses the NVIDIA GeForce RTX 4070 Ti GPU with 7680 CUDA cores and 12GB GDDR6X memory on a 192-Bit bus. It connects through PCI Express 4.0 and drives up to four displays via one HDMI 2.1a and three DisplayPort 1.4a outputs. The white shroud suits colour-coordinated ATX systems.
Sustained boost clock of 2640 MHz with 21 Gbps
Under continuous load the GPU holds its rated boost clock of 2640 MHz while the 12GB GDDR6X memory runs at an effective 21000 MHz. The 192-Bit interface and 7680 CUDA cores deliver stable frame rates in extended gaming sessions without the short-term spikes seen in burst workloads. The 16-Pin power connector feeds the 285W board power limit.
Dual-fan cooler manages 285W within a 242 mm length
The Double Fans cooler dissipates the 285W thermal design power inside a compact 242 mm ATX form factor. A 700W power supply is recommended for the single 16-Pin connector. Fan noise remains moderate during typical gaming loads while temperatures stay within the GPU's operating envelope.
Highlights
- 12 GB GDDR6X memory supports high-resolution textures
- 7680 CUDA cores accelerate compute-intensive workloads
- 2640 MHz boost clock raises frame rates in demanding titles
- HDMI 2.1a and three DisplayPort 1.4a outputs drive four 8K displays
- Dual-fan cooler manages the 285 W thermal design within a 242 mm ATX card
Specifications
| Brand | MSI |
|---|---|
| Series | Ventus |
| Model | RTX 4070 Ti VENTUS 2X WHITE 12G OC |
| Interface | PCI Express 4.0 |
| Chipset Manufacturer | NVIDIA |
| GPU Series | NVIDIA GeForce RTX 40 Series |
| GPU | GeForce RTX 4070 Ti |
| Boost Clock | 2640 MHz |
| CUDA Cores | 7680 |
| Effective Memory Clock | 21000 MHz (21 Gbps) |
| Memory Size | 12GB |
| Memory Interface | 192-Bit |
| Memory Type | GDDR6X |
| DirectX | DirectX 12 Ultimate |
| OpenGL | OpenGL 4.6 |
| Multi-Monitor Support | 4 |
| HDMI | 1 x HDMI 2.1a |
| DisplayPort | 3 x DisplayPort 1.4a |
| Max Resolution | 7680 x 4320 |
| Cooler | Double Fans |
| Thermal Design Power | 285W |
| Recommended PSU Wattage | 700W |
| Power Connector | 1 x 16-Pin |
| Form Factor | ATX |
| Max GPU Length | 242 mm |
| Shipping weight | 1.68 kg |
| Package size | 414 × 257 × 99 mm |
Questions about this item
How much heat does the 285W TDP put out when the RTX 4070 Ti runs all day?
The card is rated at 285W thermal design power and uses a dual-fan cooler to move that heat into the case; ensure your chassis airflow can handle the sustained load.
What power supply and connector must I already have for the 16-pin plug on this RTX 4070 Ti?
A 700W PSU with a native 16-pin (12VHPWR) cable is required; adapters are not recommended for this 285W board.
Will the 242mm length and PCIe 4.0 x16 interface work in my older ATX case and motherboard?
The card fits standard ATX slots and measures 242mm long; it runs at PCIe 4.0 speeds but is backward compatible with PCIe 3.0 motherboards at reduced bandwidth.
