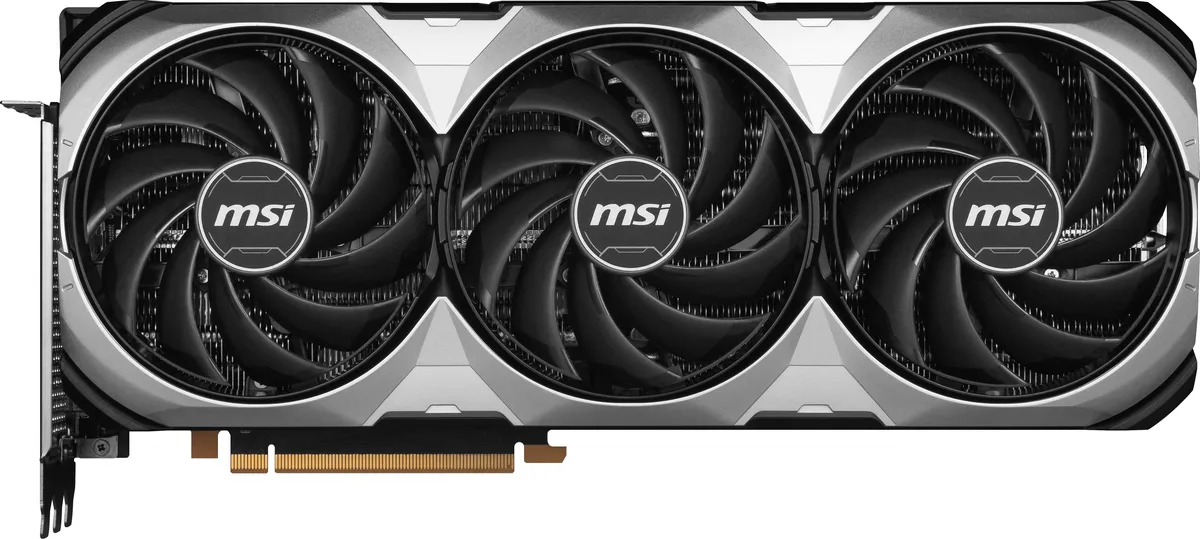

MSI RTX 4080 SUPER 16G VENTUS 3X OC Ventus triple-fan graphics card

16GB GDDR6X for 4K creators

The MSI RTX 4080 SUPER 16G VENTUS 3X OC is a PCI Express 4.0 graphics card built on the Ada Lovelace architecture with 10240 CUDA cores and 16GB of GDDR6X memory on a 256-bit bus. It targets professionals and enthusiasts who need reliable 4K throughput for rendering, simulation and high-refresh gaming. A triple-fan cooler with TORX FAN 4.0, a nickel-plated copper baseplate and core pipes keeps the 320W TDP card stable under sustained loads.

Upgrade path from 10GB or 12GB cards

Moving from a 10GB or 12GB GPU becomes worthwhile when projects exceed the frame-buffer of those cards and spill to system memory, causing stalls in 4K texture workflows or large scene renders. The 23Gbps memory speed and 2580MHz boost clock (2595MHz in MSI Center Extreme Performance mode) raise both bandwidth and compute headroom so the jump pays off in reduced iteration time. A 750W power supply and a single 16-pin connector are the only platform requirements.

16GB frame buffer and 8K display support

The 16GB buffer comfortably holds 4K assets, moderate 8K timelines and multi-monitor arrays up to 7680x4320 across four outputs — two HDMI 2.1a ports capable of 4K at 120Hz HDR or 8K at 60Hz HDR and two DisplayPort 1.4a connectors. VRAM becomes the limiting factor when scenes push beyond 16GB with heavy ray-traced geometry or resident 8K texture sets, at which point out-of-core strategies or a 24GB class card are required. The card measures 322mm long and 136mm by 62mm in profile, fitting most mid-tower cases.
