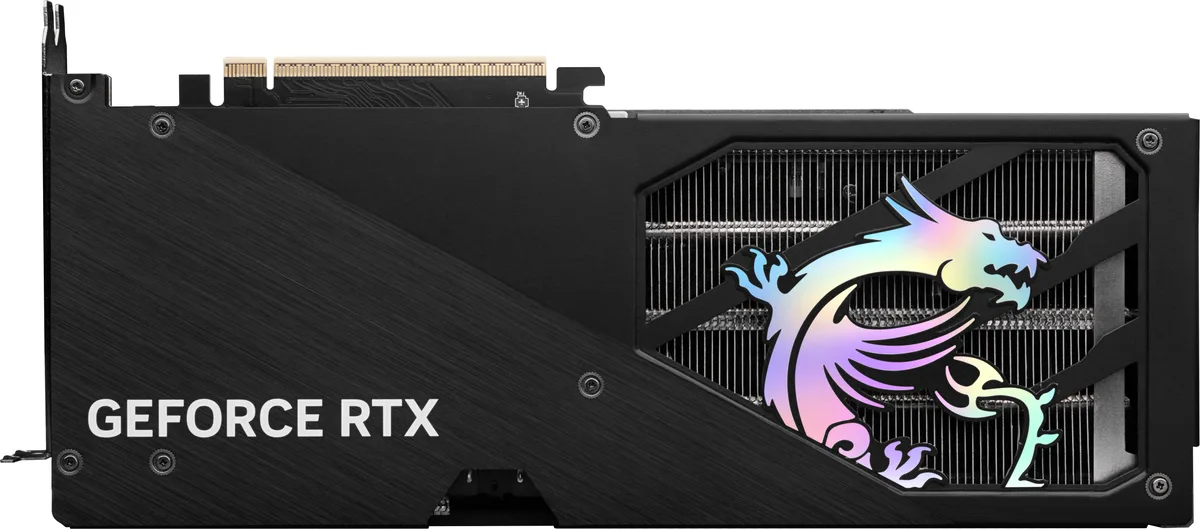

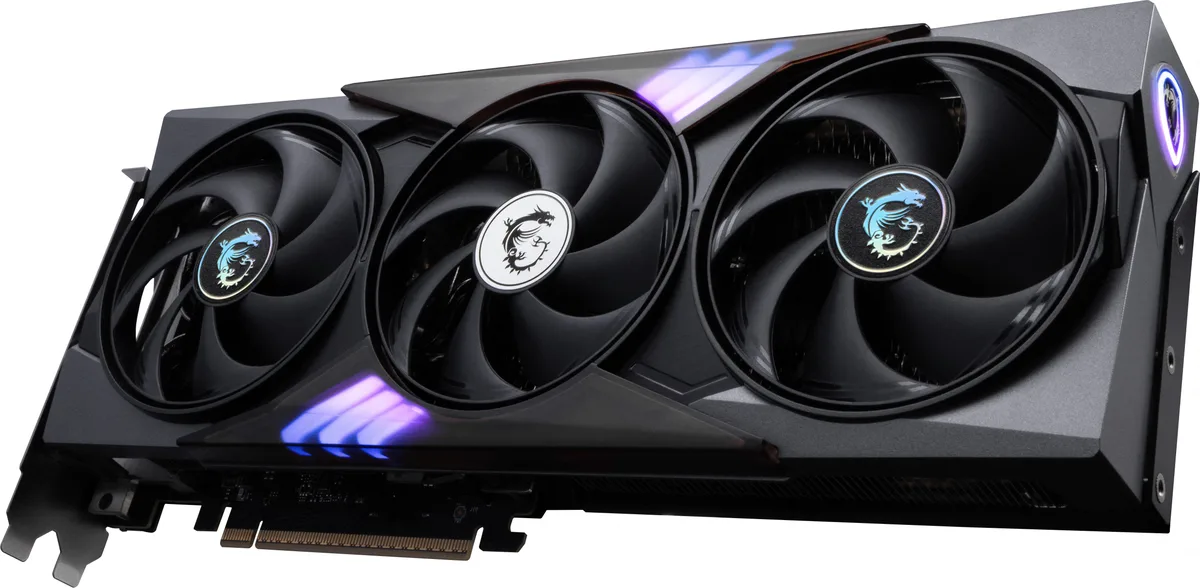

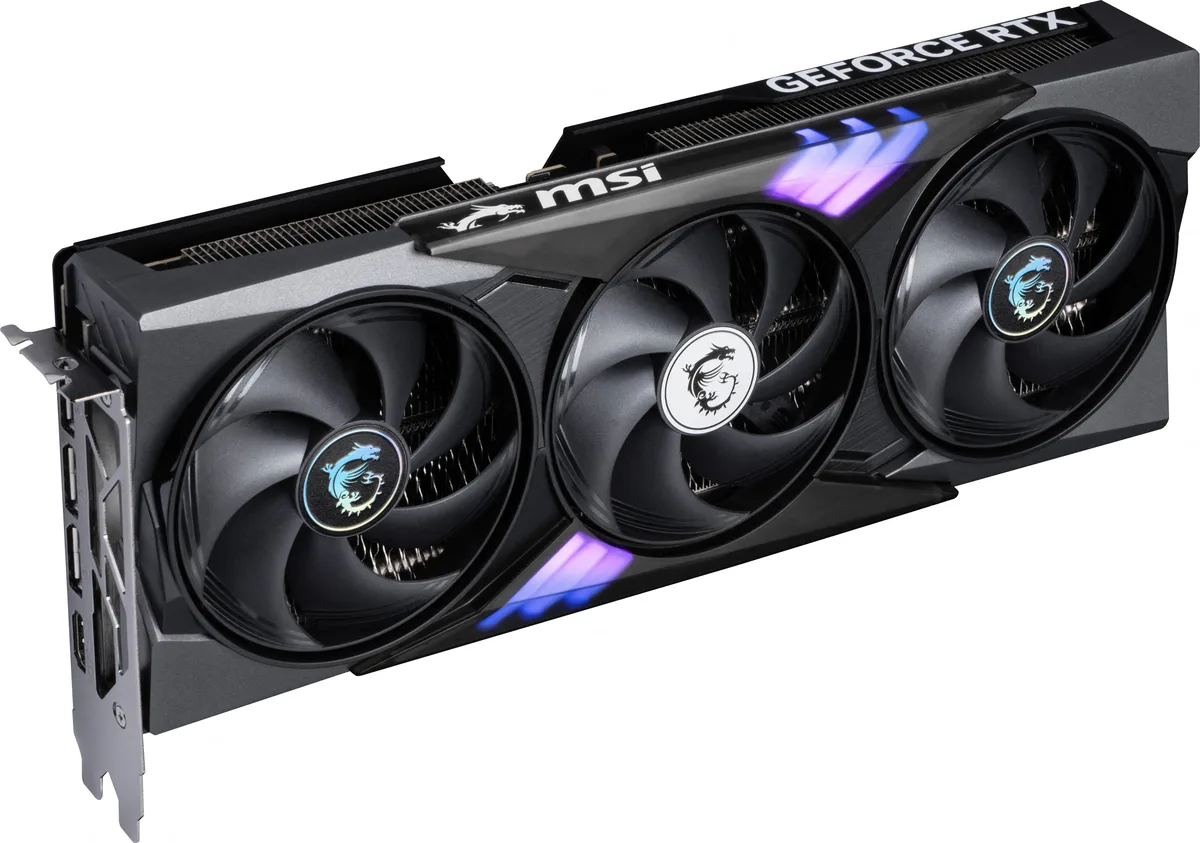

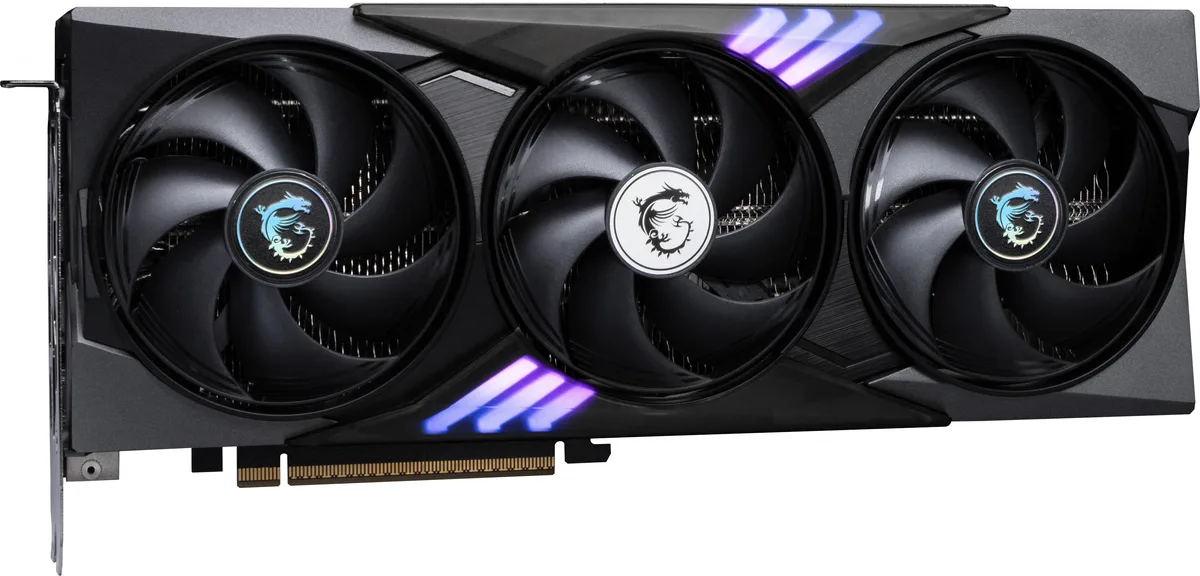

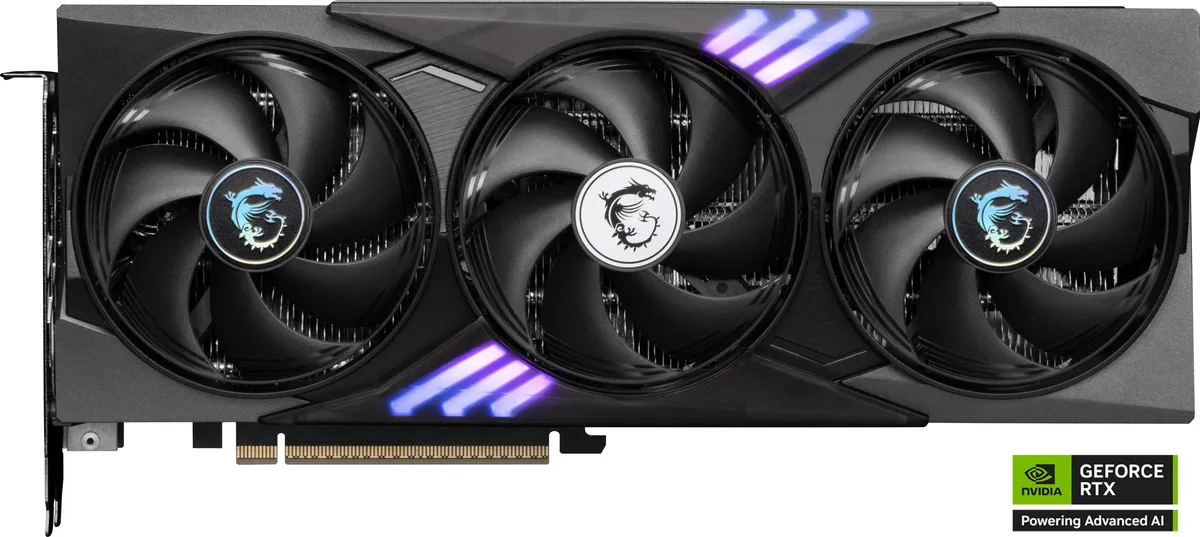

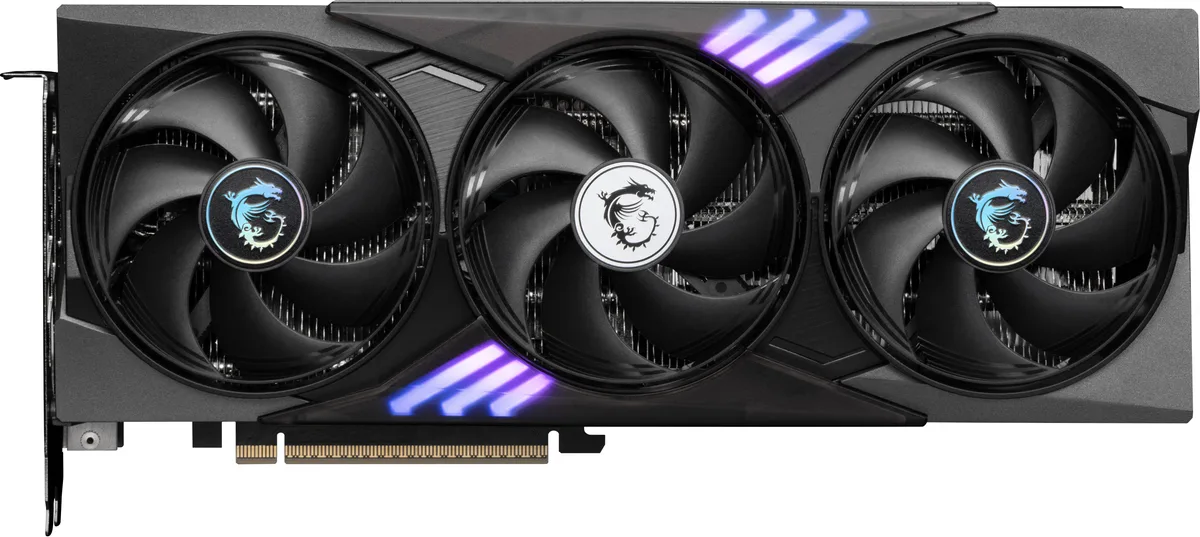

Black triple-fan graphics card with silver accents, ATX form factor, 300mm length

MSI

MSI RTX 5060 Ti 16G GAMING TRIO OC 16GB GDDR7 graphics card

SKU CH-NKSD-NEJWH MPN RTX 5060 Ti 16G GAMING TRIO OC

A 16GB GDDR7 graphics card with 4608 CUDA cores, PCI Express 5.0 interface and triple DisplayPort 2.1b outputs for 7680 x 4320 resolution

  • InterfacePCI Express 5.0 x 16 (use x8)
  • Chipset ManufacturerNVIDIA
  • GPU SeriesNVIDIA GeForce RTX 50 Series
  • GPUGeForce RTX 5060 Ti
  • CUDA Cores4608
  • Effective Memory Clock28 Gbps
  • 16GB GDDR7 memory at 28 Gbps feeds 4608 CUDA cores for high frame rates
  • PCIe 5.0 x16 interface runs at x8 for fast host transfers
  • Triple DisplayPort 2.1b plus HDMI 2.1b drive four 7680 x 4320 displays
  • 300 mm ATX card with dual-fan cooler fits standard 600W PSU builds
  • 180W TDP on a single 16-pin connector keeps cabling simple

16GB GDDR7 graphics card

The MSI RTX 5060 Ti 16G GAMING TRIO OC is a GeForce RTX 50 Series GPU with 4608 CUDA cores and 16GB of GDDR7 memory on a 128-bit interface. It connects through a PCI Express 5.0 x16 slot running at x8 and draws up to 180W via a single 16-pin power connector. A 600W power supply is recommended for stable operation.

1440p gaming and multi-monitor work

This card suits 1440p gaming and multi-monitor productivity setups that need four simultaneous outputs. The 128-bit memory bus and 16GB capacity make it less ideal for heavy 4K texture workloads or compute tasks that demand higher bandwidth. Buyers building compact ITX systems should verify clearance for the 300mm length and 44mm thickness.

128-bit memory interface width

The 128-bit memory interface is the specification that determines whether this model fits your performance target. It defines the peak memory bandwidth available to the 4608 CUDA cores at the 28 Gbps effective clock. If your workflow or chosen resolution needs wider bandwidth, a card with a larger bus is required.

Highlights

  • 16GB GDDR7 memory at 28 Gbps feeds 4608 CUDA cores for high frame rates
  • PCIe 5.0 x16 interface runs at x8 for fast host transfers
  • Triple DisplayPort 2.1b plus HDMI 2.1b drive four 7680 x 4320 displays
  • 300 mm ATX card with dual-fan cooler fits standard 600W PSU builds
  • 180W TDP on a single 16-pin connector keeps cabling simple

Specifications

BrandMSI
SeriesGaming
ModelRTX 5060 Ti 16G GAMING TRIO OC
Part NumberRTX 5060 Ti 16G GAMING TRIO OC
InterfacePCI Express 5.0 x 16 (use x8)
Chipset ManufacturerNVIDIA
GPU SeriesNVIDIA GeForce RTX 50 Series
GPUGeForce RTX 5060 Ti
CUDA Cores4608
Effective Memory Clock28 Gbps
Memory Size16GB
Memory Interface128-Bit
Memory TypeGDDR7
DirectXDirectX 12 Ultimate
OpenGLOpenGL 4.6
Multi-Monitor Support4
HDMI1 x HDMI 2.1b
DisplayPort3 x DisplayPort 2.1b
ColorBlack
Max Resolution7680 x 4320
SLI SupportNo
Virtual Reality ReadyYes
CoolerDouble Fans
Thermal Design Power180W
Recommended PSU Wattage600W
Power Connector1 x 16-Pin
HDCP ReadyYes
Form FactorATX
Max GPU Length300 mm
Card Dimensions (L x H)300 x 125 x 44 mm
Shipping weight1.29 kg
Package size387 × 248 × 89 mm

Questions about this item

What case clearance does the 300 mm long, 44 mm thick triple-fan card require?

The card measures 300 mm long, 125 mm high and 44 mm thick; allow at least 300 mm GPU clearance and a two-slot bracket opening in the chassis.

What is the correct way to seat the single 16-pin power connector during installation?

Push the 16-pin connector firmly until the latch clicks; a partial seat causes power-limit throttling on the 180 W board.

How often should the thermal paste on the RTX 5060 Ti GPU be refreshed?

Re-paste every two to three years or if core temperatures rise noticeably above your baseline under load; use a pea-sized dot of non-conductive compound.
