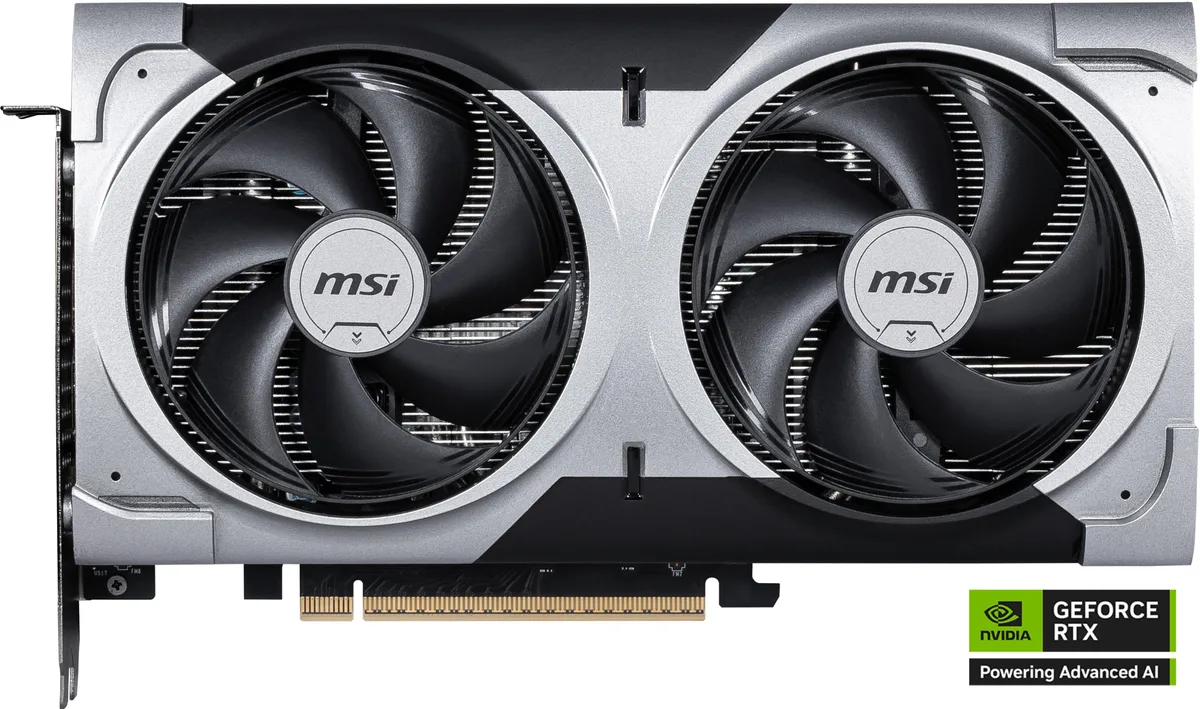

Silver graphics card with dual fans, 227 mm long, PCIe 5.0 x8 interface

MSI

MSI RTX 5060 Ti 16G VENTUS 2X OC PLUS graphics card

SKU CH-69AG-8BDFT MPN RTX 5060 Ti 16G VENTUS 2X OC PLUS

GeForce RTX 5060 Ti graphics card with 16GB GDDR7, 4608 CUDA cores and dual-fan cooling

  • InterfacePCI Express 5.0 x 16 (use x8)
  • Chipset ManufacturerNVIDIA
  • GPU SeriesNVIDIA GeForce RTX 50 Series
  • GPUGeForce RTX 5060 Ti
  • CUDA Cores4608
  • Effective Memory Clock28 Gbps

Edition VENTUS 2X 16G OC PLUS

  • GAMING 8G OC
  • GAMING TRIO 16G OC
  • GAMING TRIO 8G OC
  • GAMING TRIO WHITE 16G OC
  • Inspire 2X 16G OC
  • SHADOW 2X 16G OC PLUS
  • SHADOW 2X 8G OC PLUS
  • VENTUS 2X 16G OC PLUS
  • VENTUS 2X 16G PLUS
  • VENTUS 2X 8G OC PLUS
  • VENTUS 2X 8G PLUS
  • VENTUS 2X BLACK 16G OC PLUS
  • VENTUS 2X BLACK 16G PLUS
  • VENTUS 2X WHITE 16G OC
  • VENTUS 2X WHITE 16G PLUS
  • VENTUS 2X WHITE 8G OC
  • VENTUS 3X 16G OC

Struck-through versions exist but are not stocked here.

  • 16 GB GDDR7 memory enables high-resolution textures
  • 4608 CUDA cores accelerate compute and ray-tracing workloads
  • PCIe 5.0 x16 interface at x8 speed supports modern platforms
  • Triple DisplayPort 2.1b plus HDMI 2.1b drive four 8K displays
  • Dual-fan cooler fits 227 mm length for compact builds

16GB GDDR7 graphics card

The MSI RTX 5060 Ti 16G VENTUS 2X OC PLUS is a GeForce RTX 50 Series GPU built for 1440p gaming and content creation. It delivers 4608 CUDA cores and 16GB of GDDR7 memory across a 128-bit interface clocked at 28 Gbps. The PCI Express 5.0 x16 interface operates at x8 electrical width. Four display outputs support up to 7680 x 4320 resolution.

Sustained load thermal behaviour

A dual-fan cooler dissipates the 180W thermal design power during extended sessions. The 227 mm ATX form factor fits most mid-tower cases with 41 mm thickness clearance. A 600W power supply and single 8-pin connector feed the board. Silver shroud directs airflow over the heatsink to maintain stable clocks under continuous gaming or render workloads.

Installation and common issues

The card occupies two expansion slots and measures 227 x 127 x 41 mm, so verify case length and CPU cooler clearance before mounting. Connect the 8-pin power cable firmly to avoid instability. Ensure the motherboard BIOS supports PCIe 5.0 for full bandwidth. Driver version must match the RTX 50 Series for HDMI 2.1b and DisplayPort 2.1b functionality.

Highlights

  • 16 GB GDDR7 memory enables high-resolution textures
  • 4608 CUDA cores accelerate compute and ray-tracing workloads
  • PCIe 5.0 x16 interface at x8 speed supports modern platforms
  • Triple DisplayPort 2.1b plus HDMI 2.1b drive four 8K displays
  • Dual-fan cooler fits 227 mm length for compact builds

Specifications

BrandMSI
SeriesVentus
ModelRTX 5060 Ti 16G VENTUS 2X OC PLUS
Part NumberRTX 5060 Ti 16G VENTUS 2X OC PLUS
InterfacePCI Express 5.0 x 16 (use x8)
Chipset ManufacturerNVIDIA
GPU SeriesNVIDIA GeForce RTX 50 Series
GPUGeForce RTX 5060 Ti
CUDA Cores4608
Effective Memory Clock28 Gbps
Memory Size16GB
Memory Interface128-Bit
Memory TypeGDDR7
DirectXDirectX 12 Ultimate
OpenGLOpenGL 4.6
Multi-Monitor Support4
HDMI1 x HDMI 2.1b
DisplayPort3 x DisplayPort 2.1b
ColorSilver
Max Resolution7680 x 4320
SLI SupportNo
Virtual Reality ReadyYes
CoolerDouble Fans
Thermal Design Power180W
Recommended PSU Wattage600W
Power Connector8-Pin
HDCP ReadyYes
Form FactorATX
Max GPU Length227 mm
Card Dimensions (L x H)227 x 127 x 41 mm
Shipping weight0.95 kg
Package size305 × 208 × 84 mm

Other versions of this model

2 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How much heat does the 180W thermal design power of the RTX 5060 Ti 16G VENTUS 2X OC PLUS put into a case during all-day use?

The card is rated at 180W TDP, so sustained loads will release that much heat into your chassis; plan airflow accordingly.

What power connector must my supply already have for the RTX 5060 Ti 16G VENTUS 2X OC PLUS?

It requires a single 8-pin PCIe power connector from the PSU.

Will the PCI Express 5.0 x16 interface of the RTX 5060 Ti 16G VENTUS 2X OC PLUS run at full speed in an older PCIe 3.0 slot?

The card operates at PCIe 5.0 x8 electrically; it will work in a PCIe 3.0 slot at reduced bandwidth.
