MSI
MSI RTX 5060 Ti 8G GAMING OC graphics card black double fans 180W
Refurbished GeForce RTX 5060 Ti with 8GB GDDR7, 4608 CUDA cores, dual fans and 180W TDP
- InterfacePCI Express 5.0 x 16 (use x8)
- Chipset ManufacturerNVIDIA
- GPU SeriesNVIDIA GeForce RTX 50 Series
- GPUGeForce RTX 5060 Ti
- CUDA Cores4608
- Effective Memory Clock28 Gbps
- 8GB GDDR7 memory delivers 28 Gbps bandwidth
- 4608 CUDA cores power RTX 50-series performance
- PCIe 5.0 x16 interface runs at x8 width
- Double-fan cooler handles 180W thermal design power
- HDMI 2.1b plus three DisplayPort 2.1b outputs support 7680 x 4320 resolution
Built for 1440p gaming

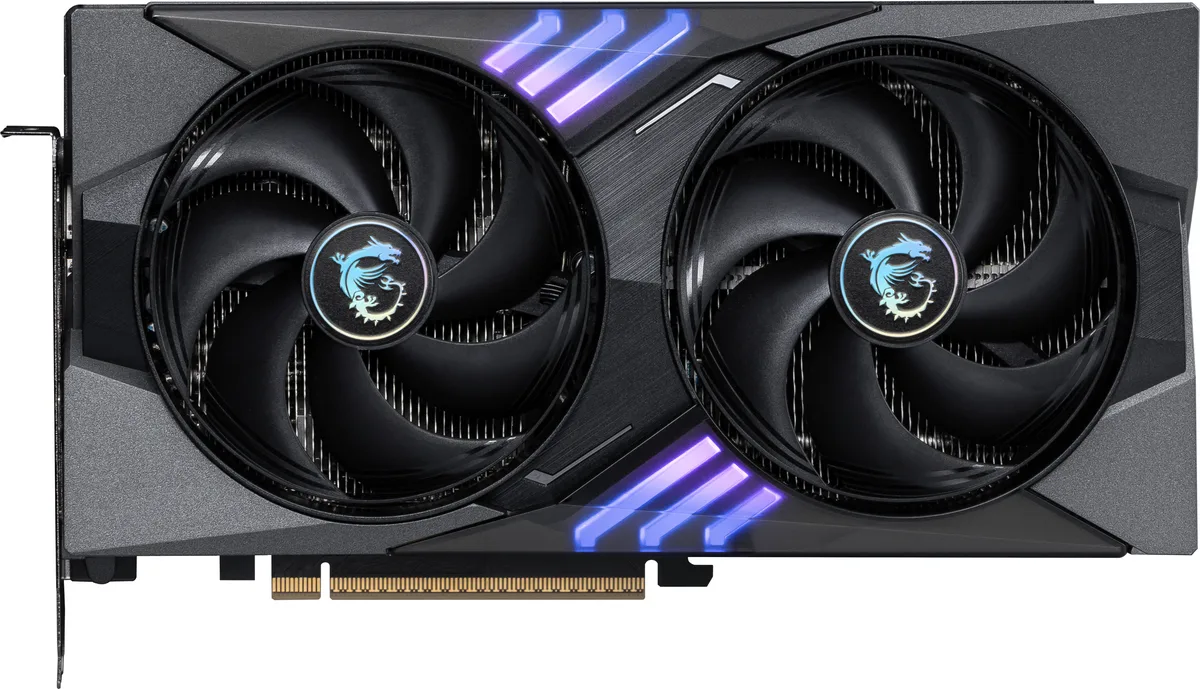

The MSI RTX 5060 Ti 8G GAMING OC is a dual-fan graphics card aimed at players who want high frame rates at 1440p resolution. It carries 4608 CUDA cores and 8GB of GDDR7 memory on a 128-bit bus. The board draws 180W through a single 16-pin connector and fits in standard ATX cases at 247mm long.
Upgrade from 8GB 128-bit cards
Moving up from an older 8GB model on a 128-bit interface makes sense when you need the bandwidth lift of 28 Gbps GDDR7 and PCI Express 5.0 x8 linkage. The newer memory speed and bus generation reduce texture streaming stalls in current titles. If your existing card already saturates a 128-bit bus at 1440p, the jump yields measurable gains.
8GB frame buffer headroom
The 8GB GDDR7 buffer handles modern 1440p ultra textures and up to four 7680 x 4320 displays via one HDMI 2.1b and three DisplayPort 2.1b outputs. Heavy 4K workloads or extensive texture mods will exhaust the 128-bit capacity before the GPU compute does. A 600W power supply is recommended for stable operation.
Highlights
- 8GB GDDR7 memory delivers 28 Gbps bandwidth
- 4608 CUDA cores power RTX 50-series performance
- PCIe 5.0 x16 interface runs at x8 width
- Double-fan cooler handles 180W thermal design power
- HDMI 2.1b plus three DisplayPort 2.1b outputs support 7680 x 4320 resolution
Specifications
| Brand | MSI |
|---|---|
| Series | Gaming |
| Model | RTX 5060 Ti 8G GAMING OC |
| Part Number | RTX 5060 Ti 8G GAMING OC |
| Interface | PCI Express 5.0 x 16 (use x8) |
| Chipset Manufacturer | NVIDIA |
| GPU Series | NVIDIA GeForce RTX 50 Series |
| GPU | GeForce RTX 5060 Ti |
| CUDA Cores | 4608 |
| Effective Memory Clock | 28 Gbps |
| Memory Size | 8GB |
| Memory Interface | 128-Bit |
| Memory Type | GDDR7 |
| DirectX | DirectX 12 Ultimate |
| OpenGL | OpenGL 4.6 |
| Multi-Monitor Support | 4 |
| HDMI | 1 x HDMI 2.1b |
| DisplayPort | 3 x DisplayPort 2.1b |
| Color | Black |
| Max Resolution | 7680 x 4320 |
| SLI Support | No |
| Virtual Reality Ready | Yes |
| Cooler | Double Fans |
| Thermal Design Power | 180W |
| Recommended PSU Wattage | 600W |
| Power Connector | 1 x 16-Pin |
| HDCP Ready | Yes |
| Form Factor | ATX |
| Max GPU Length | 247 mm |
| Card Dimensions (L x H) | 247 x 135 x 51 mm |
| Shipping weight | 1.29 kg |
| Package size | 324 × 246 × 90 mm |
Questions about this item
Will the 247 mm long card with its 16-pin power connector fit my ATX case and PSU?
The card is 247 mm long, 135 mm tall and 51 mm thick in a standard ATX form factor and needs one 16-pin power connector from a 600 W PSU.
Which slot and power cable do I use for the PCI Express 5.0 x16 interface that runs at x8?
Install it in the primary PCIe 5.0 x16 slot and attach the single 16-pin power connector; the electrical link will negotiate at x8 automatically.
How often should I clean the dual-fan cooler on this 180 W TDP card?
Blow dust out of the double-fan heatsink every few months so the 180 W thermal design stays within safe temperatures.
