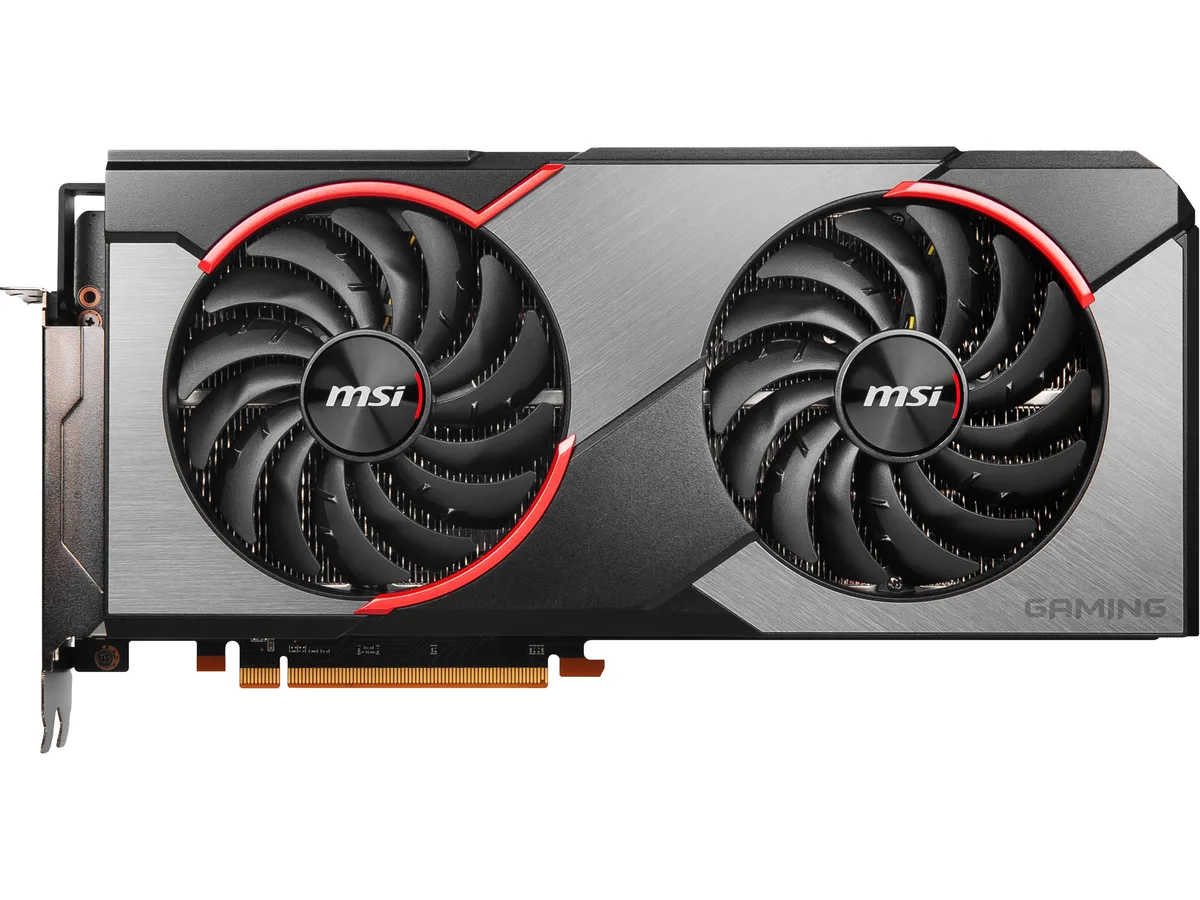

Gray dual-fan graphics card with silver backplate and MSI branding

MSI

MSI RX 5700 XT GAMING X graphics card

SKU CH-0BX0-MNGGP MPN RX 5700 XT GAMING X

Refurbished AMD Radeon RX 5700 XT GPU with 8GB GDDR6, 2560 stream processors, boost clock 1980 MHz, PCIe 4.0, and triple DisplayPort 1.4 plus HDMI 2.0b outputs

  • InterfacePCI Express 4.0
  • Chipset ManufacturerAMD
  • GPU SeriesAMD Radeon RX 5700 Series
  • GPURadeon RX 5700 XT
  • Core Clock1730 MHz
  • Boost Clock1980 MHz
  • 8 GB GDDR6 memory handles 4K textures at 14 Gbps
  • 2560 stream processors deliver 1980 MHz boost performance
  • PCI Express 4.0 interface doubles bandwidth over 3.0
  • Four display outputs drive 7680 × 4320 multi-monitor setups
  • TORX Fan 3.0 cooler keeps 225 W TDP quiet

8GB GDDR6 graphics card

The MSI Radeon RX 5700 XT GAMING X delivers 8GB of GDDR6 memory on a 256-bit bus for 1440p gaming. It targets players who want high frame rates in modern titles without moving to a higher tier. The 2560 stream processors and 1980 MHz boost clock provide strong rasterisation performance. A 750W power supply and two 8-pin connectors are required.

PCI Express 4.0 upgrade path

This card uses the PCI Express 4.0 interface, doubling the link bandwidth of the previous 3.0 standard. The jump is worthwhile when paired with a compatible CPU and motherboard that can utilise the extra throughput. On older platforms the card falls back to 3.0 speeds with minimal real-world impact. The 225W TDP means adequate case airflow remains essential.

HDMI 2.0b and DisplayPort 1.4 limits

One HDMI 2.0b port and three DisplayPort 1.4 outputs drive up to four monitors at 7680 x 4320 maximum resolution. HDMI 2.0b caps 4K output at 60 Hz, so high-refresh 4K panels need DisplayPort. The 14 Gbps memory speed supports the bandwidth these ports require. HDCP 2.2 enables protected 4K streaming content.

Highlights

  • 8 GB GDDR6 memory handles 4K textures at 14 Gbps
  • 2560 stream processors deliver 1980 MHz boost performance
  • PCI Express 4.0 interface doubles bandwidth over 3.0
  • Four display outputs drive 7680 × 4320 multi-monitor setups
  • TORX Fan 3.0 cooler keeps 225 W TDP quiet

Specifications

BrandMSI
ModelRX 5700 XT GAMING X
InterfacePCI Express 4.0
Chipset ManufacturerAMD
GPU SeriesAMD Radeon RX 5700 Series
GPURadeon RX 5700 XT
Core Clock1730 MHz
Boost Clock1980 MHz
Stream Processors2560
Effective Memory Clock14 Gbps
Memory Size8GB
Memory Interface256-Bit
Memory TypeGDDR6
DirectXDirectX 12
OpenGLOpenGL 4.5
Multi-Monitor Support4
HDMI1 x HDMI 2.0b
DisplayPort3 x DisplayPort 1.4
ColorGray
Max Resolution7680 x 4320
CrossFireX SupportCrossfire, 2-Way (Bridgeless) (DX12)
Virtual Reality ReadyYes
CoolerDouble Fans
Thermal Design Power225W
System RequirementsRecommended PSU: 750W
Recommended PSU Wattage750W
Power Connector2 x 8-Pin
HDCP Ready2.2
FeaturesTORX FAN 3.0: Supremely silent
Dispersion fan blade: Steeper curved blade accelerating the airflow.
Traditional fan blade: Provides steady airflow to massive heat sink below.
RGB Mystic Light
Customize colors and LED effects with exclusive MSI software and synchronize the look & feel with other components.
Afterburner Overclocking Utility
Wireless control through Android/iOS devices.
Predator: In-game video recording.
Dragon Center
A consolidated platform that offers all software including MYSTIC LIGHT functionality for your MSI Gaming product.
Max GPU Length297 mm

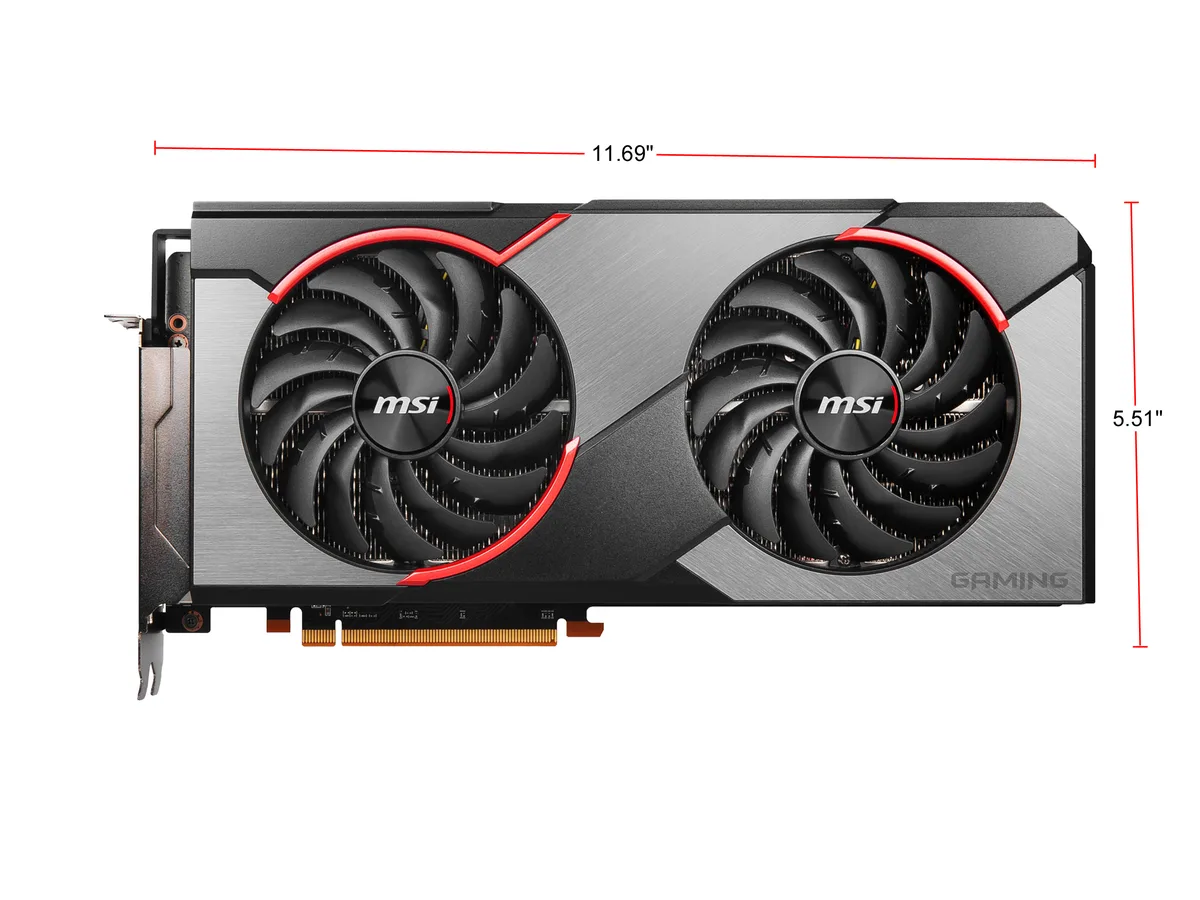

Card Dimensions (L x H)11.69" x 5.51"
Shipping weight2.04 kg
Package size384 × 269 × 89 mm

Questions about this item

Does the PCI Express 4.0 interface and dual 8-pin power connector fit my motherboard and PSU?

The card uses a PCI Express 4.0 slot and draws power from two 8-pin connectors; your motherboard needs that slot and your PSU must provide both cables.

What is the most common mistake when installing the 225W TDP card with the TORX FAN 3.0 cooler?

Builders often forget to connect both 8-pin power cables or leave the protective film on the cold plate, causing immediate thermal throttling.

How often should the thermal paste be refreshed on the Radeon RX 5700 XT GPU with 2560 stream processors?

Plan to replace the paste every two to three years; the 225W TDP and GDDR6 memory generate sustained heat that degrades compound over time.
