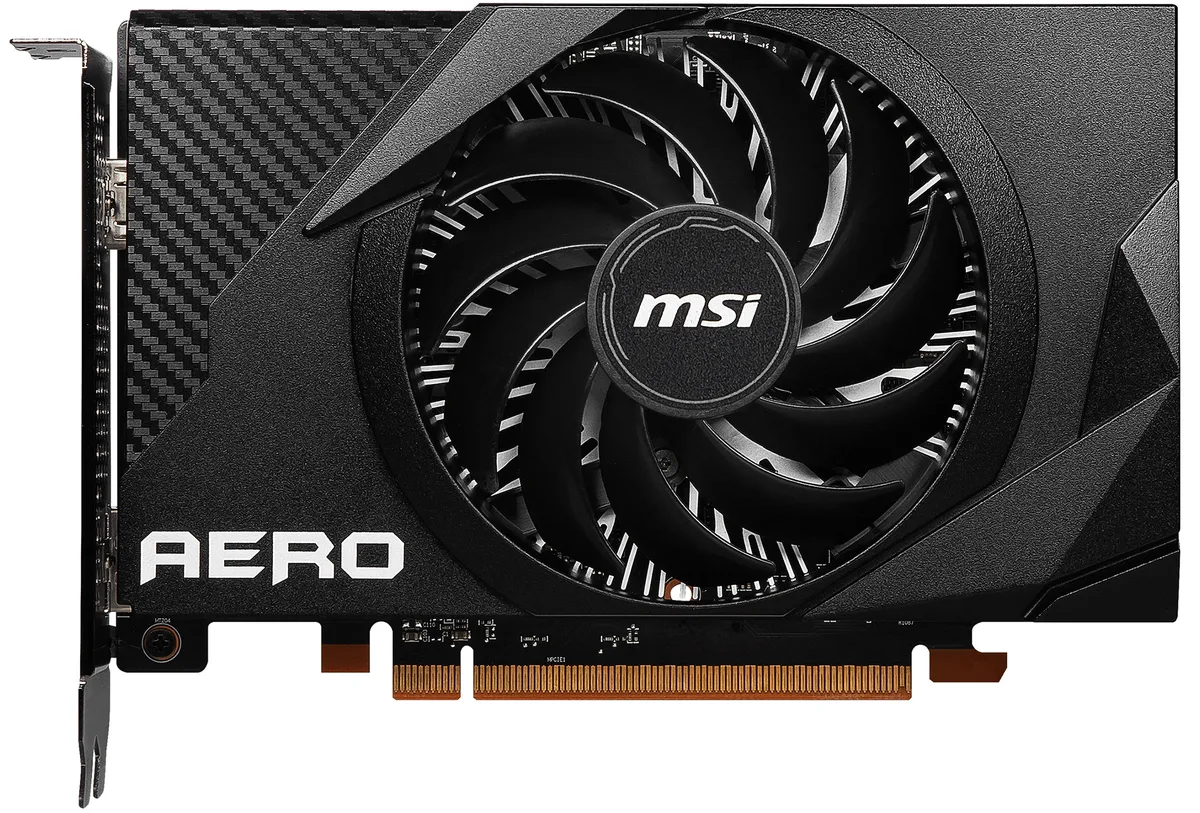

Compact black graphics card with a single cooling fan and dual video outputs

MSI

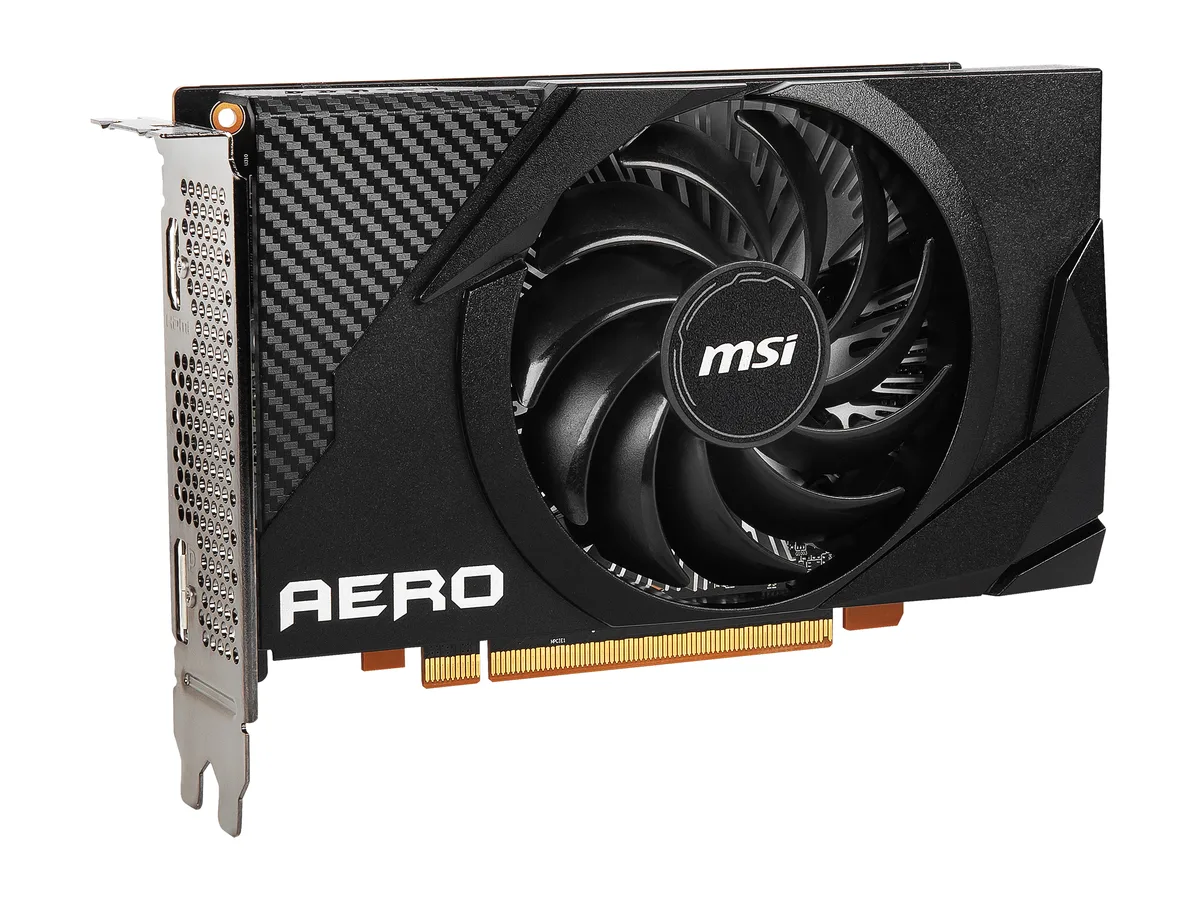

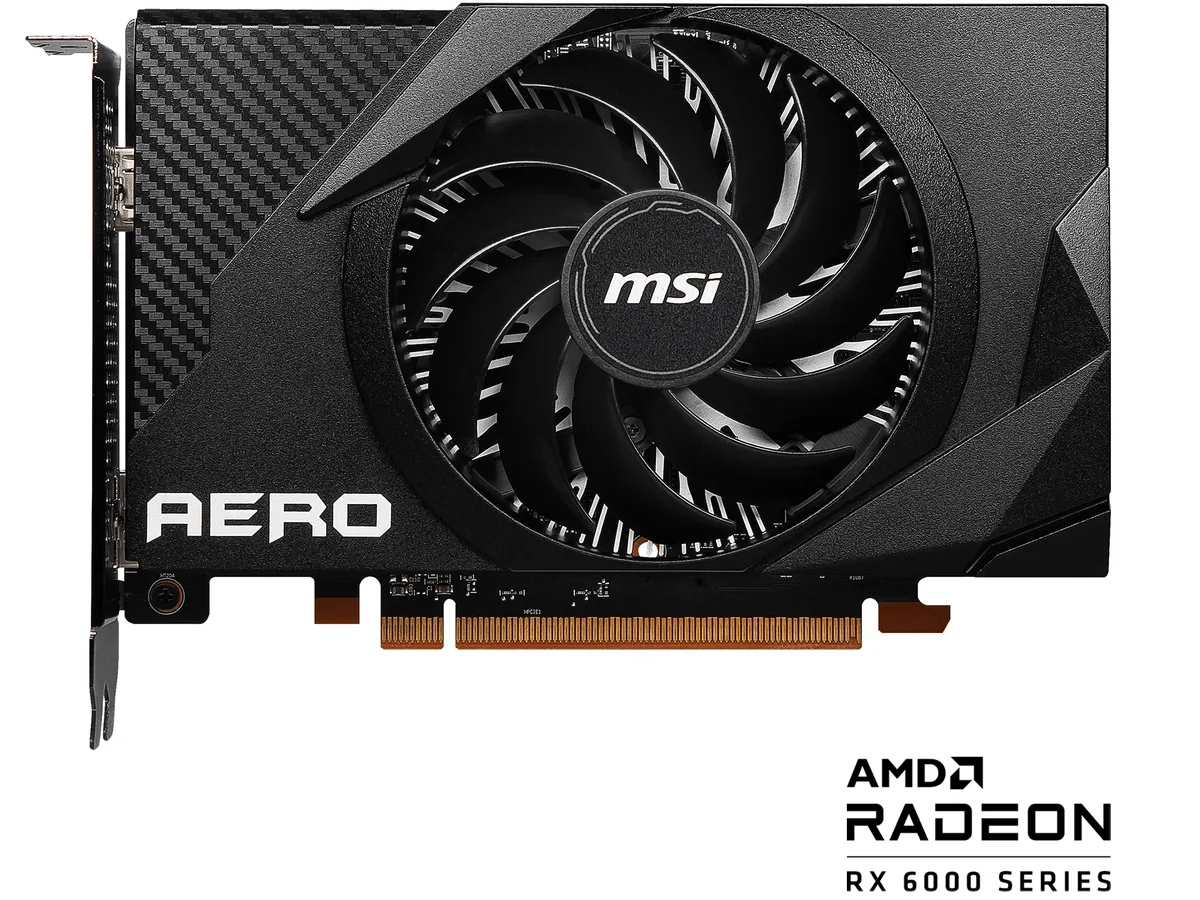

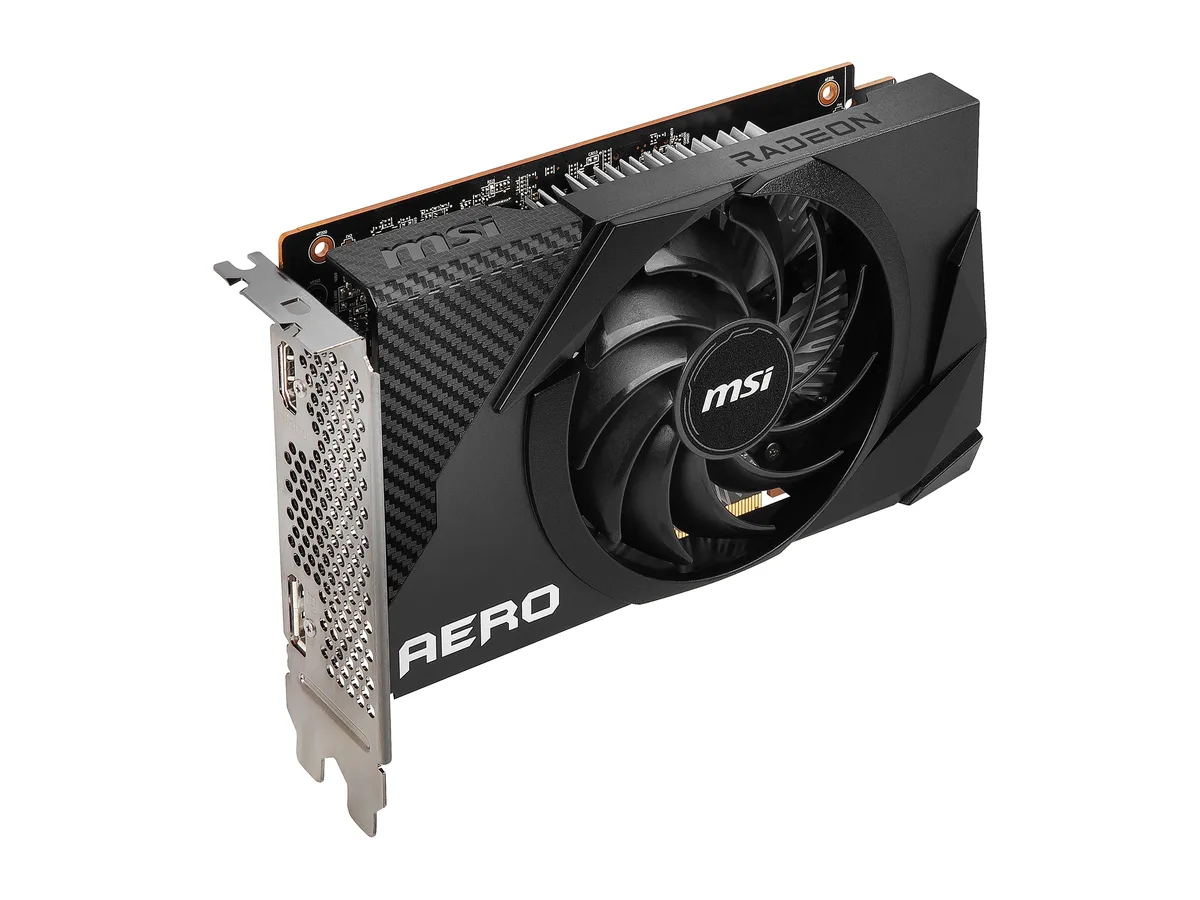

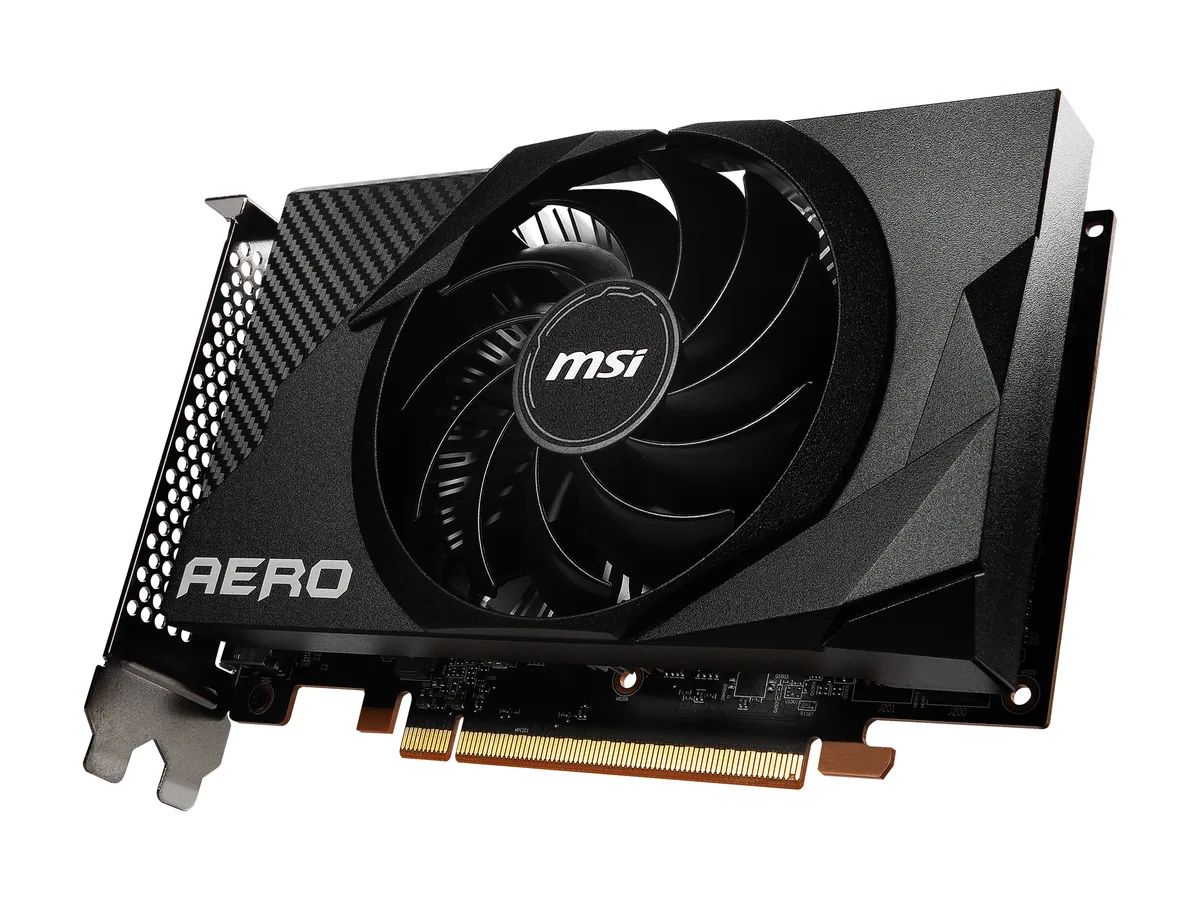

MSI RX 6400 AERO ITX 4G graphics card

SKU CH-H786-T0FM9 MPN RX 6400 AERO ITX 4G

A compact Radeon graphics card with 4GB GDDR6 memory, 768 stream processors, and a 2321 MHz boost clock for small-form-factor PCs

  • InterfacePCI Express 4.0
  • Chipset ManufacturerAMD
  • GPU SeriesAMD Radeon RX 6000 Series
  • GPURadeon RX 6400
  • ArchitectureRDNA 2
  • Game Clock2039 MHz
  • Compact ITX design fits small-form-factor builds
  • Boost clock reaches 2321 MHz for responsive 1080p gaming
  • 4 GB GDDR6 memory on a 64-bit bus handles modern textures
  • PCI Express 4.0 interface delivers full bandwidth to the GPU
  • Dual outputs — HDMI 2.1 and DisplayPort 1.4a — drive two 4K displays

Compact Radeon RX 6400 for small builds

The MSI RX 6400 AERO ITX 4G is a single-fan graphics card built for small form factor systems and HTPC cases. It delivers a game clock of 2039 MHz and a boost clock of 2321 MHz through 768 stream processors. The 4GB GDDR6 frame buffer runs on a 64-bit interface at 16 Gbps. Display outputs include one HDMI 2.1 and one DisplayPort 1.4a supporting up to 7680 x 4320 resolution.

Upgrade from integrated graphics on PCIe 4.0

This card replaces a CPU integrated graphics solution when a discrete GPU is required for multi-monitor productivity or entry 1080p gaming. The PCI Express 4.0 x4 interface provides full bandwidth on compatible platforms while the 53W thermal design power only needs a 350W power supply. The jump is worth it when your motherboard lacks video outputs or when hardware decode for modern codecs is needed.

Steady 53W load with copper heatpipe cooling

Under sustained load the single fan and copper heatpipe cooler keeps the GPU at its rated 53W thermal design power without throttling. The custom fan curve is tuned for consistent airflow rather than brief burst performance. Afterburner OC Scanner can find the highest stable overclock within the same power envelope for users who want extra headroom.

Highlights

  • Compact ITX design fits small-form-factor builds
  • Boost clock reaches 2321 MHz for responsive 1080p gaming
  • 4 GB GDDR6 memory on a 64-bit bus handles modern textures
  • PCI Express 4.0 interface delivers full bandwidth to the GPU
  • Dual outputs — HDMI 2.1 and DisplayPort 1.4a — drive two 4K displays

Specifications

BrandMSI
ModelRX 6400 AERO ITX 4G
InterfacePCI Express 4.0
Chipset ManufacturerAMD
GPU SeriesAMD Radeon RX 6000 Series
GPURadeon RX 6400
ArchitectureRDNA 2
Game Clock2039 MHz
Boost Clock2321 MHz
Stream Processors768
Effective Memory Clock16 Gbps
Memory Size4GB
Memory Interface64-Bit
Memory TypeGDDR6
DirectXDirectX 12 Ultimate
OpenGLOpenGL 4.6
Multi-Monitor Support2
HDMI1 x HDMI 2.1
DisplayPort1 x DisplayPort 1.4a
ColorBlack
Max Resolution7680 x 4320
CoolerSingle Fan
Thermal Design Power53W
Recommended PSU Wattage350W
HDCP ReadyYes
FeaturesSmall Form Factor Design
Perfect for small form factor systems and HTPC.
Custom fan design with a unique curve to enhance heat dissipation.
Copper heatpipes maximize heat transfer from the surface of the baseplate for better cooling.
Afterburner Overclocking Utility
Supports multi-GPU setups.
OC Scanner: An automated function finds the highest stable overclock settings.
On Screen Display: Provides real-time information of your system's performance.
Predator: In-game video recording.
MSI Center
The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real
Max GPU Length172 mm

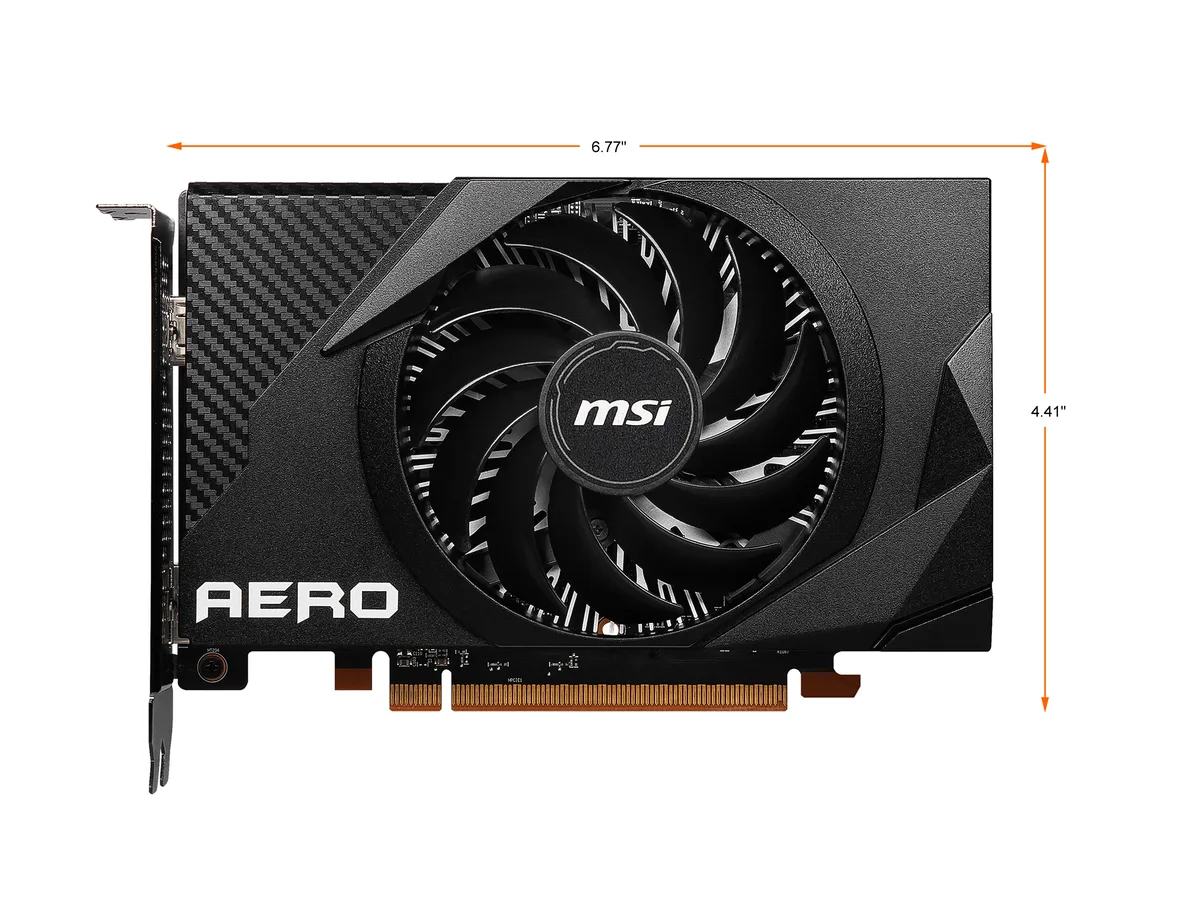

Card Dimensions (L x H)6.77" x 4.41"
Slot Width2 Slots
Shipping weight1.54 kg
Package size331 × 267 × 86 mm

Questions about this item

What clearance does the single-fan ITX card need inside a small-form-factor case?

The compact single-fan design fits small-form-factor systems and HTPC builds without requiring extra length or height clearance.

Which power connector must be plugged in during installation, and what PSU rating is recommended?

A 350 W PSU is recommended for the 53 W board; connect the required PCIe power cable before securing the card.

When should the thermal paste under the copper heatpipes be refreshed?

Refresh the paste if GPU temperatures rise noticeably after extended use; the copper heatpipes transfer heat from the baseplate to the heatsink.
