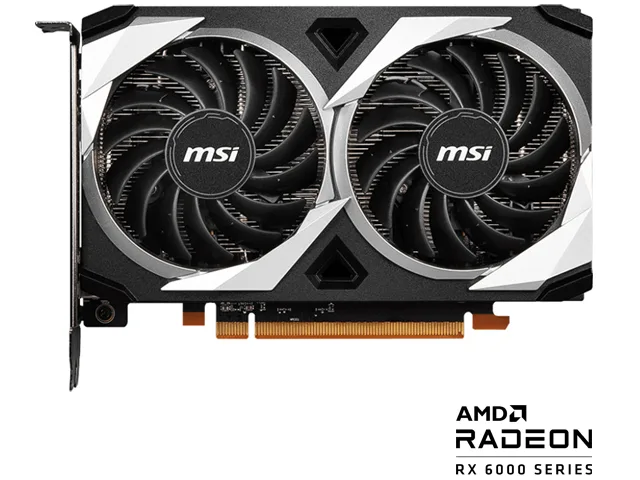

MSI Radeon RX 6500 XT graphics card with dual fans and black shroud

MSI

MSI RX 6500 XT MECH 2X 4G graphics card

SKU CH-5YB8-WS1DW MPN RX 6500 XT MECH 2X 4G

Refurbished dual-fan graphics card with 4GB GDDR6 memory and 1024 stream processors for 1080p gaming

  • InterfacePCI Express 4.0
  • Chipset ManufacturerAMD
  • GPU SeriesAMD Radeon RX 6000 Series
  • GPURadeon RX 6500 XT
  • ArchitectureRDNA 2
  • Game Clock2610 MHz
  • RDNA 2 architecture delivers 1024 stream processors for efficient 1080p gaming
  • Boost clock reaches 2815 MHz to accelerate frame rates in demanding titles
  • 4GB GDDR6 memory on a 64-bit bus provides 18 Gbps bandwidth for texture-heavy workloads
  • HDMI 2.1 and DisplayPort 1.4a outputs support dual monitors up to 7680 x 4320 resolution
  • Dual TORX Fan 3.0 cooler dissipates 107W TDP with a single 6-pin power connector

Entry 4GB RDNA 2 card

The MSI RX 6500 XT MECH 2X 4G is a compact graphics card built on the AMD RDNA 2 architecture. It delivers a Boost Clock of 2815 MHz and a Game Clock of 2610 MHz across 1024 Stream Processors. The 4GB GDDR6 frame buffer runs on a 64-Bit interface at 18 Gbps. A dual-fan thermal design with TORX Fan 3.0 keeps the 107W TDP in check, powered by a single 6-Pin connector.

Step up from older 2GB cards

Moving from a 2GB entry model adds usable VRAM for 1080p textures and enables PCI Express 4.0 bandwidth on a compatible platform. The RDNA 2 core supports DirectX 12 Ultimate and OpenGL 4.6 for modern API features. A 400W PSU is recommended for stable operation. The jump makes sense when current hardware limits texture quality or frame pacing in lighter titles.

Suits 1080p esports builds

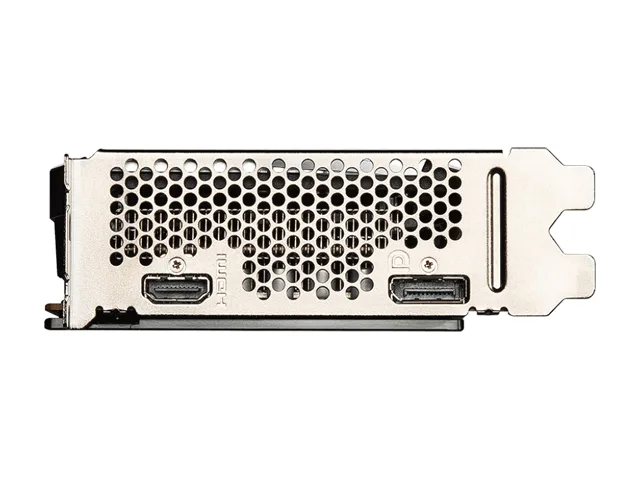

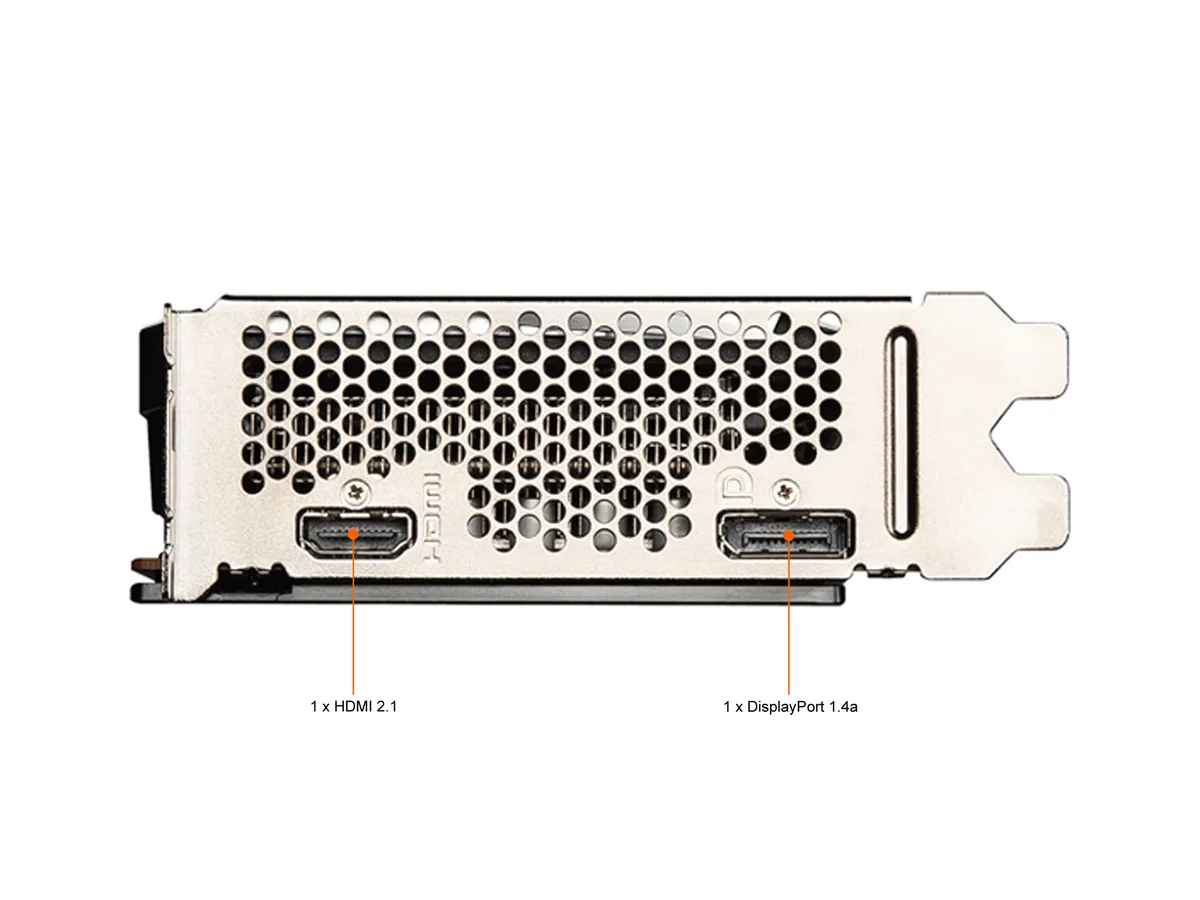

This card fits budget systems targeting competitive shooters or MOBA titles at 1080p with a 400W power supply and a free 6-Pin connector. Display outputs are one HDMI 2.1 and one DisplayPort 1.4a for dual-monitor setups up to 7680 x 4320 resolution. Buyers needing more VRAM for heavy AAA workloads or a wider memory bus should consider higher-tier models.

Highlights

  • RDNA 2 architecture delivers 1024 stream processors for efficient 1080p gaming
  • Boost clock reaches 2815 MHz to accelerate frame rates in demanding titles
  • 4GB GDDR6 memory on a 64-bit bus provides 18 Gbps bandwidth for texture-heavy workloads
  • HDMI 2.1 and DisplayPort 1.4a outputs support dual monitors up to 7680 x 4320 resolution
  • Dual TORX Fan 3.0 cooler dissipates 107W TDP with a single 6-pin power connector

Specifications

BrandMSI
SeriesMech
ModelRX 6500 XT MECH 2X 4G
InterfacePCI Express 4.0
Chipset ManufacturerAMD
GPU SeriesAMD Radeon RX 6000 Series
GPURadeon RX 6500 XT
ArchitectureRDNA 2
Game Clock2610 MHz
Boost Clock2815 MHz
Stream Processors1024
Effective Memory Clock18 Gbps
Memory Size4GB
Memory Interface64-Bit
Memory TypeGDDR6
DirectXDirectX 12 Ultimate
OpenGLOpenGL 4.6
Multi-Monitor Support2
HDMI1 x HDMI 2.1
DisplayPort1 x DisplayPort 1.4a
Max Resolution7680 x 4320
CoolerDouble Fans
Thermal Design Power107W
Recommended PSU Wattage400W
Power Connector6-Pin
HDCP ReadyYes
FeaturesDual Fan Thermal Design
TORX Fan 3.0: The award-winning MSI TORX Fan 3.0 design creates high static pressure and pushes the limits of thermal performance.
Afterburner Overclocking Utility
Supports multi-GPU setups.
OC Scanner: An automated function finds the highest stable overclock settings.
On Screen Display: Provides real-time information of your system's performance.
Predator: In-game video recording.
MSI Center
The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.
Max GPU Length172 mm

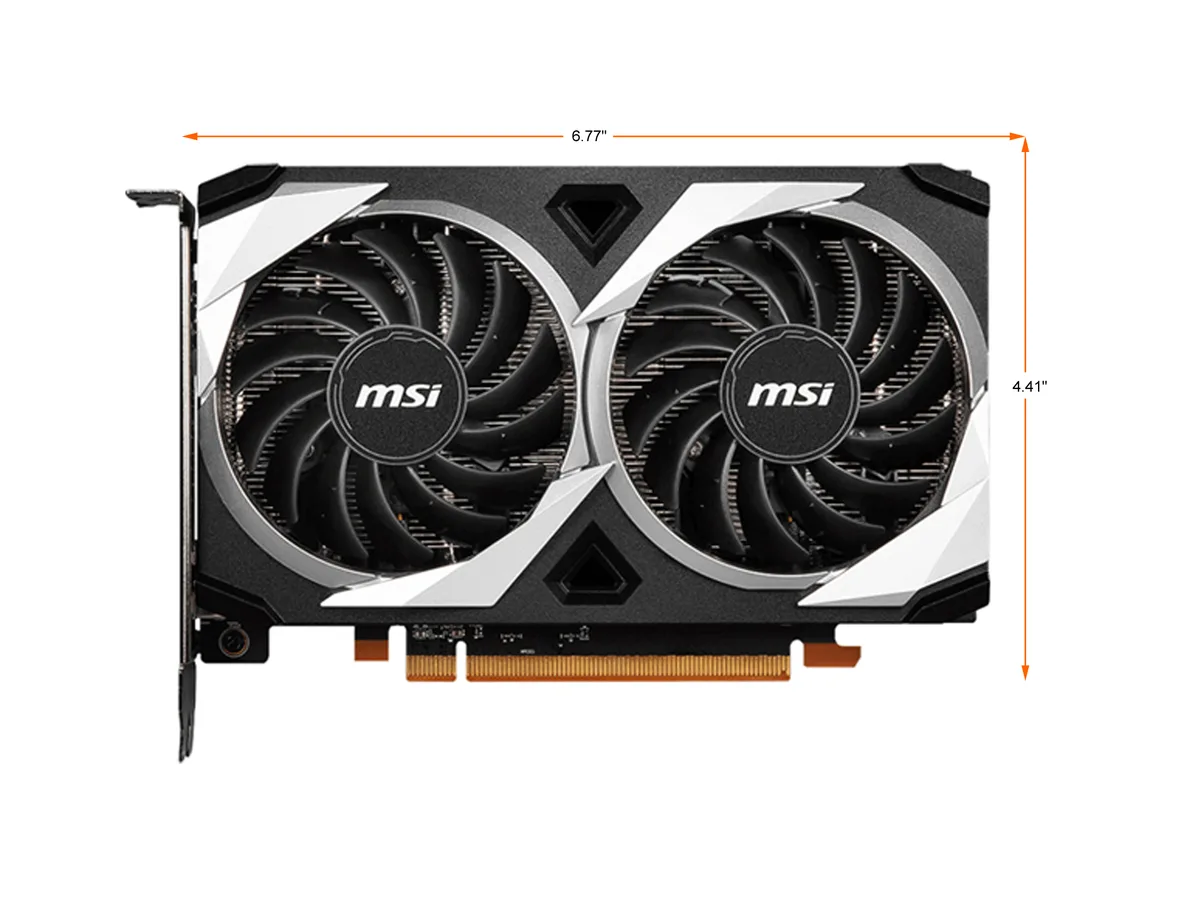

Card Dimensions (L x H)6.77" x 4.41"
Slot Width2 Slots
Shipping weight0.45 kg
Package size25 × 25 × 25 mm

Questions about this item

What PCI Express slot and power connector does the MSI RX 6500 XT MECH 2X 4G require?

The card uses a PCI Express 4.0 interface and draws auxiliary power through a single 6-Pin connector. A 400W power supply is the minimum recommended capacity.

How do I install the dual-fan cooler correctly so the TORX Fan 3.0 blades clear the case?

Seat the card fully in the PCI Express 4.0 slot, secure the bracket screw, then attach the 6-Pin power cable. The common mistake is forgetting the power cable, which prevents the 107W board from initialising.

When should I replace the thermal paste on the Radeon RX 6500 XT GPU under the double-fan cooler?

Plan to refresh the paste after roughly three to four years of regular gaming loads, or sooner if boost clocks drop below the 2815 MHz specification under sustained load.
