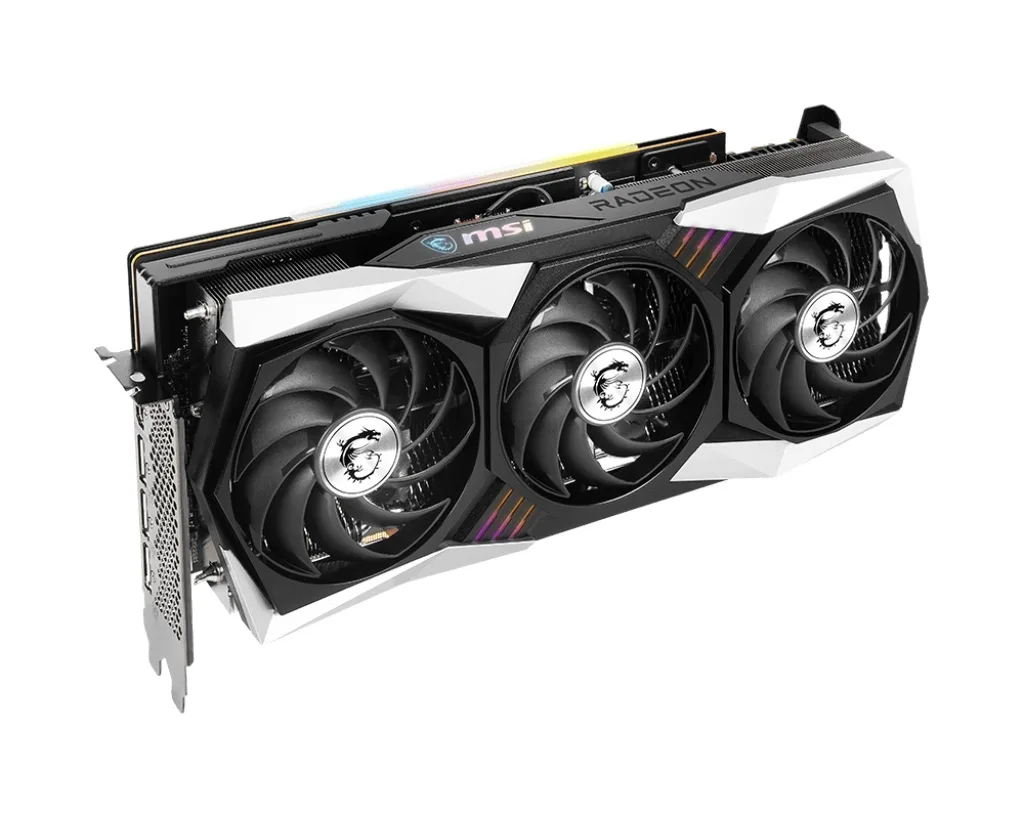

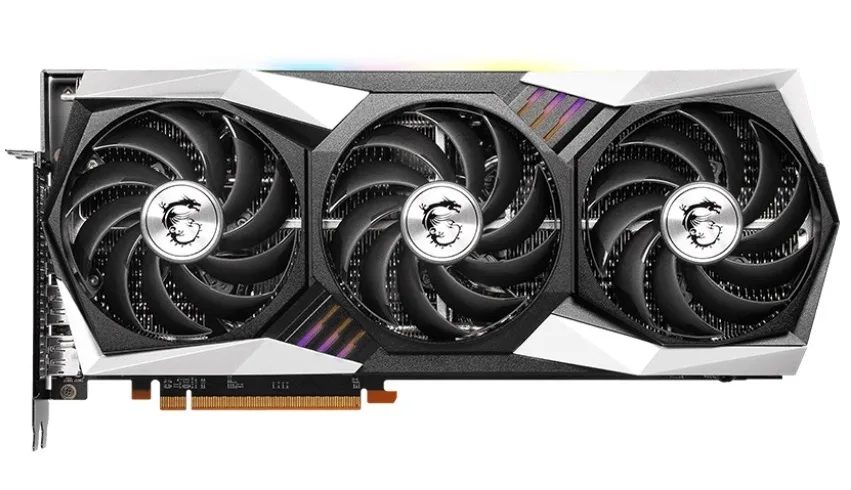

MSI RX 6800 Gaming Z Trio 16G graphics card, triple-fan cooler, dark metal finish

MSI

MSI RX 6800 Gaming Z Trio 16G graphics card

SKU CH-XDMP-FRWXA MPN RX 6800 Gaming Z Trio 16G

Refurbished AMD Radeon RX 6800 graphics card with 16GB GDDR6 memory, 3840 stream processors, boost clock of 2155 MHz, triple-fan cooling, PCI Express 4.0 interface.

  • InterfacePCI Express 4.0
  • Chipset ManufacturerAMD
  • GPU SeriesAMD Radeon RX 6000 Series
  • GPURadeon RX 6800
  • ArchitectureRDNA 2
  • Game Clock1925 MHz
  • 16GB GDDR6 memory handles large textures at 4K
  • Boost clock reaches 2155 MHz for high frame rates
  • Triple-fan TRI FROZR 2 cooler keeps thermals in check
  • PCI Express 4.0 interface provides full bandwidth headroom

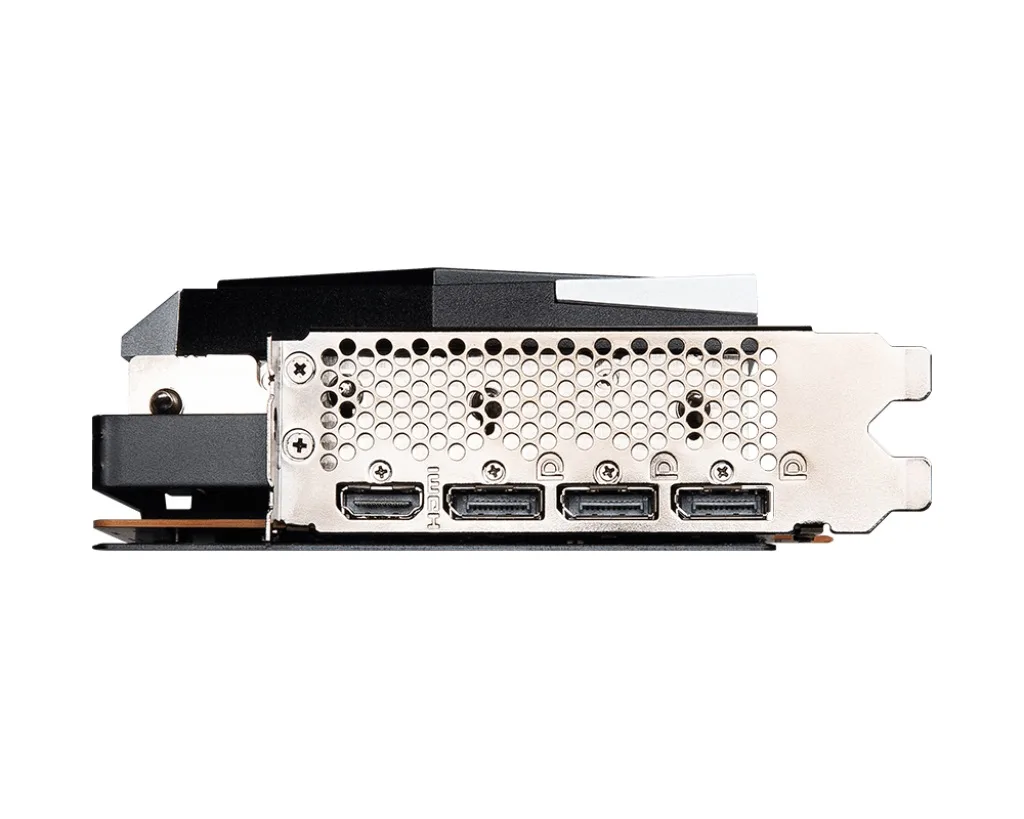

  • HDMI 2.1 and three DisplayPort 1.4 outputs drive four displays

16GB RDNA 2 graphics card

The MSI RX 6800 Gaming Z Trio 16G is a Radeon graphics card built on the RDNA 2 architecture with 16GB of GDDR6 memory. It targets gamers and creators who need high frame rates at 1440p or entry-level 4K. The triple-fan TRI FROZR 2 cooler keeps the GPU stable under sustained loads.

Upgrade from 8GB or older architecture

Moving from an 8GB card or a pre-RDNA 2 GPU adds 16GB VRAM, 3840 stream processors and a 2155 MHz boost clock. The jump is worth it when your current card hits memory limits in modern titles or cannot maintain 60 fps at your target resolution. DirectX 12 Ultimate support also unlocks newer API features.

Check PSU, power connectors and case length

Verify your power supply delivers at least 650W and provides two 8-pin PCIe connectors for the 250W board. Confirm the triple-slot cooler fits your case length and clearance. Ensure the motherboard has a PCI Express 4.0 x16 slot and that your monitor uses HDMI 2.1 or DisplayPort 1.4 for full resolution support.

Highlights

  • 16GB GDDR6 memory handles large textures at 4K
  • Boost clock reaches 2155 MHz for high frame rates
  • Triple-fan TRI FROZR 2 cooler keeps thermals in check
  • PCI Express 4.0 interface provides full bandwidth headroom
  • HDMI 2.1 and three DisplayPort 1.4 outputs drive four displays

Specifications

BrandMSI
SeriesGaming
ModelRX 6800 Gaming Z Trio 16G
InterfacePCI Express 4.0
Chipset ManufacturerAMD
GPU SeriesAMD Radeon RX 6000 Series
GPURadeon RX 6800
ArchitectureRDNA 2
Game Clock1925 MHz
Boost Clock2155 MHz
Stream Processors3840
Effective Memory Clock16 Gbps
Memory Size16GB
Memory Interface256-Bit
Memory TypeGDDR6
DirectXDirectX 12 Ultimate
OpenGLOpenGL 4.6
Multi-Monitor Support4
HDMI1 x HDMI 2.1
DisplayPort3 x DisplayPort 1.4
Max Resolution7680 x 4320
Virtual Reality ReadyYes
CoolerTriple Fans
Thermal Design Power250W
Recommended PSU Wattage650W
Power Connector2 x 8-Pin
HDCP ReadyYes
FeaturesTRI FROZR 2 Thermal Design
TORX Fan 4.0: A masterpiece of teamwork, fan blades work in pairs to create unprecedented levels of focused air pressure.
Core Pipe: Precision-crafted heat pipes ensure max contact to the GPU and spread heat along the full length of the heatsink.
Airflow Control: Don't sweat it, Airflow Control guides the air to exactly where it needs to be for maximum cooling.
RGB Mystic Light
Mystic Light gives you complete control of the RGB lighting for MSI devices and compatible RGB products.
MSI Center
The exclusive MSI Center software lets you monitor, tweak and opti
Max GPU Length324 mm
Card Dimensions (L x H)12.76" x 5.51"
Shipping weight2.34 kg
Package size406 × 298 × 89 mm

Questions about this item

How much case length and PCIe slot width does the triple-fan RX 6800 Gaming Z Trio 16G need?

The card uses a triple-fan TRI FROZR 2 cooler that occupies three expansion slots and extends the full length of a standard ATX board; verify your chassis lists at least three-slot clearance and enough longitudinal room before ordering.

Which power cables must be connected to the 250 W board, and what mistake do builders make?

Two 8-pin PCIe connectors are required; the common error is plugging only one or using a single daisy-chained cable, which can starve the GPU under load.

What part of the cooling system will need attention after a couple of years?

The three TORX Fan 4.0 units are the only moving parts; dust buildup on the heatsink fins and eventual bearing wear are the typical maintenance items.
