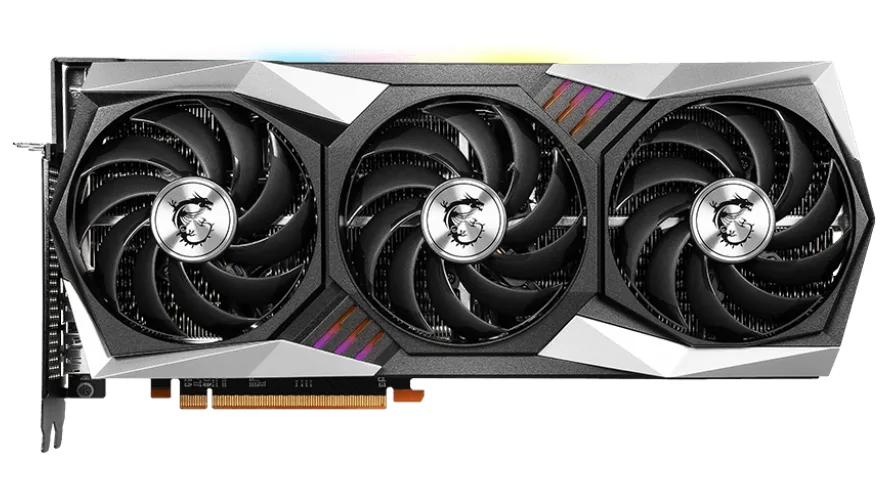

MSI RX 6800 XT Gaming Z Trio 16G graphics card
Radeon RX 6800 XT GPU with 16GB GDDR6 on a 256-bit bus, boost clock 2310 MHz, PCI Express 4.0, HDMI 2.1 and three DisplayPort 1.4 outputs
- InterfacePCI Express 4.0
- Chipset ManufacturerAMD
- GPU SeriesAMD Radeon RX 6000 Series
- GPURadeon RX 6800 XT
- Game Clock2065 MHz
- Boost Clock2310 MHz
- 16GB GDDR6 memory handles large textures and 4K assets
- Boost clock reaches 2310 MHz for high frame rates in demanding titles
- Triple-fan TRI FROZR 2 cooler keeps temperatures low under sustained loads
- HDMI 2.1 plus three DisplayPort 1.4 outputs drive up to four 8K displays
- PCI Express 4.0 interface delivers full bandwidth to the GPU
16GB 256-Bit GDDR6 card
The MSI RX 6800 XT Gaming Z Trio 16G is a refurbished graphics card built on the AMD Radeon RX 6000 Series GPU. It delivers a boost clock of 2310 MHz and a game clock of 2065 MHz across 4608 stream processors. The 16GB GDDR6 frame buffer runs at 16 Gbps over a 256-bit interface. It connects via PCI Express 4.0 and supports DirectX 12 Ultimate and OpenGL 4.6.
Upgrade from 8GB or older architecture
Moving to this 16GB model makes sense when your current card limits texture quality at 1440p or 4K, or when you need the 256-bit bus width for higher memory bandwidth. The jump is worth it if you require the 2310 MHz boost headroom and triple 8-pin power delivery for sustained loads. A 750W PSU is recommended to support the 300W thermal design power.
Suits 4K gaming and multi-monitor rigs
This card suits builders targeting 7680 x 4320 output across up to four displays using one HDMI 2.1 and three DisplayPort 1.4 connectors. The TRI FROZR 2 thermal design with TORX Fan 4.0 and core pipes handles the heat load in standard ATX cases. Buyers needing a smaller footprint, lower power draw, or single-slot brackets should look at something else.
Highlights
- 16GB GDDR6 memory handles large textures and 4K assets
- Boost clock reaches 2310 MHz for high frame rates in demanding titles
- Triple-fan TRI FROZR 2 cooler keeps temperatures low under sustained loads
- HDMI 2.1 plus three DisplayPort 1.4 outputs drive up to four 8K displays
- PCI Express 4.0 interface delivers full bandwidth to the GPU
Specifications
| Brand | MSI |
|---|---|
| Series | Gaming |
| Model | RX 6800 XT Gaming Z Trio 16G |
| Interface | PCI Express 4.0 |
| Chipset Manufacturer | AMD |
| GPU Series | AMD Radeon RX 6000 Series |
| GPU | Radeon RX 6800 XT |
| Game Clock | 2065 MHz |
| Boost Clock | 2310 MHz |
| Stream Processors | 4608 |
| Effective Memory Clock | 16 Gbps |
| Memory Size | 16GB |
| Memory Interface | 256-Bit |
| Memory Type | GDDR6 |
| DirectX | DirectX 12 Ultimate |
| OpenGL | OpenGL 4.6 |
| Multi-Monitor Support | 4 |

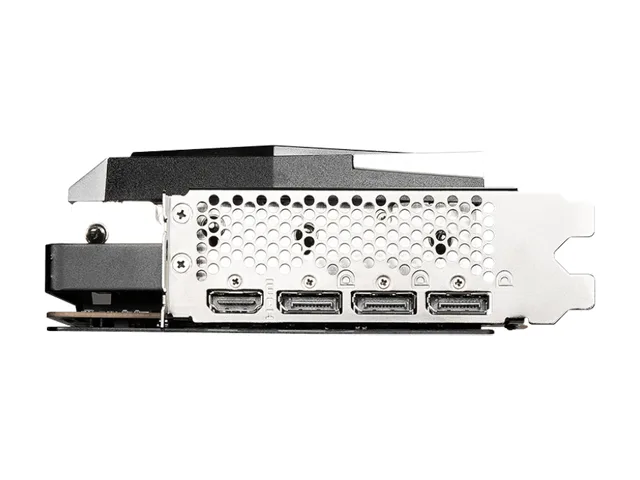

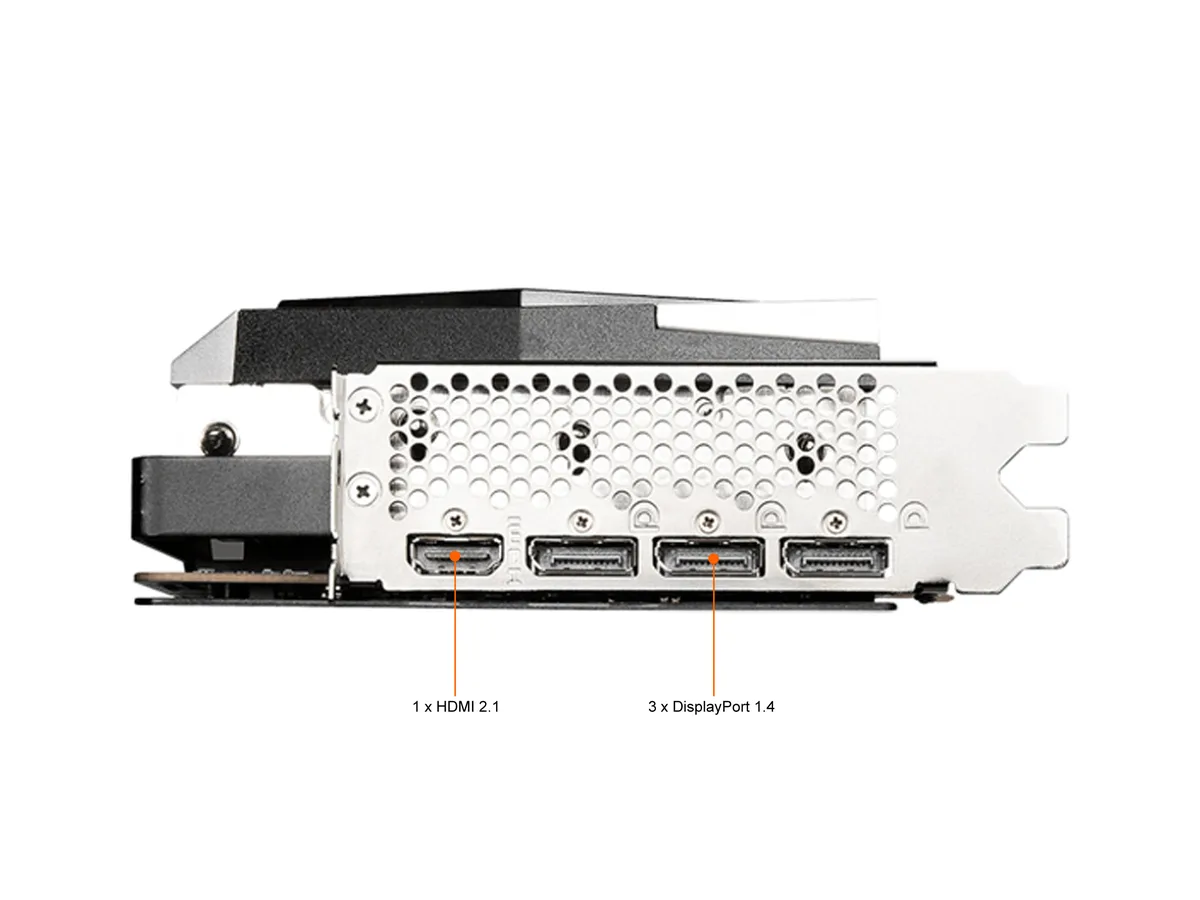

| HDMI | 1 x HDMI 2.1 |
| DisplayPort | 3 x DisplayPort 1.4 |
| Max Resolution | 7680 x 4320 |
| Virtual Reality Ready | Yes |
| Cooler | Triple Fans |
| Thermal Design Power | 300W |
| Recommended PSU Wattage | 750W |
| Power Connector | 3 x 8-Pin |
| HDCP Ready | Yes |
| Features | TRI FROZR 2 Thermal Design TORX Fan 4.0: A masterpiece of teamwork, fan blades work in pairs to create unprecedented levels of focused air pressure. Core Pipe: Precision-crafted heat pipes ensure max contact to the GPU and spread heat along the full length of the heatsink. Airflow Control: Don't sweat it, Airflow Control guides the air to exactly where it needs to be for maximum cooling. RGB Mystic Light Mystic Light gives you complete control of the RGB lighting for MSI devices and compatible RGB products. Dragon Center MSI's exclusive Dragon Center software lets you monitor, tweak |
| Max GPU Length | 324 mm |

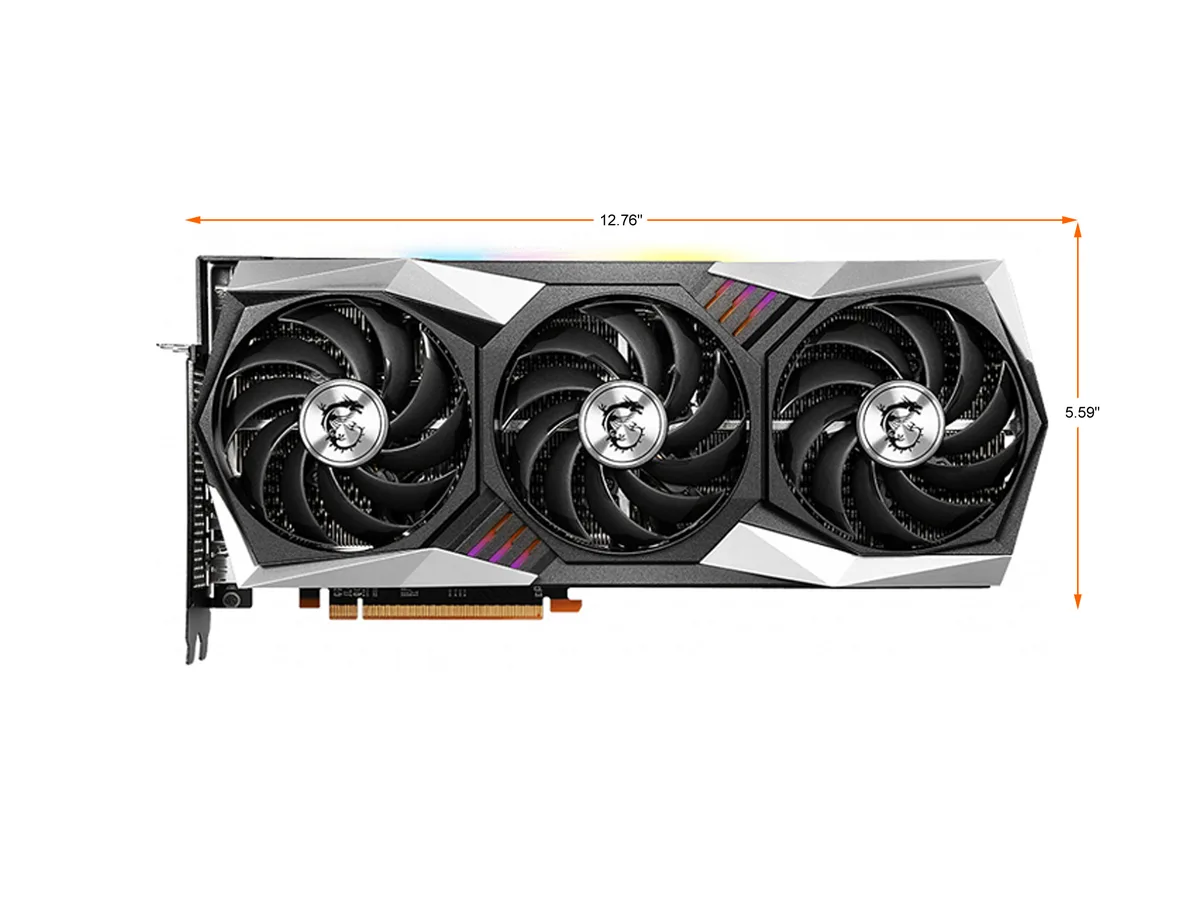

| Card Dimensions (L x H) | 12.76" x 5.59" |
| Shipping weight | 2.40 kg |
| Package size | 406 × 295 × 86 mm |
Questions about this item
What case clearance does the triple-fan TRI FROZR 2 cooler need?
The TRI FROZR 2 thermal design uses three TORX Fan 4.0 units and a full-length heatsink with Core Pipes, so the card occupies a thick triple-slot profile. Measure from the motherboard PCIe slot to the side panel and allow extra room for the three 8-pin power cables that plug into the top edge.
What is the correct order for seating the card and attaching the three 8-pin power connectors?
Insert the card into the PCI Express 4.0 x16 slot until the retention latch clicks, screw the mounting bracket to the chassis, then plug all three 8-pin connectors from the power supply into the card. The step people miss is powering the card before the bracket is secured, which can stress the PCB.
When should the thermal paste under the Core Pipes be refreshed?
The Core Pipes make direct contact with the Radeon GPU die through factory-applied paste. Under typical gaming loads at the 300 W thermal design power, plan to clean the old compound and apply a fresh thin layer every two to three years, or if boost clocks at 2310 MHz start throttling earlier than before.
