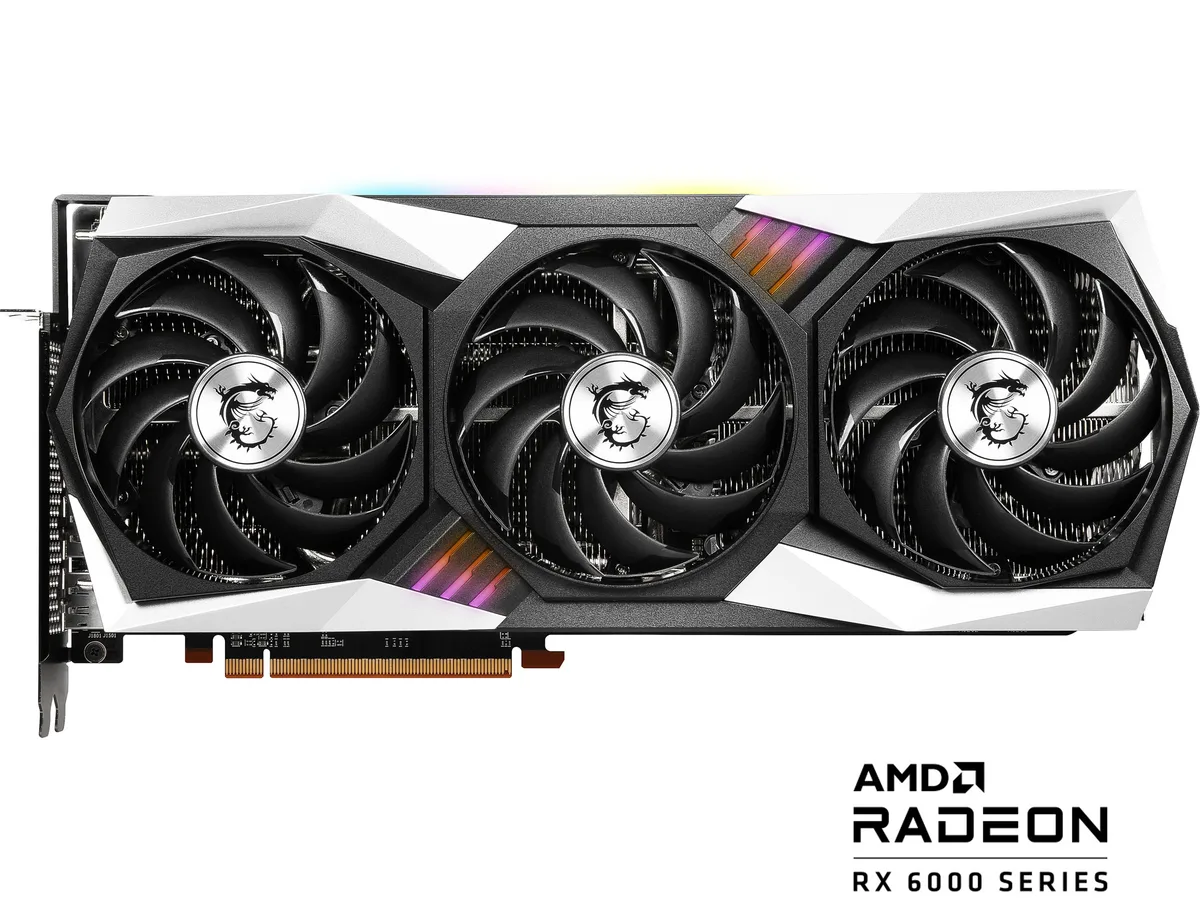

MSI Radeon RX 6800 Gaming X Trio graphics card with triple fans and silver shroud

MSI

MSI RX6800GAMINGXTRIO16G Radeon RX 6800 graphics card 16GB GDDR6

SKU CH-KHMH-CGT64 MPN RX6800GAMINGXTRIO16G

Refurbished AMD Radeon RX 6800 GPU with 16GB GDDR6, 3840 stream processors, 2155 MHz boost clock and triple-fan cooling for 4K gaming

  • InterfacePCI Express 4.0
  • Chipset ManufacturerAMD
  • GPU SeriesAMD Radeon RX 6000 Series
  • GPURadeon RX 6800
  • Core Clock1775 MHz
  • Boost Clock2155 MHz
  • 16 GB GDDR6 memory handles 4K textures and heavy workloads
  • Boost clock reaches 2155 MHz for high frame rates in demanding titles
  • Triple-fan TRI FROZR 2 cooler keeps temperatures low under load
  • PCI Express 4.0 interface doubles bandwidth over previous standard

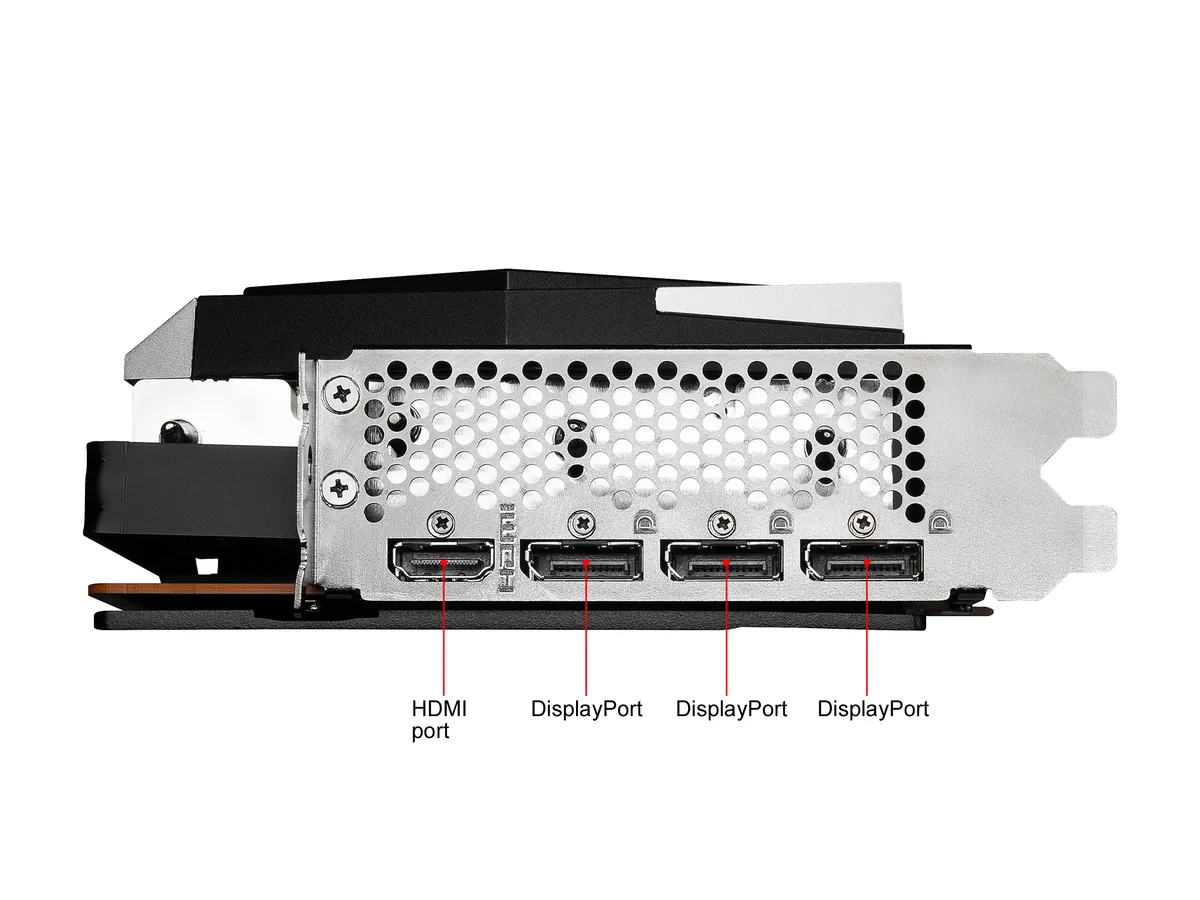

  • Four display outputs including HDMI 2.1 and three DisplayPort 1.4a ports

Ready for 4K gaming

The MSI Radeon RX 6800 Gaming X Trio 16G delivers 16GB of GDDR6 memory on a 256-bit bus with a boost clock of 2155 MHz. It targets enthusiasts who want high frame rates at 4K resolution in modern titles. The card supports DirectX 12 Ultimate and OpenGL 4.6 for broad API compatibility. Four display outputs enable multi-monitor setups up to 7680 x 4320 resolution.

Check power and slot clearance

Verify your motherboard provides a PCI Express 4.0 x16 slot for full bandwidth. The board requires two 8-pin power connectors and a minimum 650W power supply unit rated for 250W thermal design power. Measure case length and width clearance before ordering because the triple-fan cooler occupies three expansion slots. Ensure adequate airflow path from front intake to rear exhaust.

Thermals noise and power draw

The TRI FROZR 2 thermal design uses TORX Fan 4.0 blades working in pairs to generate focused air pressure across the heatsink. Core pipes make direct contact with the GPU die to spread heat along the full fin stack. Under typical gaming loads the card operates at its 250W power limit while fan curves balance temperature against acoustic output. Idle noise is minimal with semi-passive fan stop.

Highlights

  • 16 GB GDDR6 memory handles 4K textures and heavy workloads
  • Boost clock reaches 2155 MHz for high frame rates in demanding titles
  • Triple-fan TRI FROZR 2 cooler keeps temperatures low under load
  • PCI Express 4.0 interface doubles bandwidth over previous standard
  • Four display outputs including HDMI 2.1 and three DisplayPort 1.4a ports

Specifications

BrandMSI
SeriesGaming
ModelRX 6800 GAMING X TRIO 16G
InterfacePCI Express 4.0
Chipset ManufacturerAMD
GPU SeriesAMD Radeon RX 6000 Series
GPURadeon RX 6800
Core Clock1775 MHz
Boost Clock2155 MHz
Stream Processors3840
Effective Memory Clock16 Gbps
Memory Size16GB
Memory Interface256-Bit
Memory TypeGDDR6
DirectXDirectX 12 Ultimate
OpenGLOpenGL 4.6
Multi-Monitor Support4
HDMI1 x HDMI 2.1
DisplayPort3 x DisplayPort 1.4a
Max Resolution7680 x 4320
CrossFireX SupportCrossfire, 2-Way (Bridgeless) (DX12)
Virtual Reality ReadyYes
CoolerTriple Fans
Thermal Design Power250W
Recommended PSU Wattage650W
Power Connector2 x 8-Pin
HDCP ReadyYes
FeaturesTRI FROZR 2 Thermal Design
TORX Fan 4.0: A masterpiece of teamwork, fan blades work in pairs to create unprecedented levels of focused air pressure.
Core Pipe: Precision-crafted heat pipes ensure max contact to the GPU and spread heat along the full length of the heatsink.
Airflow Control: Don't sweat it, Airflow Control guides the air to exactly where it needs to be for maximum cooling.
RGB Mystic Light
Mystic Light gives you complete control of the RGB lighting for MSI devices and compatible RGB products.
Dragon Center
MSI's exclusive Dragon Center software lets you monitor, tweak
Max GPU Length324 mm

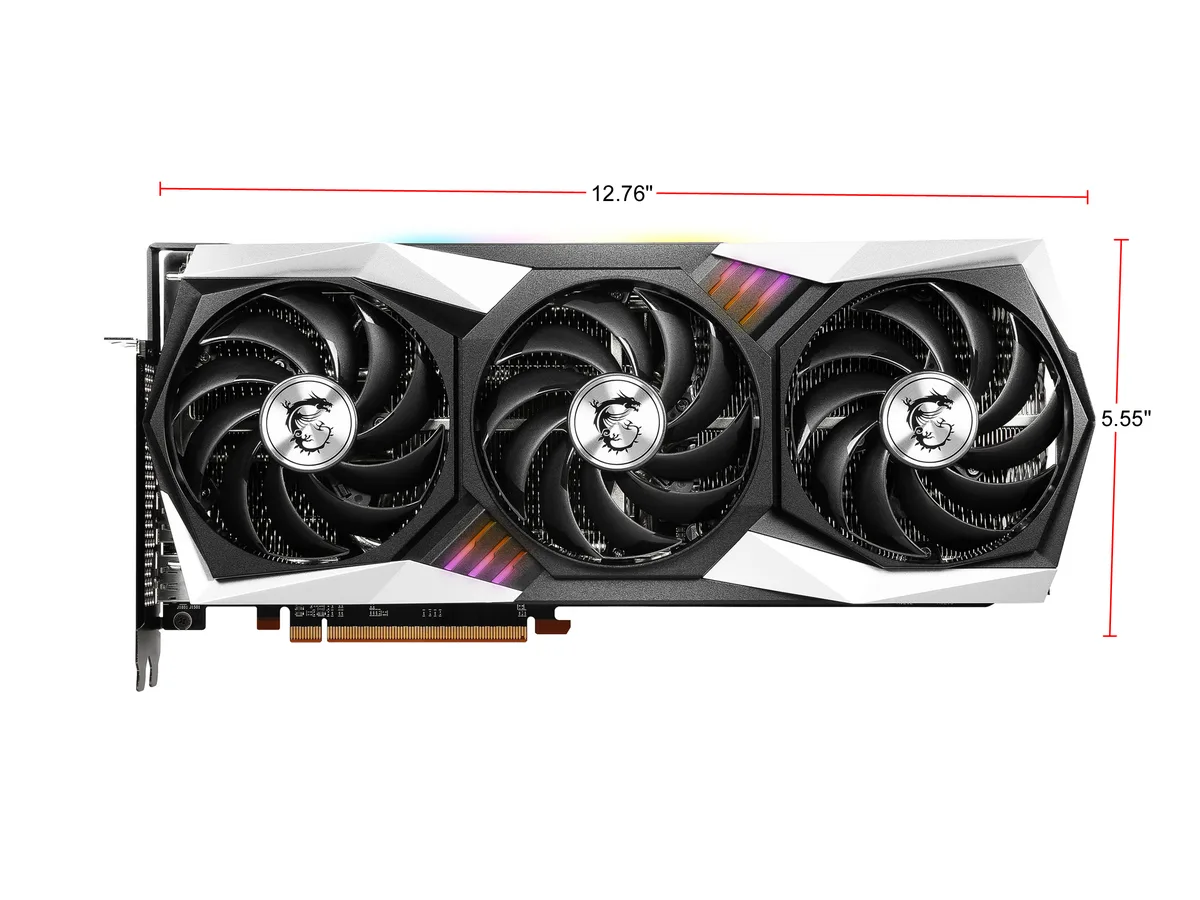

Card Dimensions (L x H)12.76" x 5.55"
Slot Width2.5-slot
Shipping weight2.40 kg
Package size405 × 298 × 90 mm

Questions about this item

What comes in the box with the MSI RX 6800 GAMING X TRIO 16G and what must I buy separately?

The card includes the TRI FROZR 2 cooler with three TORX Fan 4.0 units, a metal backplate and the dual 8-pin power cables attached. You must supply a PCI Express 4.0 slot, a 650 W power supply with two 8-pin connectors and your own display cables for the HDMI 2.1 and three DisplayPort 1.4a outputs.

How do I choose between the listed versions or capacities of the RX 6800 GAMING X TRIO?

This model is offered only with 16 GB of GDDR6 on a 256-bit bus and a boost clock of 2155 MHz; there are no alternative memory sizes or factory-overclocked variants in this SKU.

What does the 2155 MHz boost clock mean once the card is installed in my system?

It is the peak frequency the GPU can reach under load when power, temperature and driver conditions allow; sustained clocks will vary with your case airflow, PSU headroom and the workload you run.
