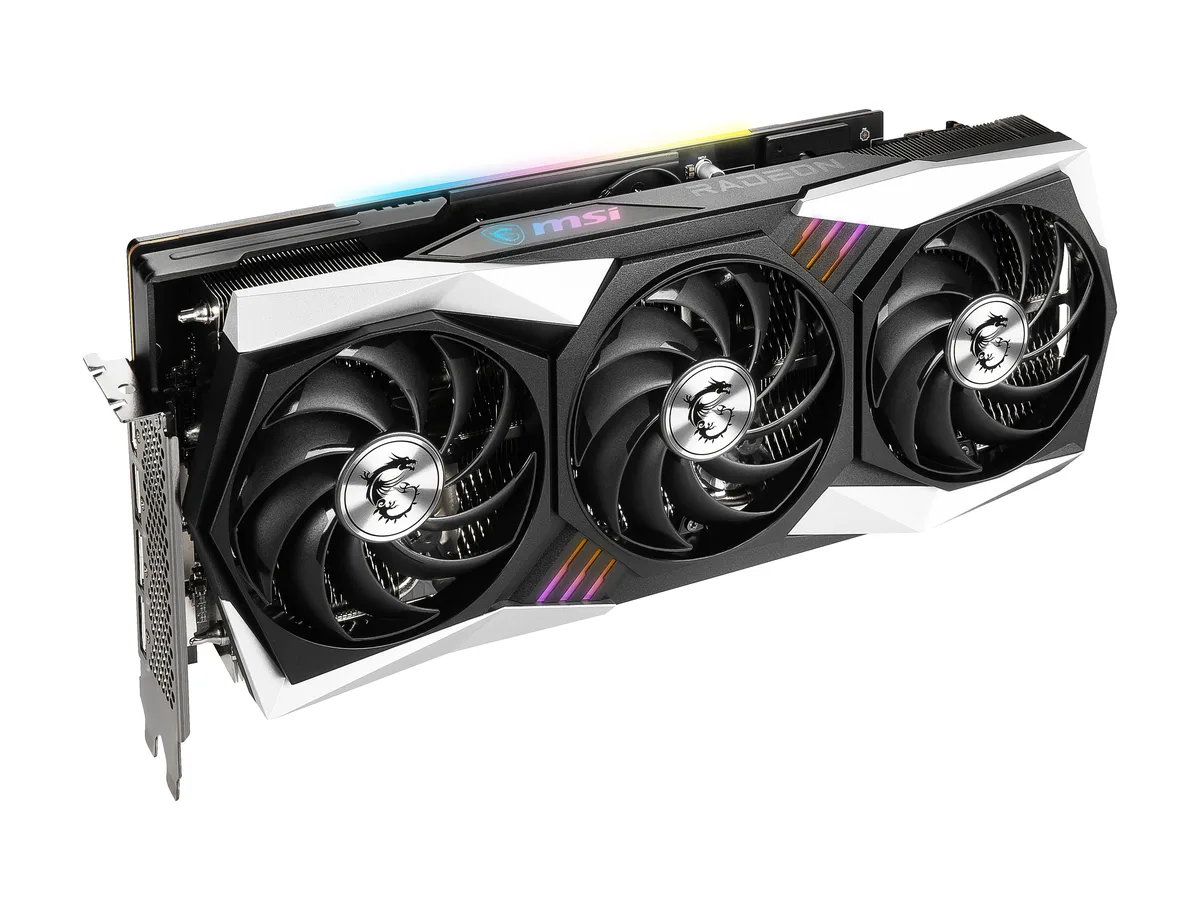

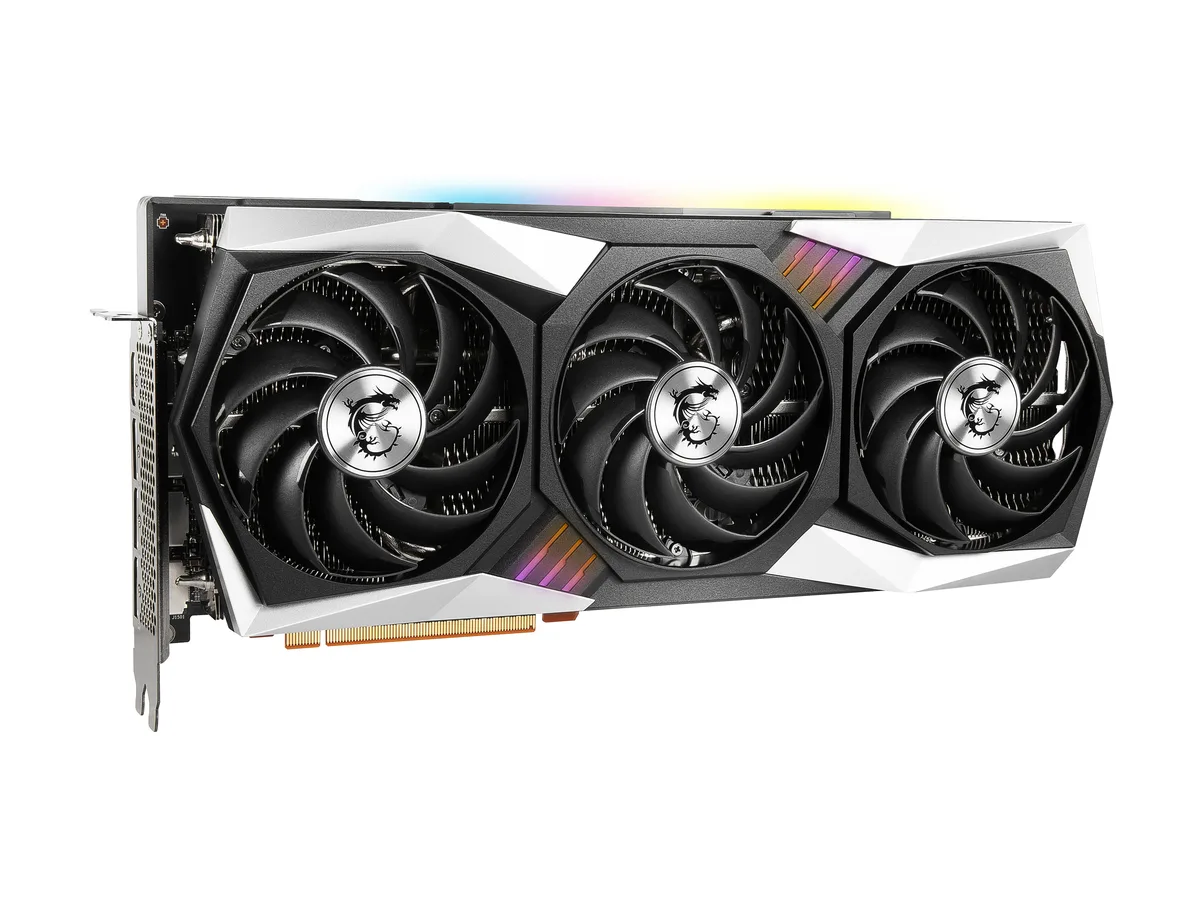

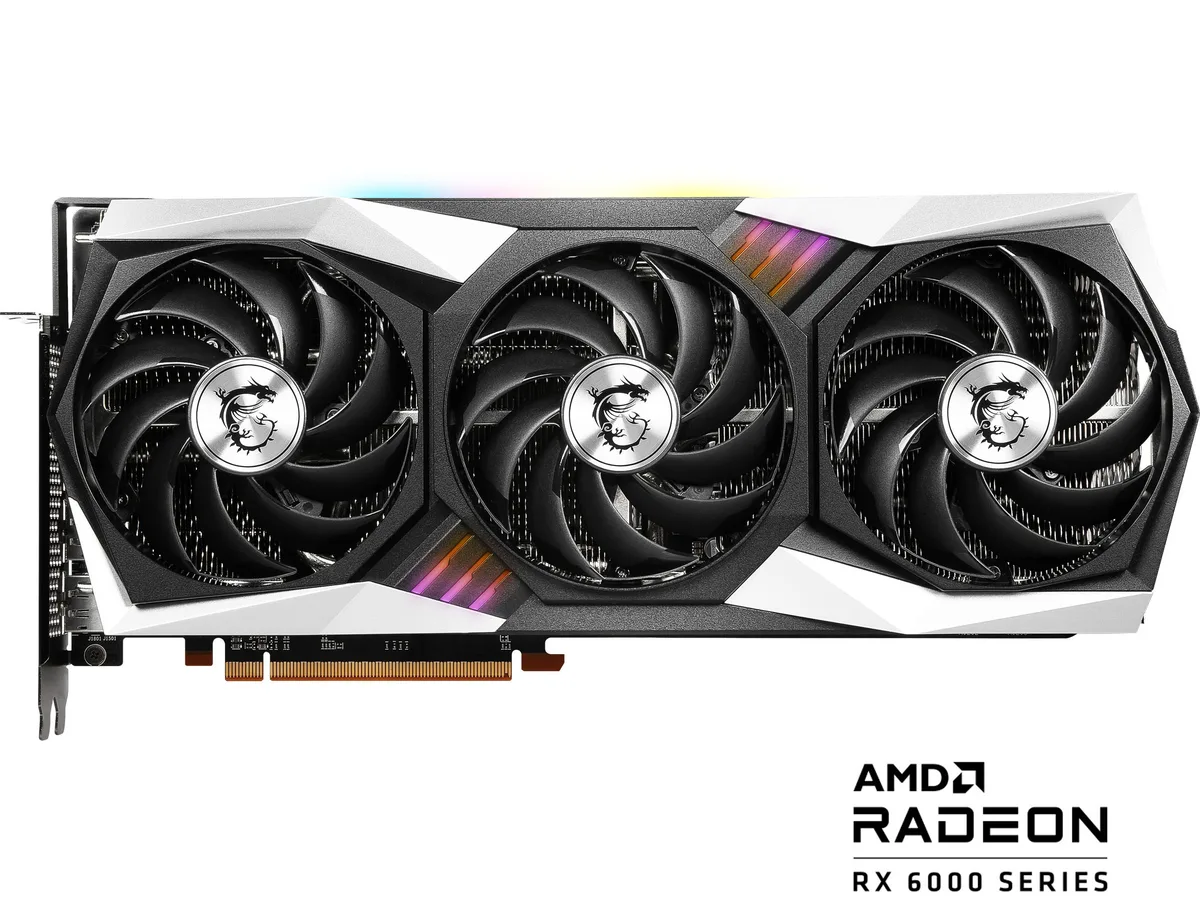

MSI Radeon RX 6800 XT Gaming X Trio triple-fan graphics card in matte black with silver accents

MSI

MSI RX6800XTGAMINGXTRIO graphics card

SKU CH-F91G-N7DF1 MPN RX6800XTGAMINGXTRIO

Refurbished Radeon RX 6800 XT graphics card with 16GB GDDR6 on a 256-bit bus, 4608 stream processors, boost clock 2285 MHz, triple-fan TRI FROZR 2 cooling.

  • InterfacePCI Express 4.0
  • Chipset ManufacturerAMD
  • GPU SeriesAMD Radeon RX 6000 Series
  • GPURadeon RX 6800 XT
  • Core Clock1850 MHz
  • Boost Clock2285 MHz
  • 16GB GDDR6 memory handles heavy textures and 4K assets
  • Boost clock of 2285 MHz pushes frame rates in demanding titles
  • Triple-fan TRI FROZR 2 cooler keeps temperatures low under load
  • PCI Express 4.0 interface delivers full bandwidth to the GPU
  • 1 HDMI 2.1 and 3 DisplayPort 1.4a outputs drive up to four displays

16GB GDDR6 for 4K Gaming

The MSI Radeon RX 6800 XT Gaming X Trio 16G is a refurbished graphics card built on the AMD Radeon RX 6000 Series architecture. It delivers 4608 stream processors and 16GB of GDDR6 memory across a 256-bit interface. The card targets enthusiasts aiming for high-refresh 1440p or entry-level 4K gameplay. DirectX 12 Ultimate and OpenGL 4.6 support cover modern API requirements.

Upgrade from 8GB or PCIe 3.0 Cards

Moving up from an 8GB model removes VRAM bottlenecks in texture-heavy titles at 1440p and 4K. The jump to PCI Express 4.0 increases host bandwidth when paired with a compatible CPU and motherboard. A boost clock of 2285 MHz lifts frame rates over reference designs. The improvement is most visible when current VRAM usage sits near capacity or the bus limits throughput.

Verify PSU, Case Space and Power Cables

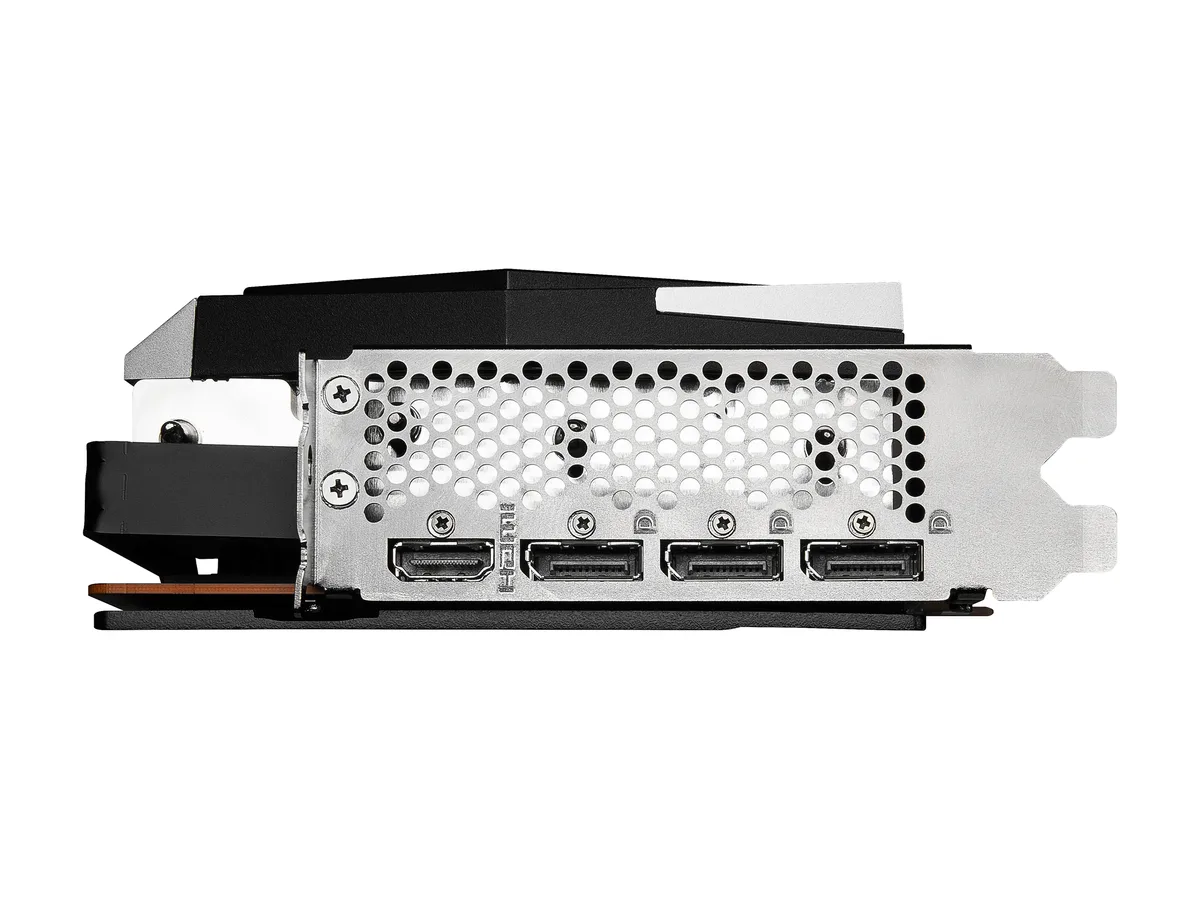

This model draws up to 300W and MSI recommends a 750W power supply with two 8-pin PCIe connectors. The triple-fan TRI FROZR 2 cooler occupies three expansion slots and adds length; confirm case clearance before ordering. Display outputs comprise one HDMI 2.1 and three DisplayPort 1.4a ports for up to four monitors at 7680 x 4320 maximum resolution.

Highlights

  • 16GB GDDR6 memory handles heavy textures and 4K assets
  • Boost clock of 2285 MHz pushes frame rates in demanding titles
  • Triple-fan TRI FROZR 2 cooler keeps temperatures low under load
  • PCI Express 4.0 interface delivers full bandwidth to the GPU
  • 1 HDMI 2.1 and 3 DisplayPort 1.4a outputs drive up to four displays

Specifications

BrandMSI
SeriesGaming
ModelRX 6800 XT GAMING X TRIO 16G
InterfacePCI Express 4.0
Chipset ManufacturerAMD
GPU SeriesAMD Radeon RX 6000 Series
GPURadeon RX 6800 XT
Core Clock1850 MHz
Boost Clock2285 MHz
Stream Processors4608
Effective Memory Clock16 Gbps
Memory Size16GB
Memory Interface256-Bit
Memory TypeGDDR6
DirectXDirectX 12 Ultimate
OpenGLOpenGL 4.6
Multi-Monitor Support4
HDMI1 x HDMI 2.1
DisplayPort3 x DisplayPort 1.4a
Max Resolution7680 x 4320
CrossFireX SupportCrossfire, 2-Way (Bridgeless) (DX12)
Virtual Reality ReadyYes
CoolerTriple Fans
Thermal Design Power300W
Recommended PSU Wattage750W
Power Connector2 x 8-Pin
HDCP ReadyYes
FeaturesTRI FROZR 2 Thermal Design
TORX Fan 4.0: A masterpiece of teamwork, fan blades work in pairs to create unprecedented levels of focused air pressure.
Core Pipe: Precision-crafted heat pipes ensure max contact to the GPU and spread heat along the full length of the heatsink.
Airflow Control: Don't sweat it, Airflow Control guides the air to exactly where it needs to be for maximum cooling.
RGB Mystic Light
Mystic Light gives you complete control of the RGB lighting for MSI devices and compatible RGB products.
Dragon Center
MSI's exclusive Dragon Center software lets you monitor, tweak
Max GPU Length324 mm
Card Dimensions (L x H)12.76" x 5.55"
Slot Width2.5-slot
Shipping weight2.42 kg
Package size408 × 298 × 90 mm

Questions about this item

How much case clearance does the triple-fan TRI FROZR 2 cooler on this RX 6800 XT GAMING X TRIO need?

The card uses a triple-fan TRI FROZR 2 thermal design with Core Pipes and TORX Fan 4.0 blades; measure your case against a typical three-slot, triple-fan layout before ordering.

What power connectors must be seated for the 300 W TDP, and which step do builders often miss?

Two 8-pin PCIe connectors are required; the step most often missed is plugging both in fully until the latches click, otherwise the card will not reach its 2285 MHz boost clock.

When should the thermal paste under the Core Pipes be renewed on this 16 GB GDDR6 model?

Refresh the paste every two to three years or if GPU temperatures rise noticeably above stock levels, using a thin, even layer to maintain full contact between the GPU die and the heat pipes.
