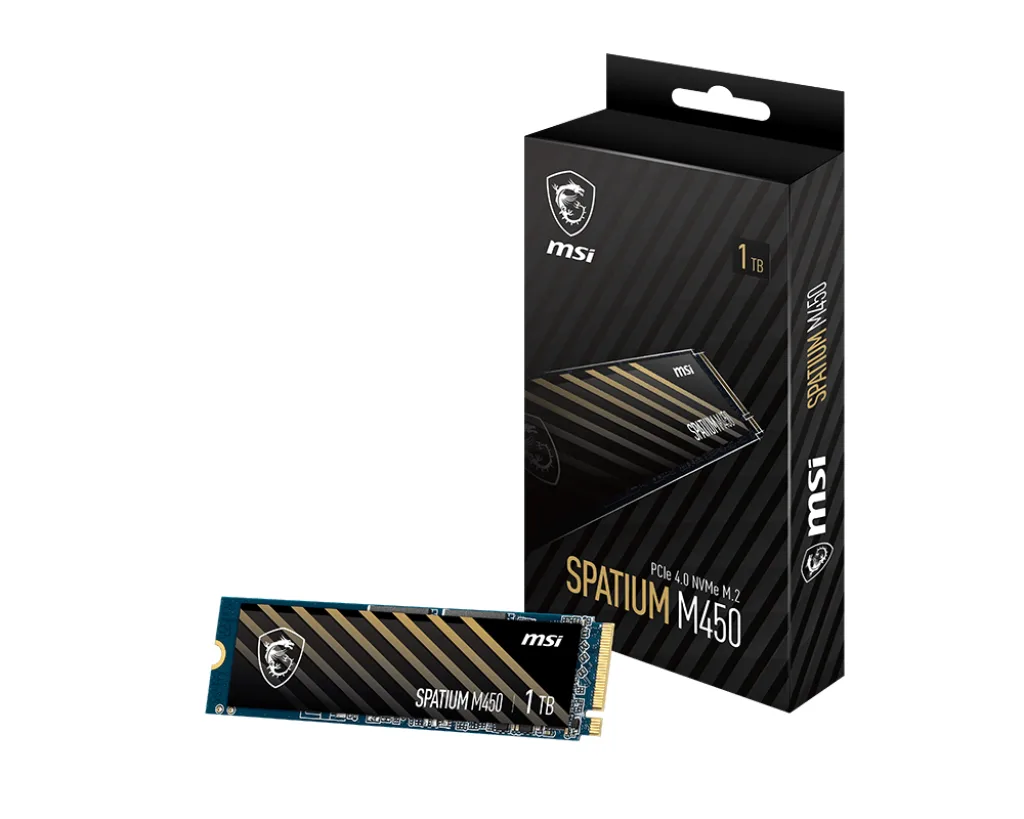

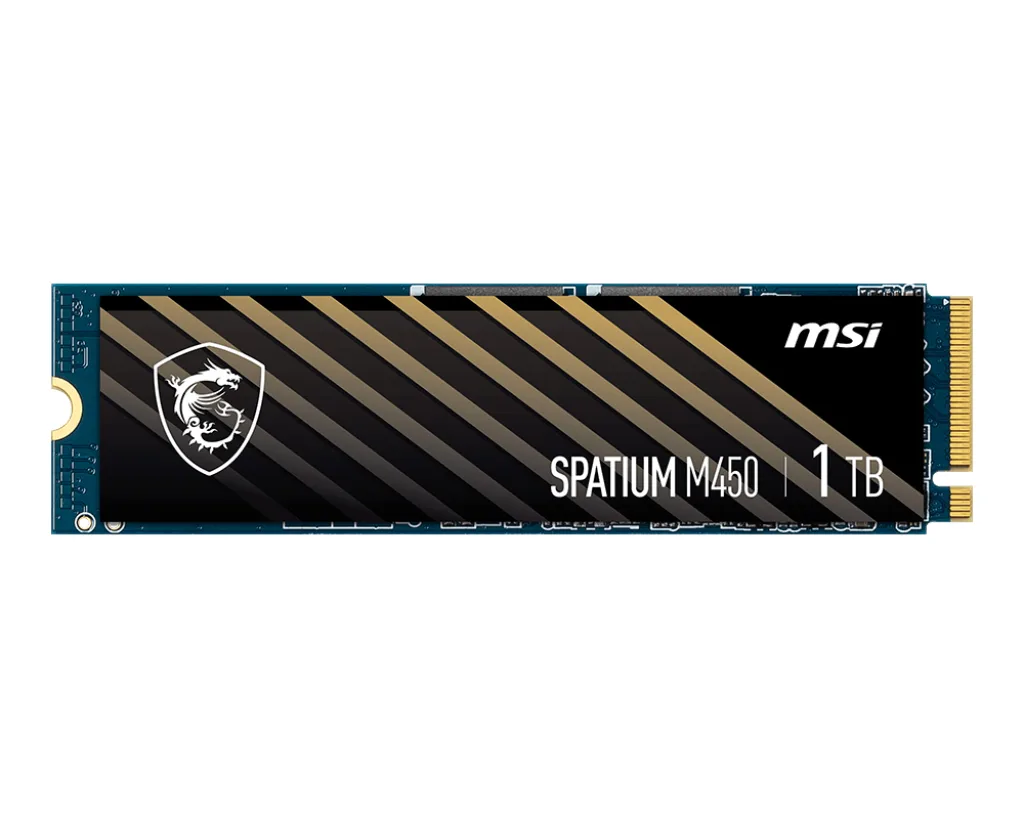

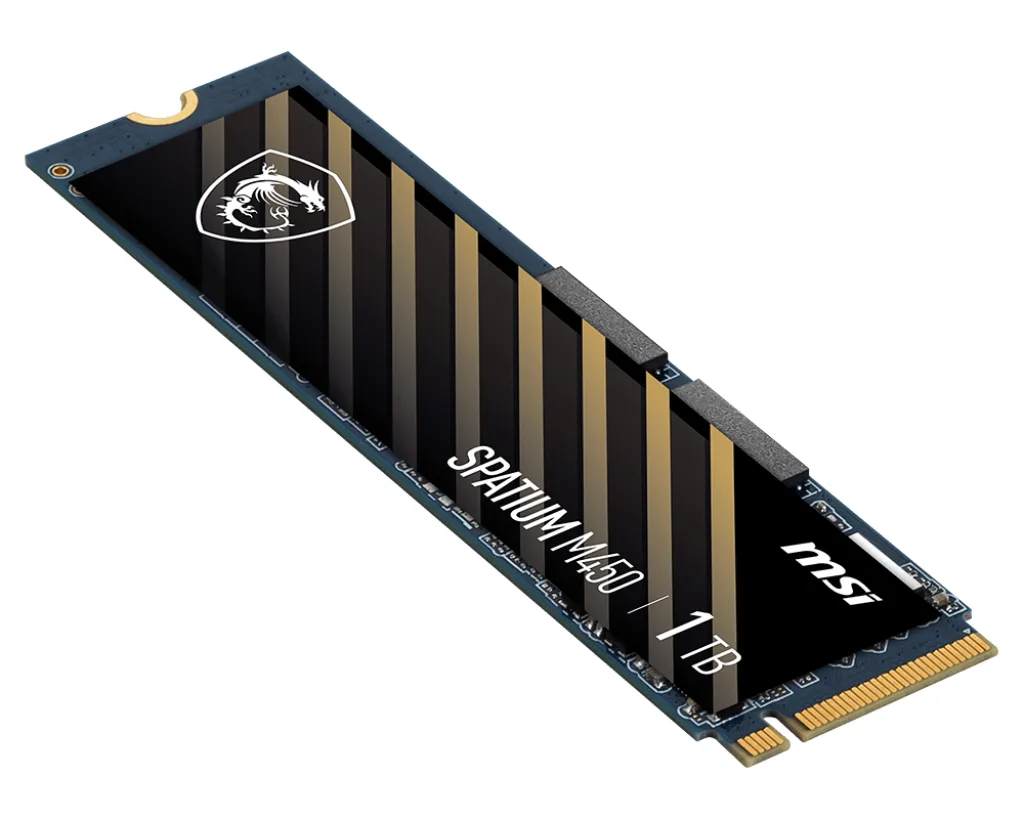

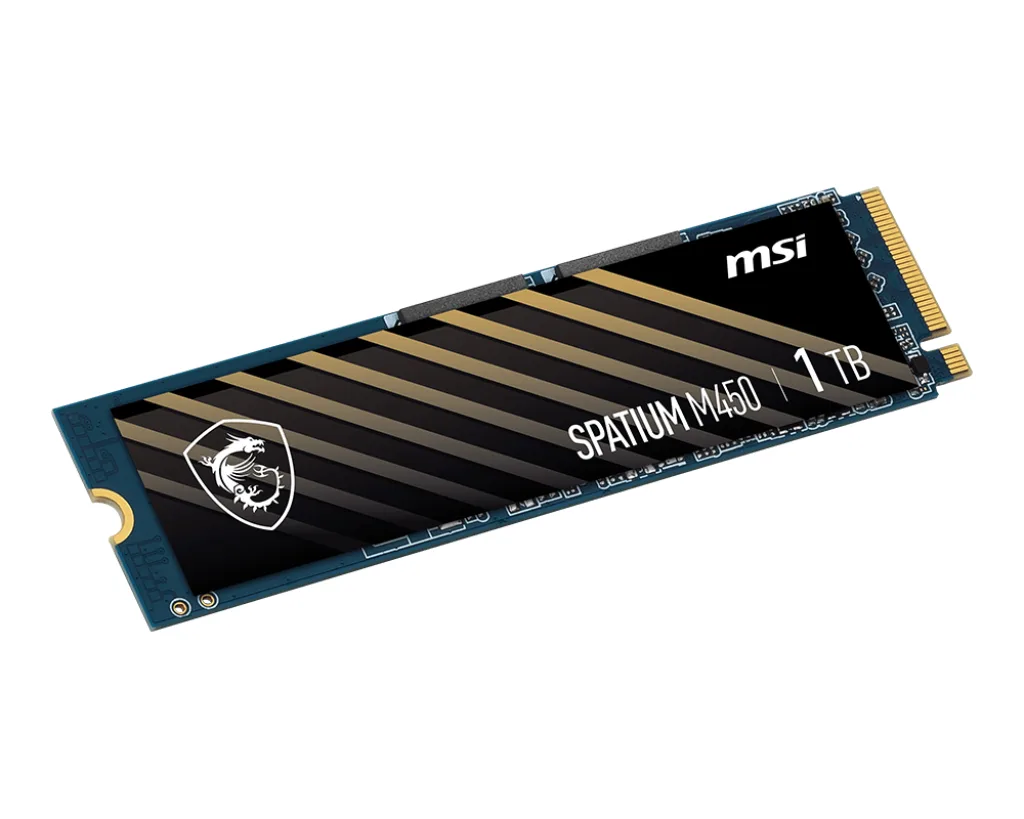

Green printed circuit board M.2 2280 SSD with black controller and silver label

MSI

MSI SPATIUM M450 1TB M.2 2280 PCIe 4.0 x4 NVMe internal SSD SM450N1TBV1

SKU CH-T1N2-G3Z4J MPN SM450N1TBV1

1TB PCIe 4.0 x4 NVMe M.2 2280 SSD with 3400 MB/s reads, 2400 MB/s writes and 350 TBW endurance

  • Device TypeInternal Solid State Drive (SSD)
  • Form FactorM.2 2280
  • Capacity1TB
  • InterfacePCI-Express 4.0 x4
  • ProtocolNVMe 1.4
  • ControllerPHISON E19T
  • Fast game loads with up to 3400 MBps sequential read
  • Responsive multitasking from up to 2400 MBps sequential write
  • Quick file access via 500,000 IOPS random read
  • Smooth heavy workloads with 550,000 IOPS random write
  • Long-term reliability backed by 350 TBW endurance rating

M.2 2280 NVMe drive for PCIe 4.0 systems

The MSI SPATIUM M450 1TB fits the M.2 2280 slot and uses a PCI-Express 4.0 x4 link with NVMe 1.4. The PHISON E19T controller operates without a DRAM cache, relying on Host Memory Buffer support from the operating system. It targets builds that need 1TB of solid-state storage at up to 3400 MBps read and 2400 MBps write.

Sustained load behaviour with 350 TBW endurance

The drive is rated for 350 TBW and an MTBF of 1,500,000 hours, indicating how much data can be written over its lifetime. LDPC error correction and end-to-end data path protection maintain integrity during long write sessions. APST and a 35 mW idle power level help manage thermals inside the 0 °C to 70 °C operating window.

Straightforward M.2 installation

The single-sided 22.00 mm by 80.00 mm board secures with one screw; no cables are needed. Ensure the motherboard BIOS enables PCIe 4.0 for the slot and that the OS supports Host Memory Buffer, otherwise performance drops to PCIe 3.0 speeds. The 2.15 mm thickness clears most laptop and desktop M.2 sockets.

Highlights

  • Fast game loads with up to 3400 MBps sequential read
  • Responsive multitasking from up to 2400 MBps sequential write
  • Quick file access via 500,000 IOPS random read
  • Smooth heavy workloads with 550,000 IOPS random write
  • Long-term reliability backed by 350 TBW endurance rating

Specifications

BrandMSI
SeriesSPATIUM Series
ModelSM450N1TBV1
Device TypeInternal Solid State Drive (SSD)
Form FactorM.2 2280
Capacity1TB
InterfacePCI-Express 4.0 x4
ProtocolNVMe 1.4
ControllerPHISON E19T
CacheNo DRAM (HMB)
Max Sequential ReadUp to 3400 MBps
Max Sequential WriteUp to 2400 MBps
4KB Random ReadUp to 500,000 IOPS
4KB Random WriteUp to 550,000 IOPS
Terabytes Written (TBW)350TB
MTBF1,500,000 hours
FeaturesTRIM (Performance Optimization, OS support required)
SMART (Self-Monitoring, Analysis and Reporting Technology)
LDPC (Low Density Parity Check) ECC Algorithm
End to End Data Path Protection
APST (Autonomous Power State Transition)
Pyrite (Encryption, Data Security)
Power Consumption (Idle)35mW
Operating Temperature0°C ~ +70°C
Storage Temperature-40°C ~ +85°C
Height80.00mm
Width22.00mm
Depth2.15mm
Shipping weight0.05 kg
Package size145 × 79 × 25 mm

Questions about this item

How much power does the SPATIUM M450 draw at idle and what is its maximum operating temperature?

Idle power consumption is 35mW and the drive is rated to operate up to 70°C.

Does the M.2 2280 slot need to support PCIe 4.0 x4 and NVMe 1.4 for this drive to work?

Yes, the drive requires a motherboard M.2 slot wired for PCIe 4.0 x4 and NVMe 1.4 protocol.

Will the PHISON E19T controller with HMB work on an older PCIe 3.0 motherboard?

The drive is backward compatible with PCIe 3.0 slots, though sequential speeds will be limited to the 3.0 bus.
